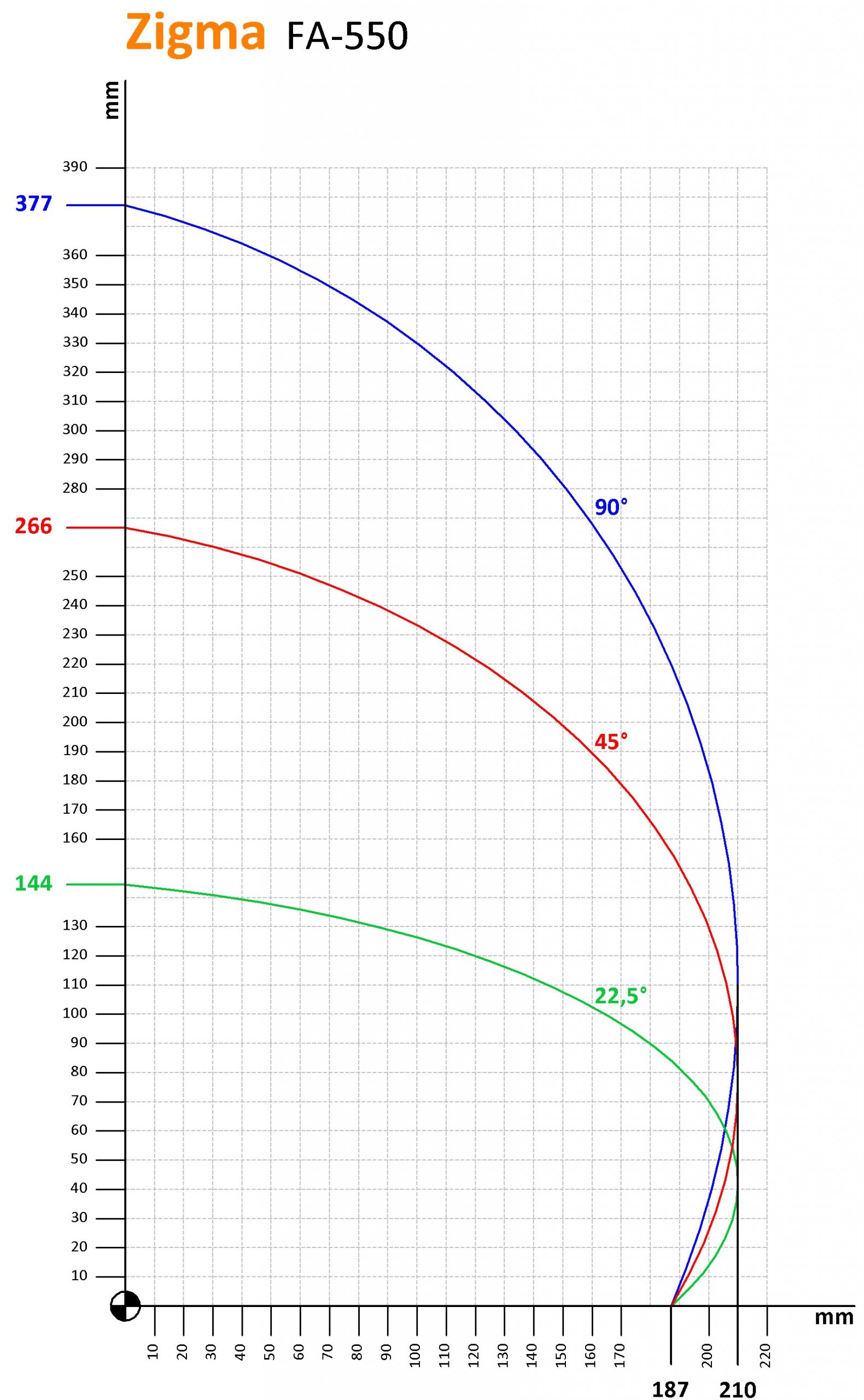

Zigma-FA550_Kesme-Kapasitesi-scaled
Full Automatic CNC Double Head Automatic Saw
Full Automatic CNC Double Head Automatic Saw 1
Full Automatic CNC Double Head Automatic Saw2
Full Automatic CNC Double Head Automatic Saw 2
Full Automatic CNC Double Head Automatic Saw.jpg 4
Full Automatic CNC Double Head Automatic Saw 3
Full Automatic CNC Double Head Automatic Saw 5
Zigma-FA550_Kesme-Kapasitesi-scaled
User's ManualUser's Manual CatalogCatalog VideoVideo 3D Animation Machine3D Animation

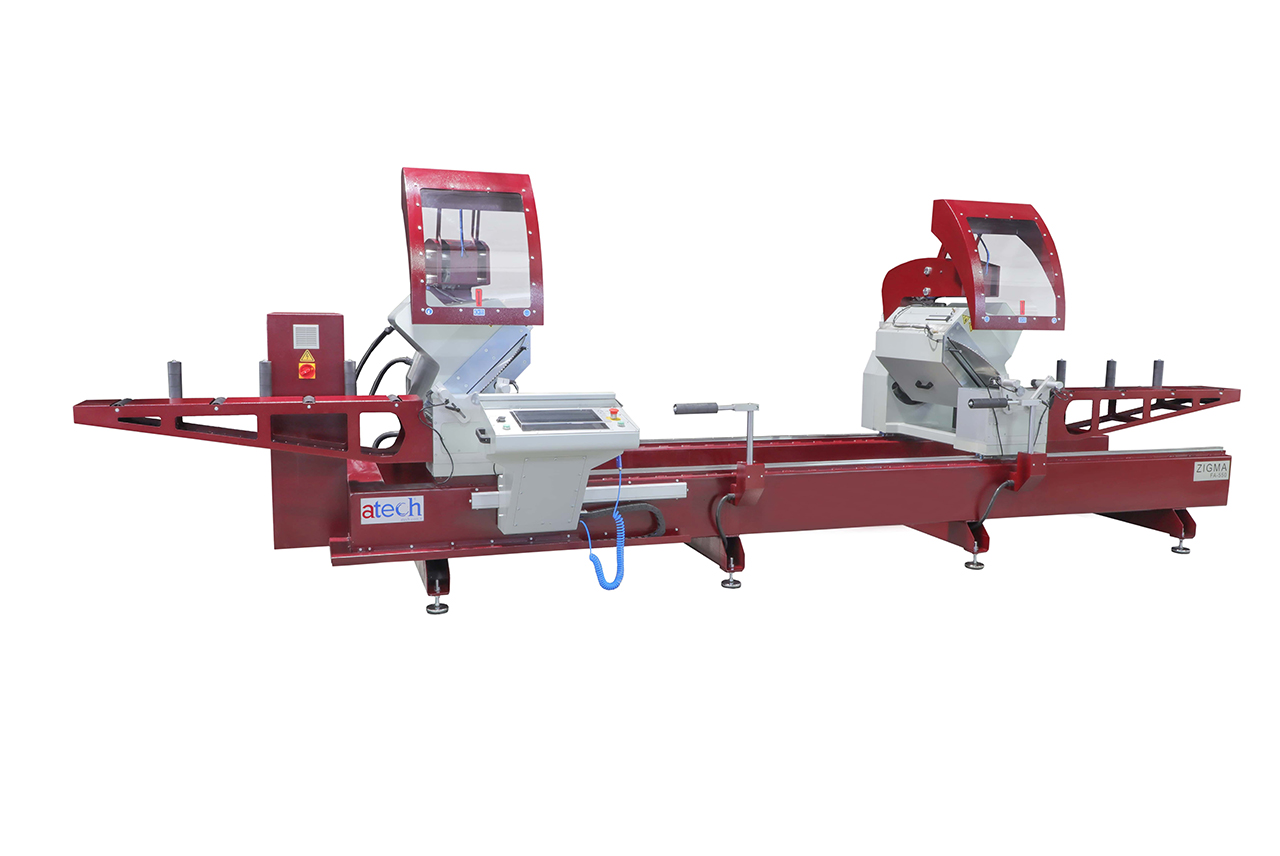

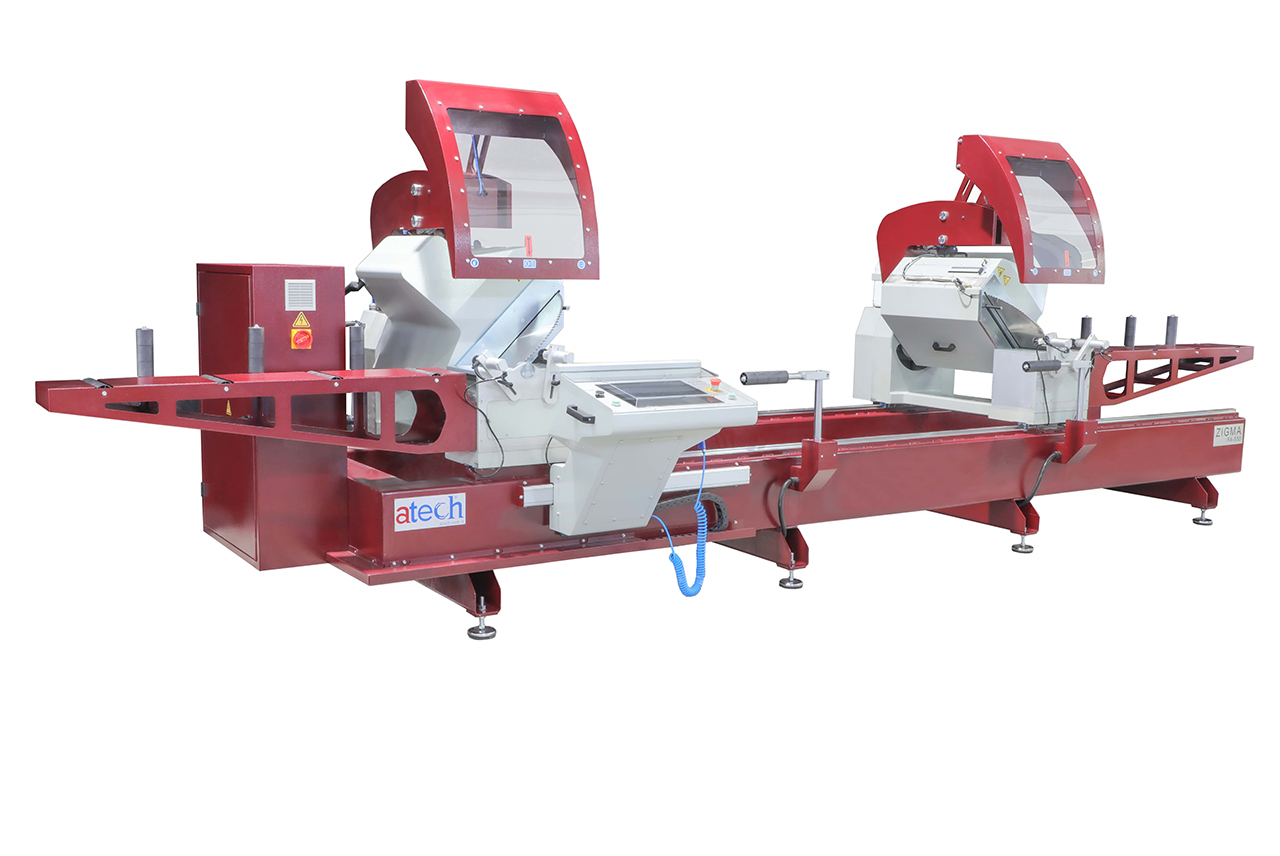

Zigma-06 FA is a heavy duty full automatic double head CNC miter saw equipped with 22″ (550 mm) carbide tipped saw blade, and designed for straight and miter cut of aluminum, vinyl profiles and wood.
GENERAL FEATURES
  • 2 x 3,0 kW Motor
  • 15” PC touch screen
  • With its servo motor the head angles and head movements can be positioned precisely
  • By servo motor angles between -22,5 and +45 can be positioned automatically.
  • Robust machine body
  • With a hydro-pneumatic cutting unit the speed of the blade can be adjusted precisely.
  • The saw blade stroke is adjustable from the top. That means, that you can limit how far the saw blade comes out.
  • Cuts greater than the strok
  • Slicing, angle slicing, pieces of cutting profiles list and etc. are programmable.
  • Equipped with modem for remote access for online servicing and programming
Standart Equipment
  • 2 x Ø550 mm saw blades
  • 4 pcs. Horizontal clamps
  • Spray lubrication system
  • Airgun
  • Conveyor on movable saw head
  • 2 pcs. profile rest system
Optional
  • Barcode Reader
  • Spray mist lubrication system
  • 2 pcs. Vertical clamps.
  • Chip collector monifold
  • 4,0 kW Electric motor
  • Conveyor on fixed saw head
  • Available also in 6 m (20′) length
Technical Data
  • Servo motor: 3×0.75 kW
  • Saw motor: 2×3 kW ( HP)
  • Saw blade size: D=550 mm (22″) d=30-32 mm
  • Saw blade r.p.m.: 3,000
  • Air pressure: 6-8 Bar (90-115 psi) / 110 l/min.
  • Overall dimensions: 595x170x200 cm (234″x67″x79″)
  • Weight: 1,800 kg (3,960 lbs)
  • Cutting lengths:
    90° Min: 390 mm (15″) Max: 5050 mm (199″)
    45° Min: 595 mm (23″) Max: 5050 mm (199″)

Technical specifications and features are subject to change without prior notice.
