ZETA
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
ZETA-02 A Automatic Double Glazing Bead Saw Zeta-02 A is a automatic double glazing bead saw. It has 4 main parts; a multi-stop infeed table, an easy measuring apparatus, 4 – 1/2″ & 8″ saw blades, and... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

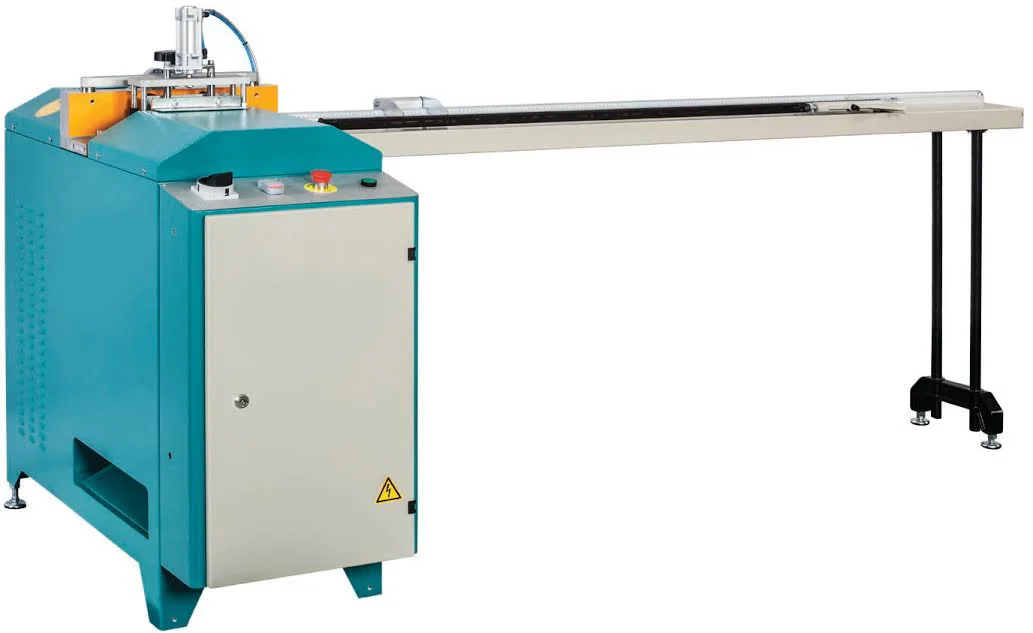

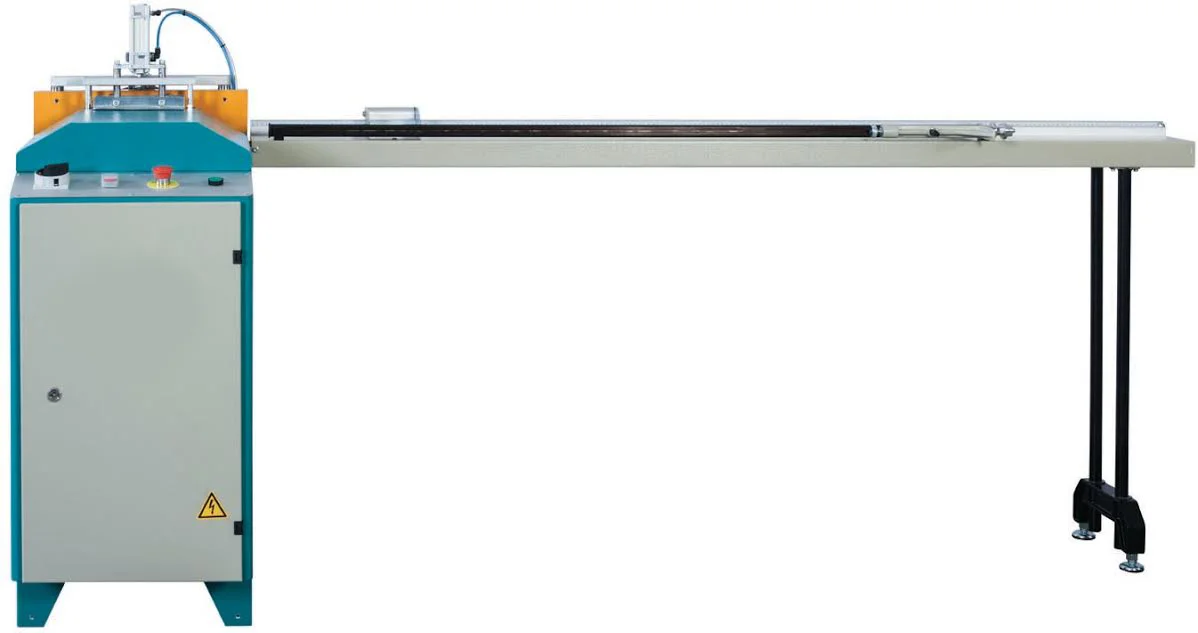

Zeta-02 A is a automatic double glazing bead saw. It has 4 main parts; a multi-stop infeed table, an easy measuring apparatus, 4 – 1/2″ & 8″ saw blades, and an air gun.
Technical Features
- Automatic glazing bead saw designed for cutting of vinyl
glazing beads at 45° - Allows to cut 8 different glazing beads with a single fixture

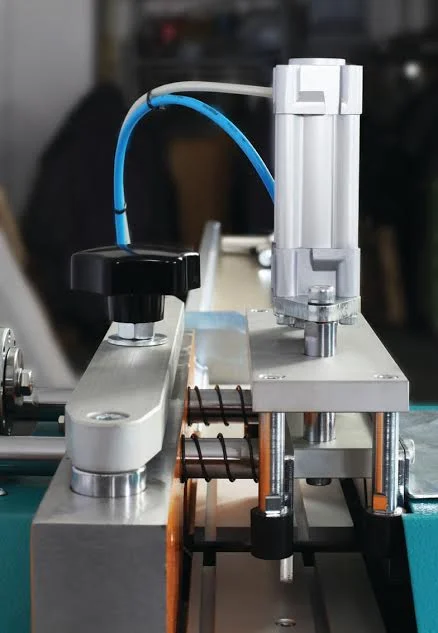

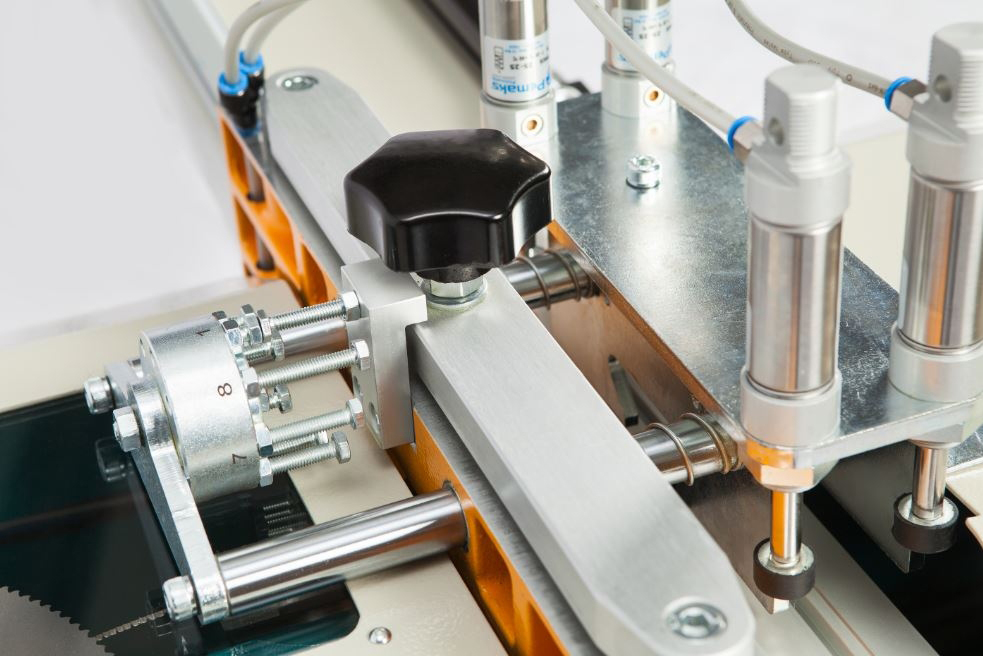

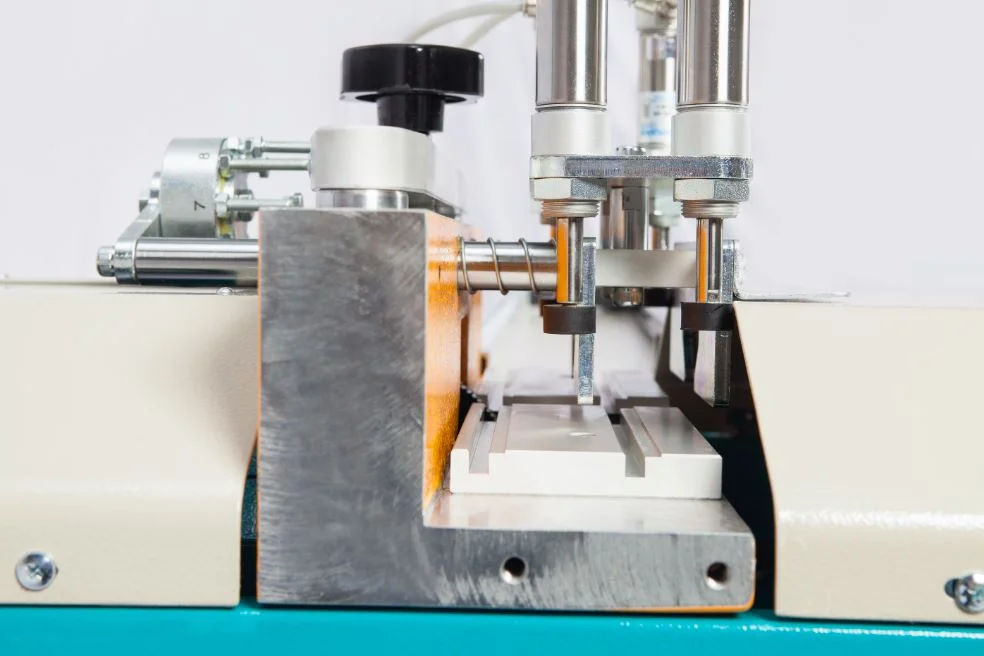

- Equipped with pneumatic clamping system and two saw
blades with cutting speed adjustment - Machine has been designed according to CE, UL, CSA
Safety Directives - Clamping system is pneumatic, while cutting is automatic
- Cutting speed is adjustable
- After finishing the cutting operation the saw blades return
to their original position automatically
Standart Equipment
- Multi-stop infeed table
- Easy Measuring Apparatus
- 4-1/2″ & 8″ Saw blades
- Air Gun
- User’s Manual
Optional Equipment
- Spare HSS saw blade
- Automatic Positioner SKN301
Technical Table
Technical Features Imperial
| 2×1.6 HP 3-Phase 220V 60 Hz | d=1.26″ D=8″ | 3000 rpm | 90-120 psi 0.8 CFM | 24″x52″x51″ | 310 lbs |
Technical Features Metric
| 2x 1.2 kW 400V 50 Hz | D=200mm d=30-32 mm | 2.2 kW 1-Phase 230V 50Hz | 6-8 Bar 24 l/min | 61x132x130 cm | 140 kg |
Automatic Double Glazing Bead Saw
Automatic Double Glazing Bead Saw
Zeta-02 A is a automatic double glazing bead saw. It has 4 main parts; a multi-stop infeed table, an easy measuring apparatus, 4 – 1/2″ & 8″ saw blades, and an air gun.
Zeta-02 A’s automatic glazing bead saw is designed for cutting vinyl glazing beads at a 45° angle and it allows the cutting of 8 different glazing beads with a single fixture. It is also equipped with a pneumatic clamping system and two saw blades with cutting speed adjustment. Its clamping system is pneumatic, while the cutting is automatic and the cutting speed is adjustable. The saw blades return to their original position automatically after finishing the cutting operation.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Zeta-02 A at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and parts list.
Technical specifications and features are subject to change without prior notice.
