Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.

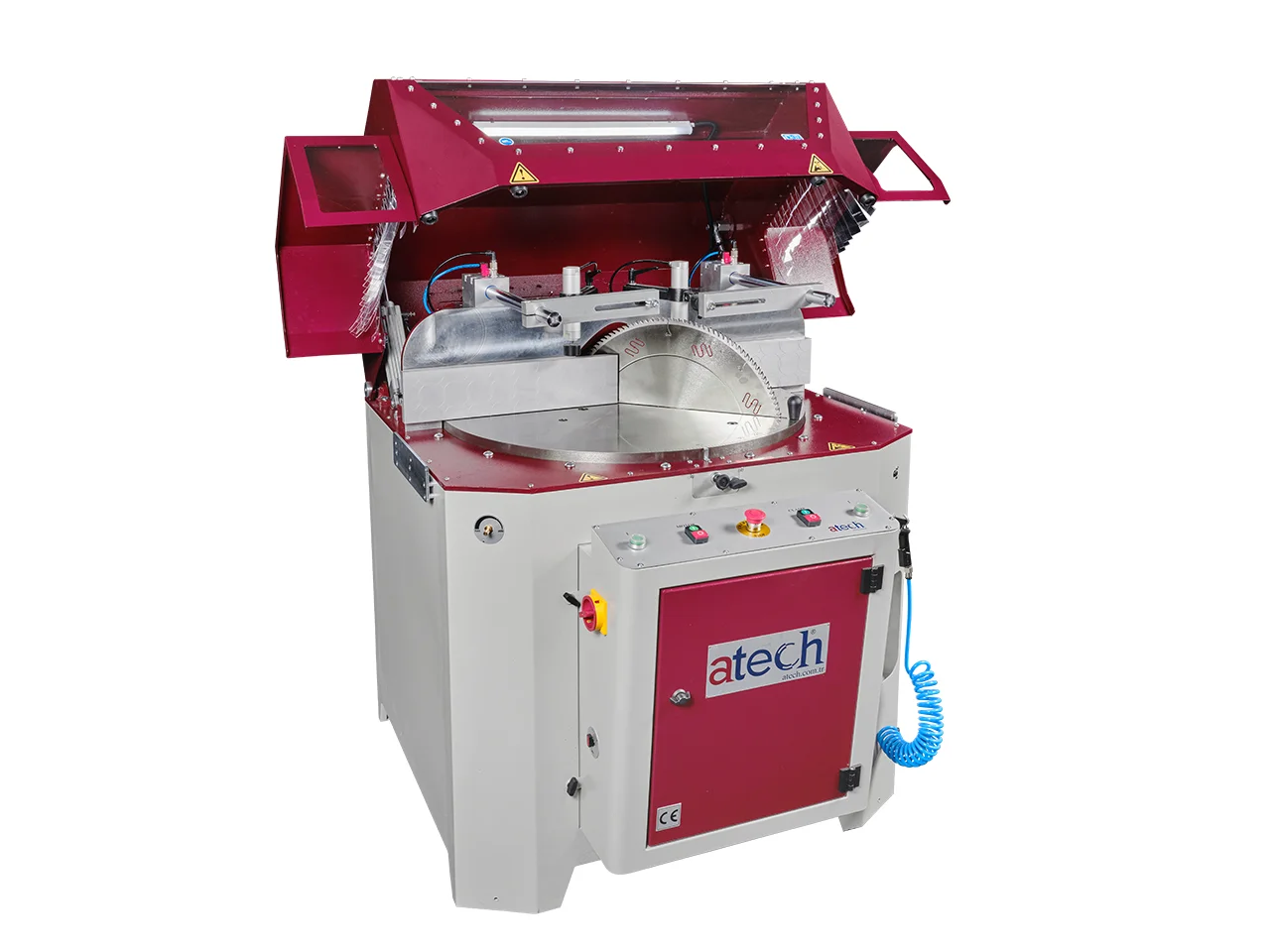

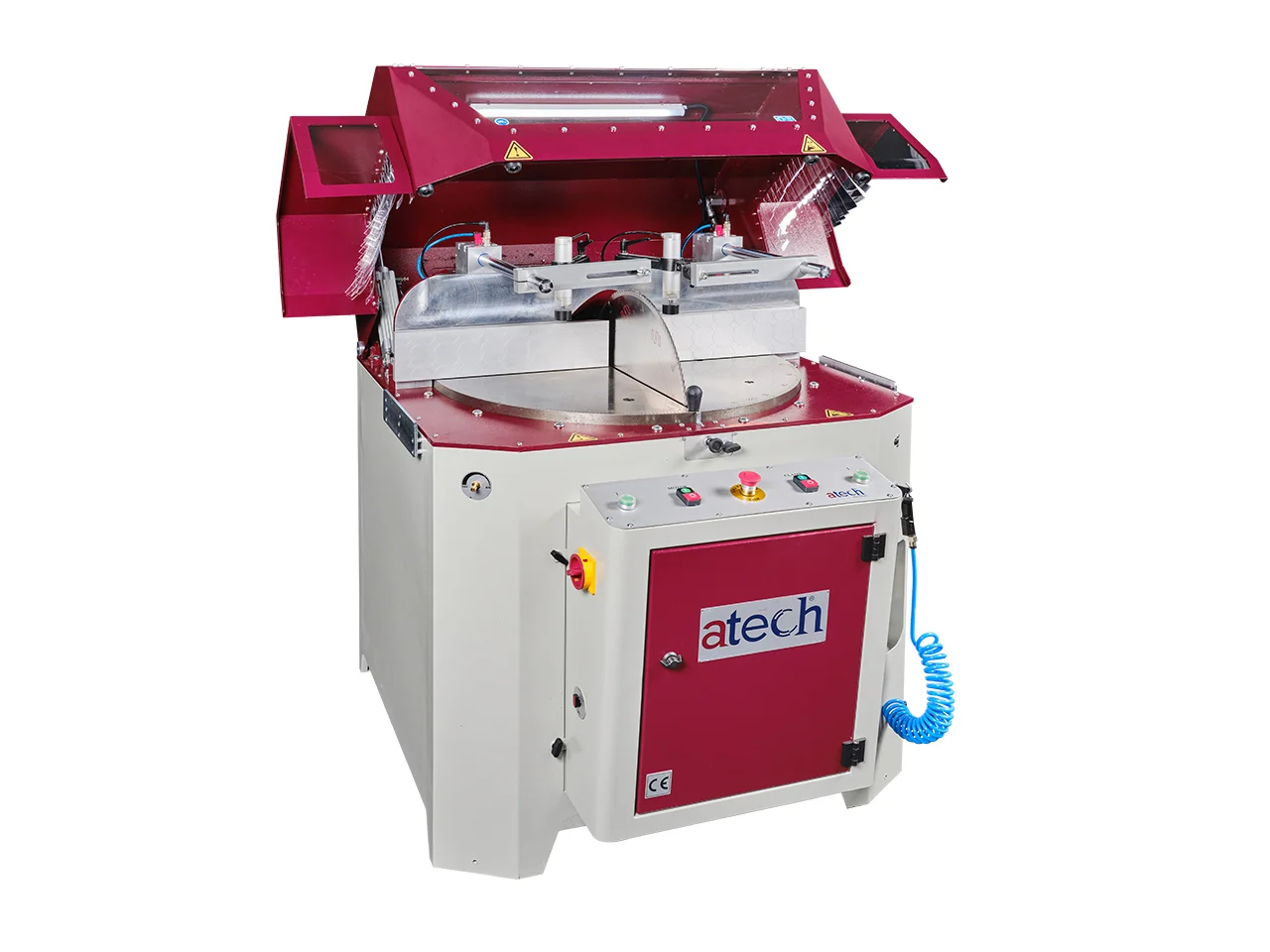

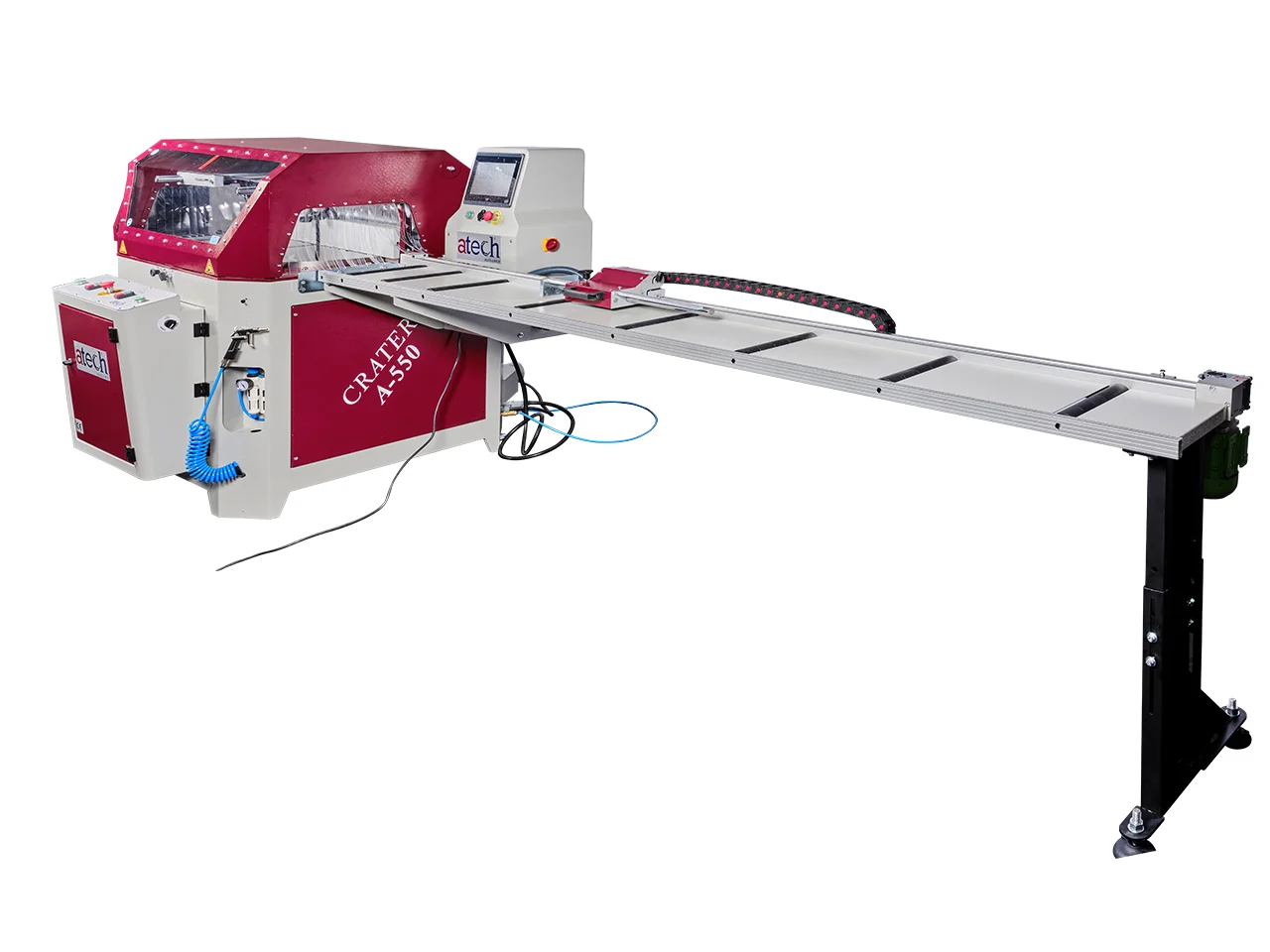

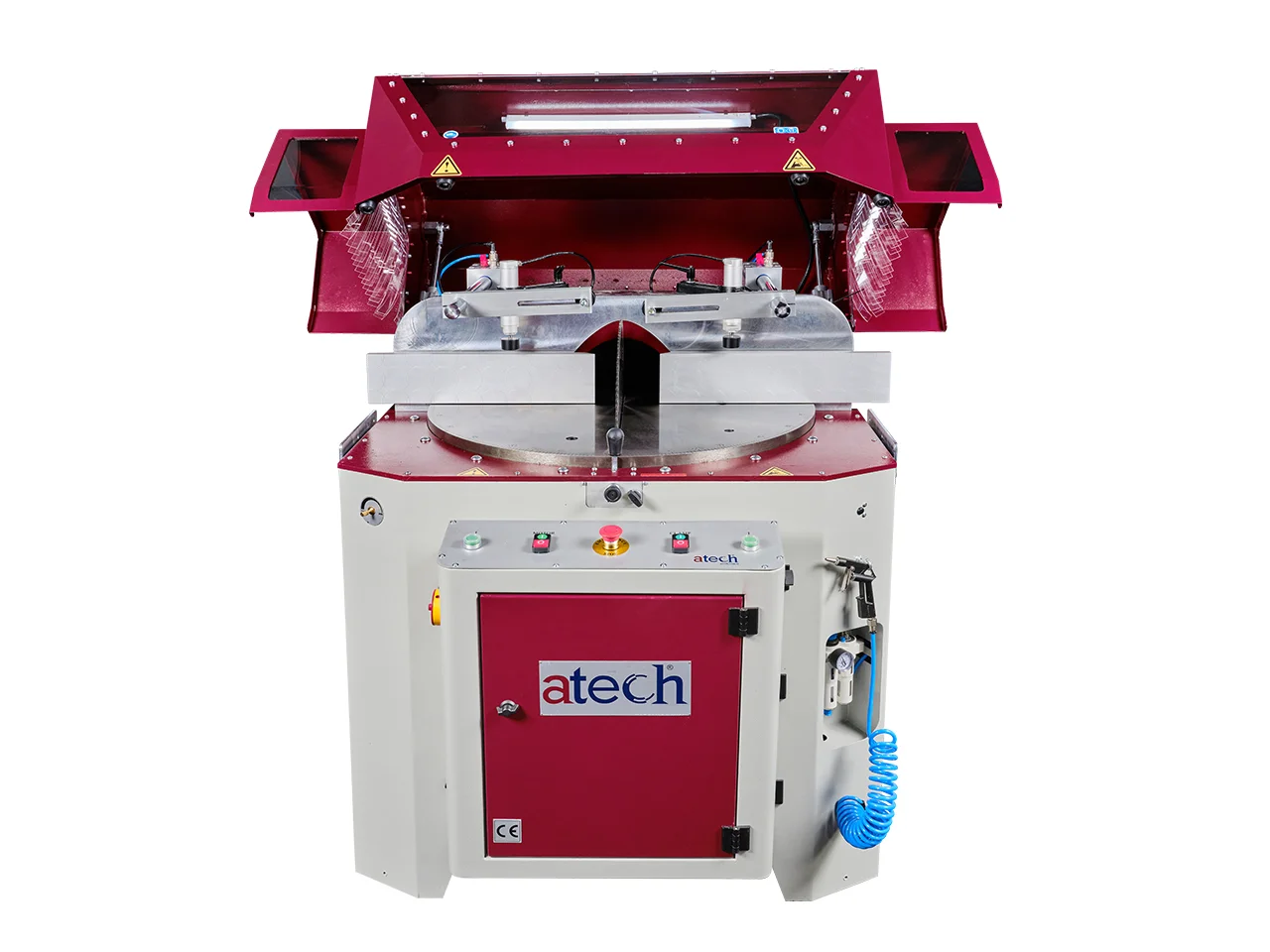

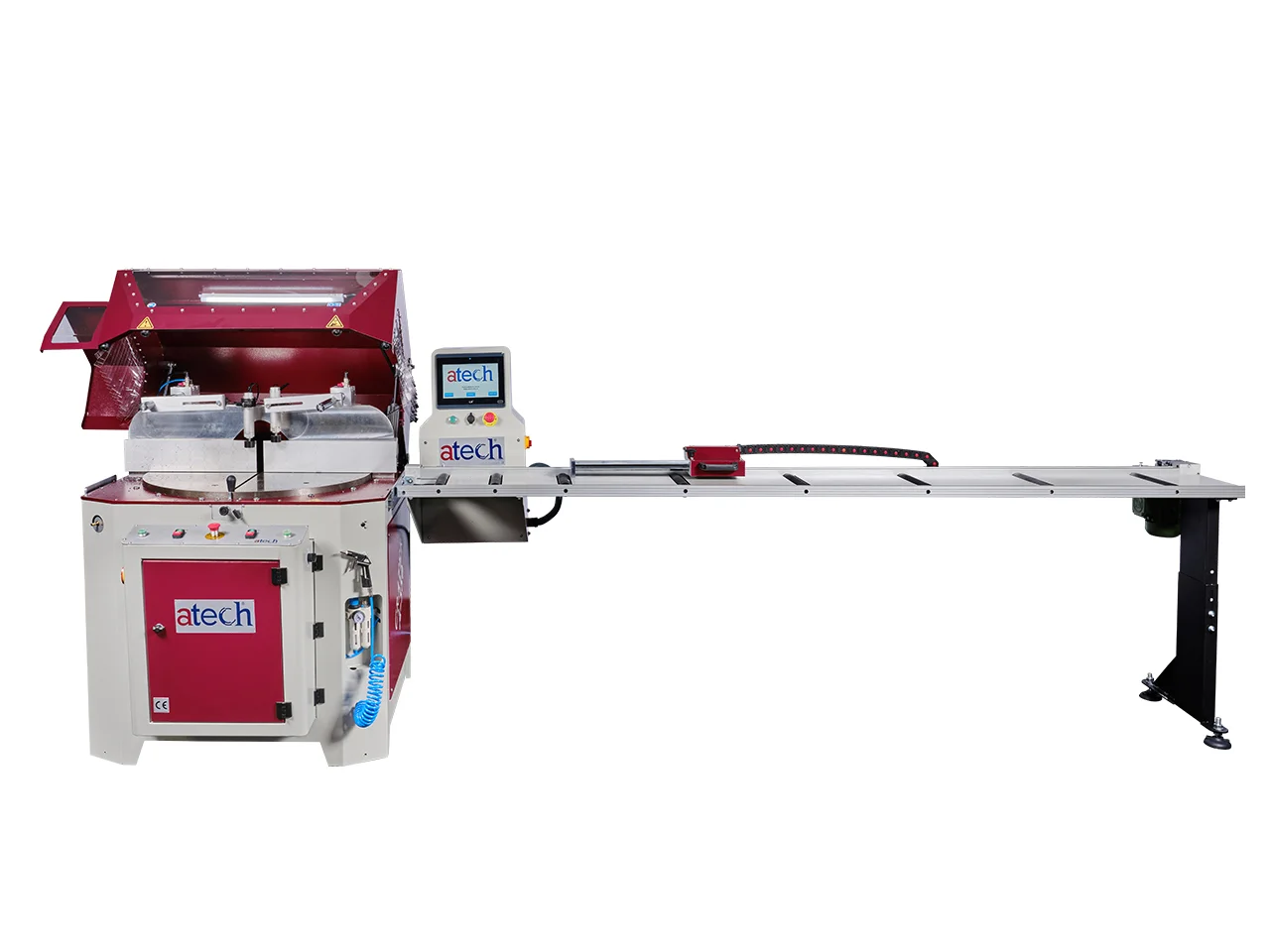

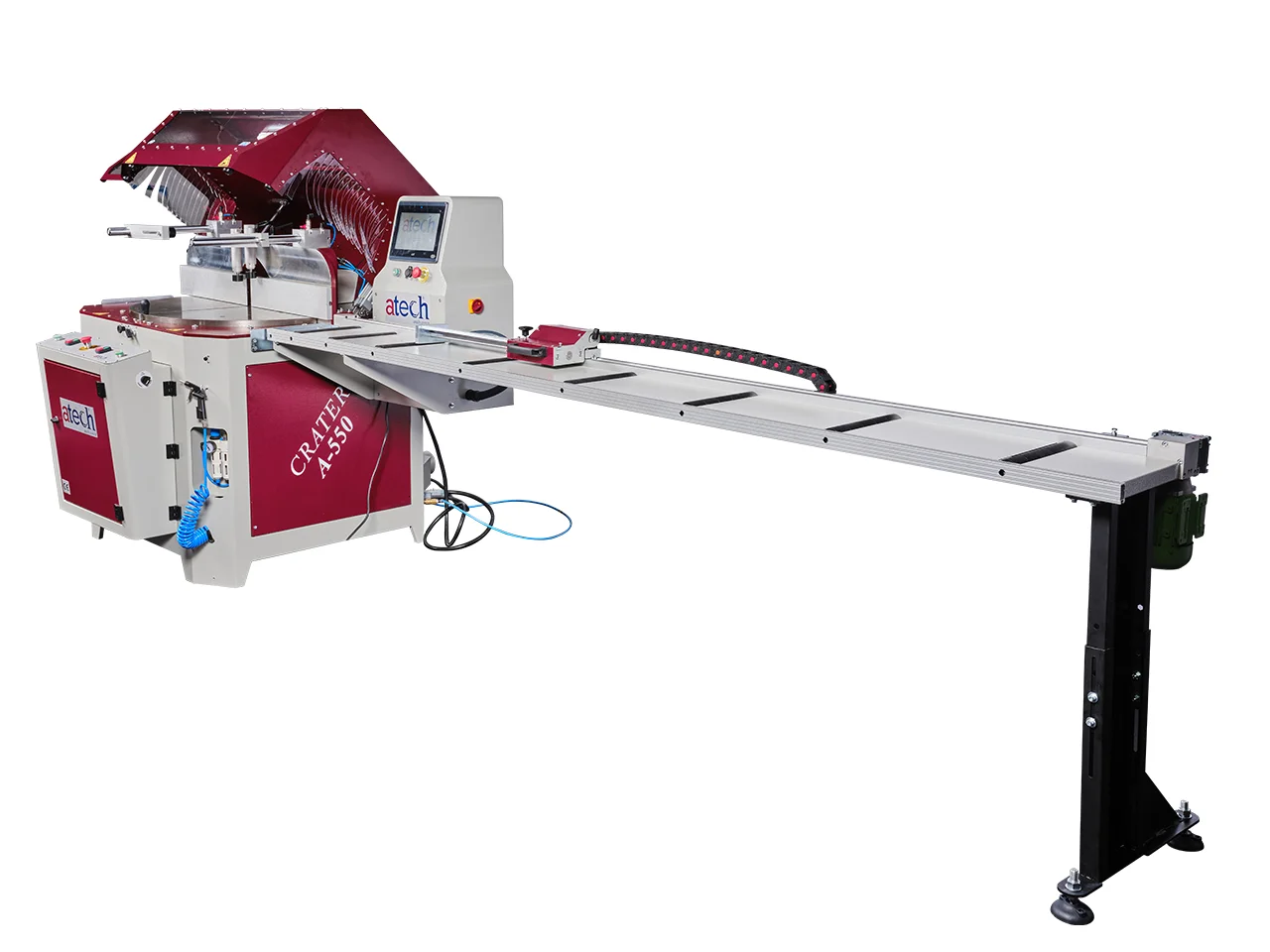

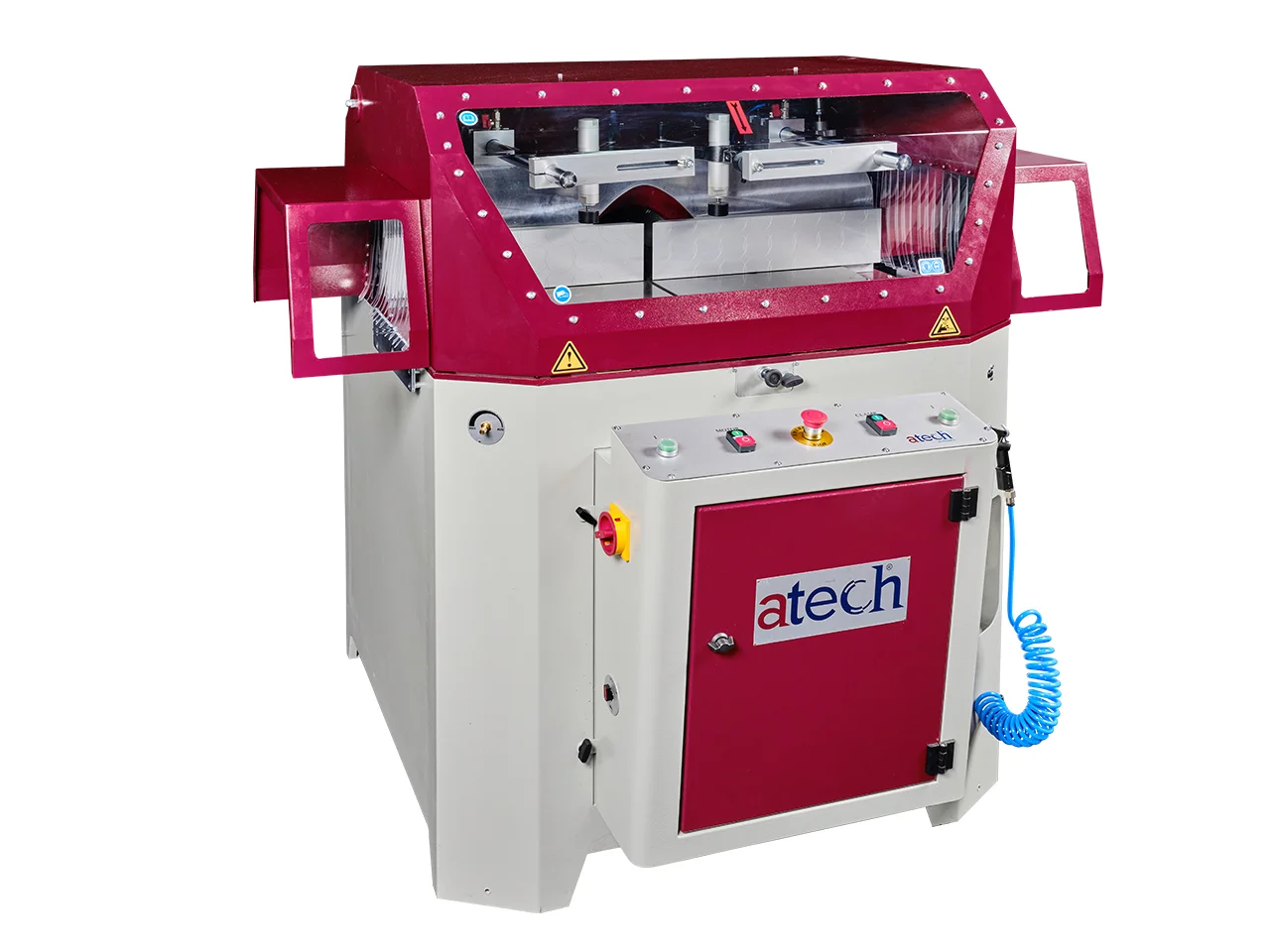

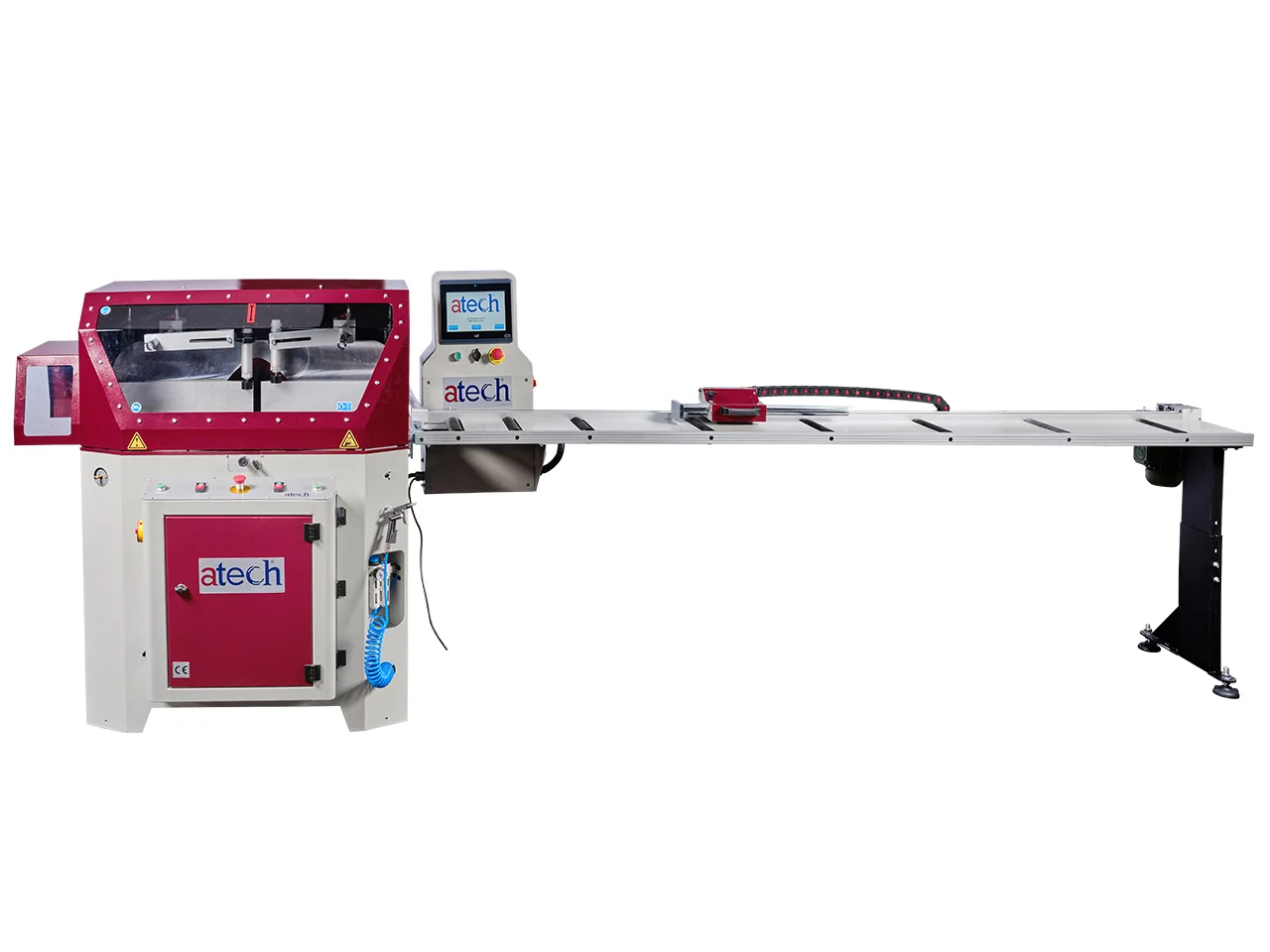

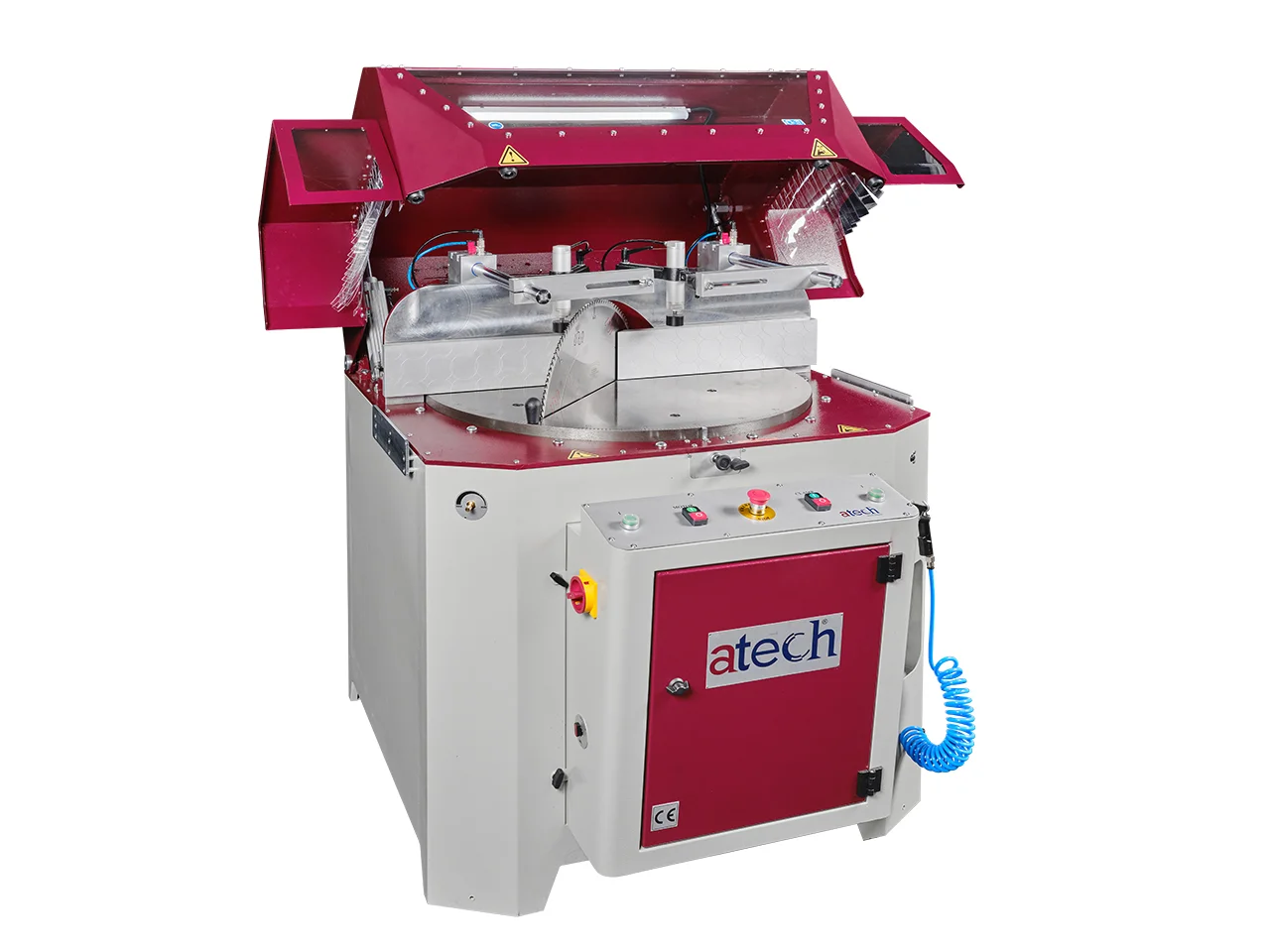

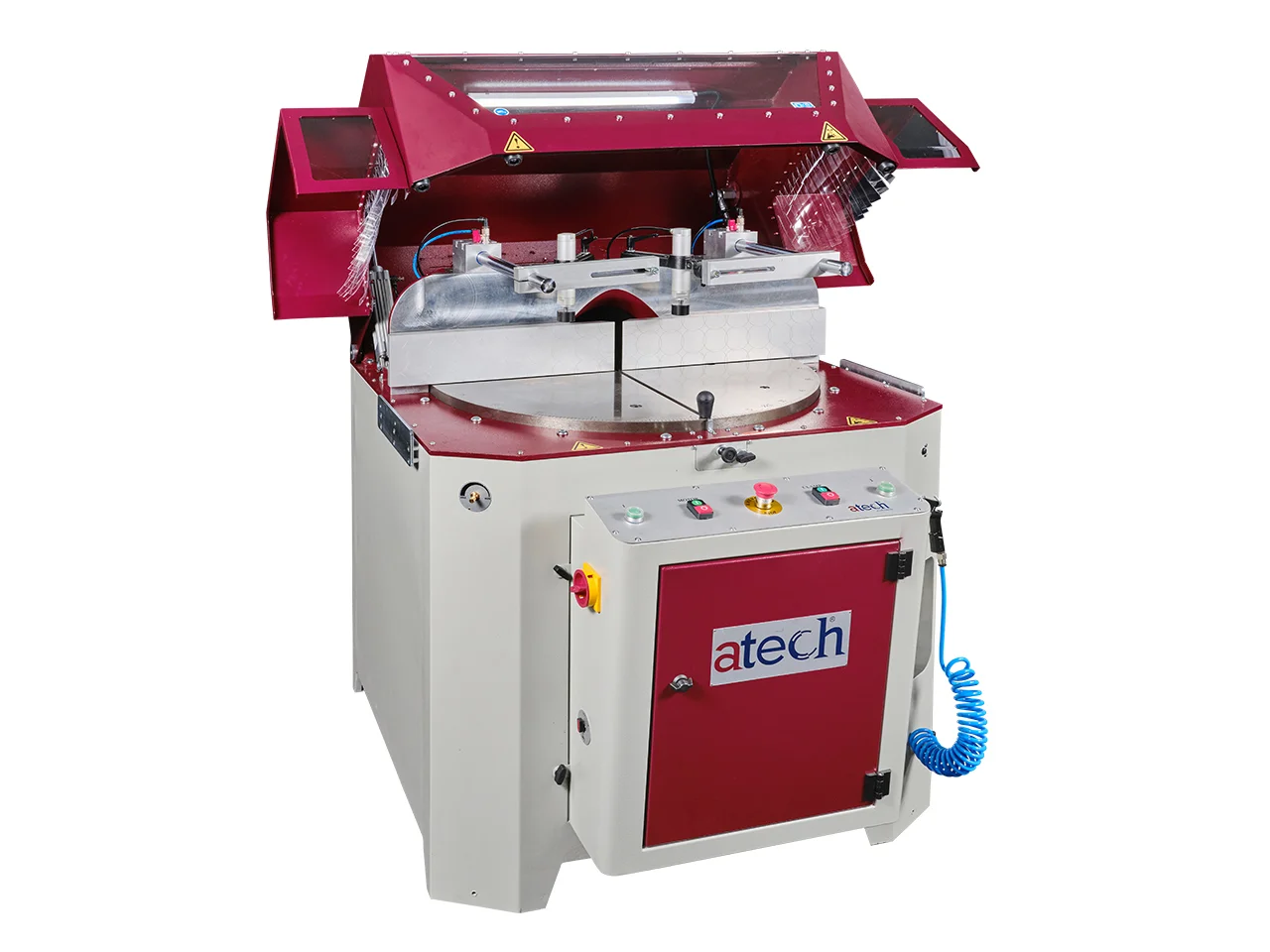

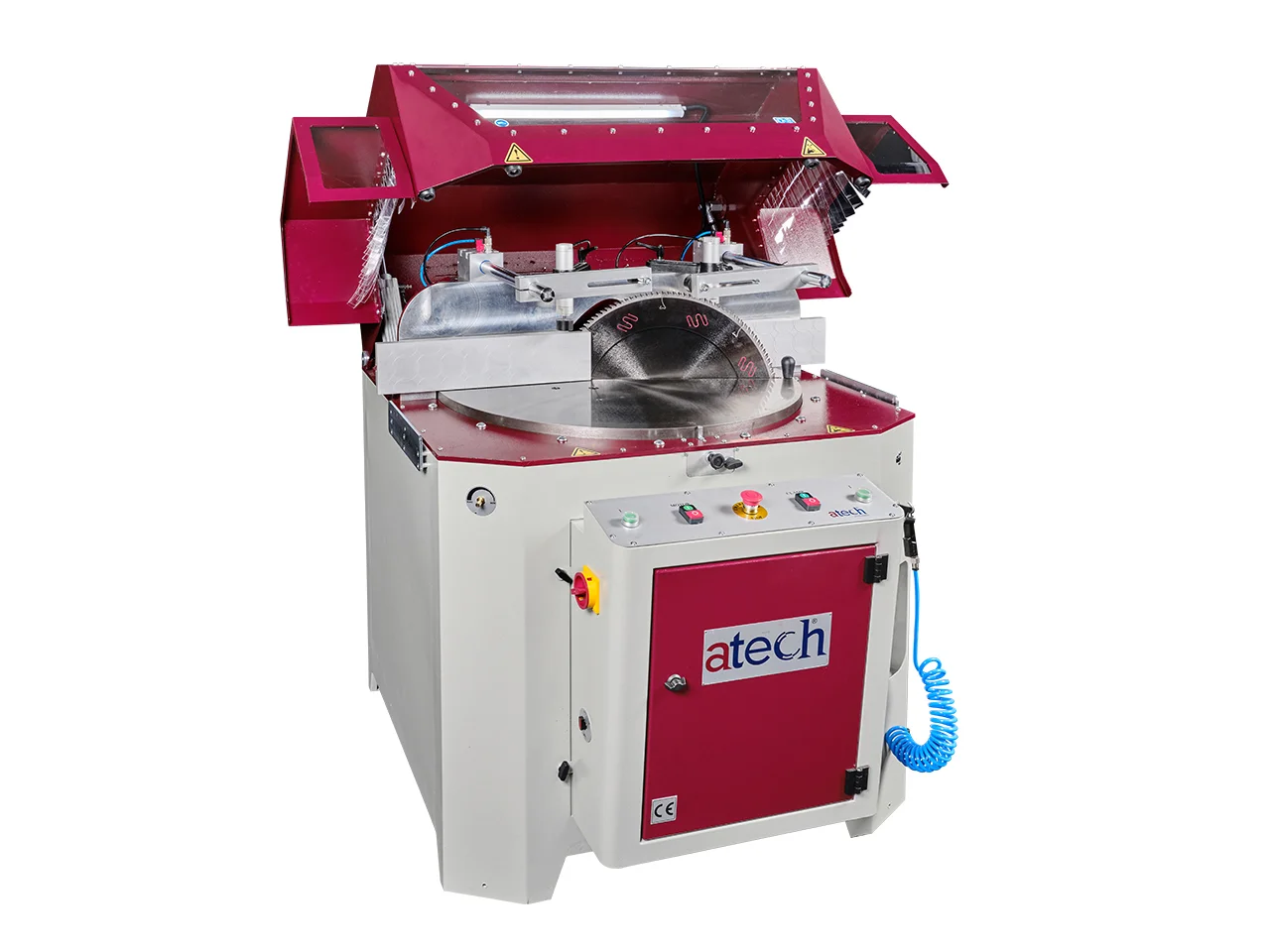

CRATER-06 A/550 is a heavy duty 22″ (550 mm) automatic up cut miter saw. The saw blade feed is hydro-pneumatic, which provides extra mechanical power in addition to the motor power. Powerful enough to... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
4kW (5.5 HP) - 3-Ph 220V / 440V 50-60 Hz
2400 rpm
D: 550 mm (22”) d: 30-32 mm
6~8 Bar (90-120 psi)
152x133x152 cm (60”x52”x60”)
500 kg (1100 lbs)
Standard Equipment
- Heavy duty upcut miter saw designed for straight and miter cuts of PVC (vinyl), aluminum extrusions and wood.
- 0-15°- 22, 5°- 30°- 45°- 60°-75° angle pin locks
- Two hands safety operation
- Intermediate angles are set via lock handle
- Hydro-pneumatic saw blade feed for smooth and precise cutting (fully adjustable)
- Adjustable saw blade rising speed
- Twin vertical pneumatic clamps (standard)
- Additional horizontal pneumatic clamp (standard)
- High quality carbide tipped 550 mm (22”) saw blade (standard)
- 3 m (10’) roller conveyor model MKN301 (optional)
- Pneumatic spray mist lubrication system
- Interior LED lighting
- Automatically operating top guard
Optional Equipment

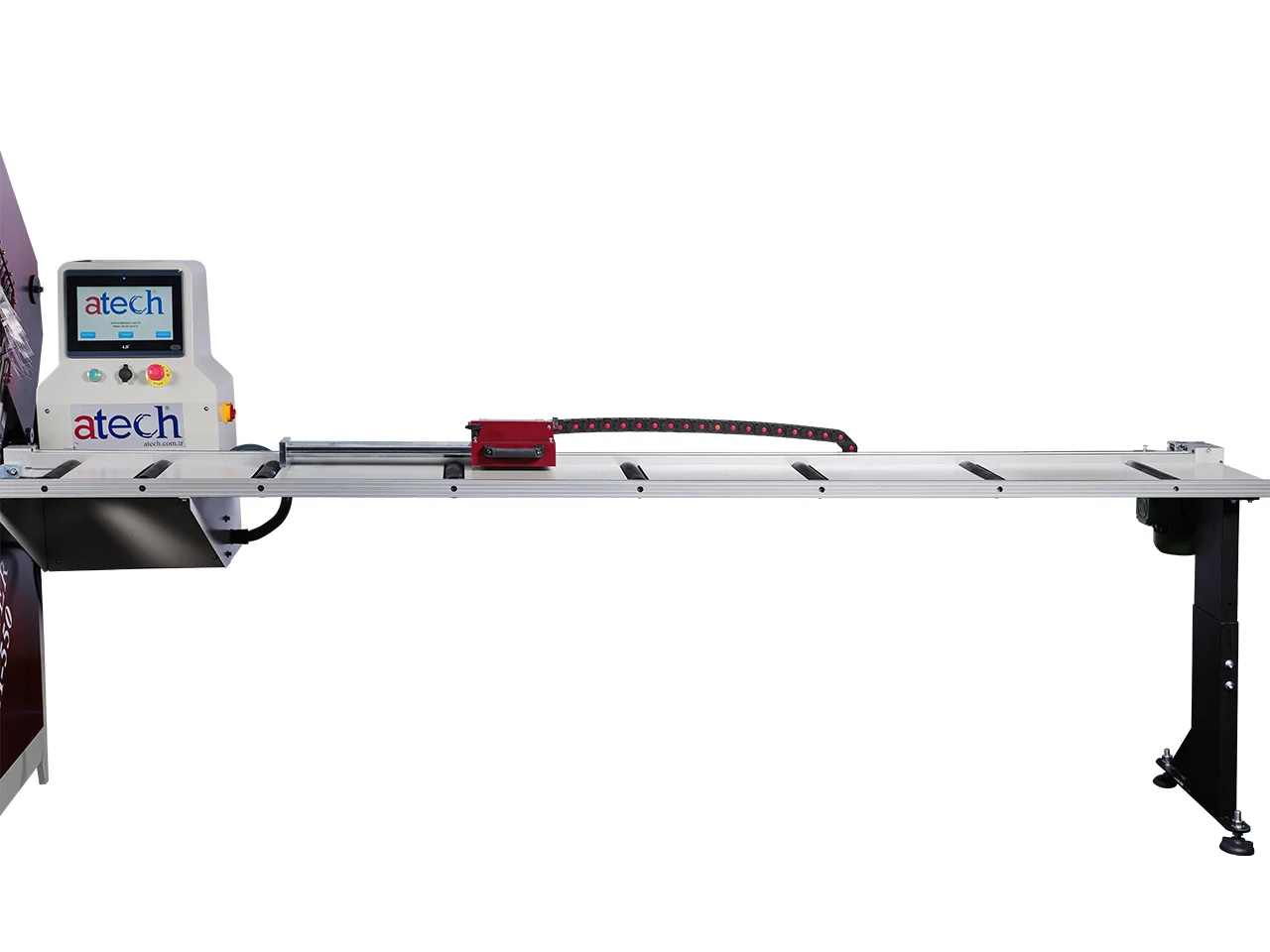

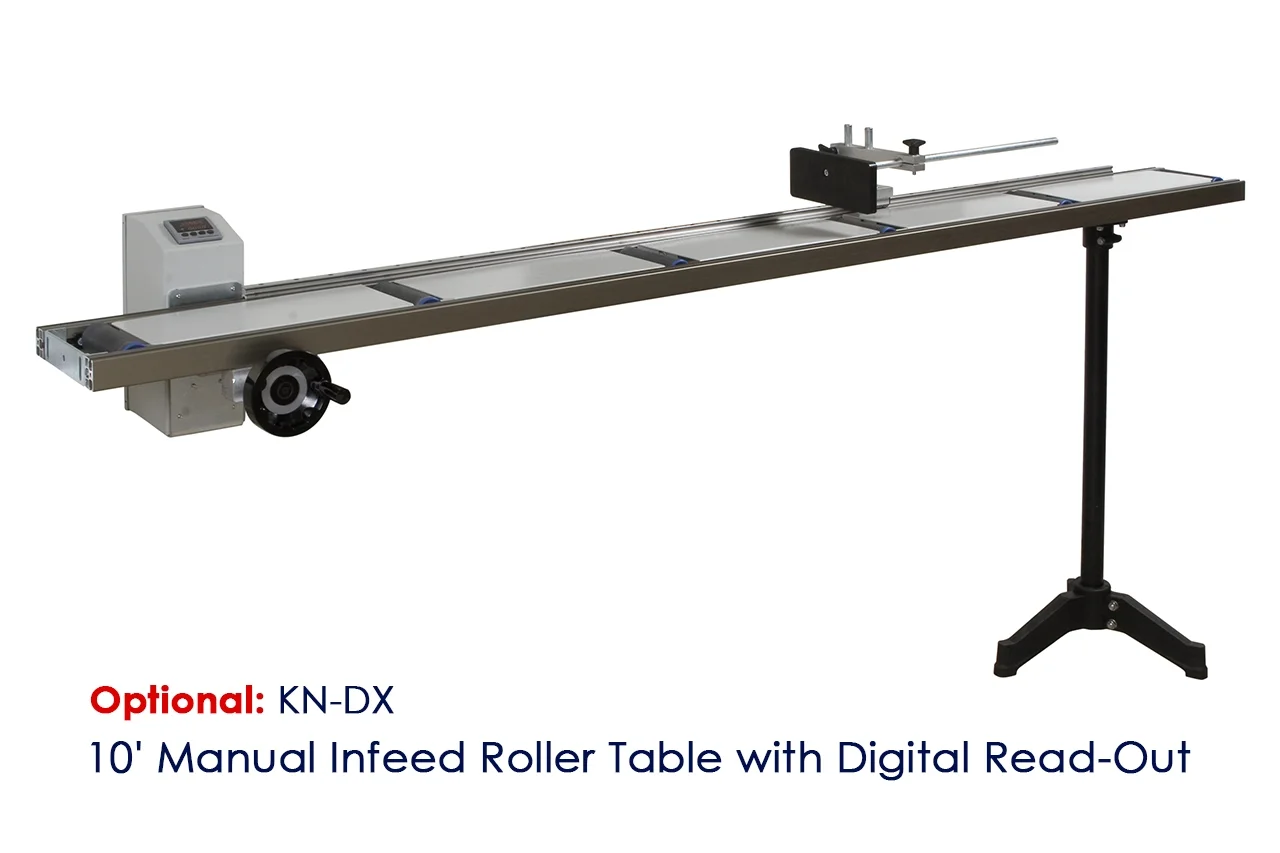

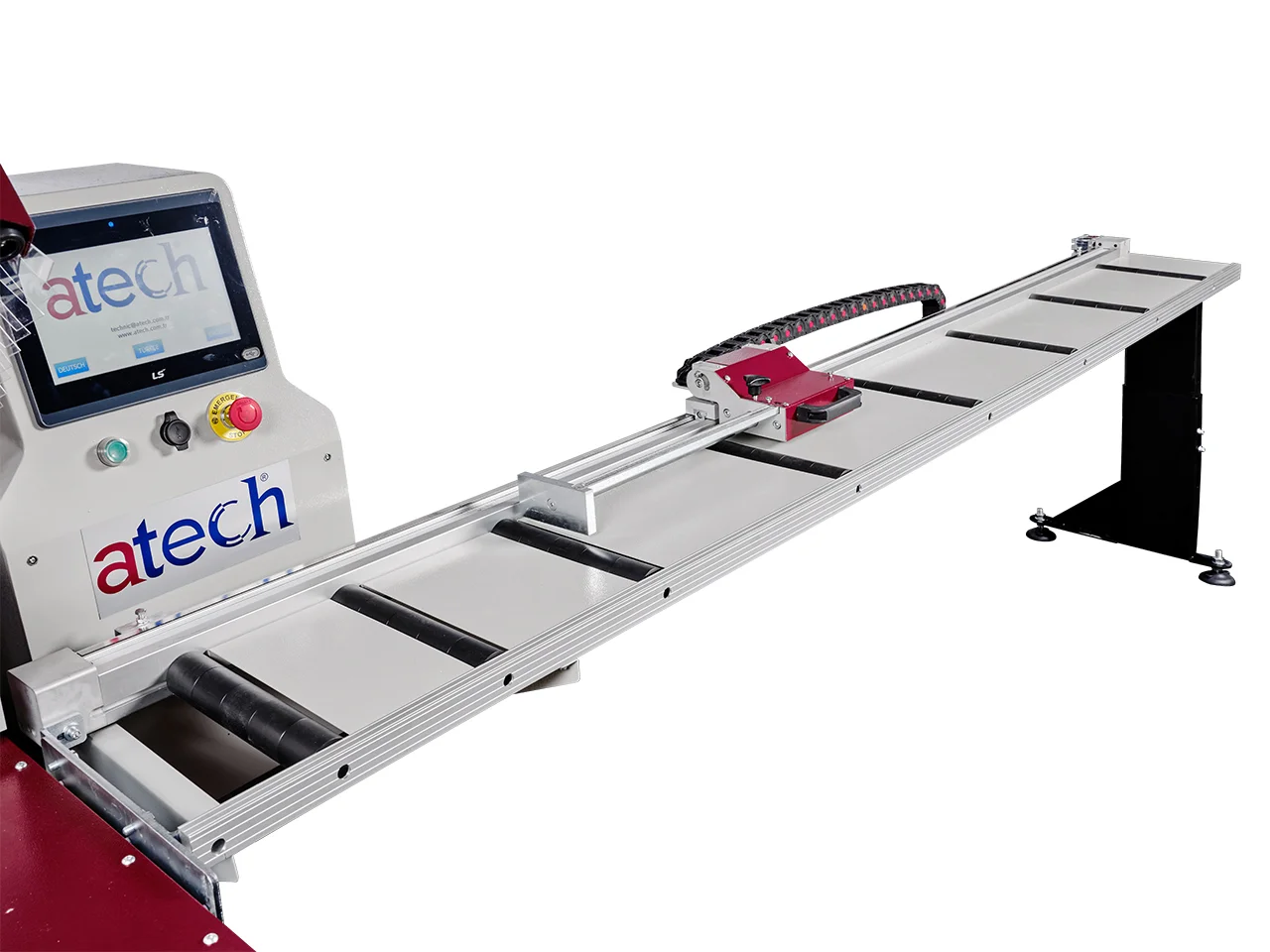

- KN-DX 10′ Manual Infeed Roller Table with Digital Read-Out
Technical specifications and features are subject to change without prior notice.
