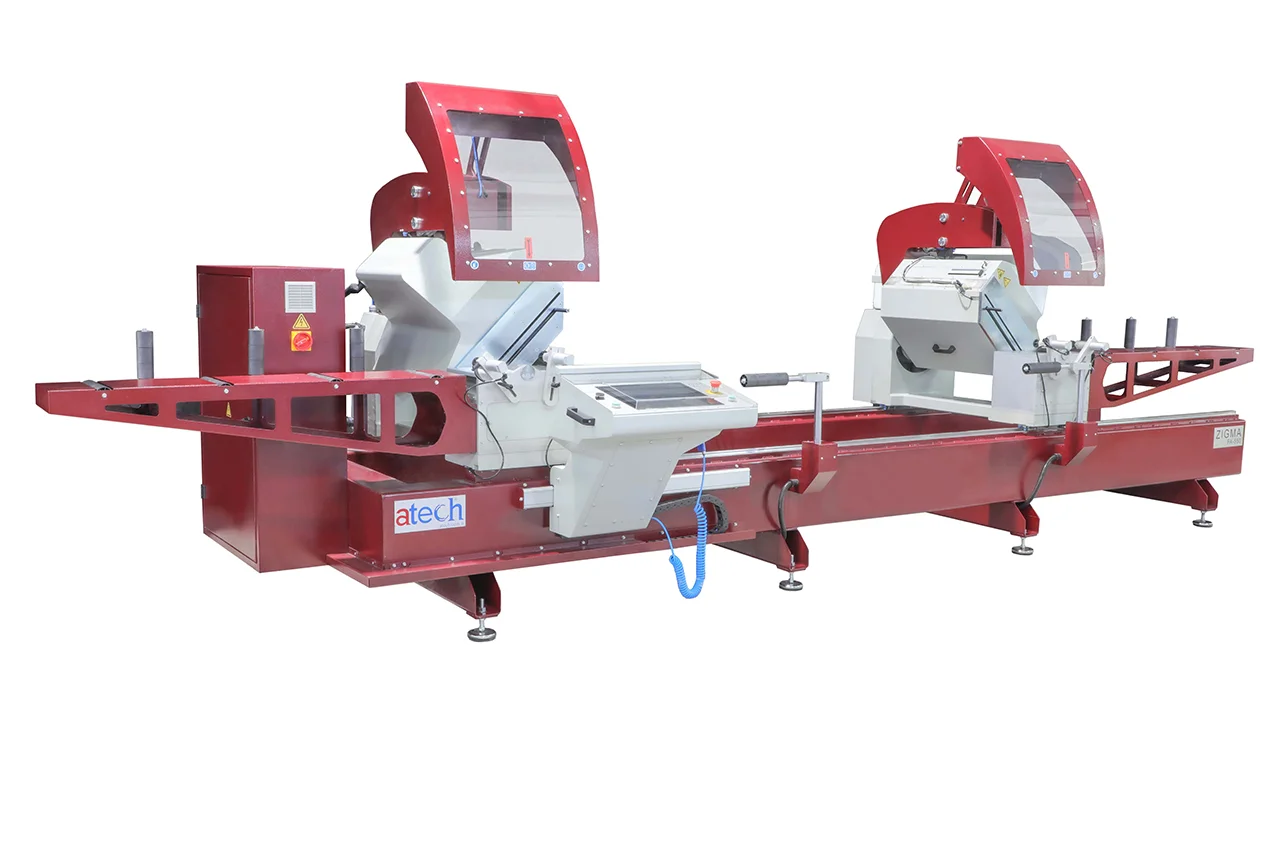

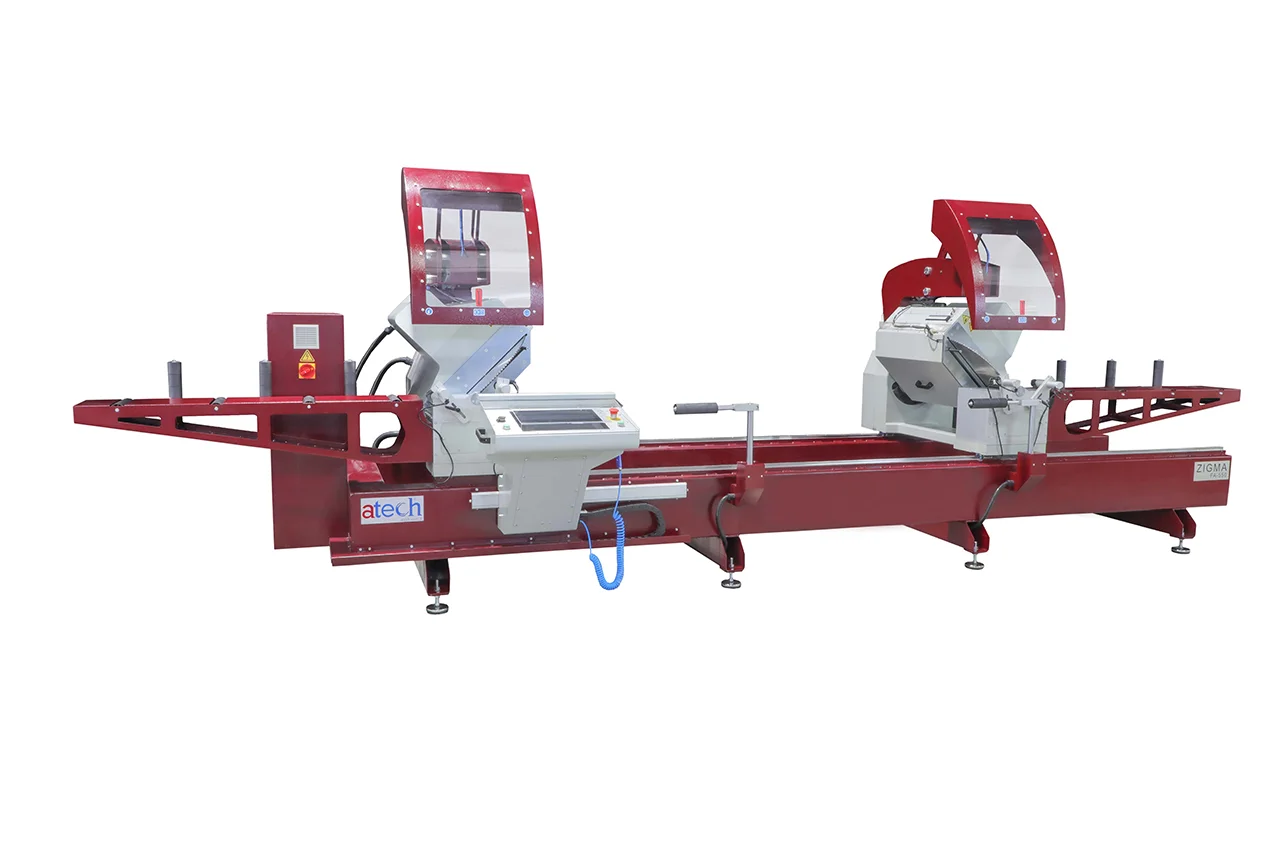

ZIGMA-06 FA

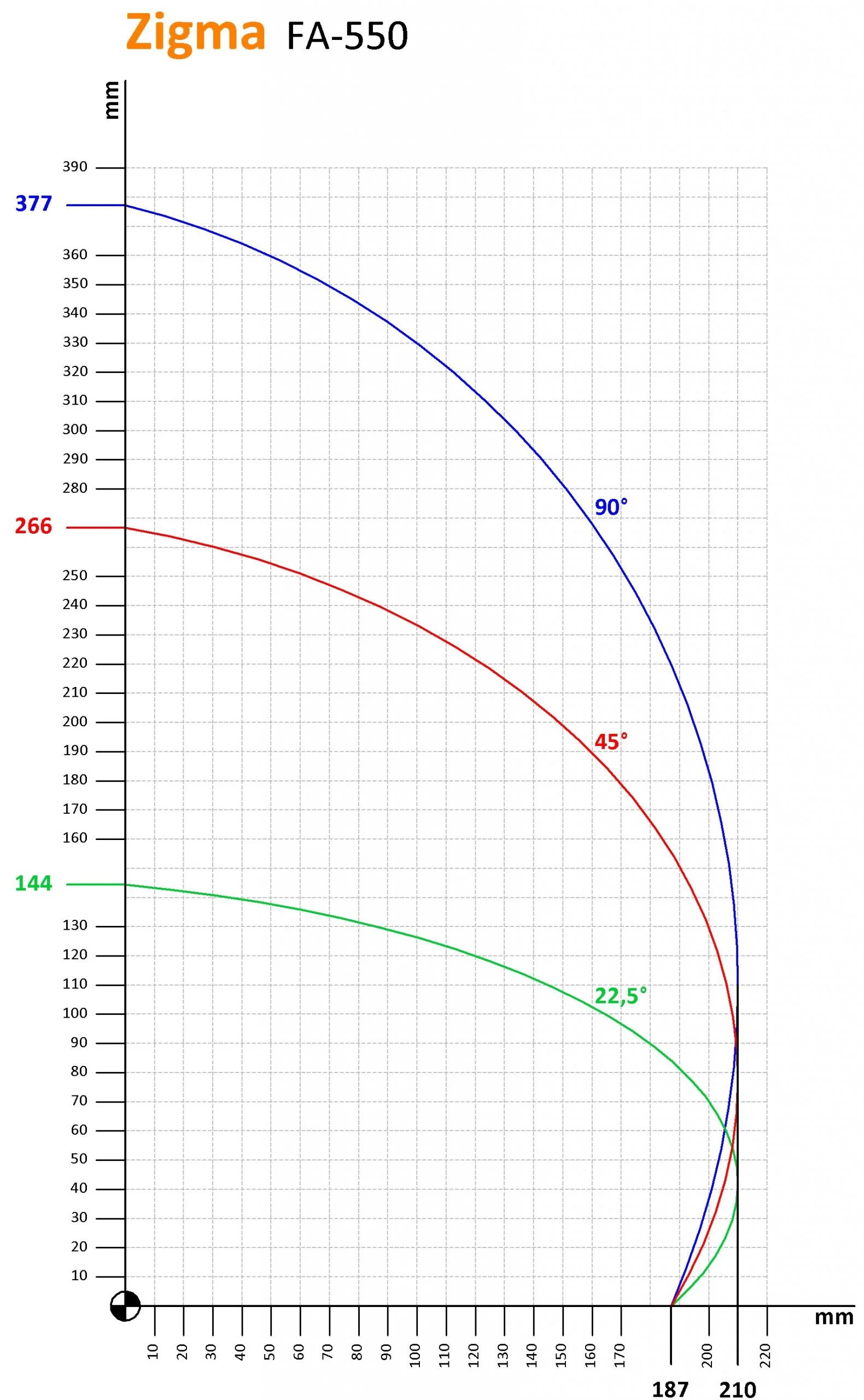

GENERAL FEATURES2 x 3,0 kW Motor15” PC touch screenWith its servo motor the head angles and head movements can be positioned preciselyBy servo motor angles between -22,5 and +45 can be positioned automatically.Robust machine bodyWith a hydro-pneumatic cutting unit the speed of the blade can be adjusted precisely.The saw blade stroke is adjustable from the top. That means, that you can limit how far the saw blade comes out.Cuts greater than the strokSlicing, angle slicing, pieces of cutting profiles list and etc. are programmable.Equipped with modem for remote access for online servicing and programmingStandart Equipment2 x Ø550 mm saw blades4 pcs. Horizontal clampsSpray lubrication systemAirgunConveyor on movable saw head2 pcs. profile rest systemOptionalBarcode ReaderSpray mist lubrication system2 pcs. Vertical clamps.Chip collector monifold4,0 kW Electric motorConveyor on fixed saw headAvailable also in 6 m (20′) lengthTechnical DataServo motor: 3×0.75 kWSaw motor: 2×3 kW ( HP)Saw blade size: D=550 mm (22″) d=30-32 mmSaw blade r.p.m.: 3,000Air pressure: 6-8 Bar (90-115 psi) / 110 l/min.Overall dimensions: 595x170x200 cm (234″x67″x79″)Weight: 1,800 kg (3,960 lbs)Cutting lengths:90° Min: 390 mm (15″) Max: 5050 mm (199″)45° Min: 595 mm (23″) Max: 5050 mm (199″)
