ZIGMA
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.

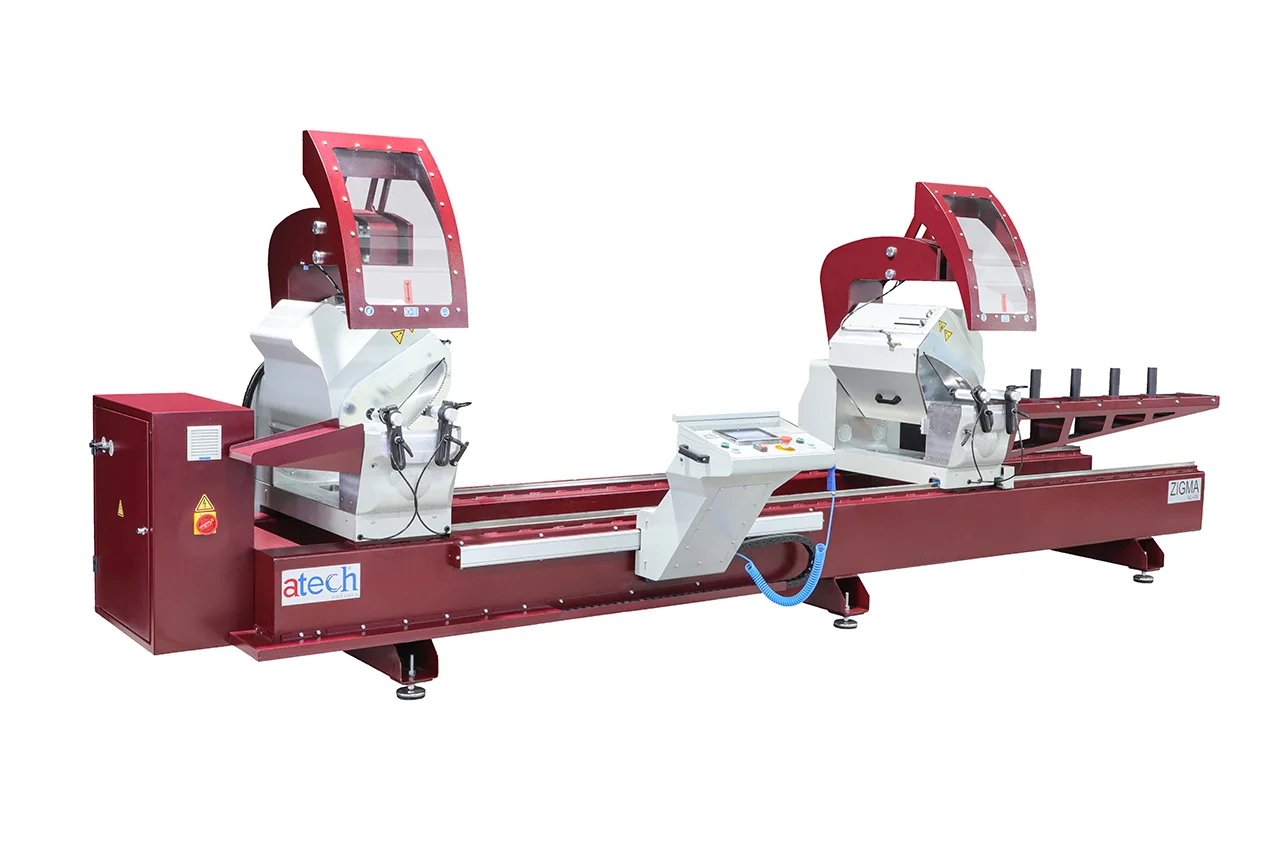

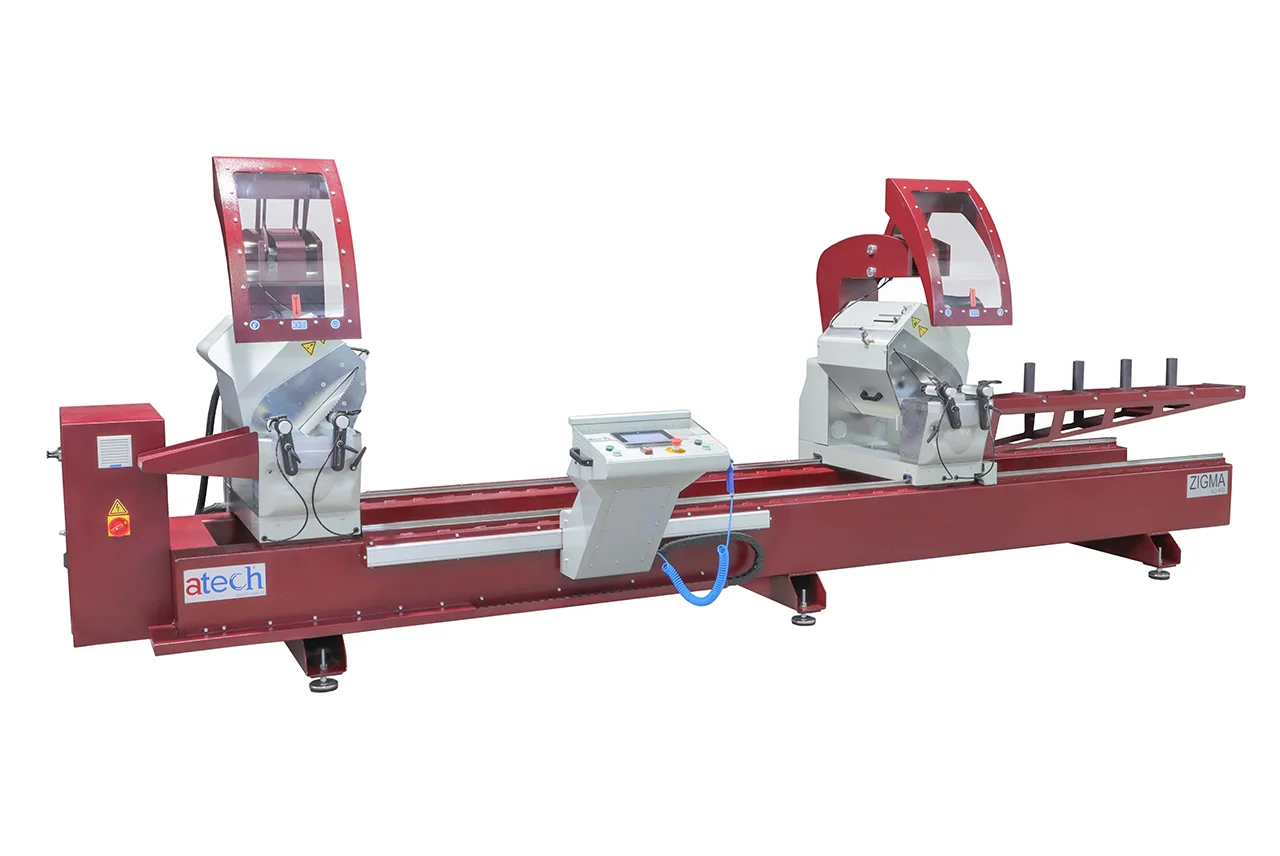

The Zigma-06 A heavy duty 18″ (450 mm) automatic double head miter saw has been designed for straight and miter cut of aluminum & vinyl extrusions and wood. The saw is operated automatically via PLC c... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
General Features
- Designed for straight and miter cut of aluminum and vinyl profiles at any desired length.
- Both heads tilt to 45° and 90° angles automatically, intermediate angles are set manually
- Different versions are available
- Stroke: min.450 mm (18″), max.4300 mm (169″)
- The saw blade feed is hydro-pneumatic, and the cutting speed can be adjusted precisely according to the material to cut

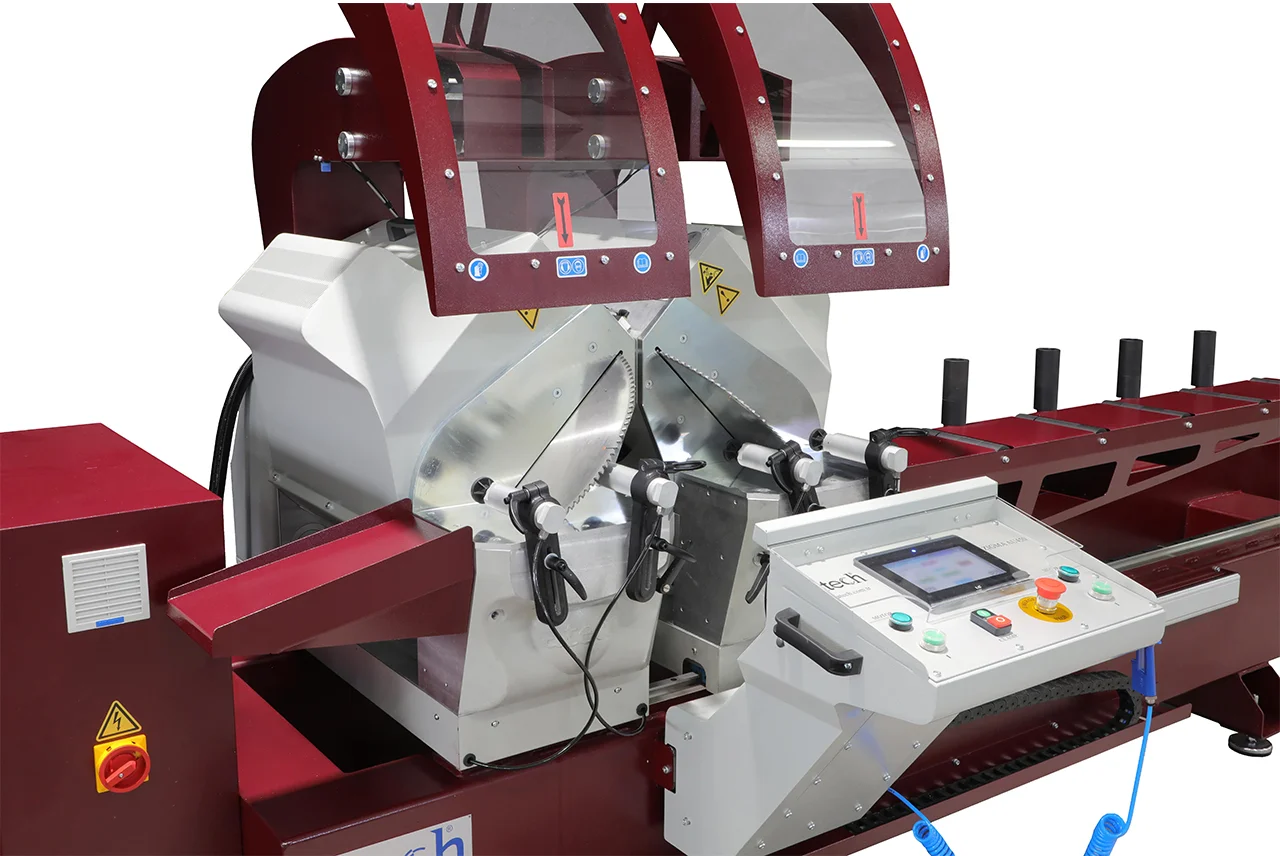

- The operator control panel is touch screen
- Equipped with features like slicing, entering part quantity and programming
- Able to cut longer than the stroke

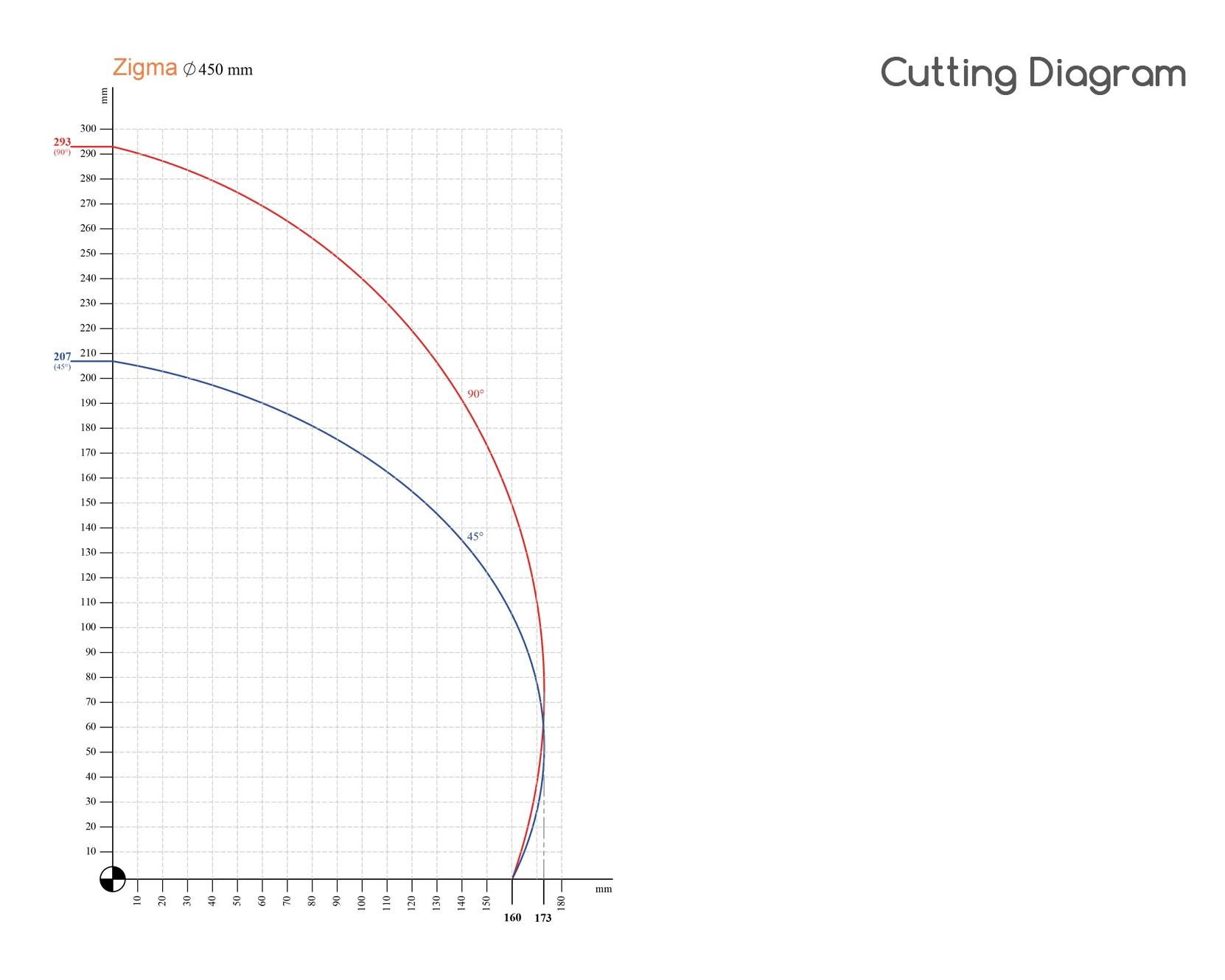

For Ø 450 mm (18″) saw blade size:
- 45° cutting capacity: 176×200 mm (7″x8″)
- 90° cutting capacity: 176×285 mm (7″x11″)
- Stroke: min.450 mm (18″) , max.4000 mm (157″)
Standard Equipment

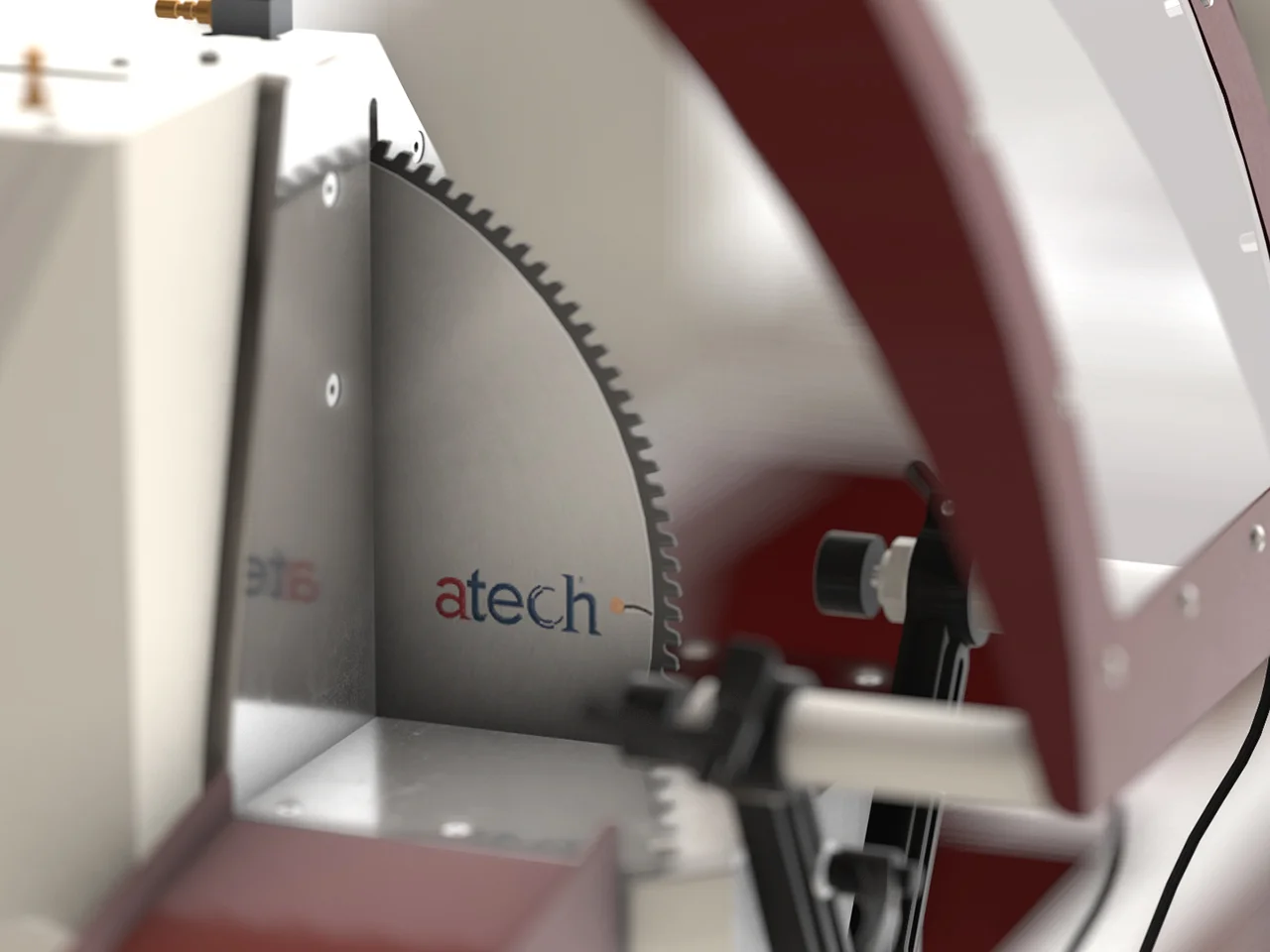

- 2 x 450 mm (18″) carbide tipped saw blades

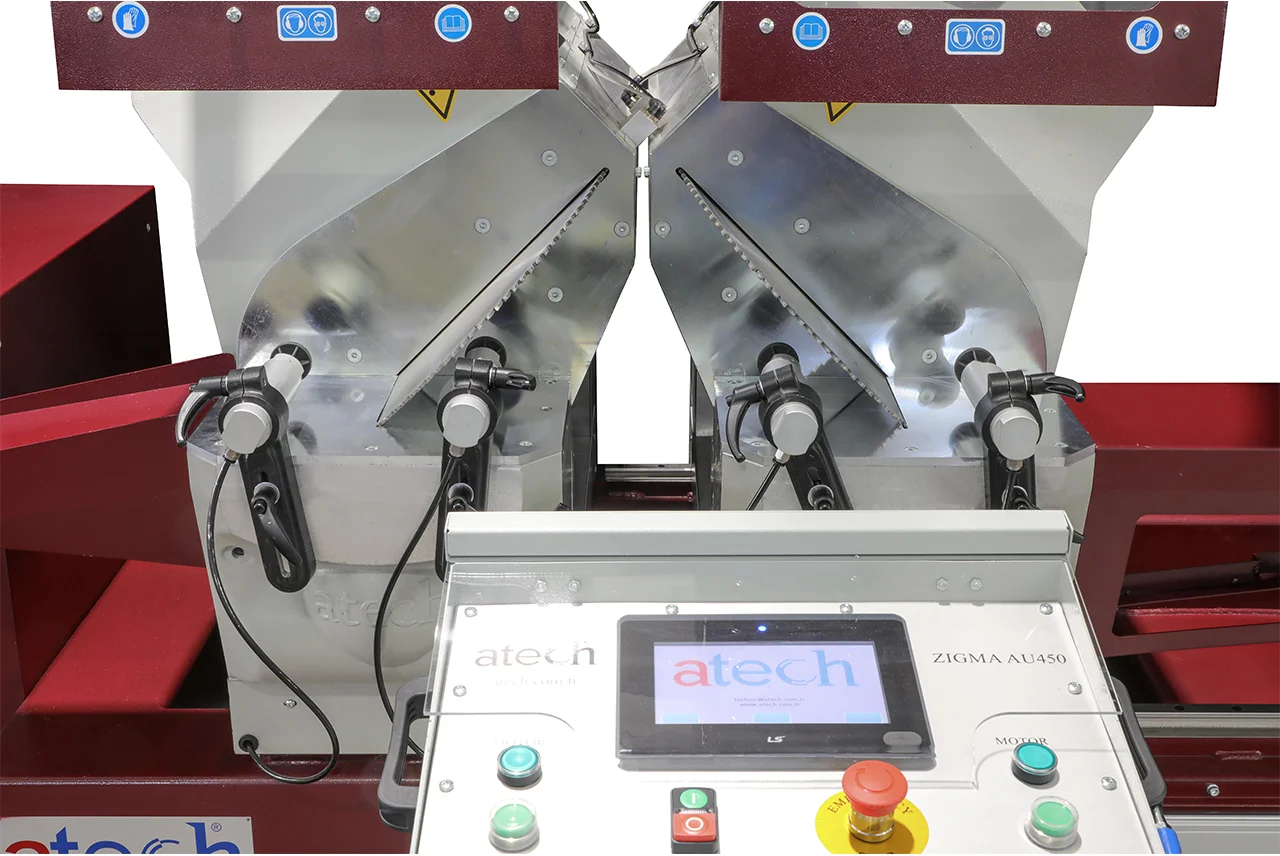

- Twin pneumatic horizontal clamps
- Air gun
- Additional conveyor on the movable unit
- Profile support device
- User’s manual
- Pneumatic spray mist lubrication system
Optional Equipment
- Chip collector
Technical specifications and features are subject to change without prior notice.
