TUCANA

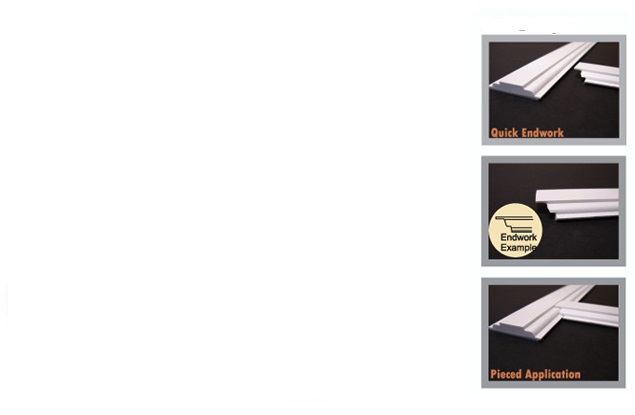

Tucana-06 SDL is a simulated divided lites end milling machine. It is designed for end mill processing of SDL (Simulated Divided Lites) grilles, coping of vinyl & aluminum and wood bars.

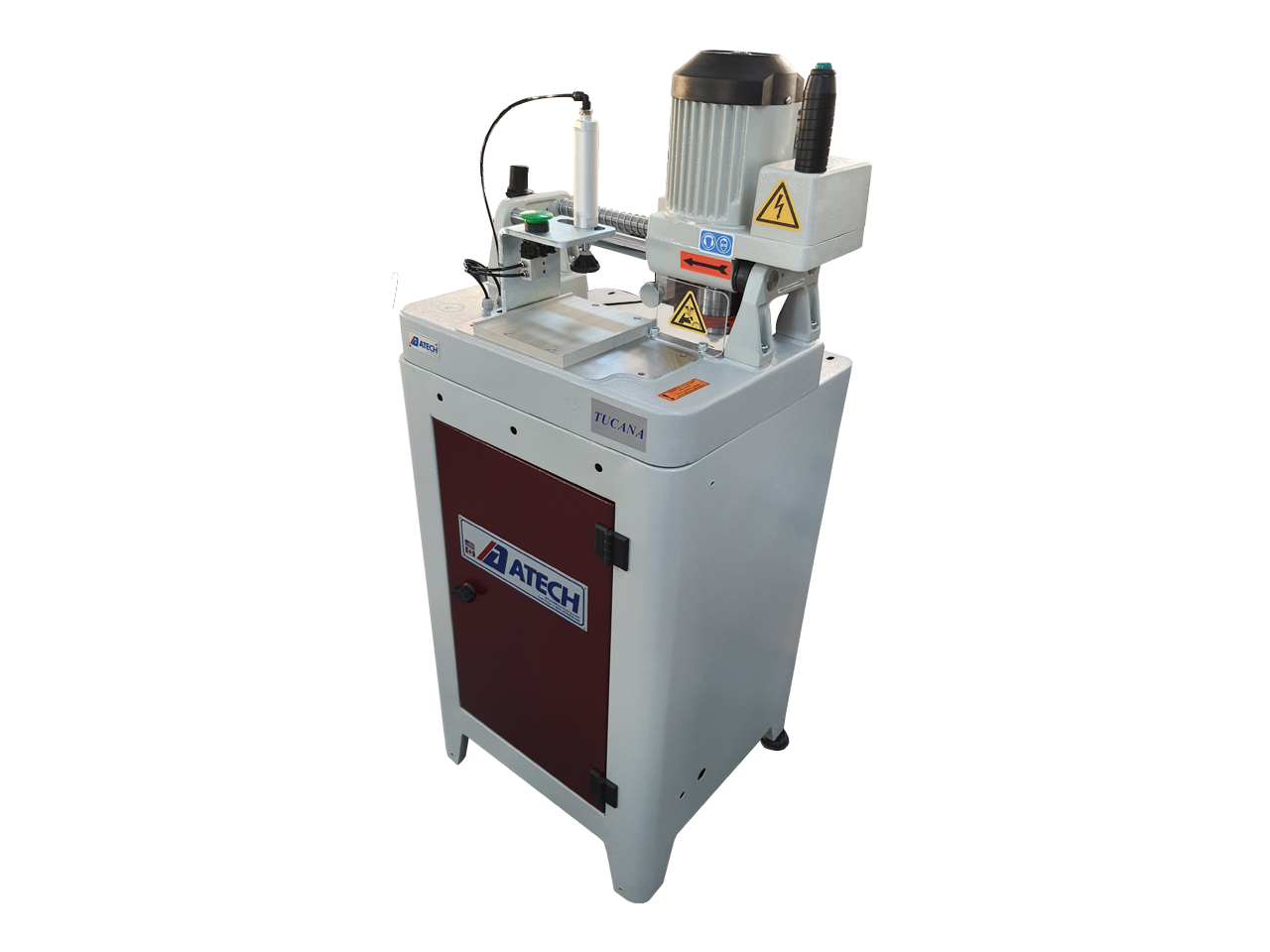

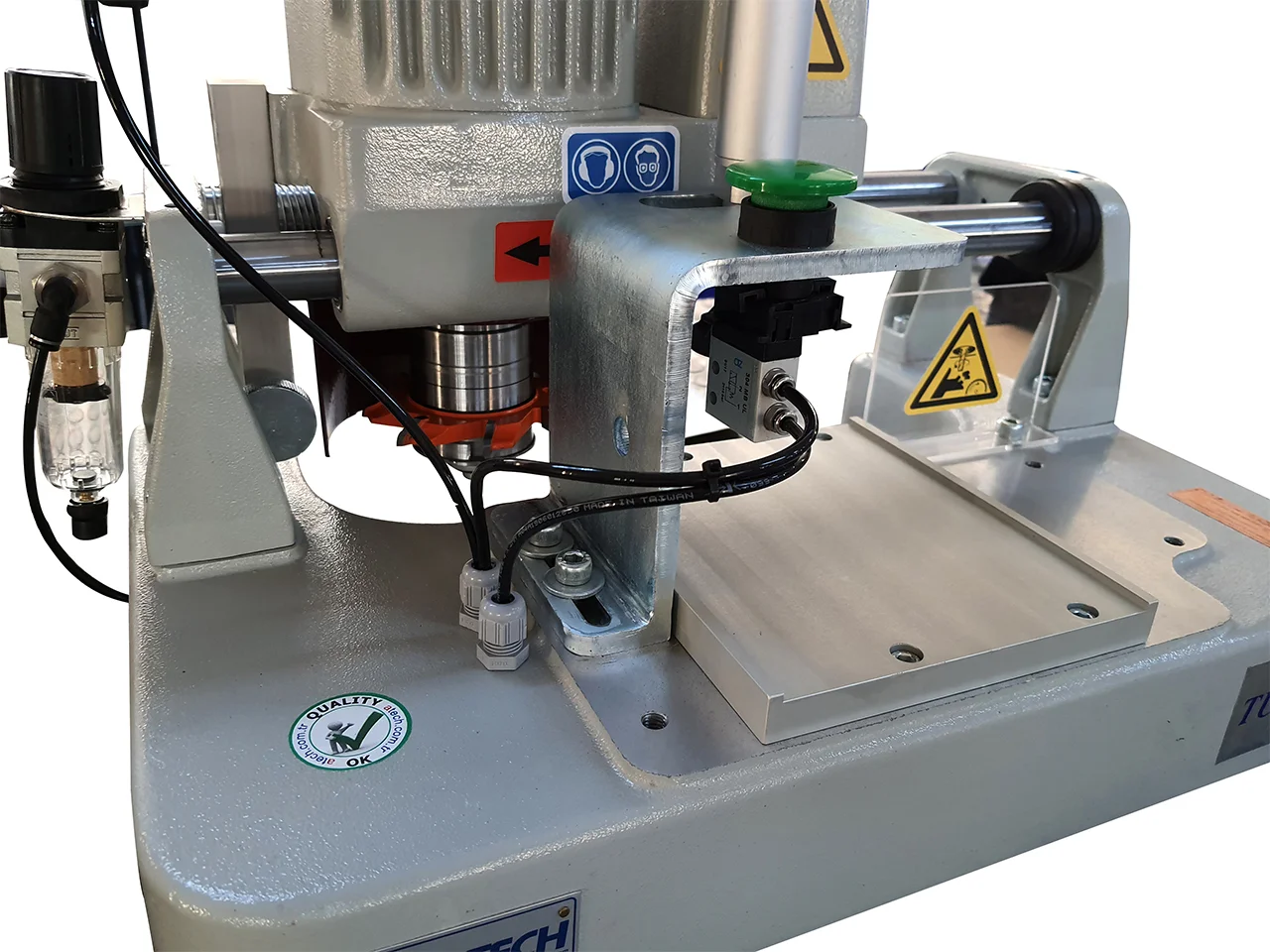

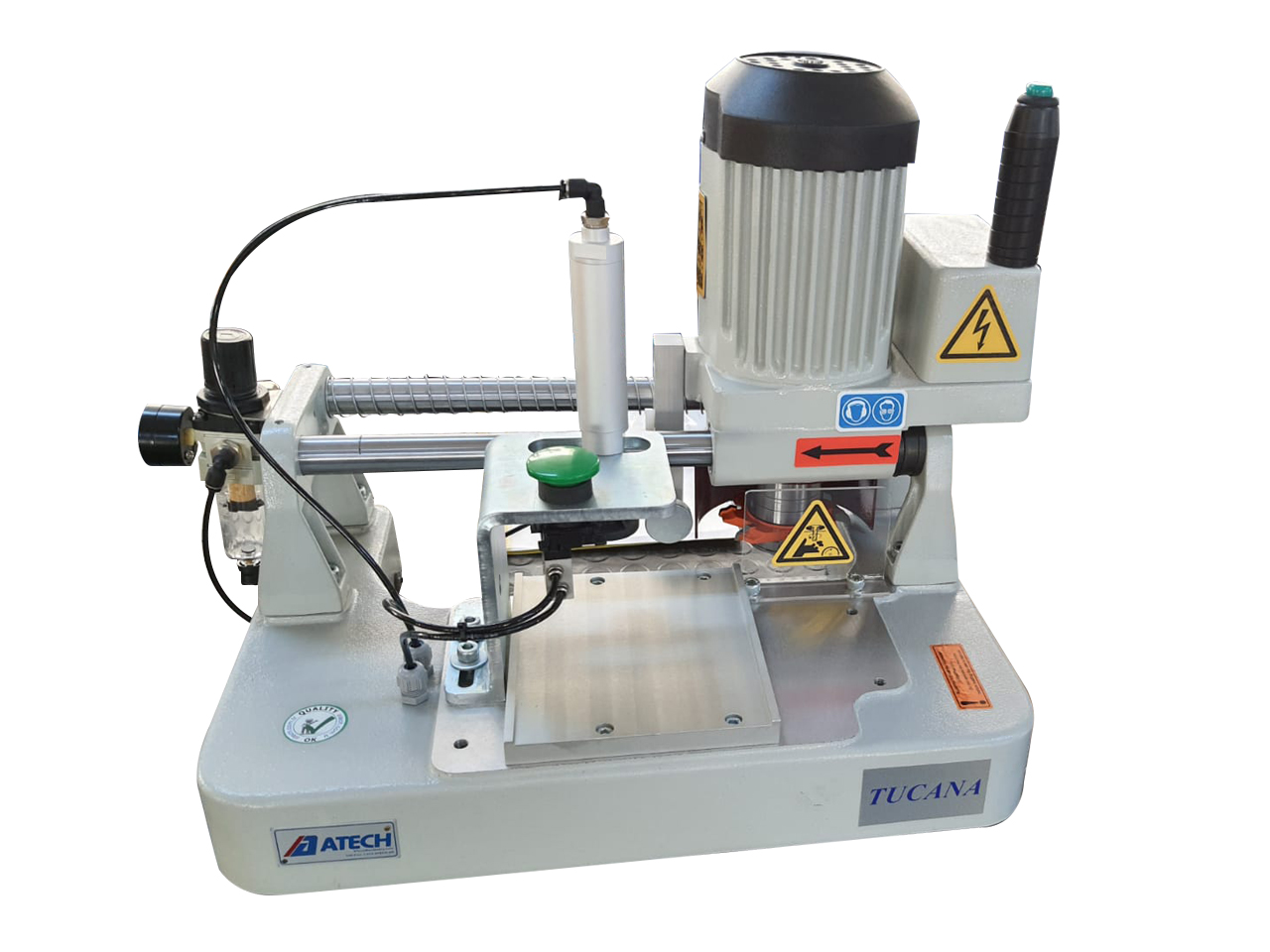

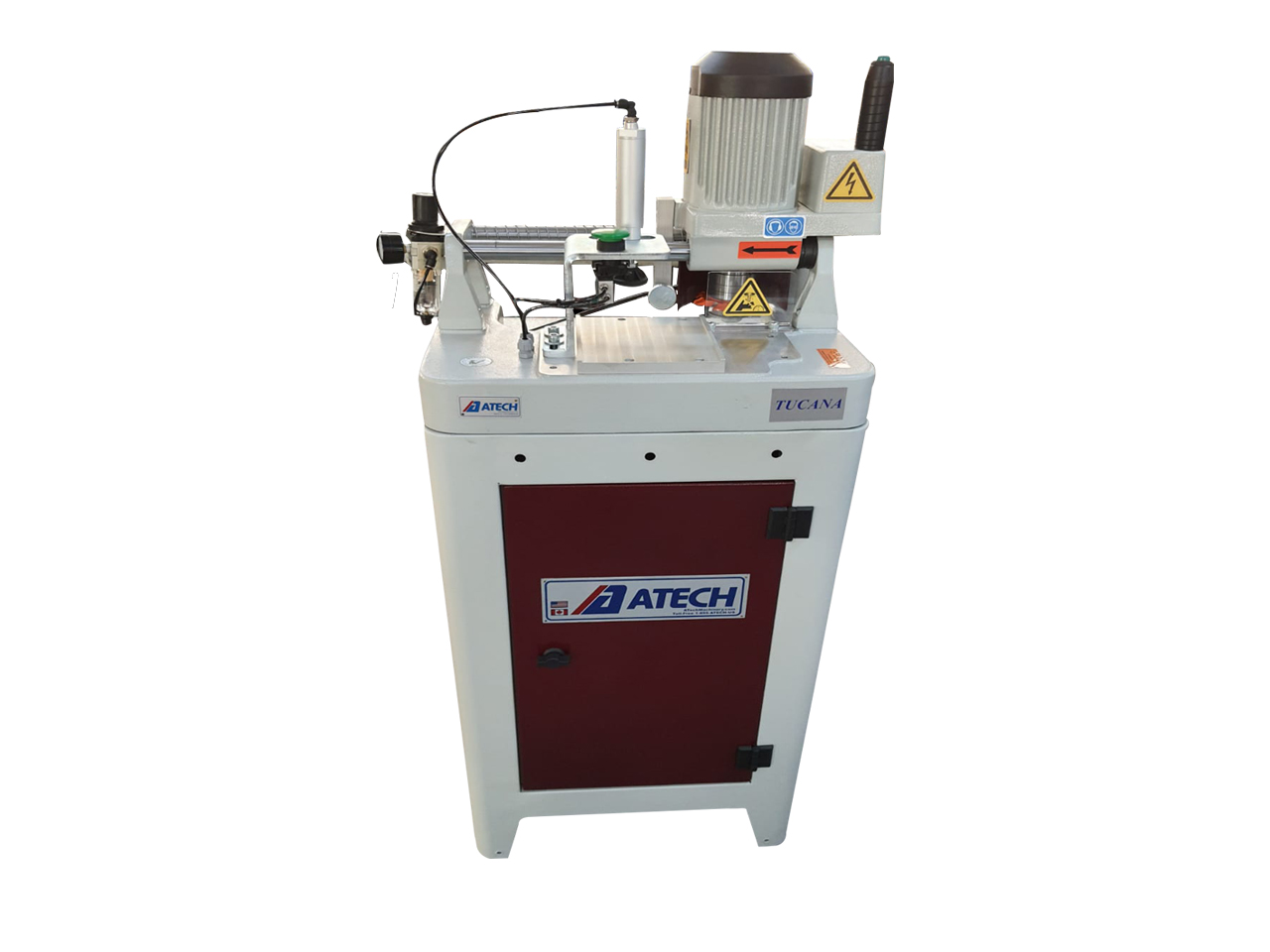

Machine is equipped with a vertical pneumatic clamp, emergency stop button and two hand operation for maximum operator safety. It comes in 2 versions: bench top model and with machine base. In addition to that, we make custom molds and custom cutters for end milling of grille bars among optional equipment.

• Motor power: 800W 1-Phase 110V/220V 60Hz
• Cutter dimensions: D=135 mm (5-1/2”) max, d=30 mm (1.2”)
• Overall dimensions: 600x440x430 mm (24”x17”x17”)
• Weight: 33 kg (73 lbs)
• Air pressure: 6-8 Bar (90-110 psi)
• Cutter speed: 3,000 RPM

• Custom molds for different grille bars
• Custom cutters for end milling of grille bars

End Milling Machine

Tucana-06 SDL is a simulated divided lites end milling machine. It is designed for end mill processing of SDL (Simulated Divided Lites) grilles, coping of vinyl & aluminum and wood bars.

Machine is equipped with a vertical pneumatic clamp, emergency stop button and two hand operation for maximum operator safety. It comes in 2 versions: bench top model and with machine base. In addition to that, we make custom molds and custom cutters for end milling of grille bars among optional equipment.

The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Tucana-06 SDL at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.

Our customized end milling / coping machine is designed for end mill processing of SDL (Simulated Divided Lites) grilles, coping of vinyl & aluminum and wood bars. Machine is equipped with vertical & pneumatic clamps, emergency stop button and two hand operation for maximum operator safety. It has been designed in full conformity with UL & CSA safety directives.
