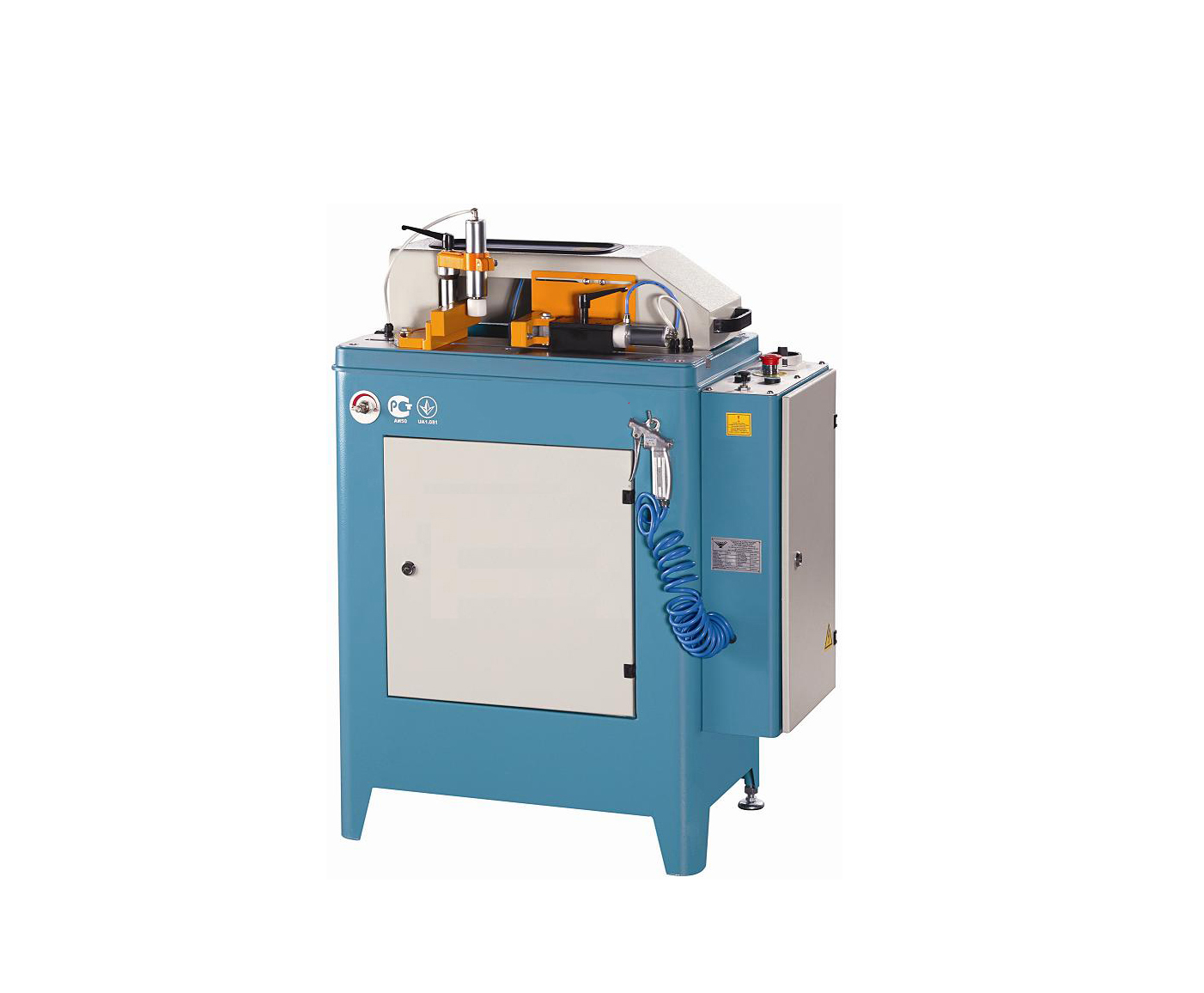

TUCANA-02 AS Automatic Angular End Milling Machine with Quick Cutter Change Spindle

User's Manual Catalog Parts List Video

Tucana-02 AS is an automatic angular end milling machine with quick cutter change spindle. It has pneumatic twin vertical clamps and air gun among standard equipment, whereas custom cutter stack and profile fixtures among optional equipment. End milling max. profile dimensions: 3-1/2″ (h) x 9.3″ wide (90×235 mm)

• Air gun
• User’s manual
• Pneumatic twin vertical clamps

• Custom cutter stack
• Profile fixtures

800 W~1 50~60 Hz -------------- 1200 W-3 220V 50-60HZ	D: Max. 160 mm (6.3”) d:30 mm	3000 rpm	6~8 Bar (90-110 psi) 14 L/min	55x 95x 127 cm (22”x37”x50”)	119 kg (262 lbs)	90 kg (198 lbs)

Automatic Angular End Milling Machine

Tucana-02 AS is an automatic angular end milling machine with quick cutter change spindle. It has pneumatic twin vertical clamps and air gun among standard equipment, whereas custom cutter stack and profile fixtures among optional equipment.

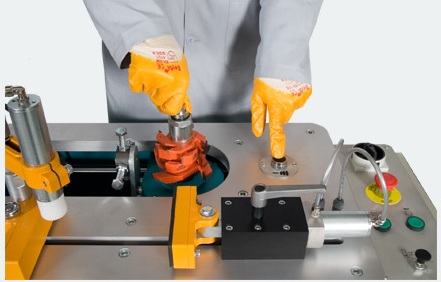

ATech Machine’s horizontal end-millers are specially designed for milling sets of profiles (both aluminum and vinyl) in which the cutter unit needs to be changed several times in the same set. The machine is equipped with a quick-release cutter stack holder making different applications on profiles quicker and easier. In addition to that, the cutting zone is fully guarded to protect the operator in all the machining operations.

The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Tucana-02 AS at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.

Our horizontal end-millers are specially designed for milling sets of profiles (both aluminum and vinyl) in which the cutter unit needs to be changed several times in the same set. The machine is equipped with a quick-release cutter stack holder making different applications on profiles quicker and easier.

The cutting zone is fully guarded to protect the operator in all the machining operations.

Technical specifications and features are subject to change without prior notice.
