End Milling Machines

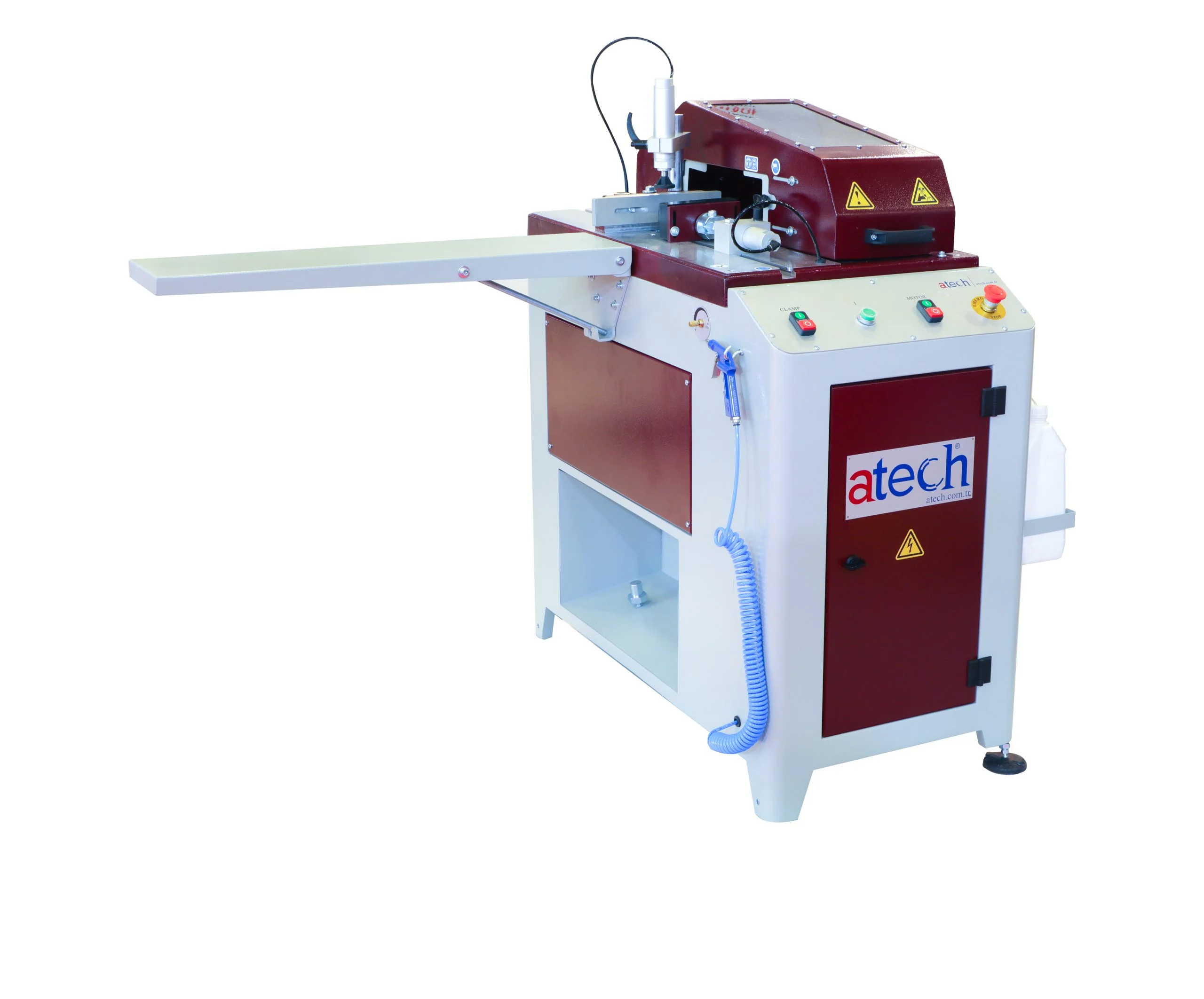

Tucana 05 Automatic End Milling Machine
TUCANA
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
TUCANA-02 M Manual End Milling Machine 1 Tucana-06 M is a manual end milling machine. It has pneumatic twin clamps and air gun among standard equipment, whereas custom cutter stacks and profile fixtur... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

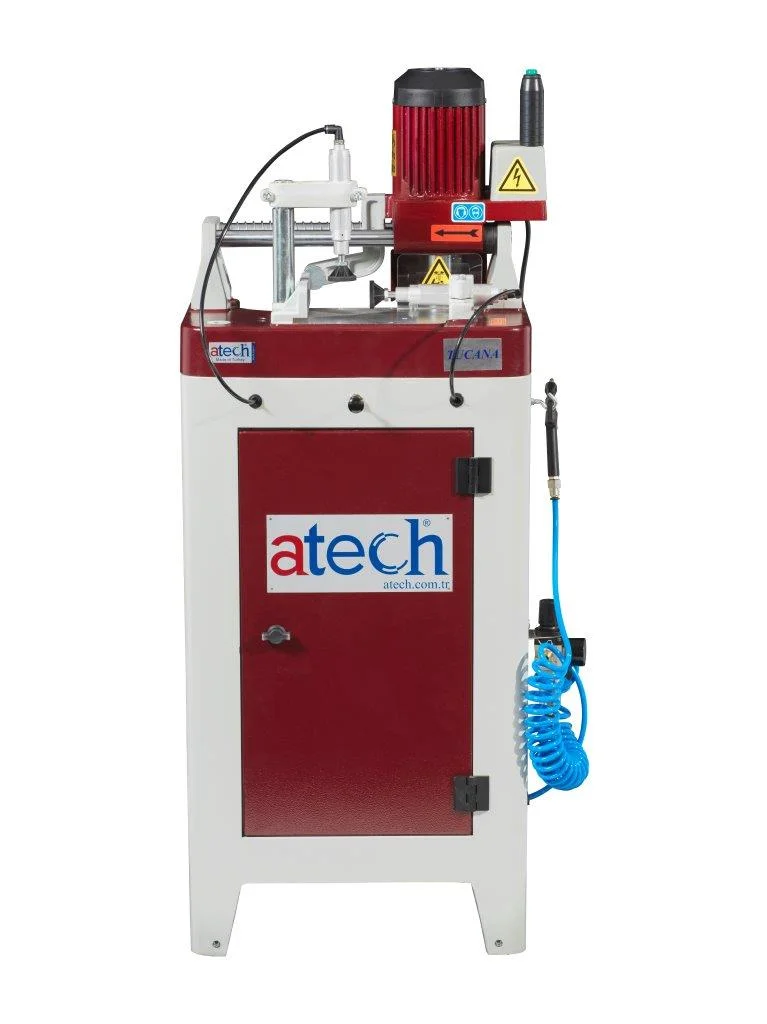

Tucana-06 M is a manual end milling machine. It has pneumatic twin clamps and air gun among standard equipment, whereas custom cutter stacks and profile fixtures among optional equipment.
ATech Machine’s horizontal end-millers are specially designed for milling sets of profiles (both aluminum and vinyl) in which the cutter unit needs to be changed several times in the same set.
Standard Equipment
- Air gun
- User’s manual,
- Pneumatic twin clamps
Optional Equipment
- Custom cutter stacks
- Profile fixtures
Technical Table
Technical Features Imperial
| 1.2 HP 1-Phase 220V 60 Hz 3000 rpm | d=1.18″ D=Max.6.34″ | 3.5″ | 6″ | 90-120 psi 0.2 CFM | 19x23x44″ | 132 lbs |
Technical Features Metric
| 800W 230V 50Hz 3000 rpm 1200W 400V 50Hz 3000 rpm | d=30 mm D=Max.161 | 90 mm | 150 mm | 6-8 Bar 5 l/min | 47x58x112 cm″ | 60 kg |
Manual End Milling Machine
Tucana-06 M is a manual end milling machine. It has pneumatic twin clamps and air gun among standard equipment, whereas custom cutter stacks and profile fixtures among optional equipment.
ATech Machine’s horizontal end-millers are specially designed for milling sets of profiles (both aluminum and vinyl) in which the cutter unit needs to be changed several times in the same set. Machine is equipped with a quick-release cutter holder making different applications on profiles quicker and easier. In addition to that, the cutting zone is fully guarded to protect the operator in all the machining operations.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Tucana-02 M at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
Our horizontal end-millers are specially designed for milling sets of profiles (both aluminum and vinyl) in which the cutter unit needs to be changed several times in the same set.Machine is equipped with a quick-release cutter holder making different applications on profiles quicker and easier
The cutting zone is fully guarded to protect the operator in all the machining operations.
Technical specifications and features are subject to change without prior notice.
End Milling Machines

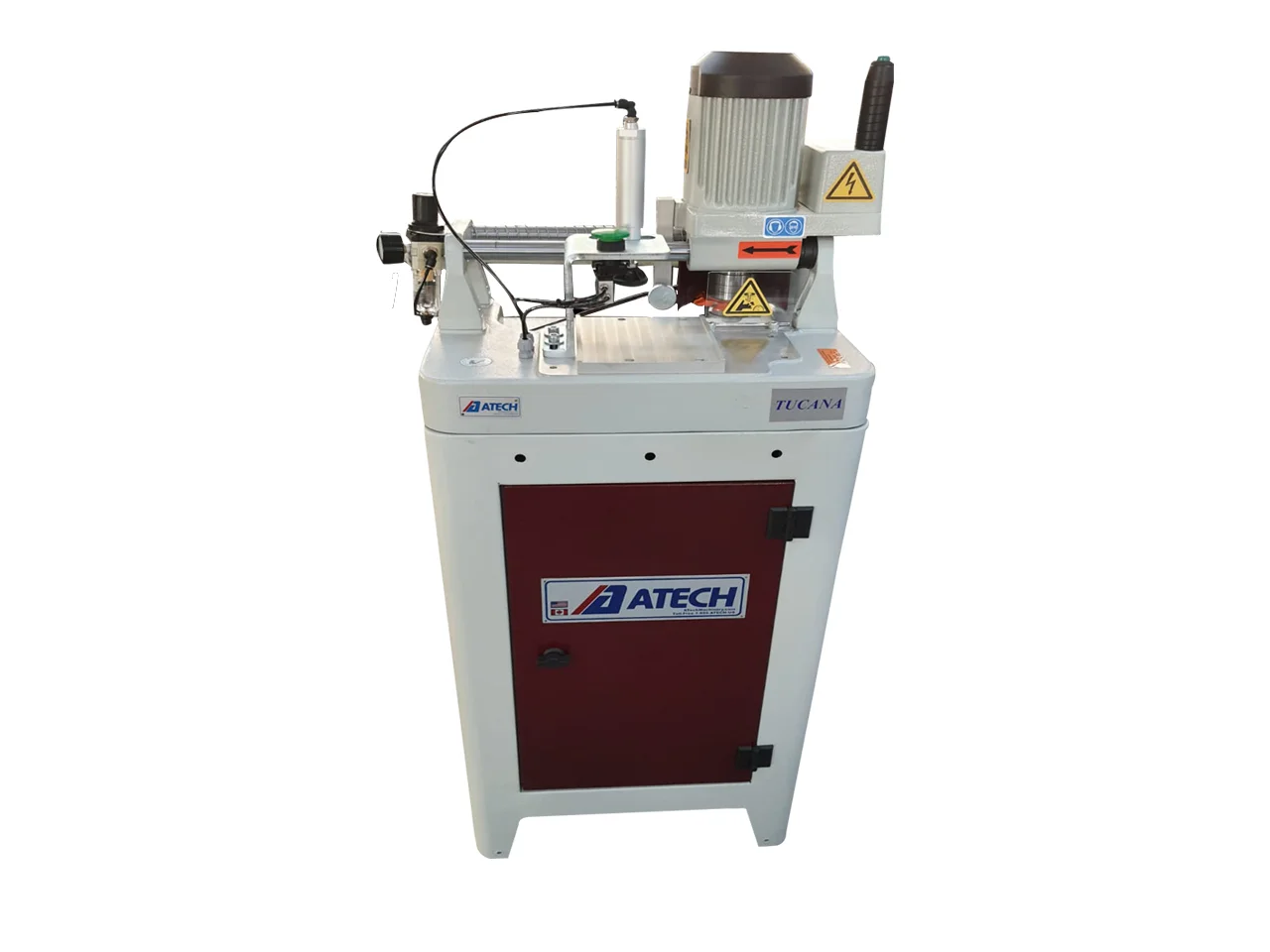

Tucana 06 Sdl End Milling Machine
End Milling Machines

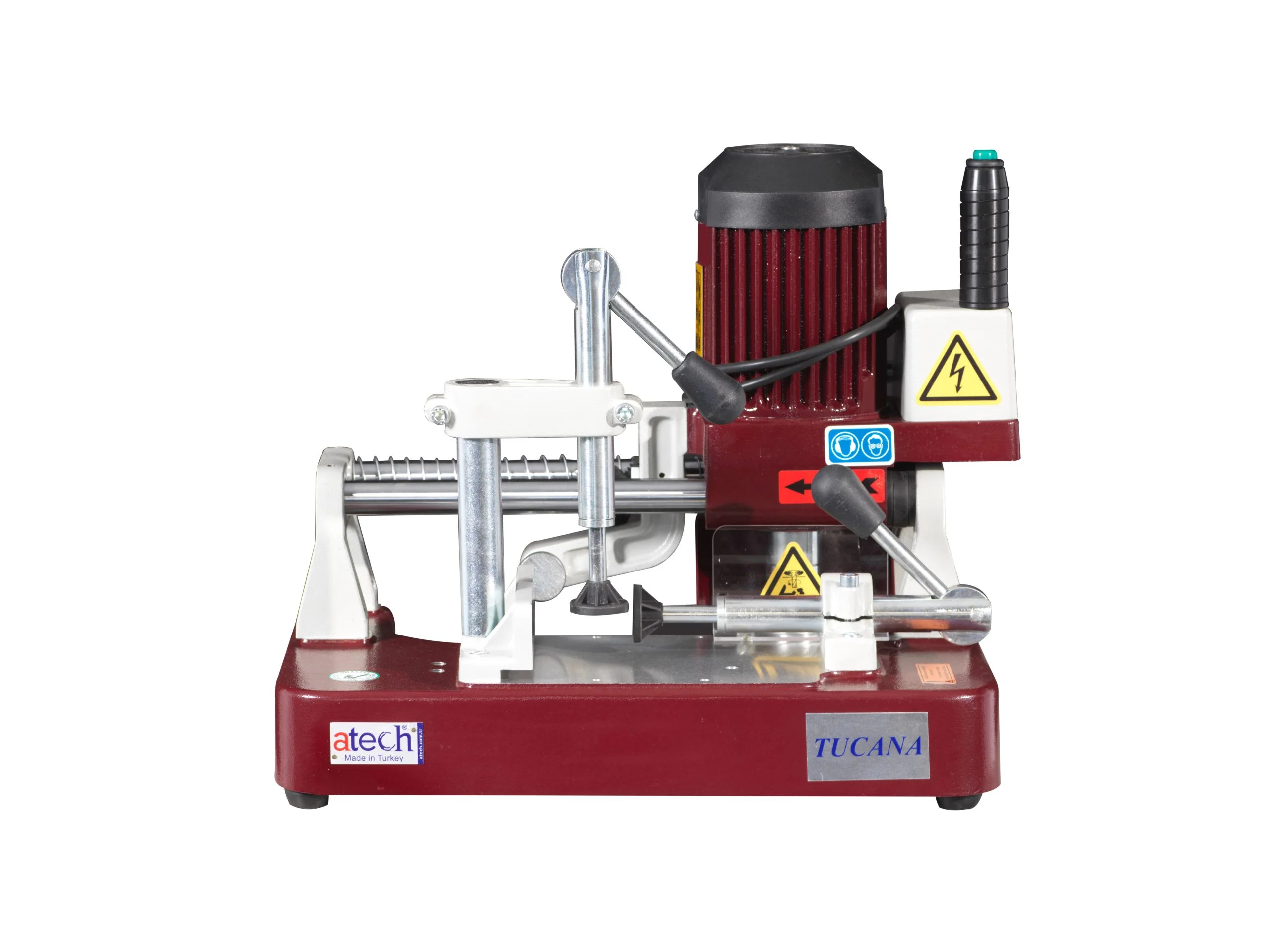

Tucana 02 P Portable End Milling Machine
