SKAT-06 M

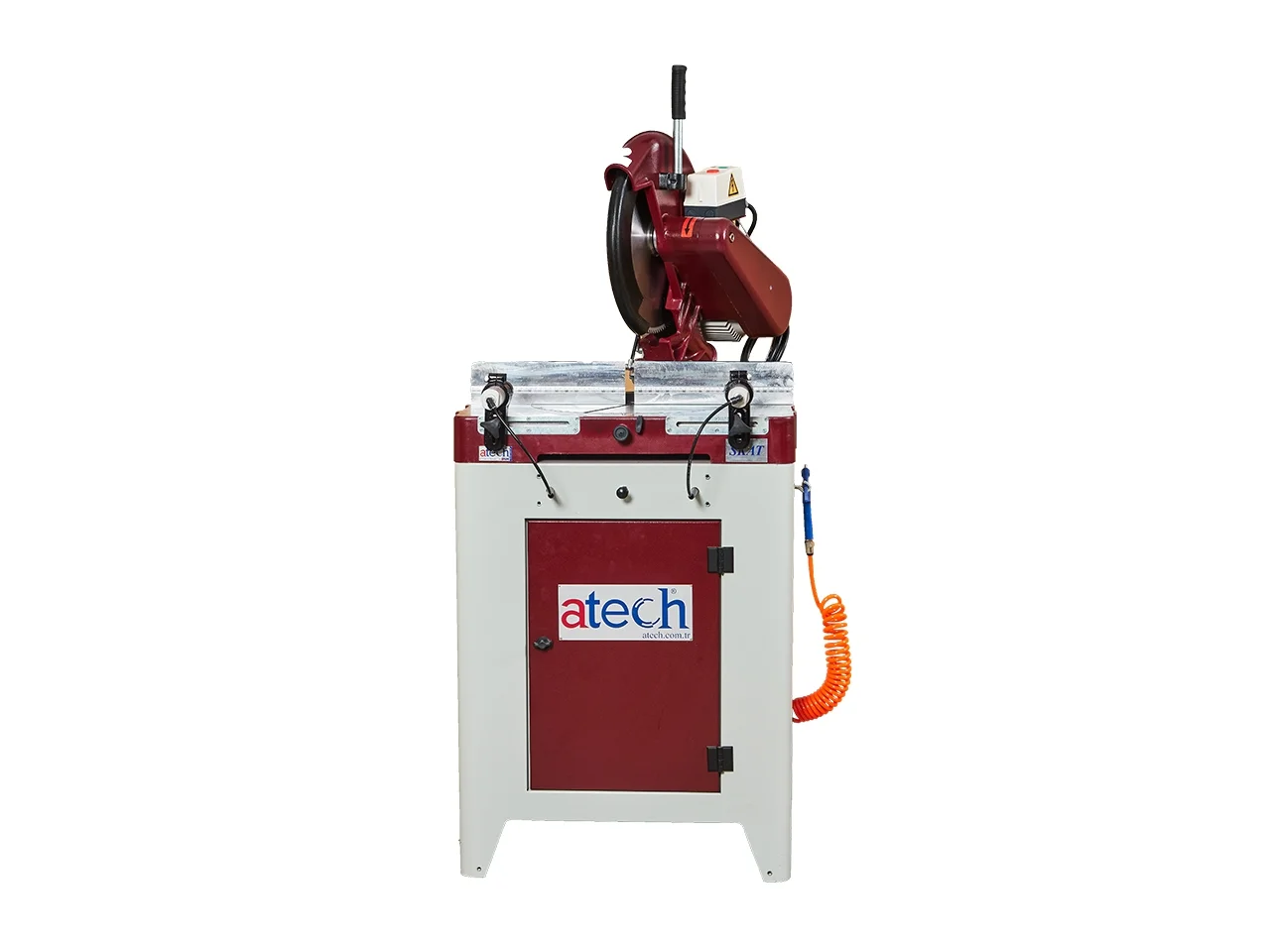

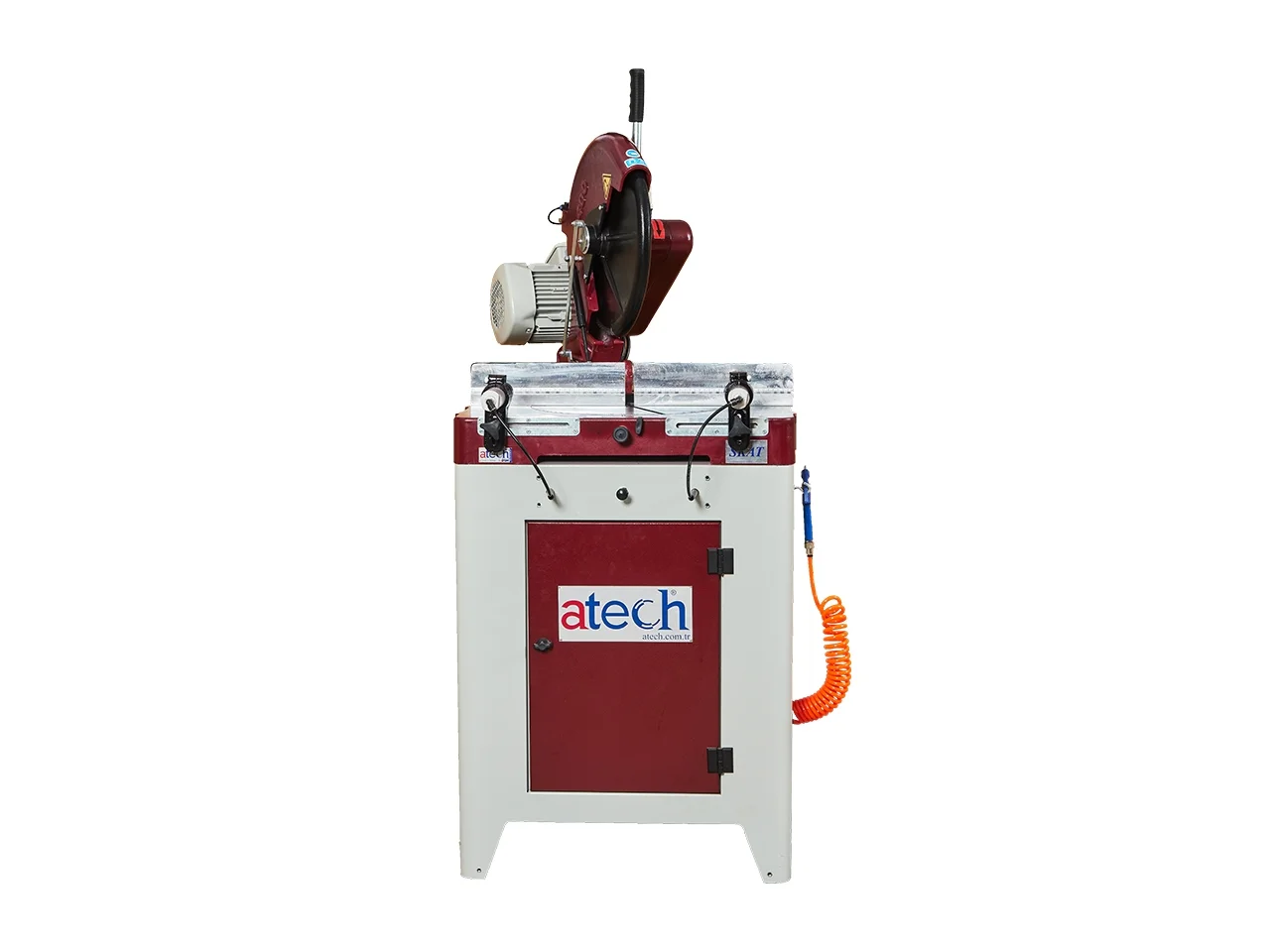

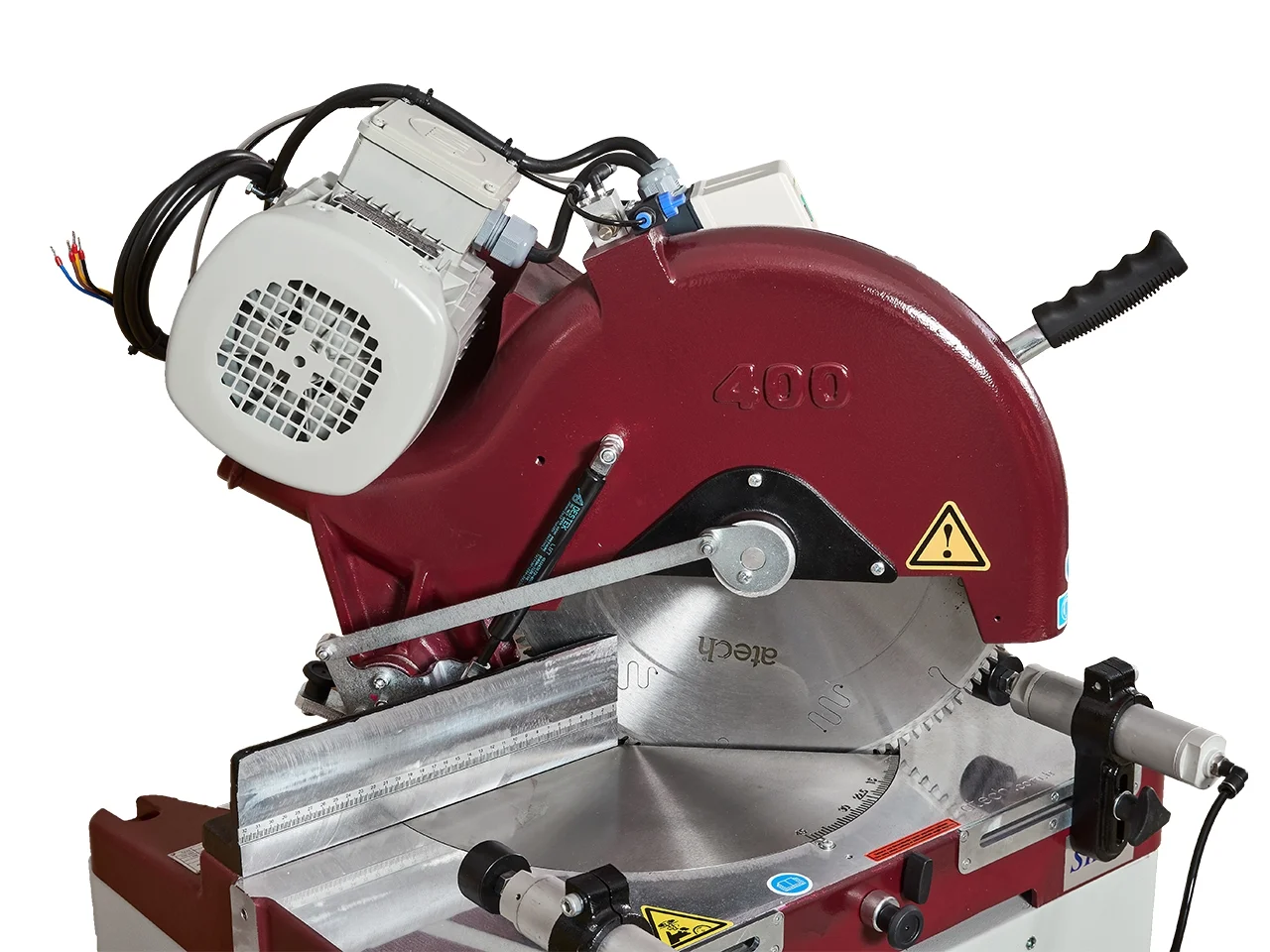

Heavy Duty Manual Miter Saw 16″ (400 mm)
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources
Gas spring system Stopping system, shock absorbing mechanism for easy & quick release of the saw head after the cut Cutting at standard angles and any intermediate angles Easy grip ergonomic handle Cu... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
3 HP, 1-Ph. 220V 60Hz
d= 30-32 mm
3000 rpm
90-120 psi 0.2 CFM
30x24x53″
253 lbs
2.2 kW 1-Phase 230V 50Hz
d=30-32 mm D=400
3000 rpm
6-8 Bar 5 l/min.
75x60x134 cm
115 kg
- Gas spring system
- Stopping system, shock absorbing mechanism for easy & quick release of the saw head after the cut
- Cutting at standard angles and any intermediate angles
- Easy grip ergonomic handle
- Custom designed fork+turntable connection system, which ensures set square accuracy
- Thermal protection switch
- User friendly clamps. Can be tilted to any direction, tightened with one move
- Twin pneumatic clamps
- 16″ carbide tipped saw blade
- Air gun
- User’s manual
- Extra Saw blade
- Infeed/outfeed table
- Mechanical spring system
- Vertical pneumatic clamps
- Heavy duty construction for long machine life.
- Cutting of profiles at fixed angles of 15°-22,5°-30°-45°-90° via lock pin and at intermediate angles via fixing handle.
- Machine has been designed in accordance with CE, UL, CSA Safety Directives
- Also available in 14″ version (model: Pegasus-06 M)
Technical specifications and features are subject to change without prior notice.
