PHOENIX-02 FH CNC Four Head Vinyl (PVC) Welding Machine Phoenix-02 FH is a CNC four head vinyl (PVC) welding machine. It has PLC control system with Touch Screen display and it is capable of differe... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

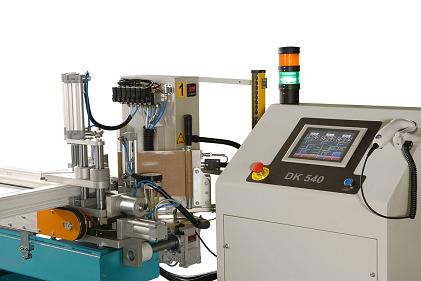

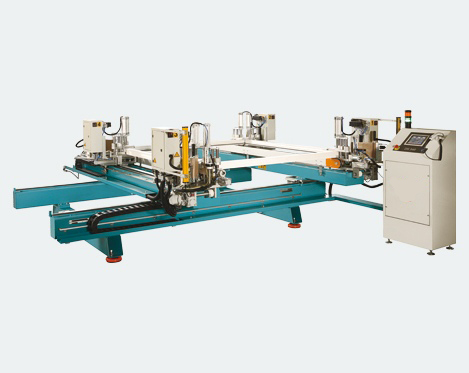

Phoenix-02 FH is a CNC four head vinyl (PVC) welding machine. It has PLC control system with Touch Screen display and it is capable of differentiating between colored and white profile. It has six languages version and safety protective barrier as well.

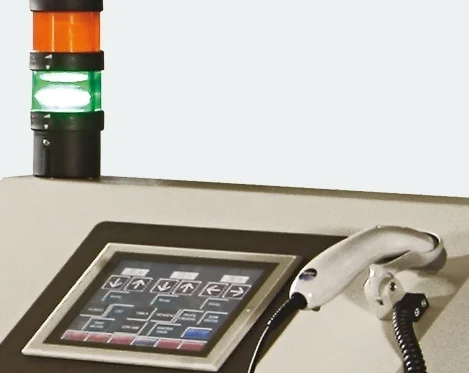

- PLC control system with Touch Screen display
- Capable of differentiating between colored and white profile

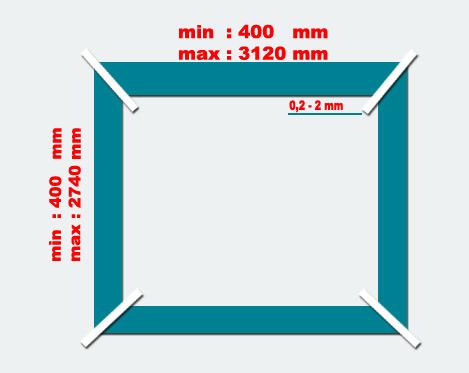

- Automatic adjustment of weld limitation thickness between 0.2 and 2 mm
- Profile welding angle is 90°
- Automatic unloading after welding
- Safety protective barrier
- Capacity to create & save to memory data on 200 different profiles
- Six languages version
- Machine complies with UL & CSA Safety Directives
Techinal Table
Technical Features Imperial
| 8.4 kW 3-Phase220V 60Hz | max h= 140 mm max b= 30 mm max b= 130 mm | max. h=275 cm min. h= 40 cm max. b= 310 cm min. b= 40 cm | 6-8 Bar 1.7 CFM | 410x220x175 cm | 1,690 kg |
CNC Four Head Vinyl (PVC) Welding Machine
Phoenix-02 FH is a CNC four head vinyl (PVC) welding machine. It has PLC control system with Touch Screen display and it is capable of differentiating between colored and white profile. It has six languages version and safety protective barrier as well.
In addition to that, it has automatic adjustment of weld limitation thickness between 0.2 and 2 mm and profile welding angle is 90°. Besides, Phoenix-02 FH provides automatic unloading after welding and it has capacity to create & save to memory data on 200 different profiles.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Phoenix-02 FH at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
Technical specifications and features are subject to change without prior notice.
