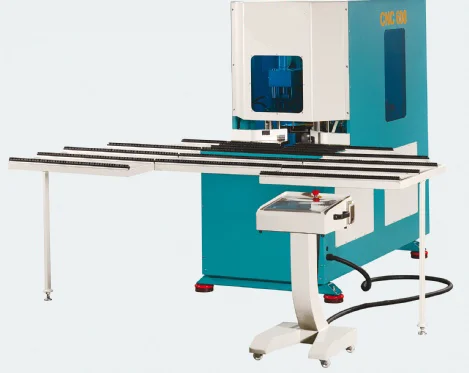

SCORPIO-02 — CNC Corner Cleaning Machine (2 axes / 4 axes )
SCORPIO-02 A
Automatic Vinyl Corner Cleaning Machine
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources
Scorpio-02 A is an automatic vinyl corner cleaning machine. It has automatic system for frame loading and balancing and provides cleaning of 90° welded vinyl profiles. In addition to that, it provides... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
HP (1.5 kW) 3-Phase 220V/440 V 50/60 Hz
3000 rpm
90-120 psi 1.5 CFM
32″x40″x55″
505 lbs
Technical Features
- Automatic system for frame loading and balancing
- For cleaning of 90° welded vinyl profiles
- Cleaning operation of up to 6 different profiles without changing the cutters

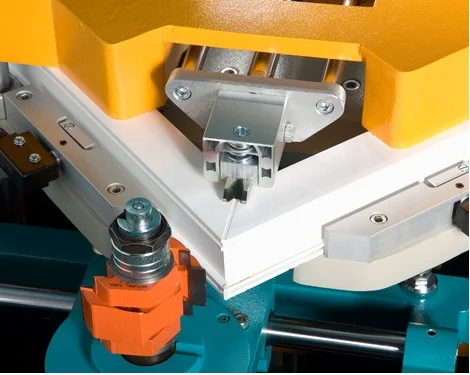

- It cleans lower-upper and outer corner surfaces of PVC profiles

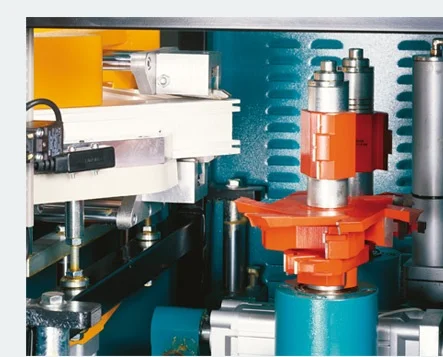

- Upper and lower grooving knives
- Precision adjustment and machine parameters may be adjusted individually

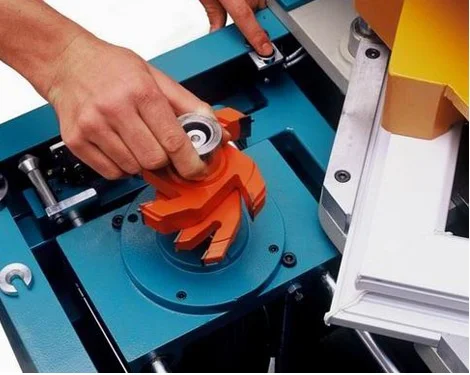

- Easy tool changing
- Automatic switch-off
- Designed in accordance with CE, UL, CSA Safety Directives
- User’s manual Air gun
- Cutter stacks Profile fixtures
Available with different cutter stack capacities:
Model CA 601 = 2 cutter stacks
Model CA 603 = 4 cutter stacks
Model CA 605 = 6 cutter stacks
Technical specifications and features are subject to change without prior notice.
Welding and Cleaning Machines

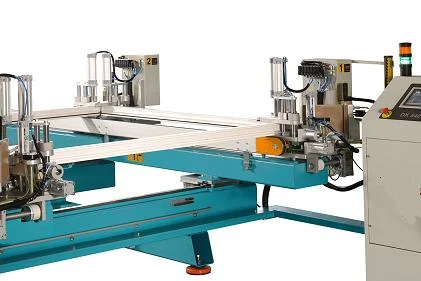

CCL 1660 Vinyl (PVC) Frames Production Line
