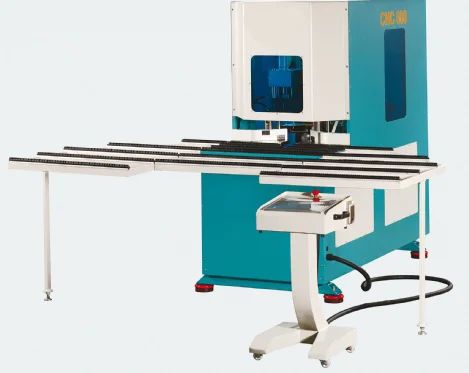

SCORPIO-02 A — Automatic Vinyl Corner Cleaning Machine
SCORPIO-02
CNC Corner Cleaning Machine (2 axes / 4 axes )
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Scorpio-02 CNC is a CNC corner cleaning machine with 2 axes / 4 axes options. It designed for cleaning at 90° vinyl profile corners after welding operations. It has Windows based PLC control system wi... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
5 HP 220V/440 V 60 Hz 3- Phase
d=30/32 mm D=10”
3000 rpm
90-120 psi 5 CFM
40”x60”x74”
2,460 lbs
Technical Features

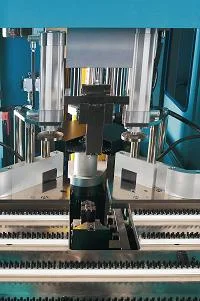

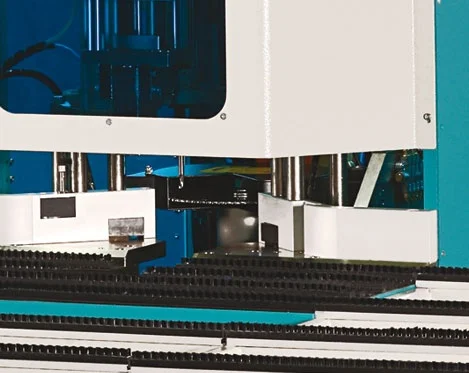

- CNC corner cleaning machine designed for cleaning at 90° vinyl profile corners after welding.
- Windows based PLC control system with Touch Screen display√ Available with 2 or 4 servo motors
- 11 tooling units comprising cutters, saw blade, drills
- White and colored profile recognition from the control panel
- Access to stored programs enables easy repetitive operations
- Different cutters for white and colored profiles
- Simultaneous upper and lower profiles cleaning independently of other cleaning units
- Automatic lubrication system
- Machine has been desgined in accordance with CE, UL, CSA Safety Directives
- Min. Frame Size: 16”x16” Max. Profile Size: 5”x5” Min. Profile Size: 1.2”x1.2”
- Available with 2 and 4 servo motor
Technical specifications and features are subject to change without prior notice.
