CRATER
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.

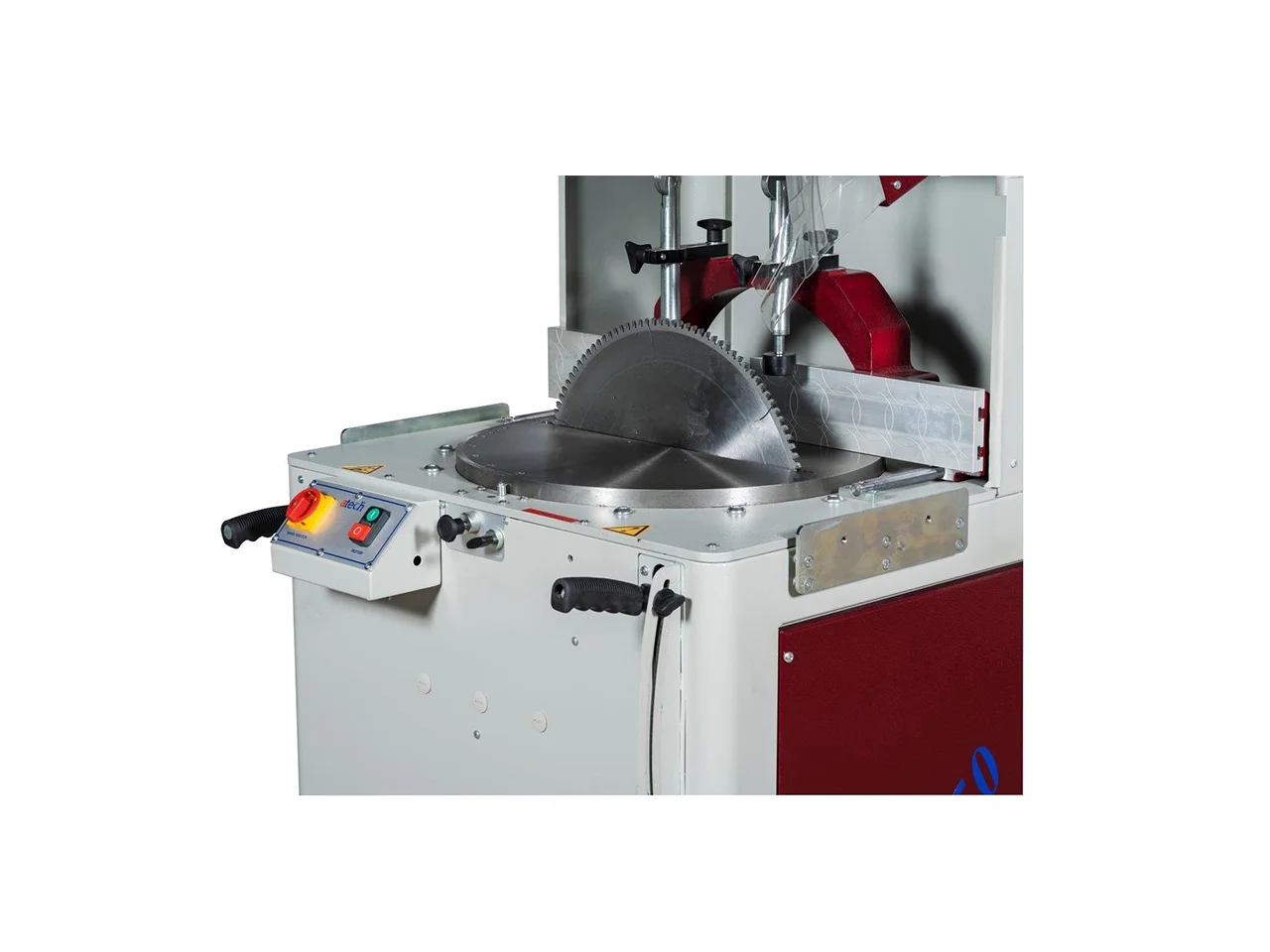

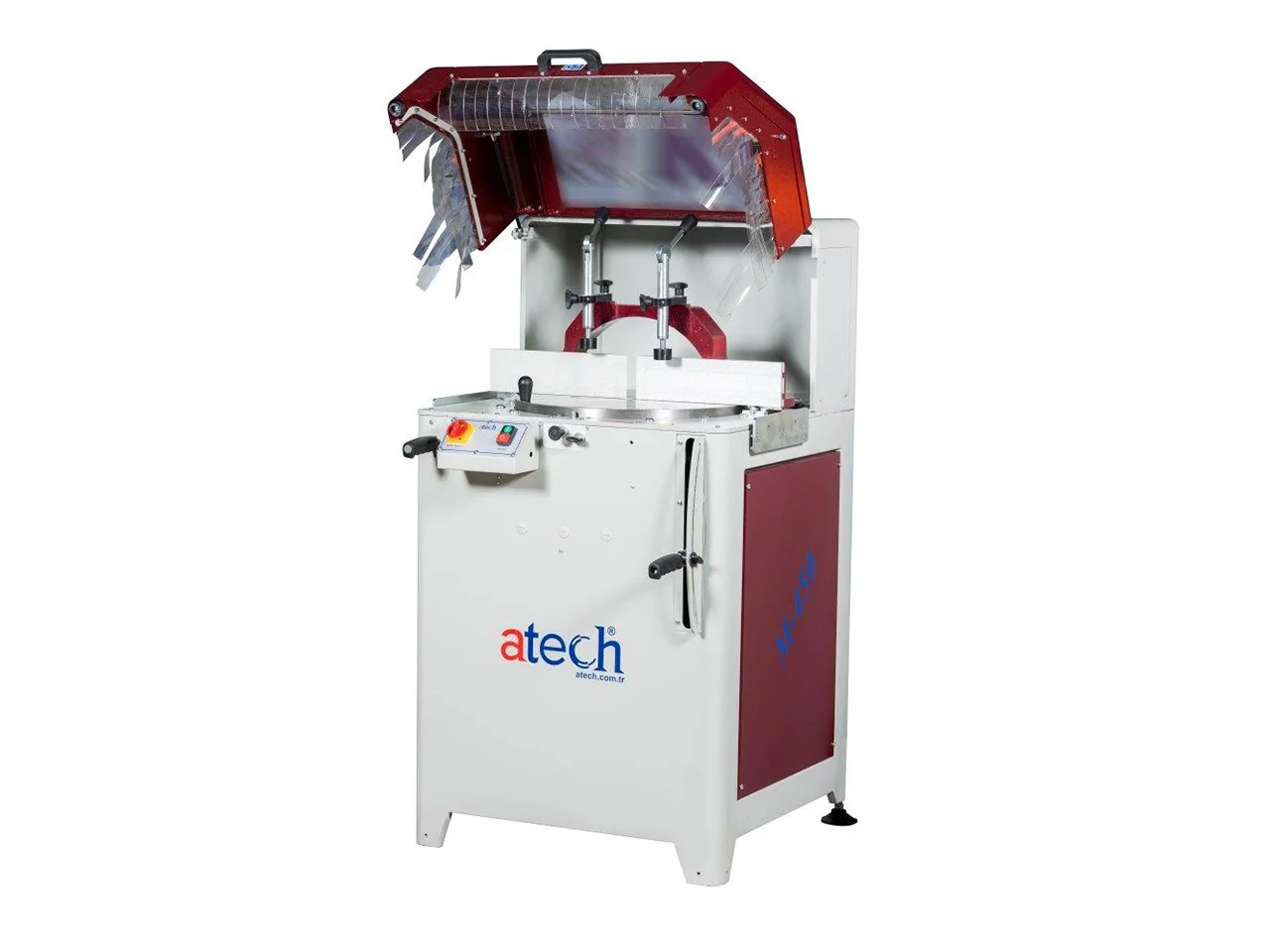

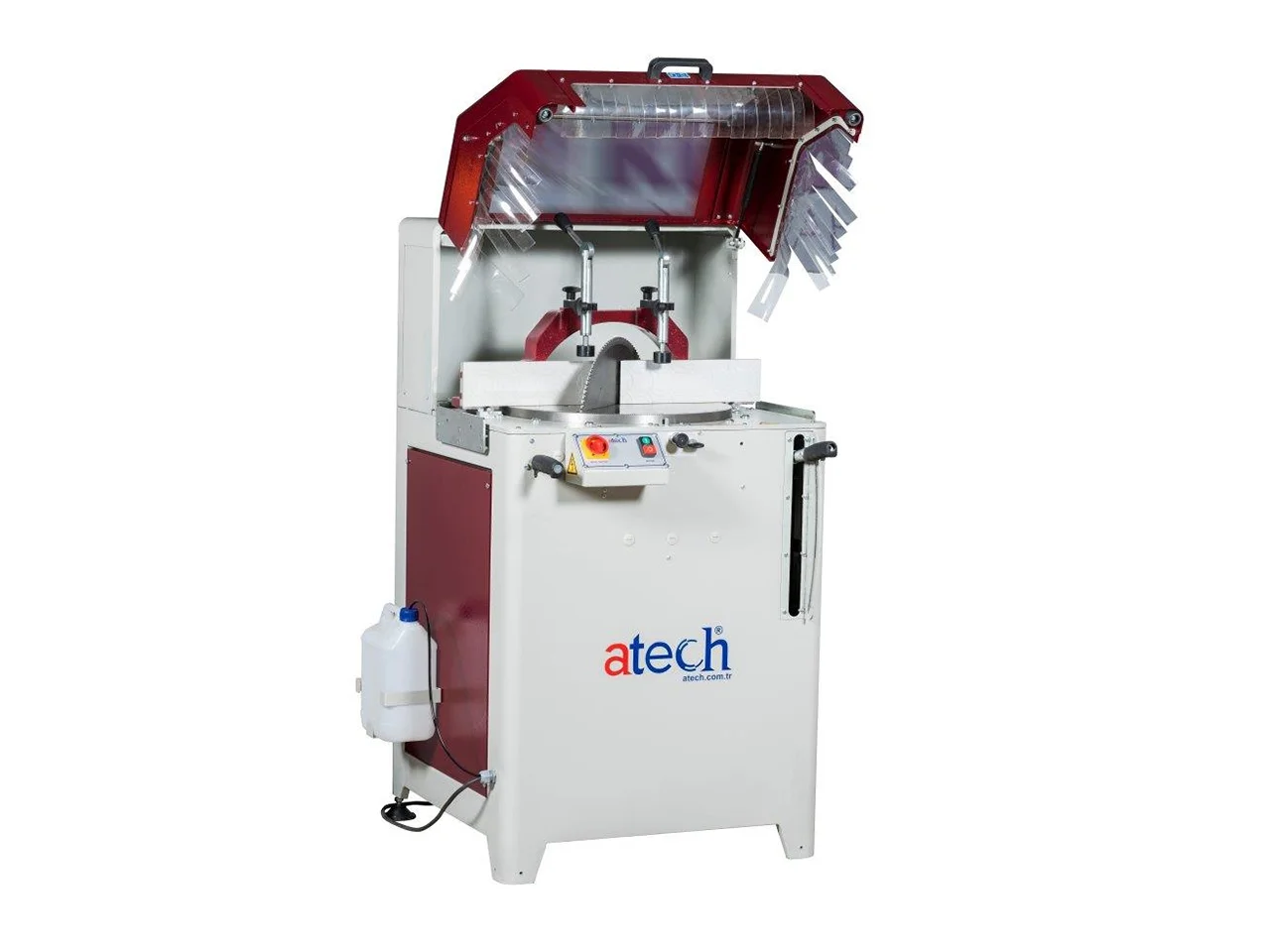

Crater-06 M is a manual 18” (450 mm) up cut miter saw. It has 2 main parts; a 18” (450 mm) circular saw blade and manual clamps. There are also infeed & outfeed tables, and pneumatic spray mist lubric... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
2.2 kW (3 HP) 1-Phase 220V
3000 RPM
W: 90 cm (35”) L: 85 cm
150 kg - 330 lbs
3- Phase 220V 50/60 Hz
3000 RPM
(33”) H: 128 cm (50”)
130 kg - 286 lbs
Specific Capacities
- Heavy duty manual upcut miter saw designed for cutting PVC, aluminum and wood in desired angles
- Comfortably cutting by pressing down the horizontal metal bar
- Split type straight cut on 90° left angle
- Cutting at fixed angles (lock pin) and any intermediate angles
Standard Accessories
- 18” (450 mm) circular saw blade
- Manual clamps
- User’s manual
Optional Accessories
- Pneumatic spray mist lubrication
- Infeed & outfeed tables
- Twin pneumatic clamps (horizontal and/or vertical)
Technical specifications and features are subject to change without prior notice.
