Libra 06 Pro 4 Axis Full Automatic Cnc Copy Router
DOLPHIN
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
DOLPHIN-02 A-FH Automatic Water Slot Milling Machine with High Frequency Motors 2 DOLPHIN-02 A-FH Automatic Water Slot Milling Machine with High Frequency Motors 2 DOLPHIN-02 A-FH Automatic Water Slot... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

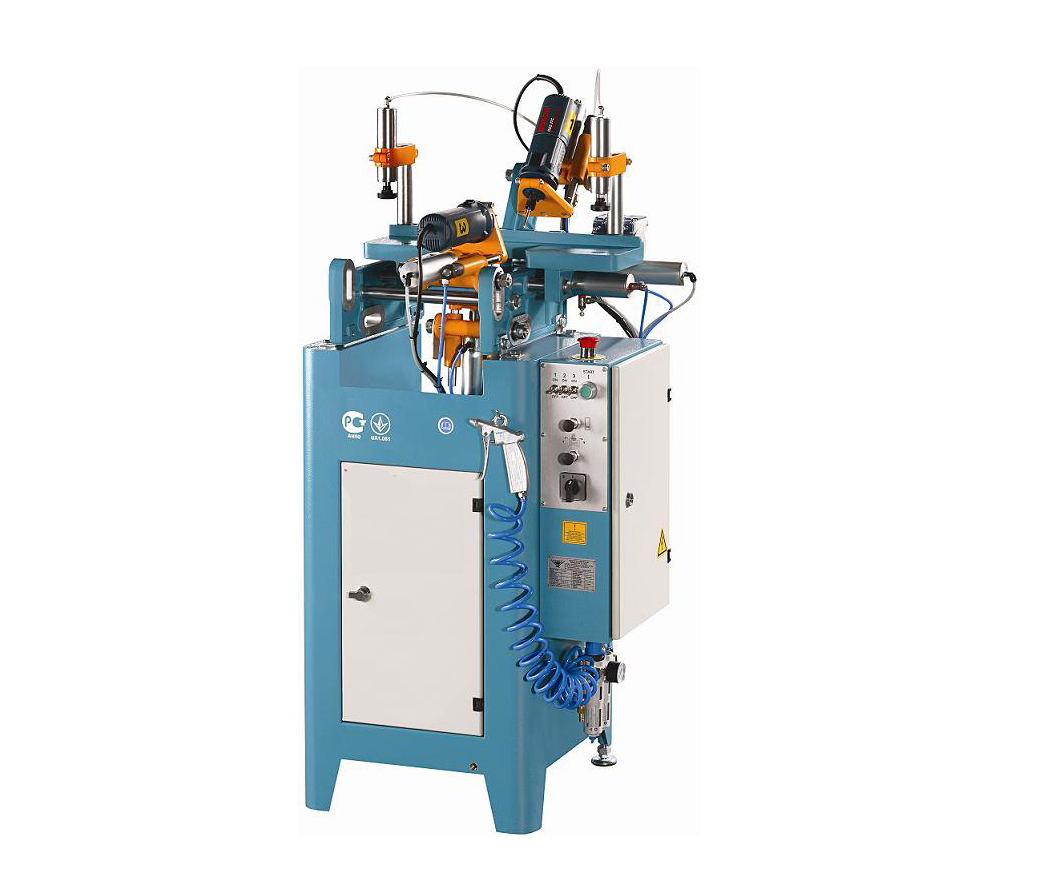

Dolphin-02 A/AF is an automatic water slot milling machine with high frequency motors. It has pneumatic twin vertical clamps, drill bits and air gun among standard equipment, whereas drill bits among optional equipment.
- Axis deviations are adjusted automatically
- Automatic process through single button
- Motor selection by means of the buttons
- Pneumatic twin vertical clamps
- Drill bits
- User’s manual
- Air gun
- Extra drill bits
Technical Table
Technical Features Imperial
| 3×1 HP 1-Phase 220V 60 Hz | 27000 rpm | 90-120 psi 0.3 CFM | 20″x20″x54″ | 145 lbs |
Technical Features Metric
| 3×0.8 kW 220V 50Hz | 27000 rpm | 6-8 Bar 11 l/min | 51x51x137 cm | 66 kg |
Automatic Water Slot Milling Machine
Automatic Water Slot Milling Machine
Dolphin-02 A/AF is an automatic water slot milling machine with high frequency motors. It has pneumatic twin vertical clamps, drill bits and air gun among standard equipment, whereas drill bits among optional equipment.
Dolphin-02 A/FH has automatic process through single button and motor selection by means of the buttons. In addition to that, its axis deviations are adjusted automatically.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Dolphin-02 A/FH at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
Technical specifications and features are subject to change without prior notice.
Copy Routing Machines

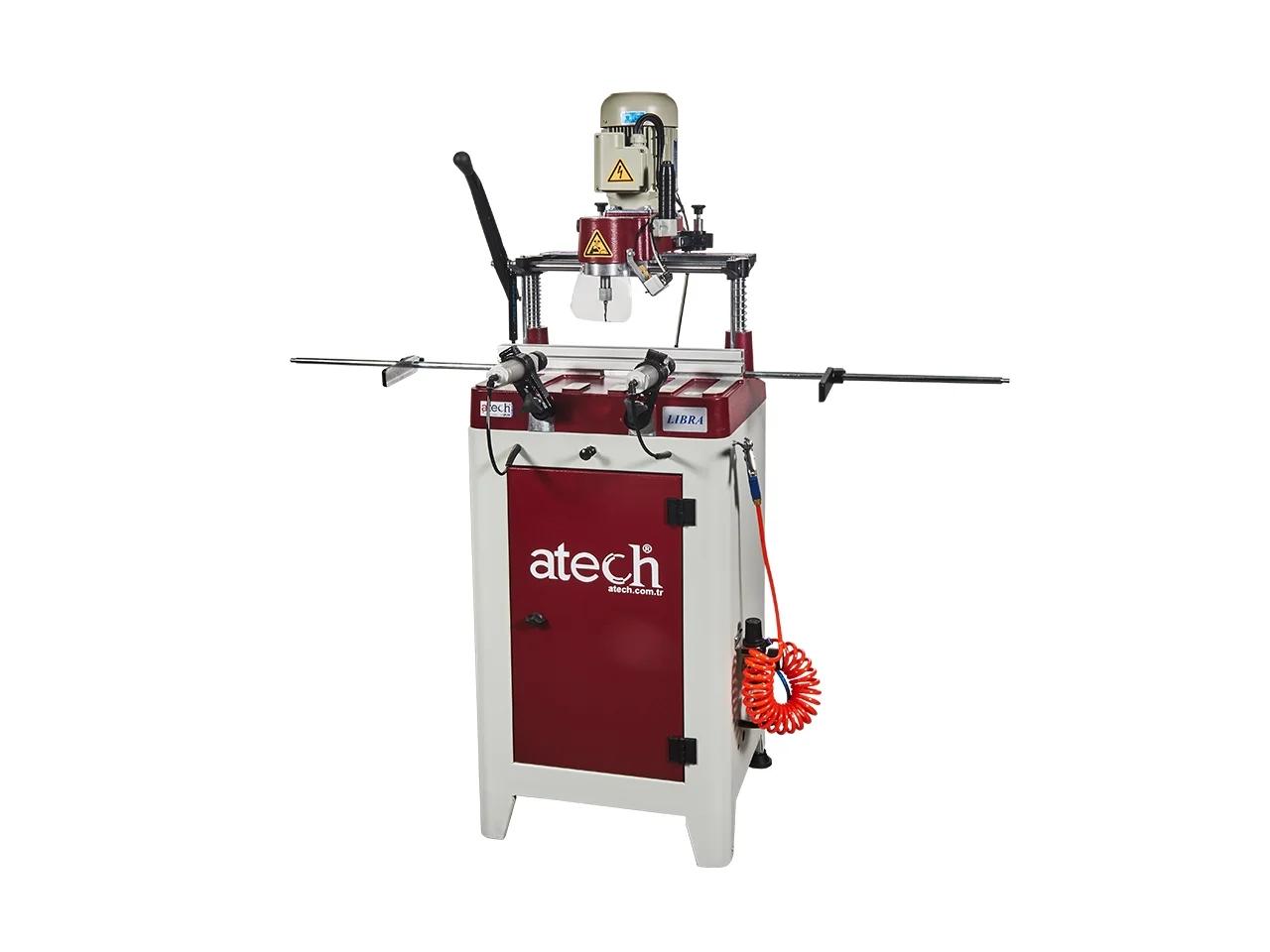

LIBRA-06 M Manual Copy Router
Copy Routing Machines

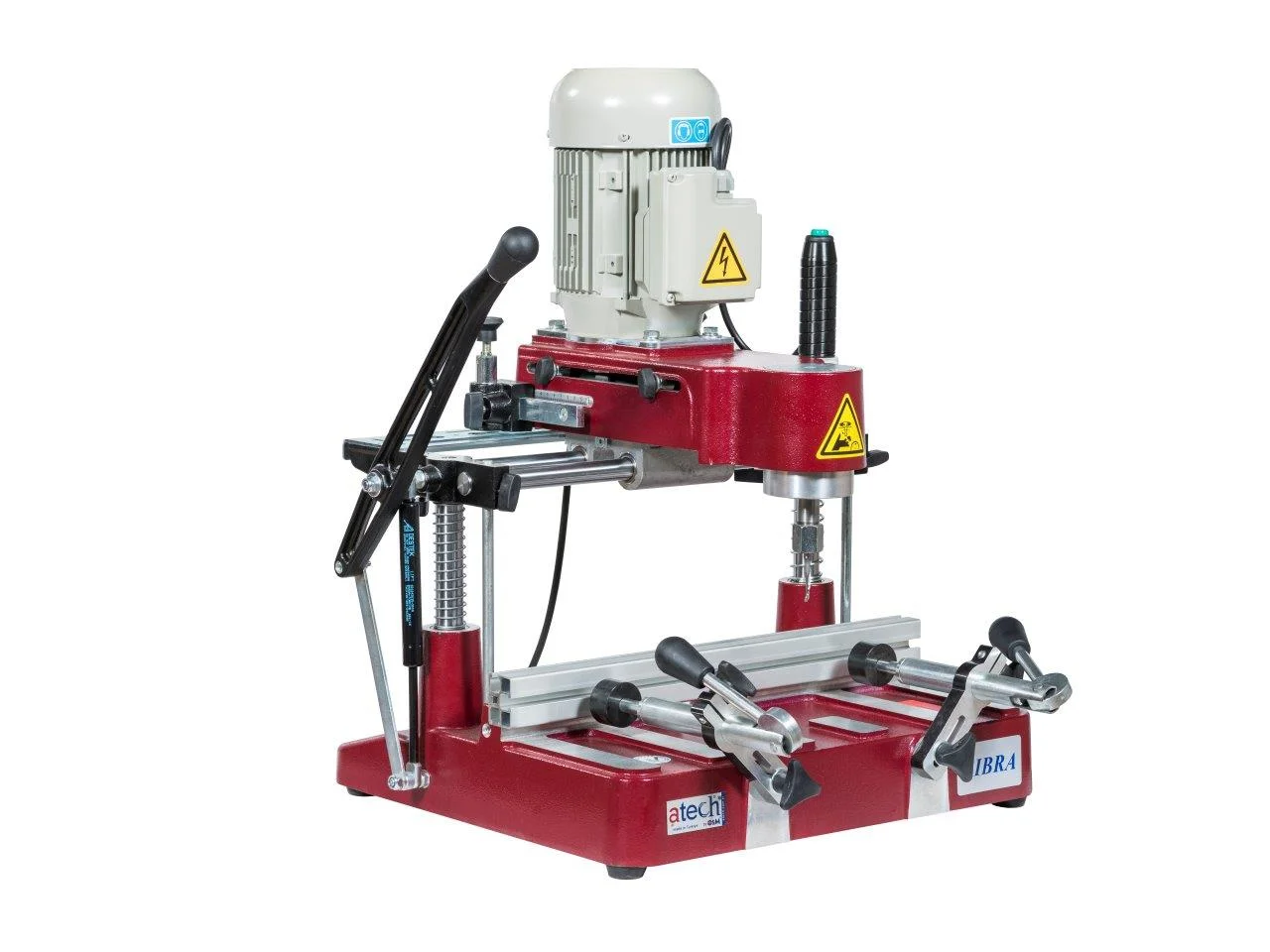

Libra 06 P Heavy Duty Manual Copy Router
