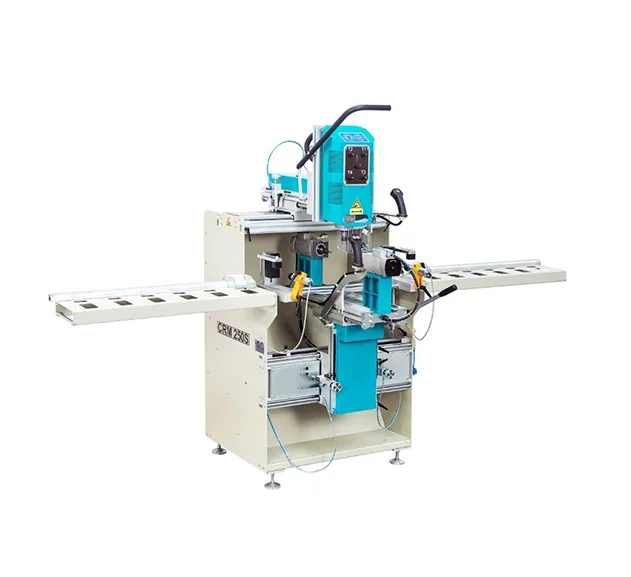

LIBRA-02 S 3 Spindle
Copy Router
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources
It is designed to operate quickly and precisely lock’s holes on aluminum profile, without releasing the workpiece.Spindle Copy Router with 1 vertical and 2 horizontal spindle motors ( 3 x 1.1 Kw 12.00... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

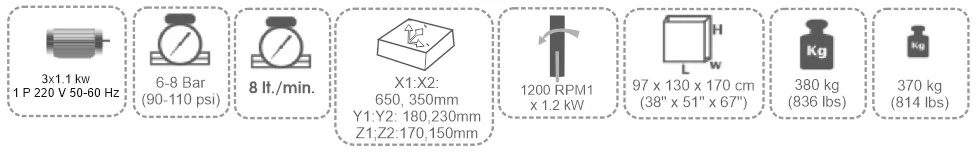

3x1.1 kW 1 p 220 V 50-60 Hz
1200 RPM 1 X 1.2 kW
6-8 Bar (90-110 psi) 8 lt./min
97x 130 x 170 cm
380 kg (836 Ibs) - 370 kg (814 Ibs)
It is designed to operate quickly and precisely lock’s holes on aluminum profile, without releasing the workpiece.

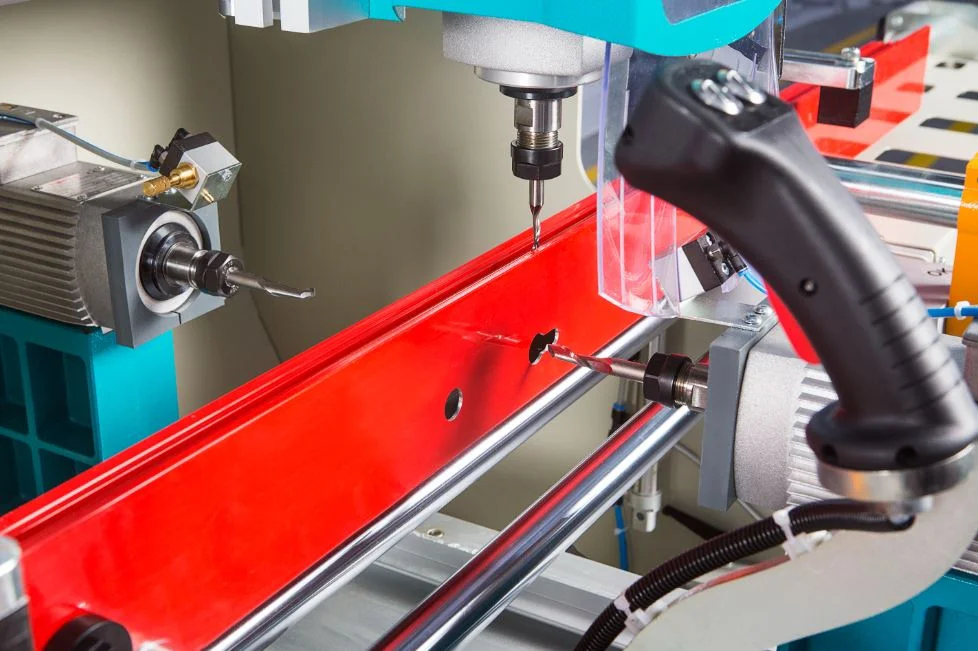

Spindle Copy Router with 1 vertical and 2 horizontal spindle motors ( 3 x 1.1 Kw 12.000RPM)

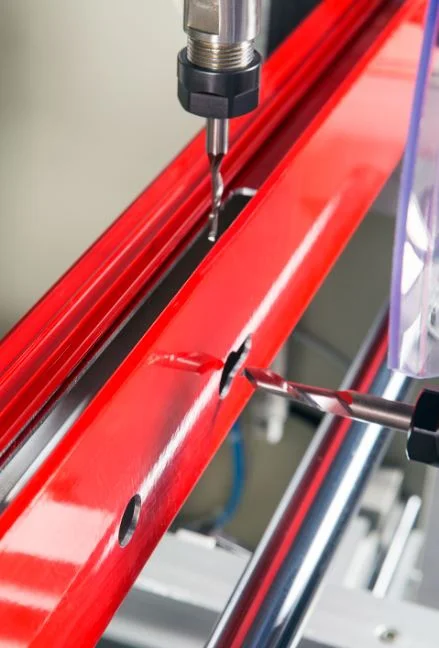

- Designed to perform quickly and precisely lock’s holes on 3 sides of the aluminum profile without releasing the workpiece
- Pneumatic 2 x horizontal and 2x vertical clamps

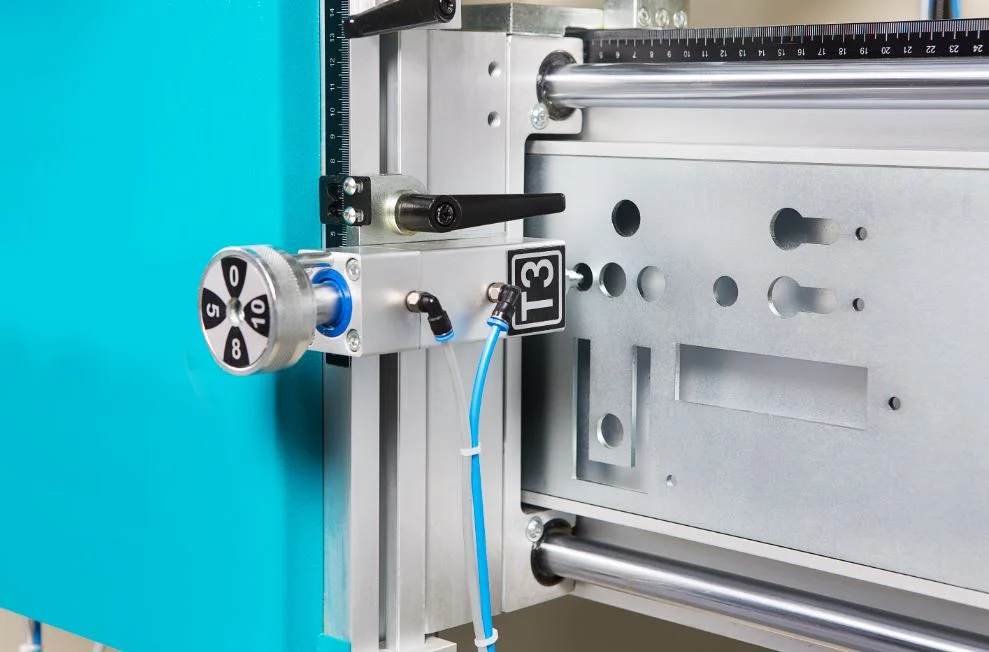

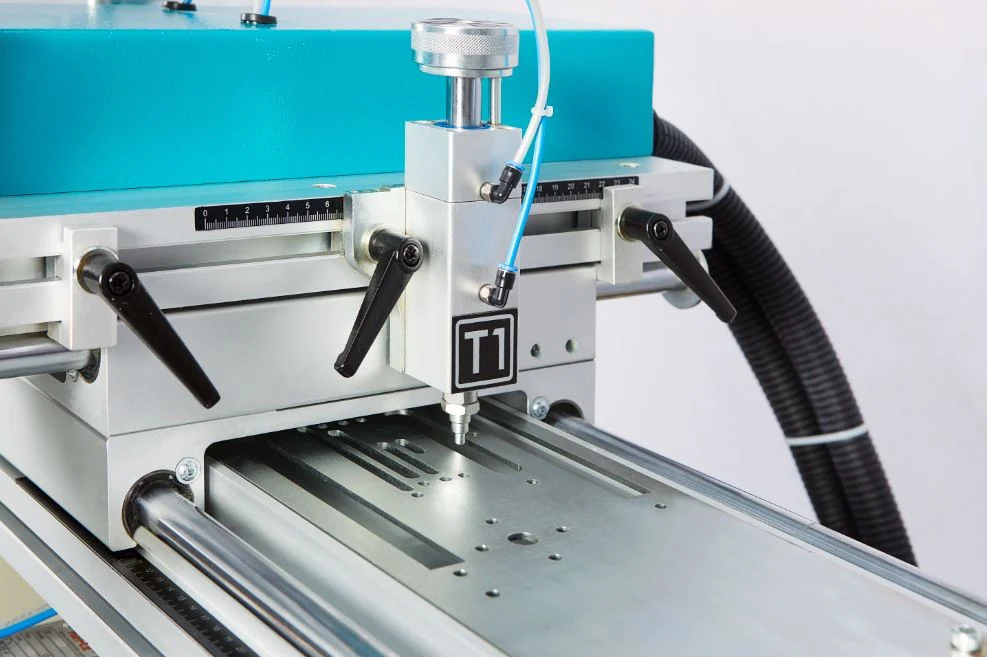

- Horizontal and vertical pneumatic tracers with 3 diameters Ø 5, Ø 8, Ø 10 mm
- Horizontal & vertical templates with standard figures for Aluminum and PVC profiles.

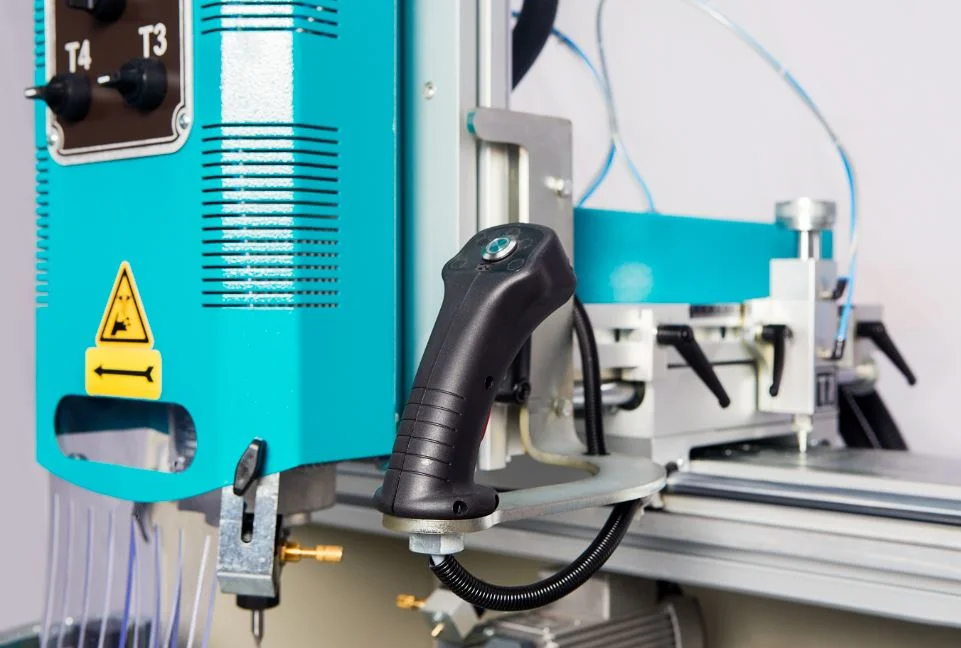

- Smooth movement, high precision and great sensitivity provided with gas spring and ergonomic handles

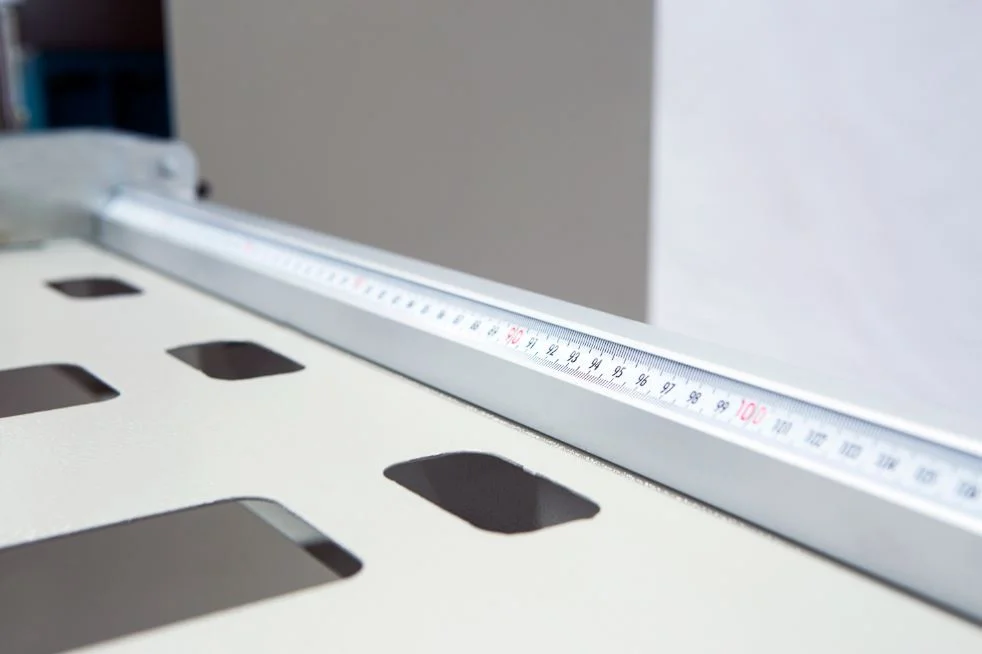

- 1 m of roller support table at the right (with ruller) and left side
- Manualy adjustable profile stops 5 placed on the right and left that allows
the work piece to be positioned properly in the machine.
- Spray tool lubrication system
OPTIONAL
- Additional router bits Ø5mm, Ø8mm and Ø10mm
- Additional collets Ø 8 and Ø10
- Custom copy templates
Technical specifications and features are subject to change without prior notice.
