LIBRA-06 M
Manual Copy Router
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources
Libra-06 M is a manual copy router machine. It has pneumatic twin horizontal clamps, router bit, profile support bars, copy template and air gun among standard equipment, whereas extra router bit, cus... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
1.2 HP 1-Phase 220V 60 Hz
x:260 mm y:110 mm z:130 mm
14000 rpm
90 psi 0.2 CFM
24x22x57″
160 lbs
800W 220V 50Hz
x:260 mm y:110 mm z:130 mm
14000 rpm
6-8 Bar 5 l/min
60x55x145 cm
73 kg
Standard Equipment
- Pneumatic twin horizontal clamps
- Router bit
- User’s manual
- Copy template
- Air gun
- Profile support bars
Optional Equipment
- Extra router bit
- Customized copy template
- Pneumatic spray mist lubrication
Technical Features
Machine has been designed to open key holes, slots, holes and other window & door accessory shapes onto PVC and aluminum profiles
Manual Copy Router Machine

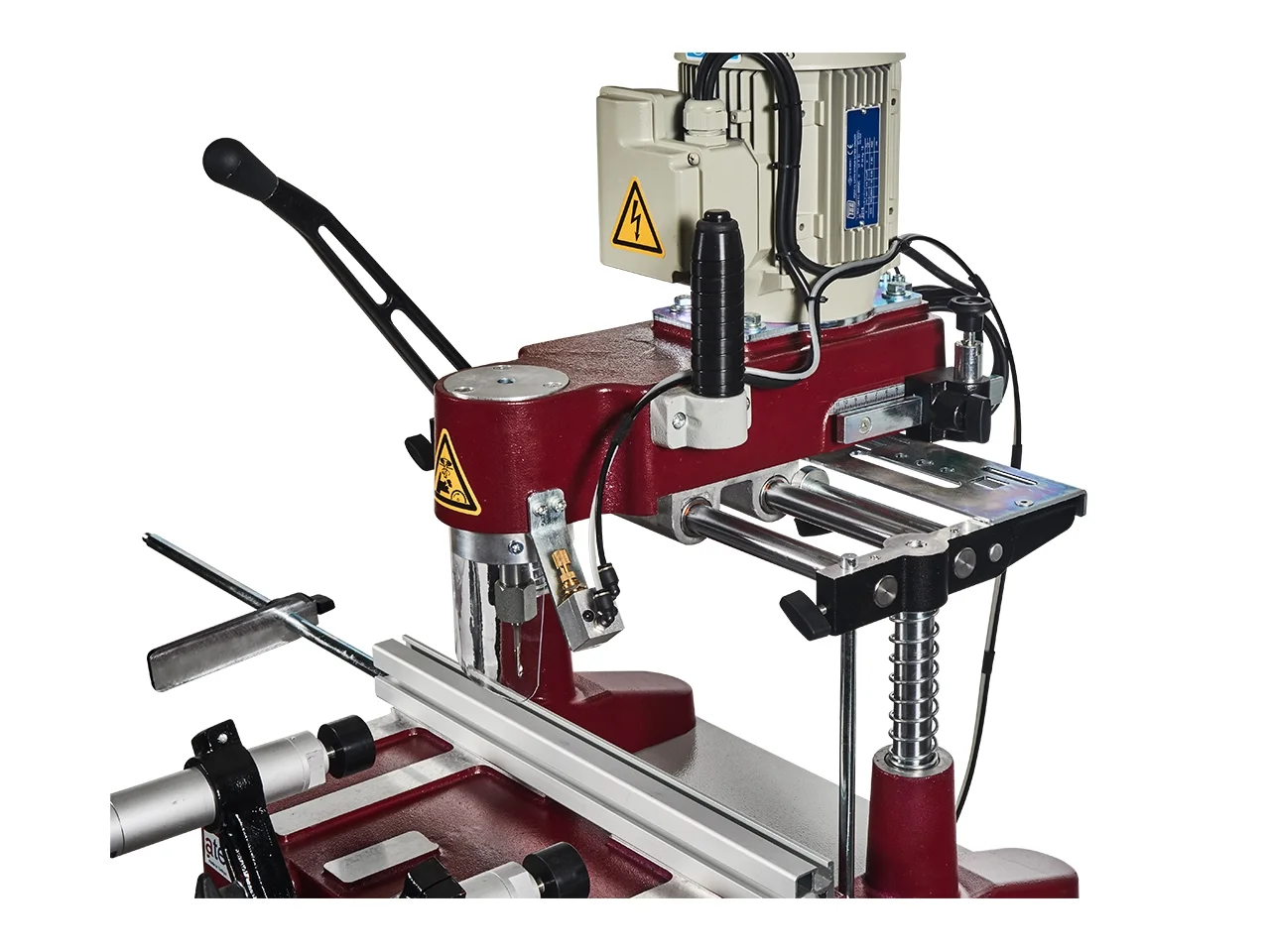

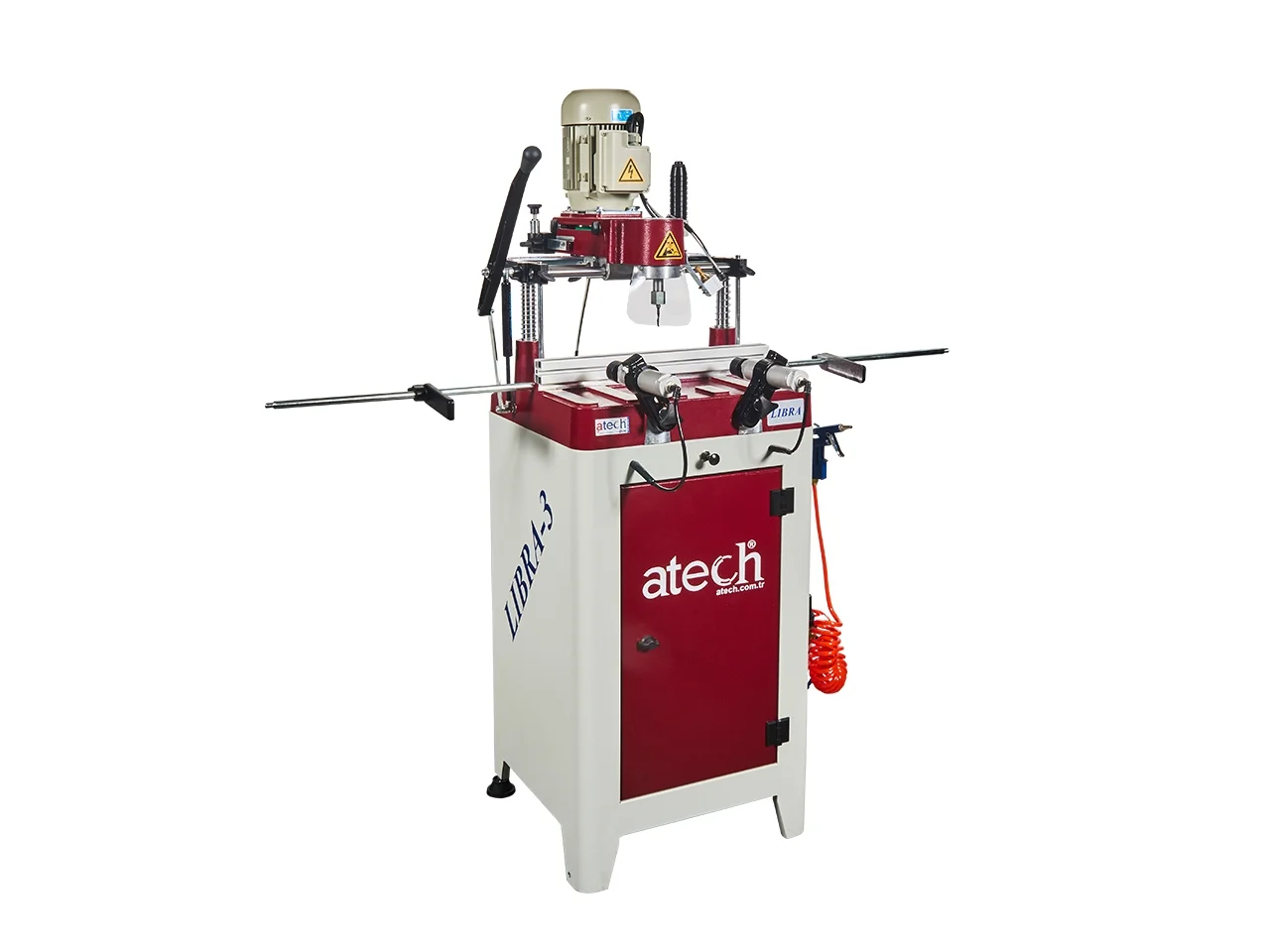

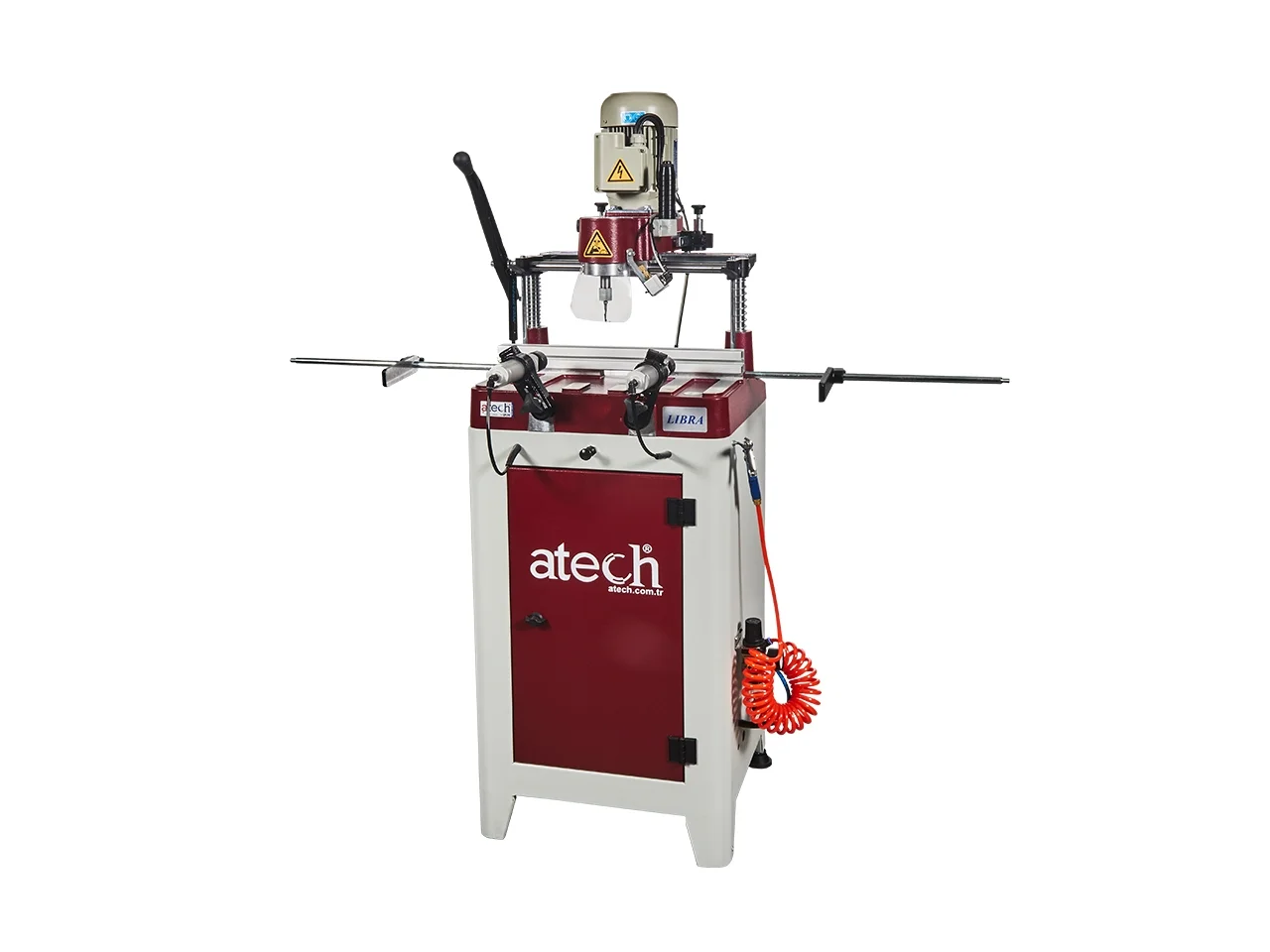

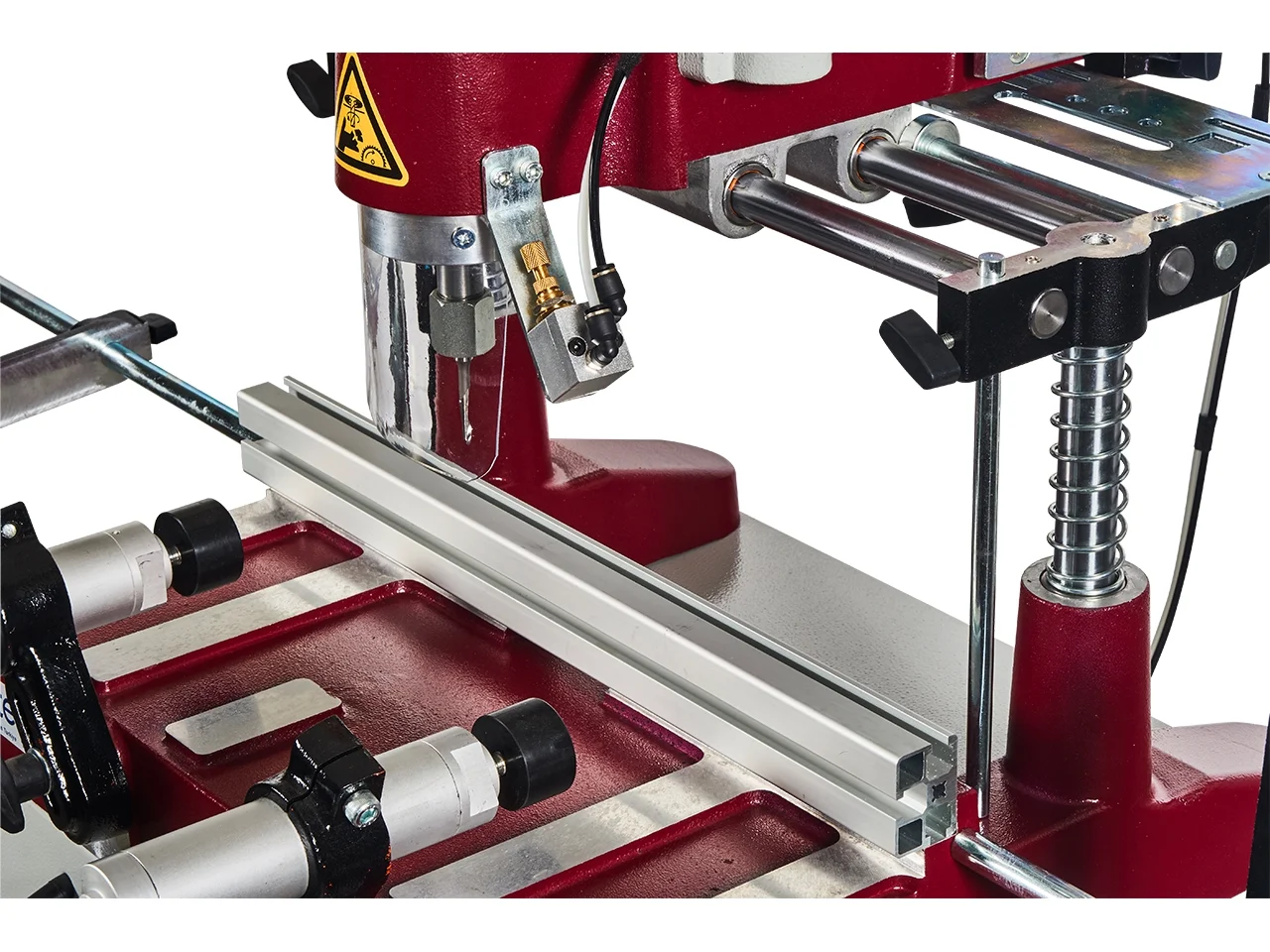

Libra-06 M is a manual copy router machine. It has pneumatic twin horizontal clamps, router bit, profile support bars, copy template and air gun among standard equipment, whereas extra router bit, customized copy template and pneumatic spray mist lubrication among optional equipment.
Libra-06 M has been designed to open key holes, slots, holes and other window & door accessory shapes onto PVC and aluminum profiles.
The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Libra-06 M at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
Technical specifications and features are subject to change without prior notice.
