Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
VCE 1570 is an industrial vacuum chip collector. The excellence of design and construction technique creates extremely handling friendly and virtually maintenance free units with innovative technical ... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada

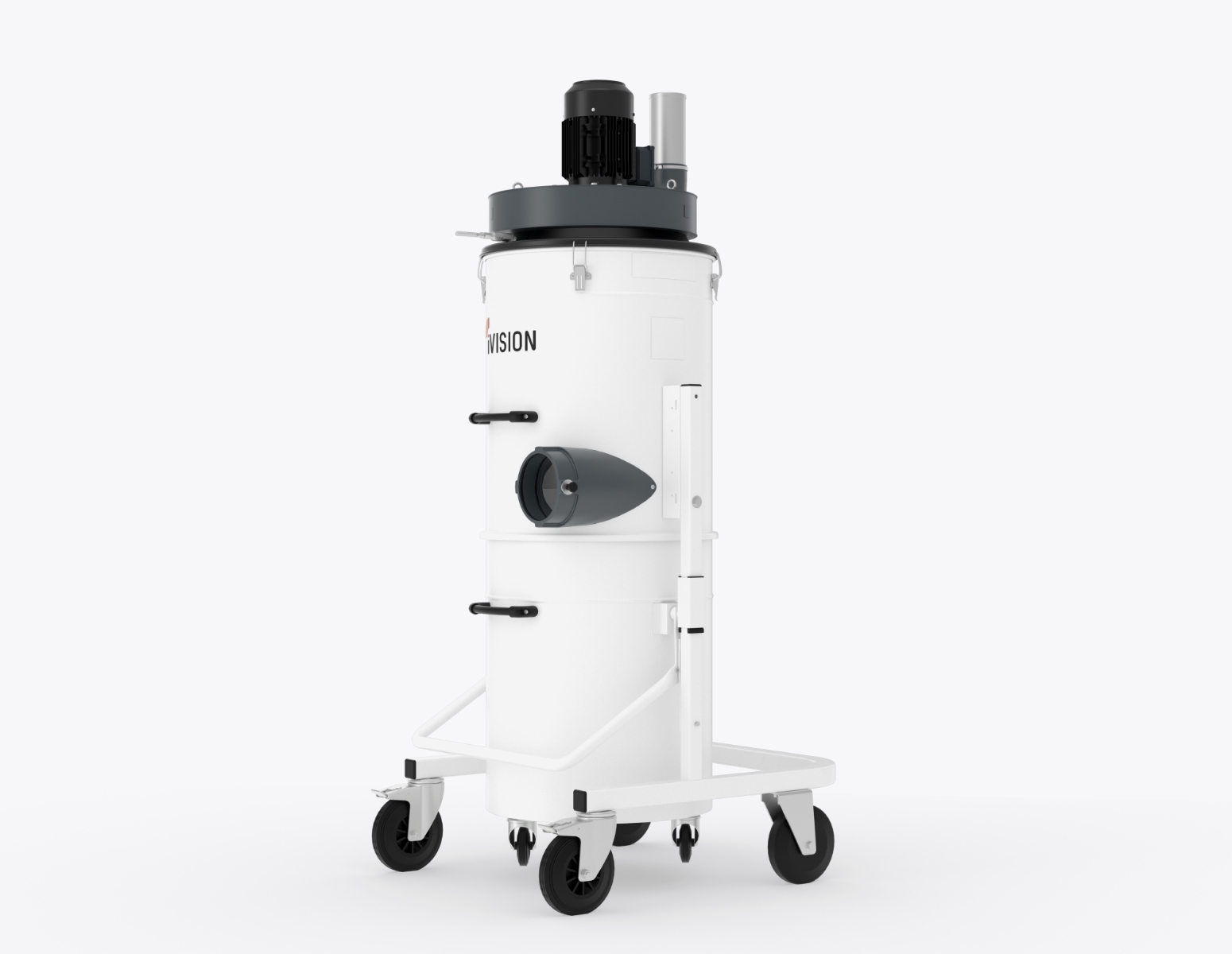

VCE 1570 is an industrial vacuum chip collector. The excellence of design and construction technique creates extremely handling friendly and virtually maintenance free units with innovative technical solutions to get the best possible performances. The sturdy material used and the simple design are additional characteristics, especially designed for industrial purposes is equipped with a powerful motor and a state of the art filtering system. Thanks to its flow rate and depression features it is ideal for heavy dust or collection of steel, aluminum and or any metal chips, including plastics, fiberglass, PVC.
The long technological expertise of its staff, a careful supervision of the details during production and ownership of exclusive patents place the company IVISION among the most technologically advanced manufacturers in the world in its market segment.
The excellence of design and construction technique creates extremely handling friendly and virtually maintenance free units with innovative technical solutions to get the best possible performances
The sturdy material used and the simple design are additional characteristics, especially designed for industrial purposes is equipped with a powerful motor and a state of the art filtering system. Thanks to its flow rate and depression features it is ideal for heavy dust or collection of steel, aluminum and or any metal chips, including plastics, fiberglass, PVC.
OPTIONAL
TECHNICAL TABLE
| Power : | 2,2 kW (2.7 HP) |
| Voltage : | 3-Ph. 220V |
| Mbar : | 30 |
| PSI : | 0.4 |
| Air flow max : | |
| Cubic meters m³ : | 1400 |
| Cubic feet ft³ : | 824 |
| Suction inlet : | |
| Number : | 2 |
| Size Ø mm : | 100 or 160 or 100 + 160 |
| Size Ø inches : | 4” or 6.2” or 4” + 6.2” |
| Tank volume : | |
| Liters : | 160 |
| Gallons : | 42.27 |
| Dimension : | |
| H x L x P cm : | 203 x 84 x 91 |
| H x L x W Ft : | 6.66 x 2,75 x 2,98 |
| Weight : | |
| Kg : | 125 |
| Lbs : | 275 |
Technical specifications and features are subject to change without prior notice.
