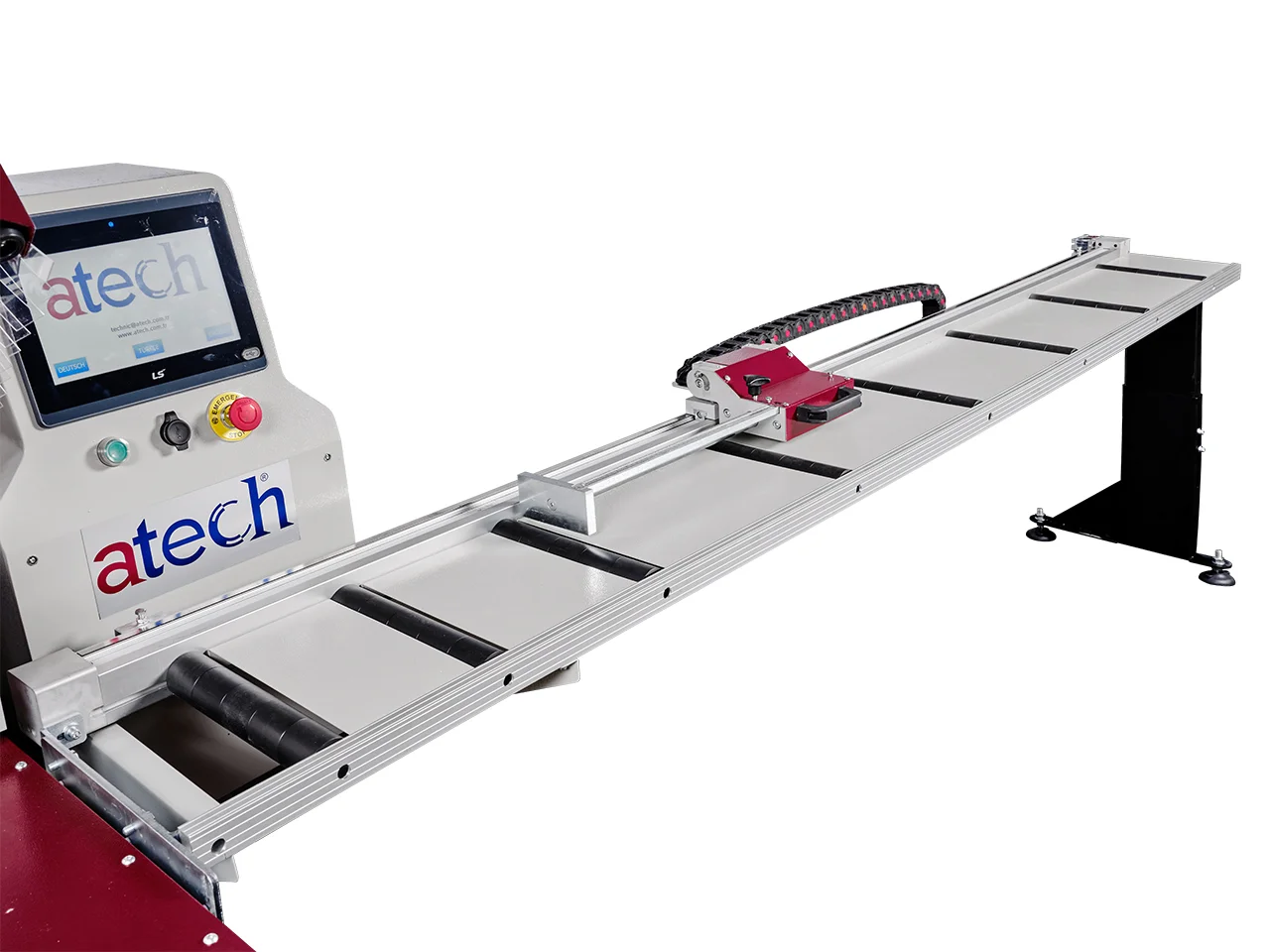

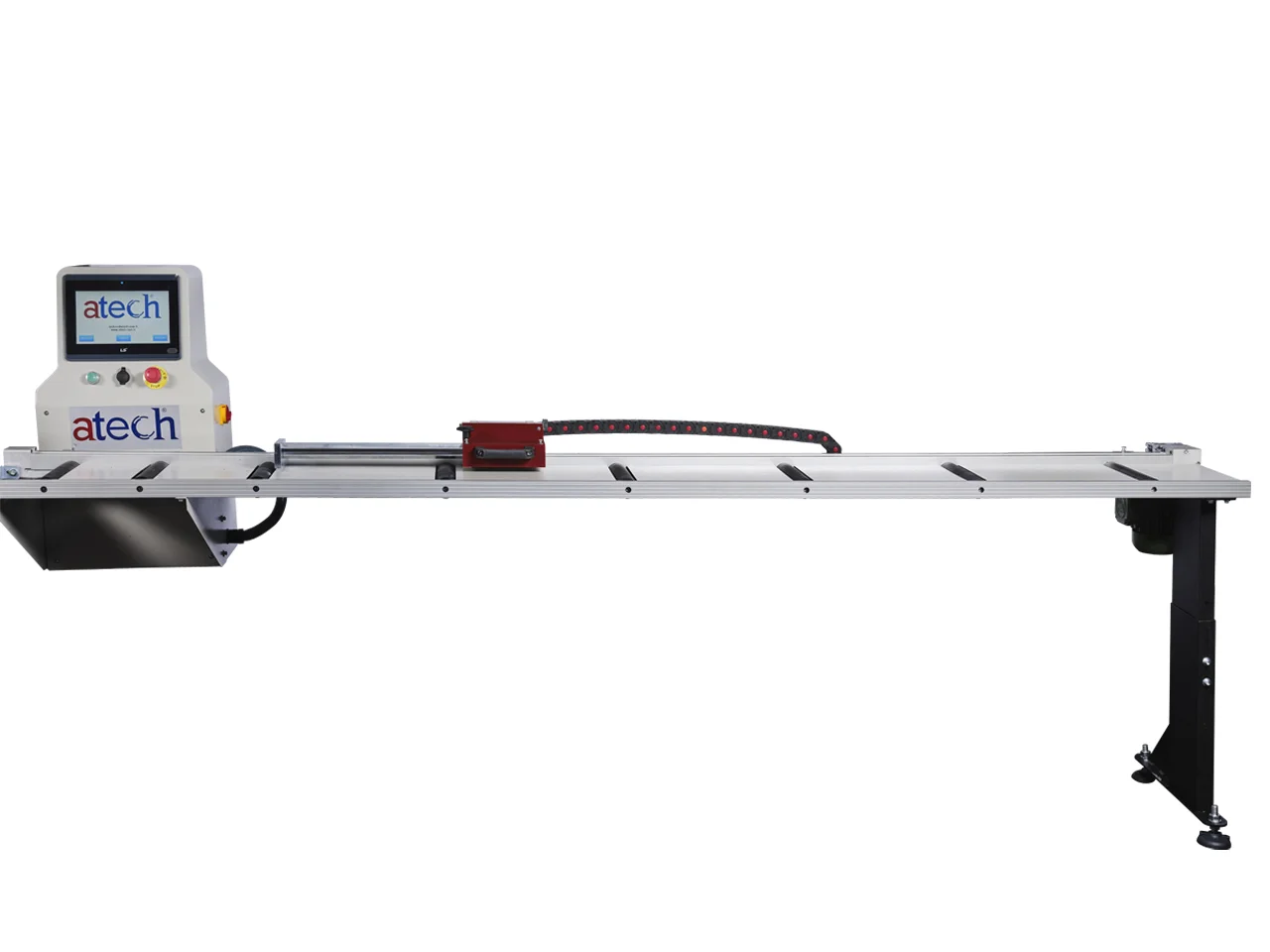

ATechStop Automated Stop & Positioner

The ASP is an automated stop and positioning system. 10′ (3 m) is the standard conveyor length. It comes also in 20′ (6 m) length. It is equipped with a control panel for automatic positioning, and a touch screen operator panel for cut list creation. Carrying capacity is 20 lb/m (9 kg/m). Minimum cutting length is 5mm.

Technical Features

PLC Windows CE Operation System
Memory: up to 1,200 cut lists memory for use with optimization system. Up to 5,000 cut lists memory if no optimization system is used.
Control panel, automatic positioning

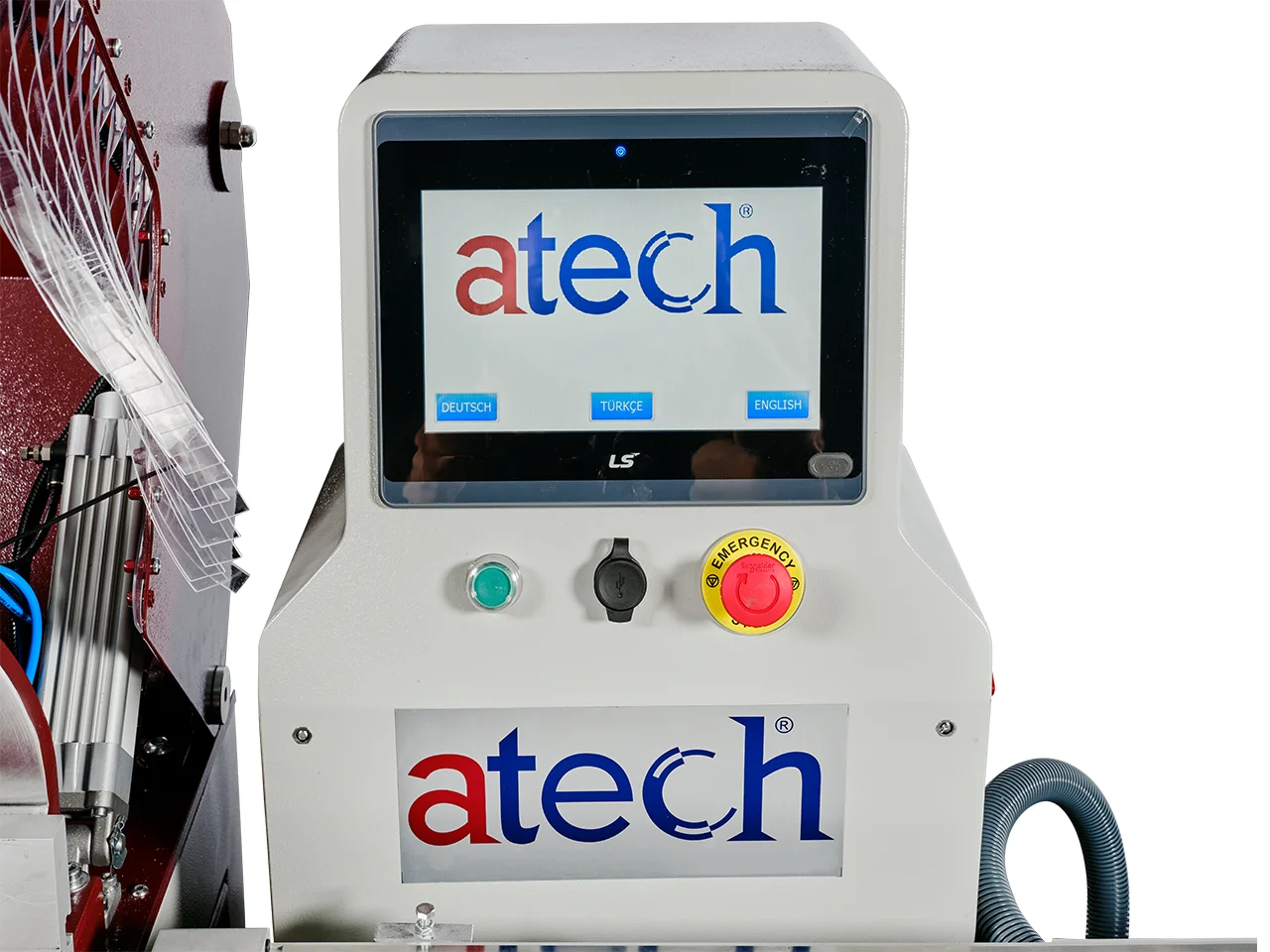

Touch Screen operator panel
Cut list creation on the operator panel
3000 mm (10’) standard conveyor length
Useful width: 250 mm (10”)
Carrying capacity 9 kg/m (20 lbs/m)
Min. cutting length: 5 mm
Also available in 6000 mm (20’)
Indexing speed: 20 meter (66′) / min.
Accuracy Tolerance: +/- 0.2 mm

Technical Table
