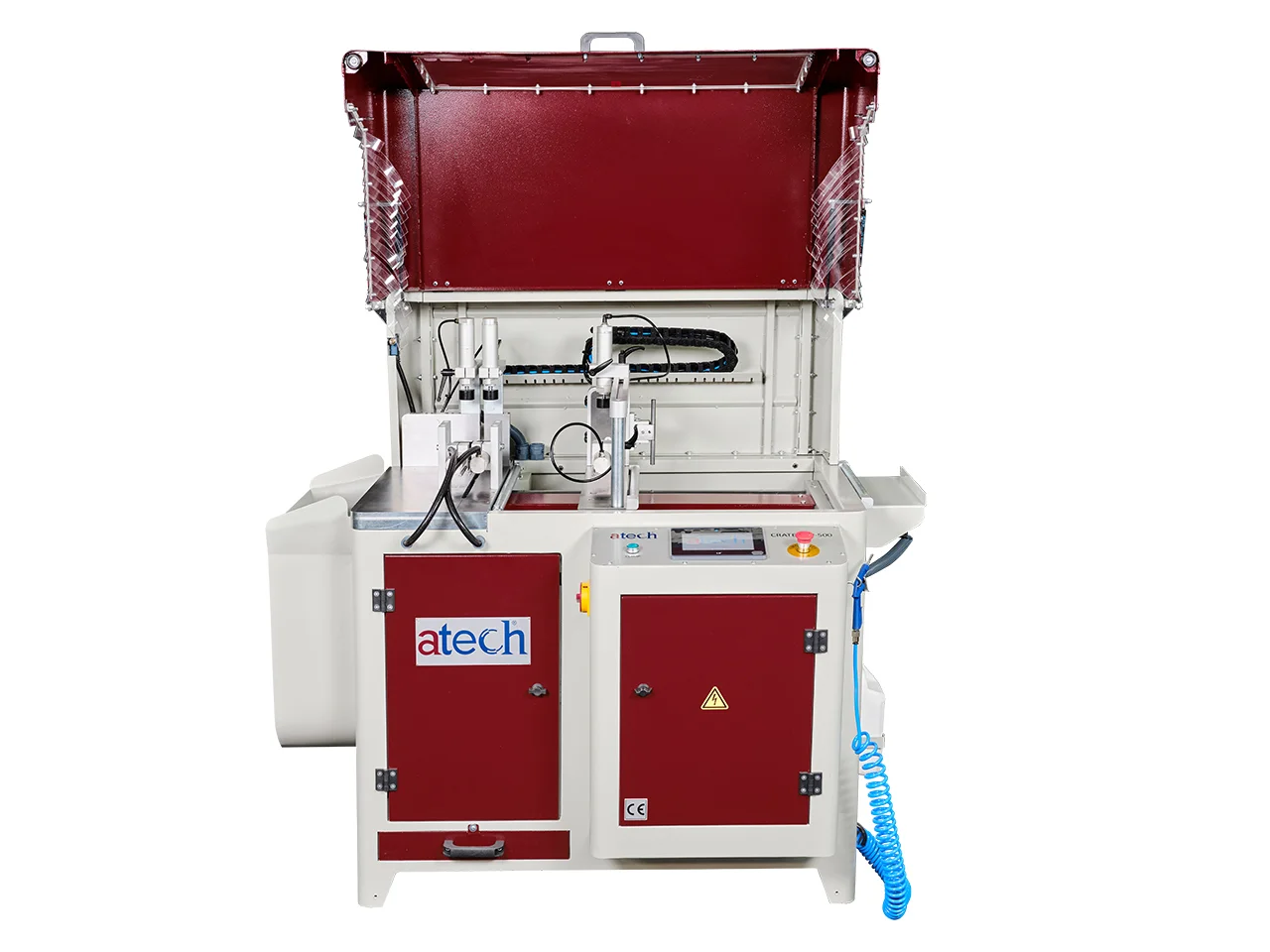

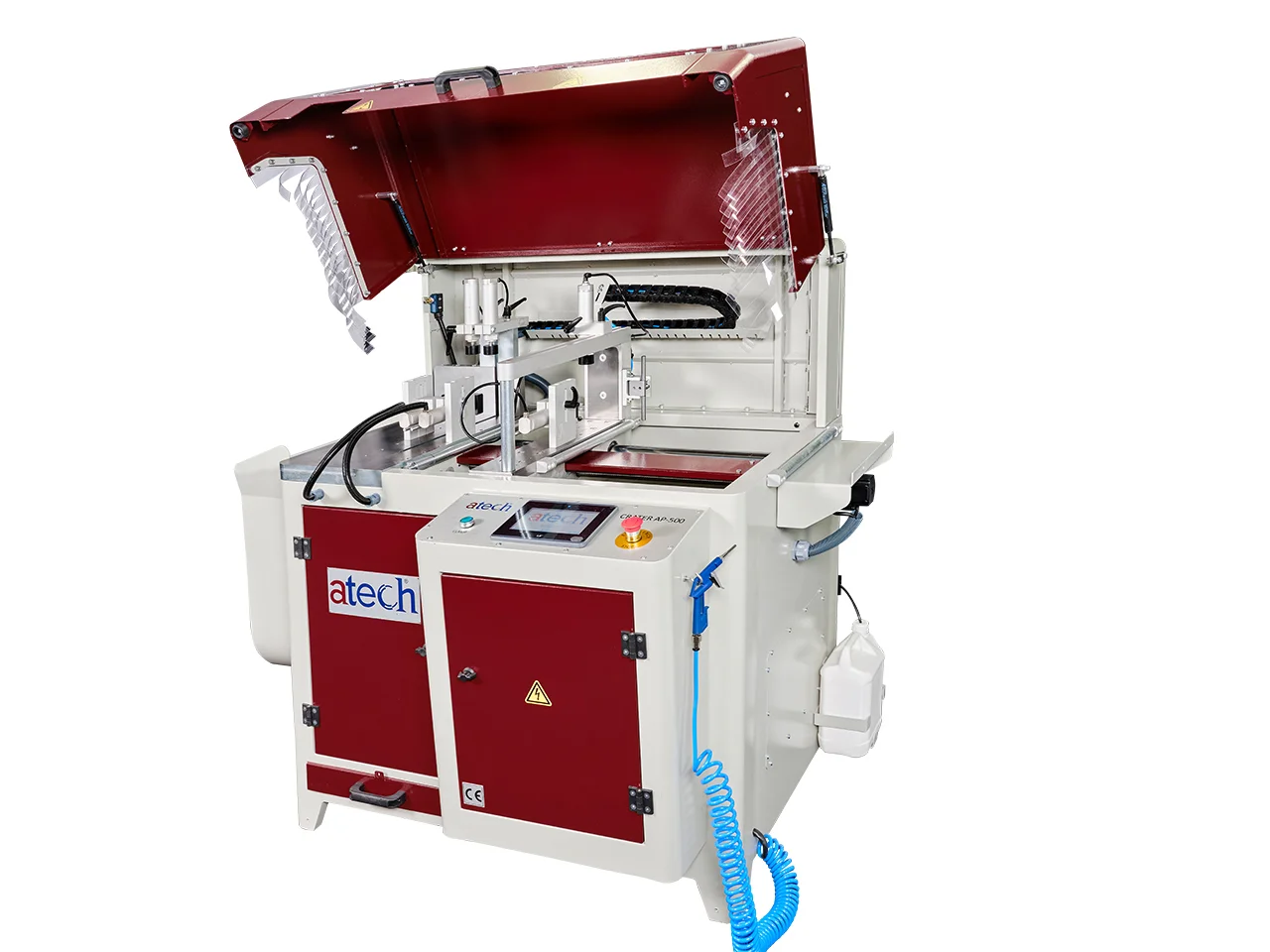

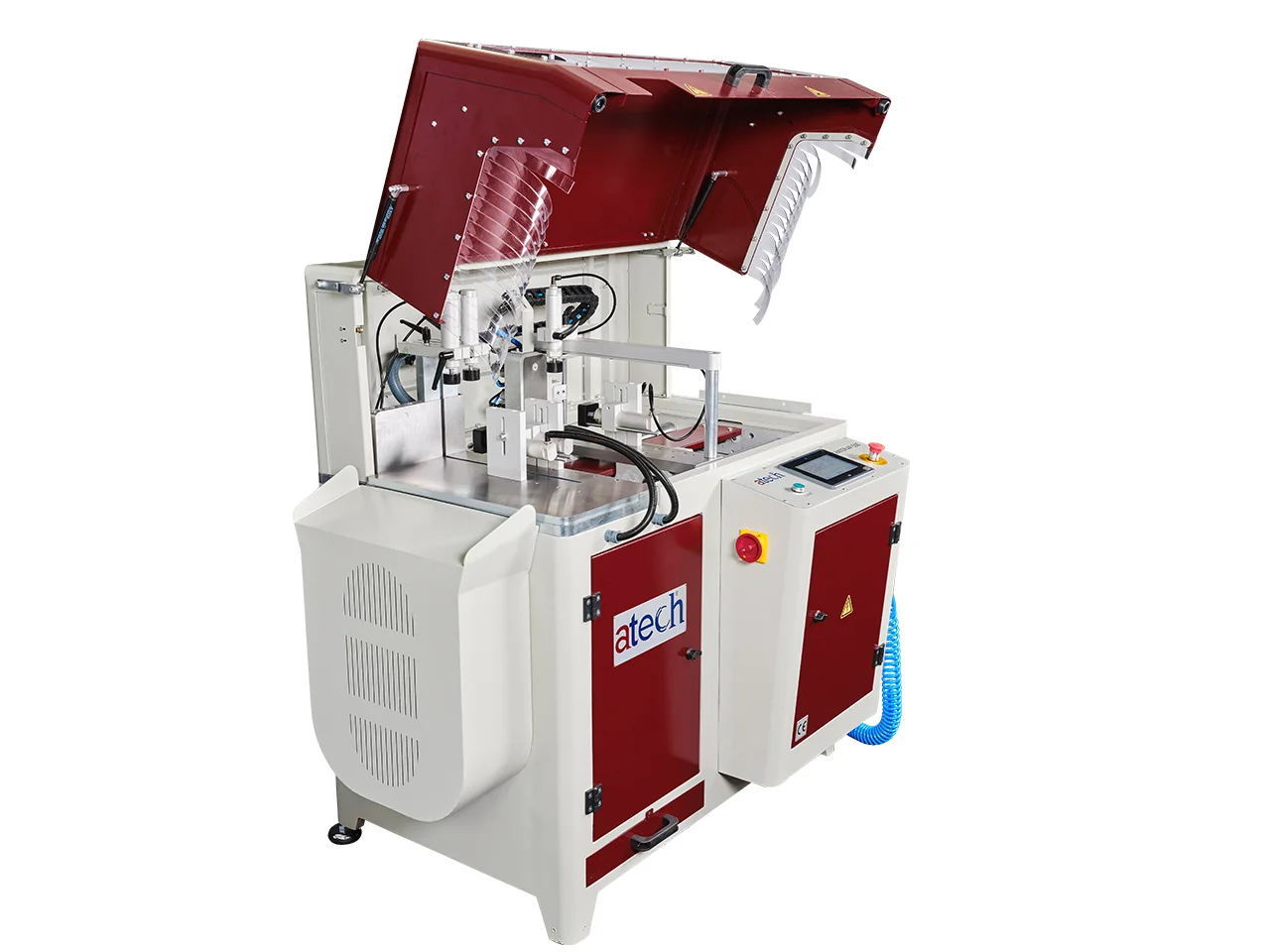

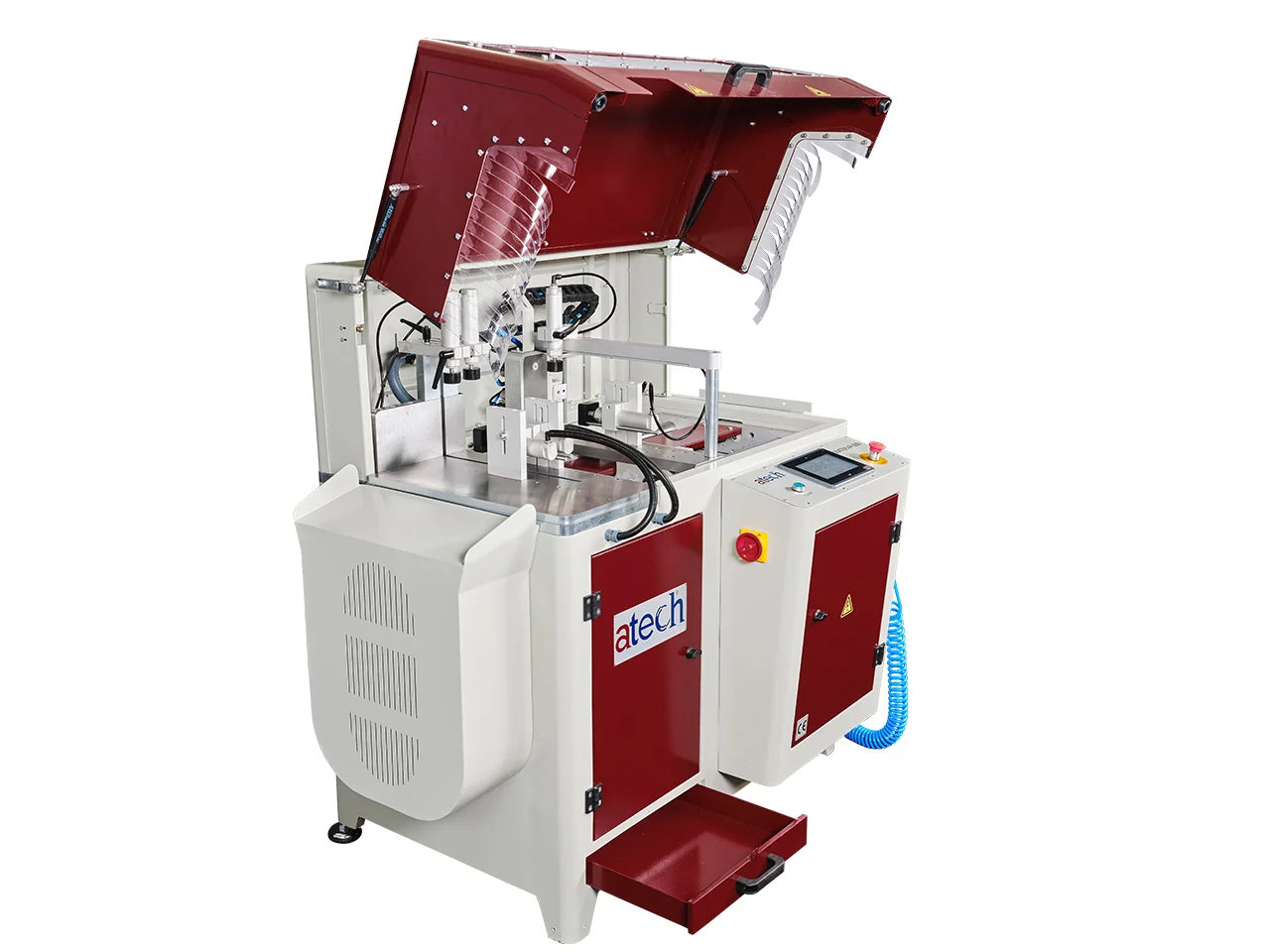

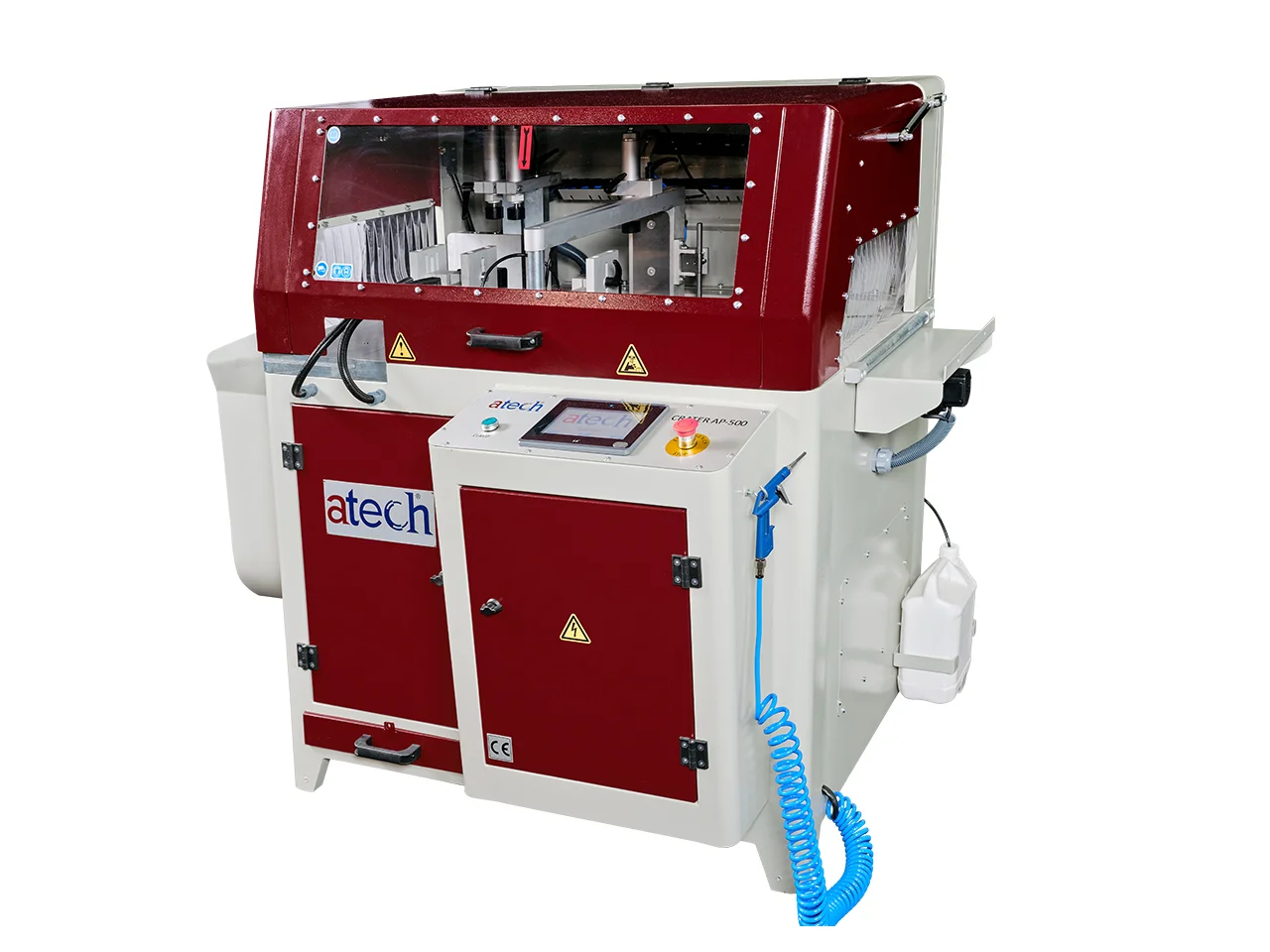

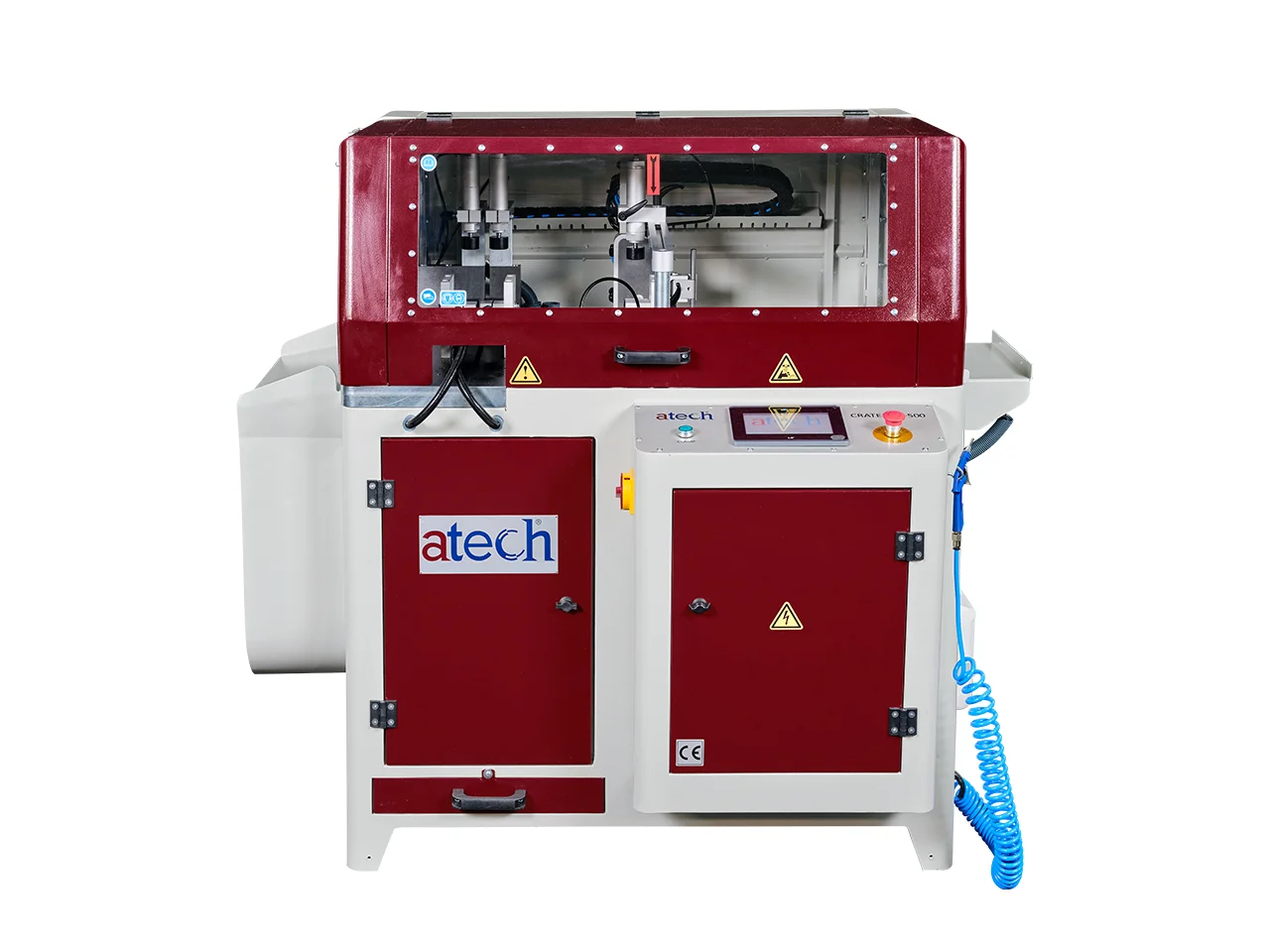

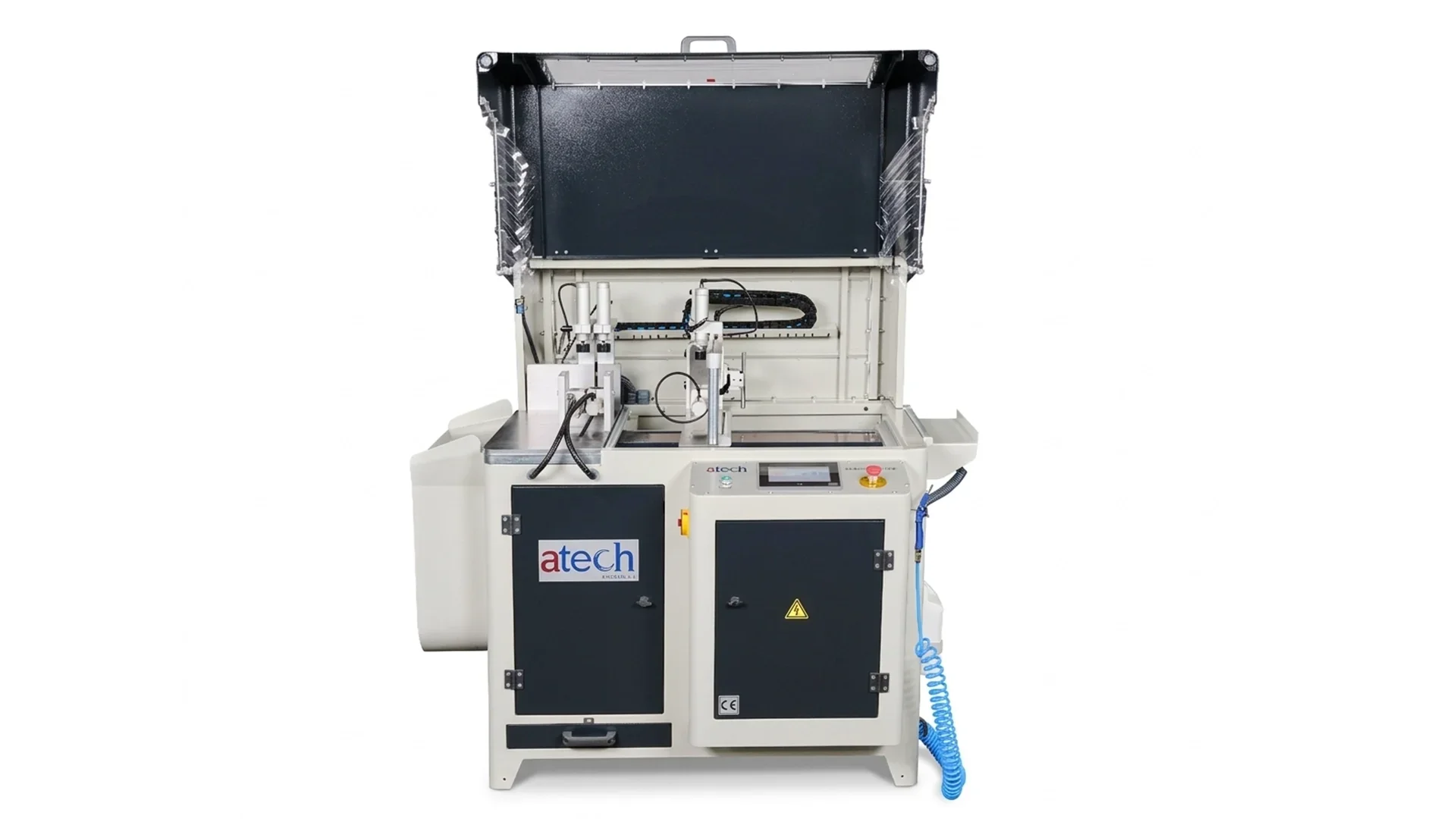

CRATER-06 AP

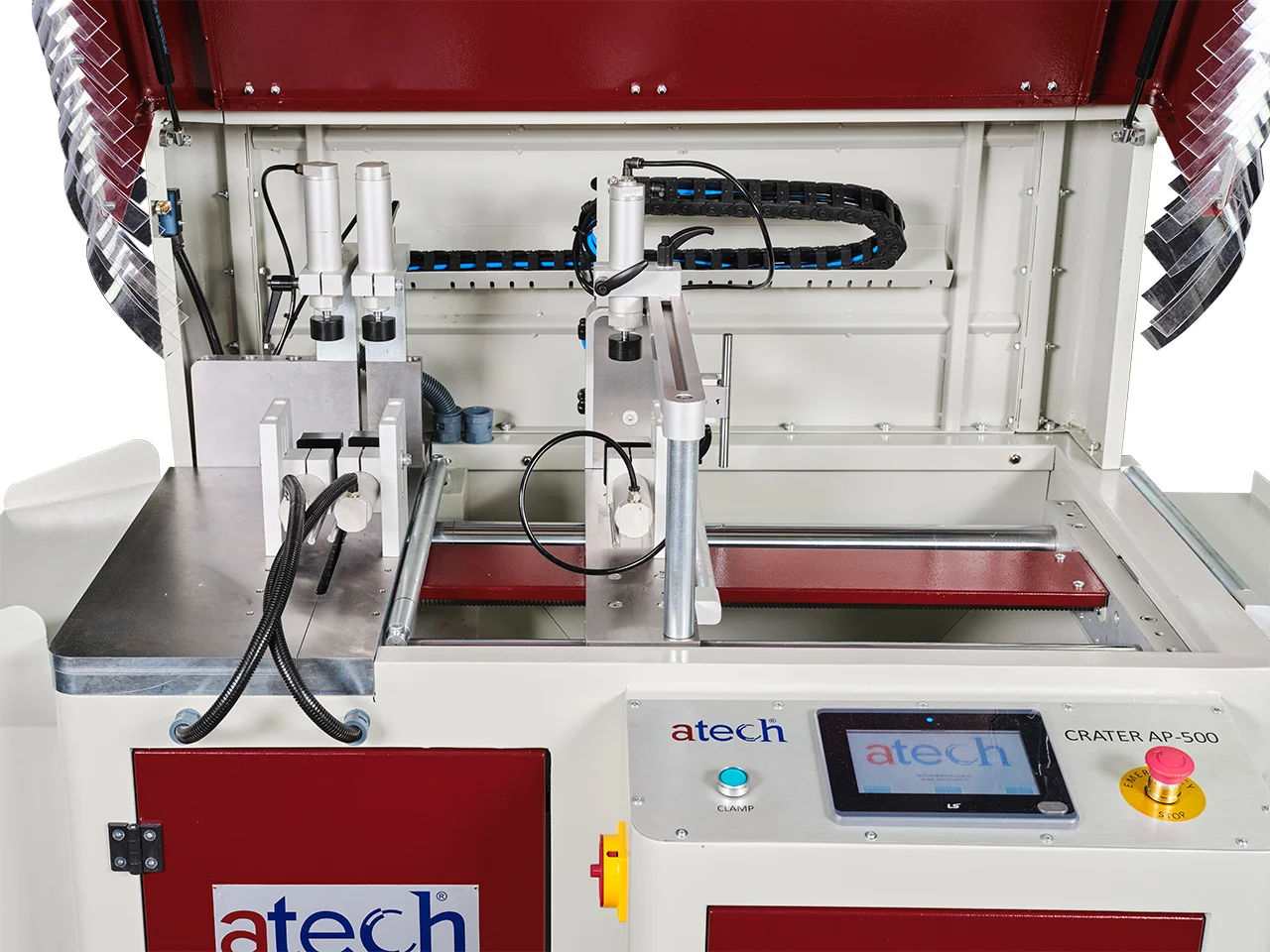

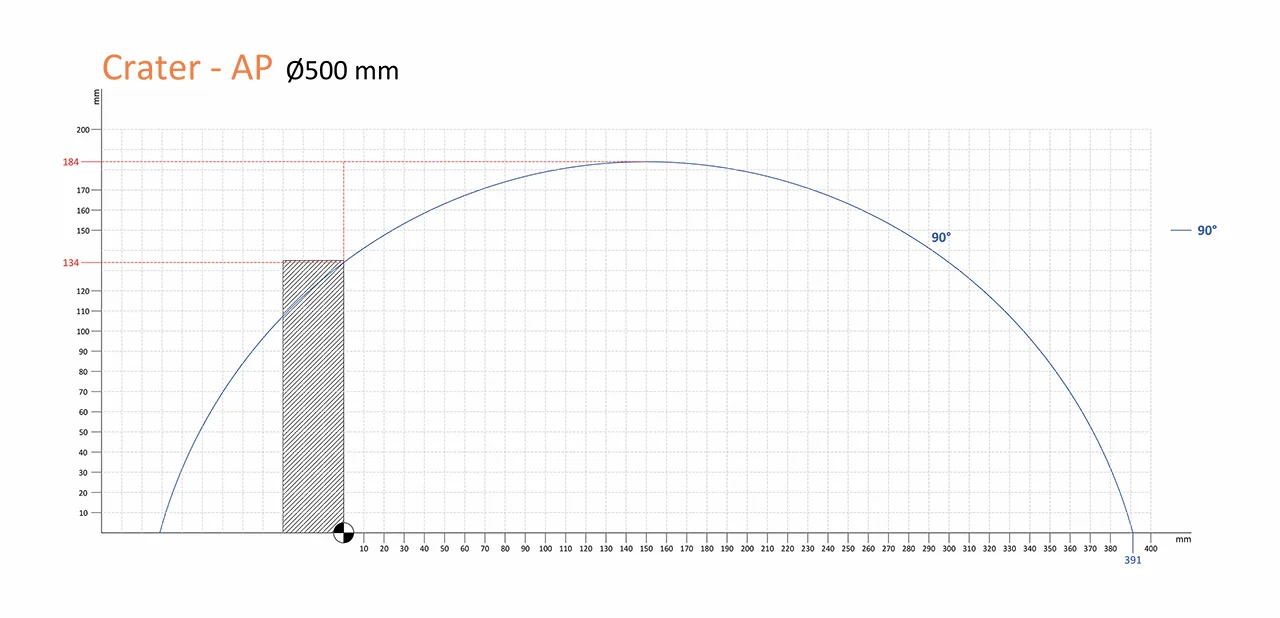

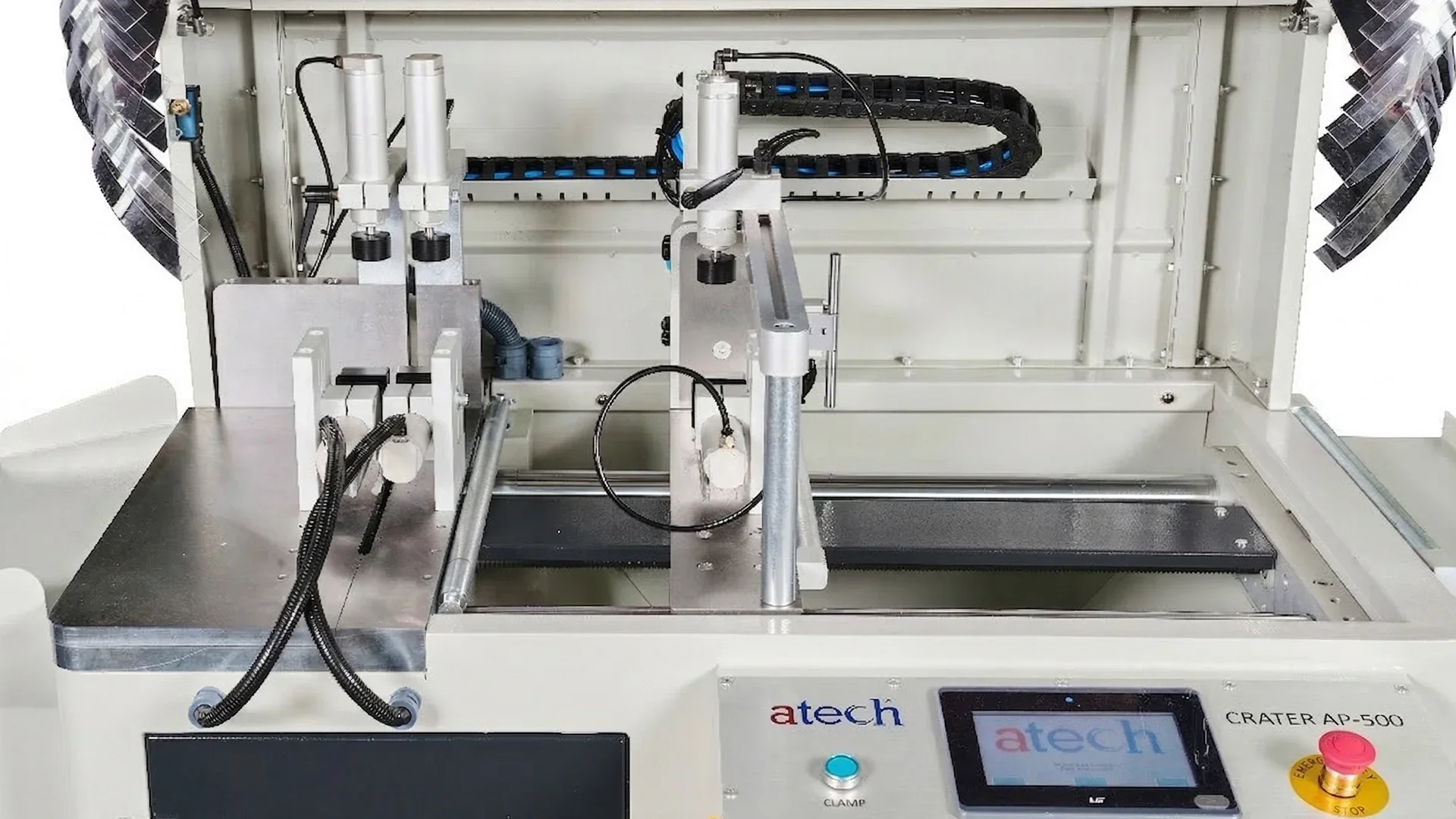

GENERAL FEATURESCRATER-06 AP has been designed for straight cut operations of large size of aluminum and vinyl profiles. It is equipped with a 20” (500 mm) carbide tipped saw blade.It is ideal for serial and precise slicing operations.Ideal for high-volume slicing of aluminum profiles for window manufacturing and other industrial applications like storefront and curtainwall.High precision servo motors and internationally recognized top brand componentsSaving of time thanks to servo controlledprofile infeed speed and saw blade strokeHorizontal and vertical clamping of the profile during the sawing operationAutomatic table retraction feature that moves the cut material a small amount after cutting and before the blade comes back down to prevent the re-cut & scratchesHigh cutting accuracy by means of robust mechanical structureProgrammable spray mist lubrication system via control panelLarge memory capacity for cutting programsThe machine shuts down automatically after reaching the input cutting quantityOperator safety guard equipped with lock on switchFeeding distance per cycle ( 5 – 600 mm). No limit for max. dimension.Minimum cutting length : 5 mm and unlimited for the maximum cutting lengthand max. clamping capacity: Height 5 mm , 170mm (6.7”) / Depth 5 mm, 270 mm (10.6”)Interior LED lightingIdle Material Infeed Speed: 10,000 mm/min. STANDARD EQUIPMENTRoller conveyor500 mm (20”) carbide tipped saw bladePneumatic spray mist lubrication systemBall screw lubrication systemAir gun3xhorizontal clamps3xvertical clampsOPTIONAL EQUIPMENTAdditional 500 mm (20”) carbide tipped saw bladeVCE 1570 chip collector
