CRATER-02 A

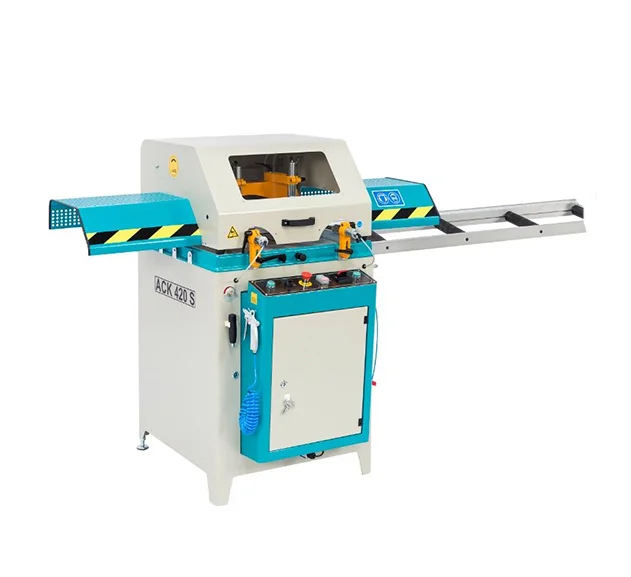

Heavy Duty 16-1/2″ (420 MM) Automatic Upcut Miter Saw
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources
Crater-02 A is a heavy duty automatic upcut miter saw with a 16-1/2″ (420 mm) saw blade. It has 3 main parts; a 420 mm (16-1/2″) carbide tipped saw blade, pneumatic twin horizontal & vertical clamps a... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
3HP 3-Phase 220/440V 60 Hz
D=16-1/2″ d=1.18 – 1.26
3000 rpm
90-120 psi 0.2 CFM
35x33x51″
495 lbs
2.2kW 400V 50Hz
D=16-1/2″ d=1.18 – 1.26
3000 rpm
6-8 Bar 35 l/min
90x85x130 cm
225 kg
Standard Equipment
- 420 mm (16-1/2″) carbide tipped saw blade .

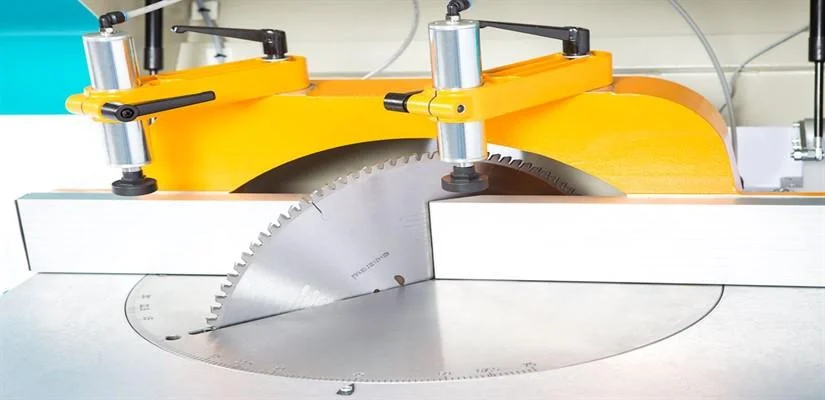

- Pneumatic twin horizontal & vertical clamps .
- Air gun .
- User’s manual
Optional Equipment

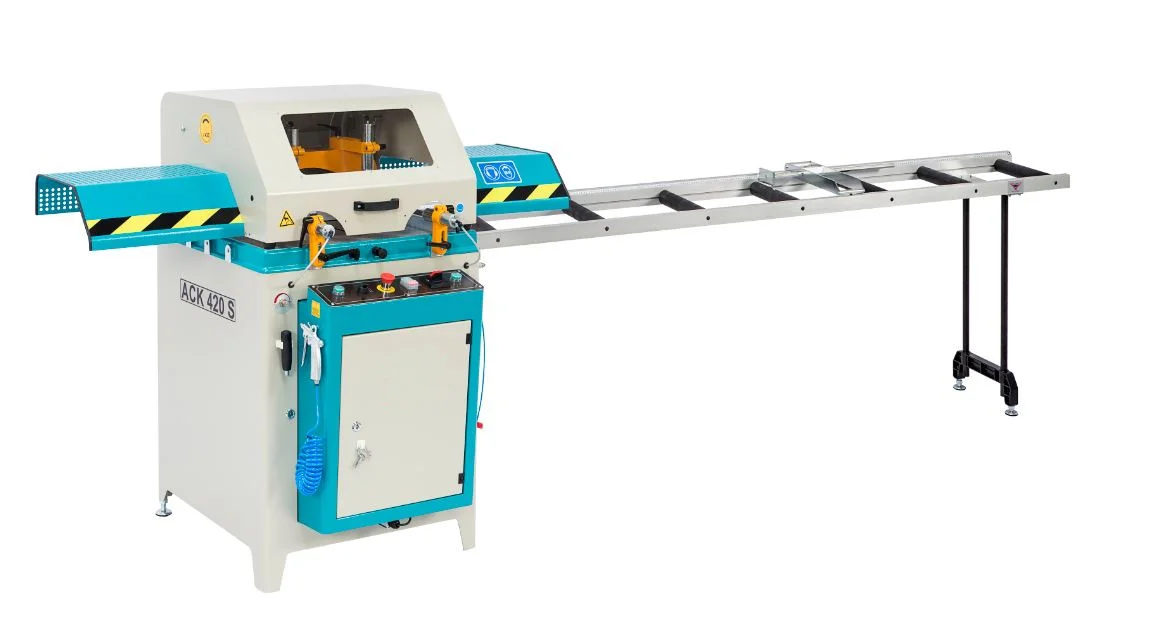

- Infeed & outfeed table
- Pneumatic spray mist lubrication system
Specific Features
- Heavy duty construction for long machine life.
- Hydro-pneumatic saw blade feed.
- The movable back fence enables to cut bigger profiles both straight and miter cut.
- When the cutting process is finished the saw blade moves down to its starting point automatically.
- If the top guard is opened during the cutting process, the saw blade moves down automatically for safety reasons.

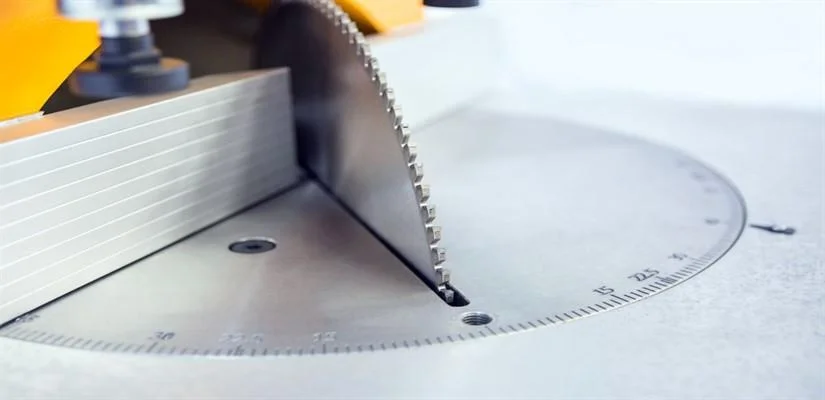

- Fixed angle adjustments at 15°, 22.5°, 30°, 45° and 90° via lock pin.
- Intermediate angles are adjusted via mechanical stop.

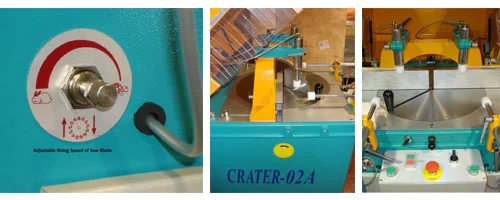

- The rising speed of the saw blade can be adjusted as required.
Technical specifications and features are subject to change without prior notice.
