CRATER
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.

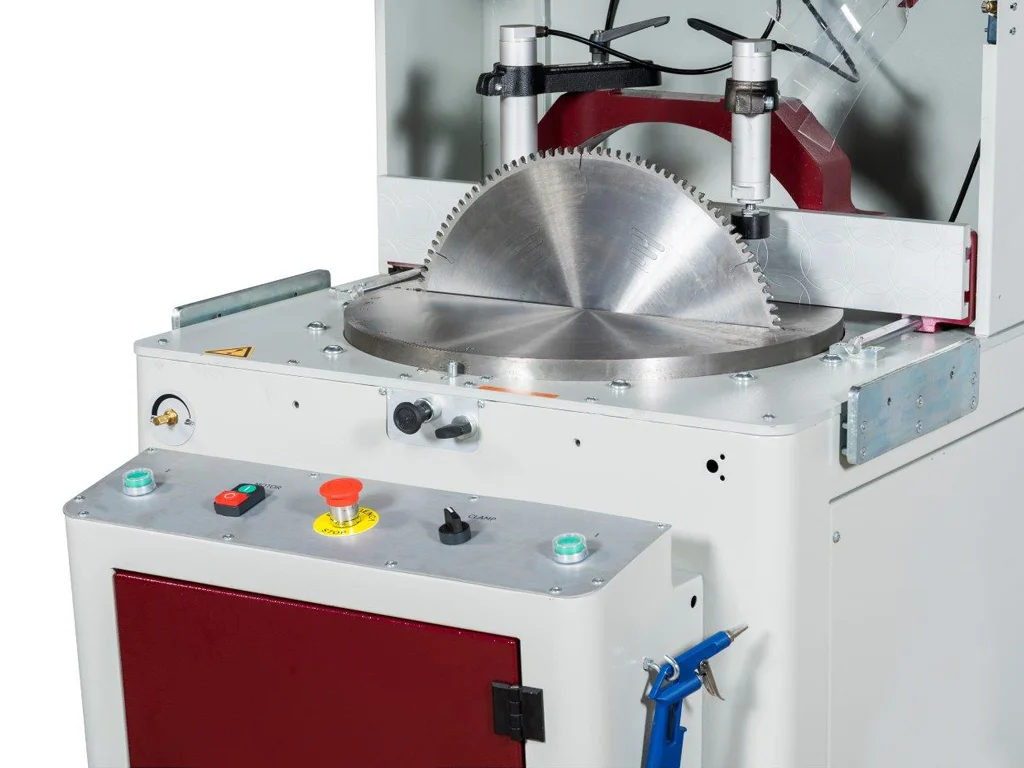

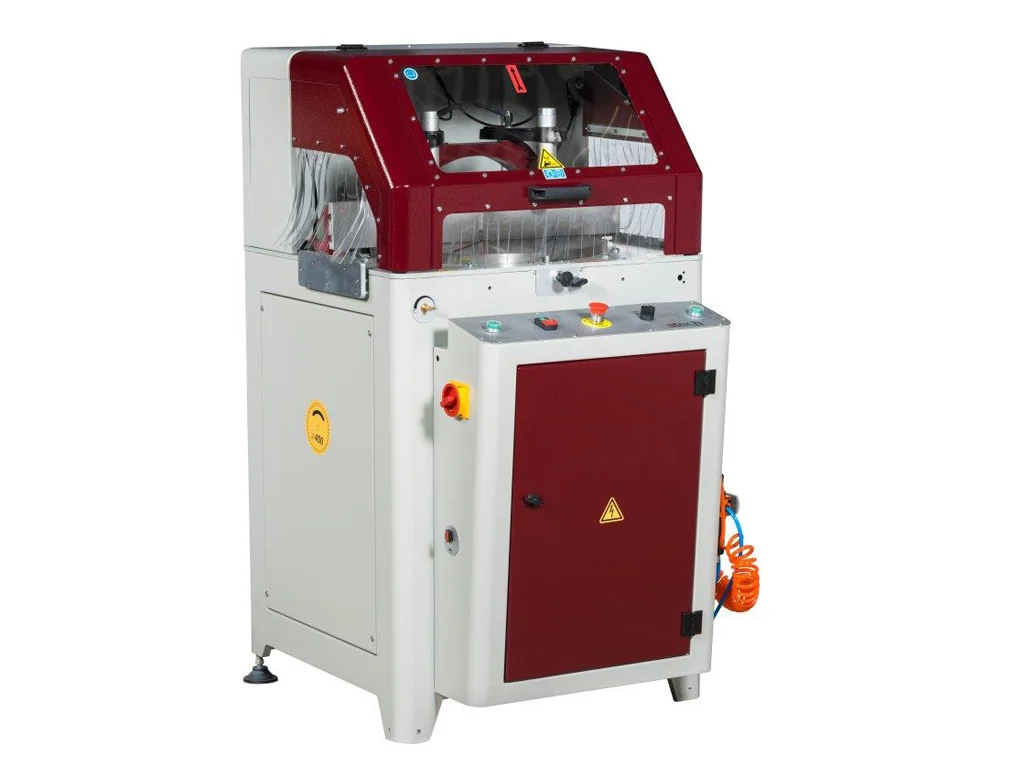

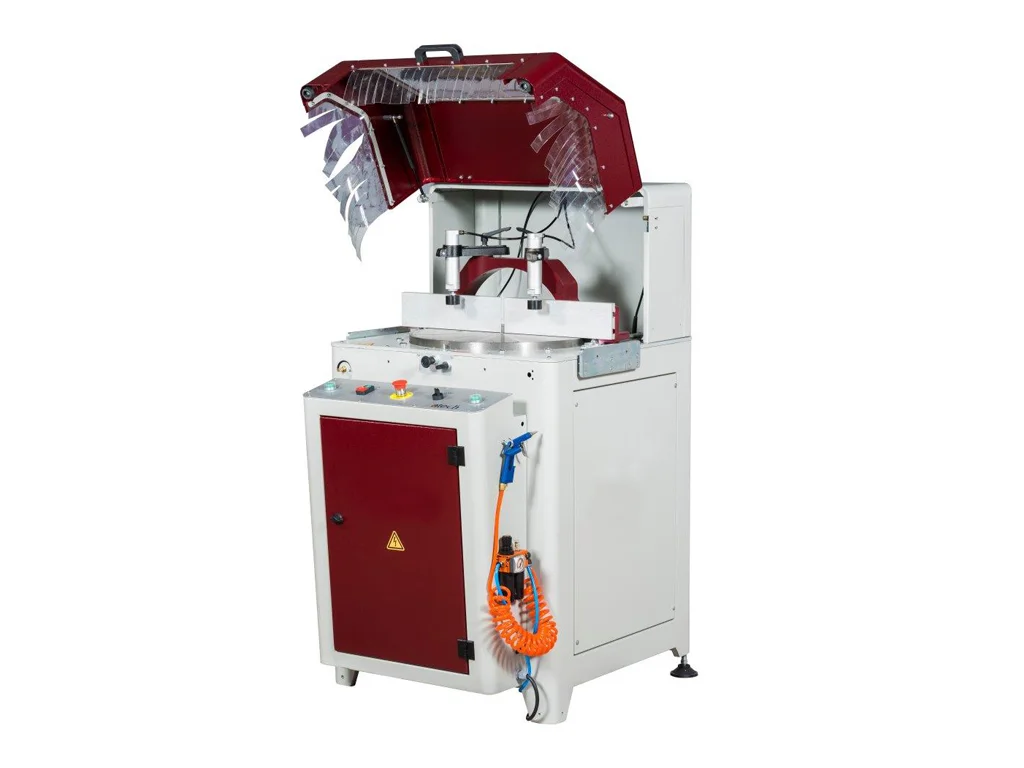

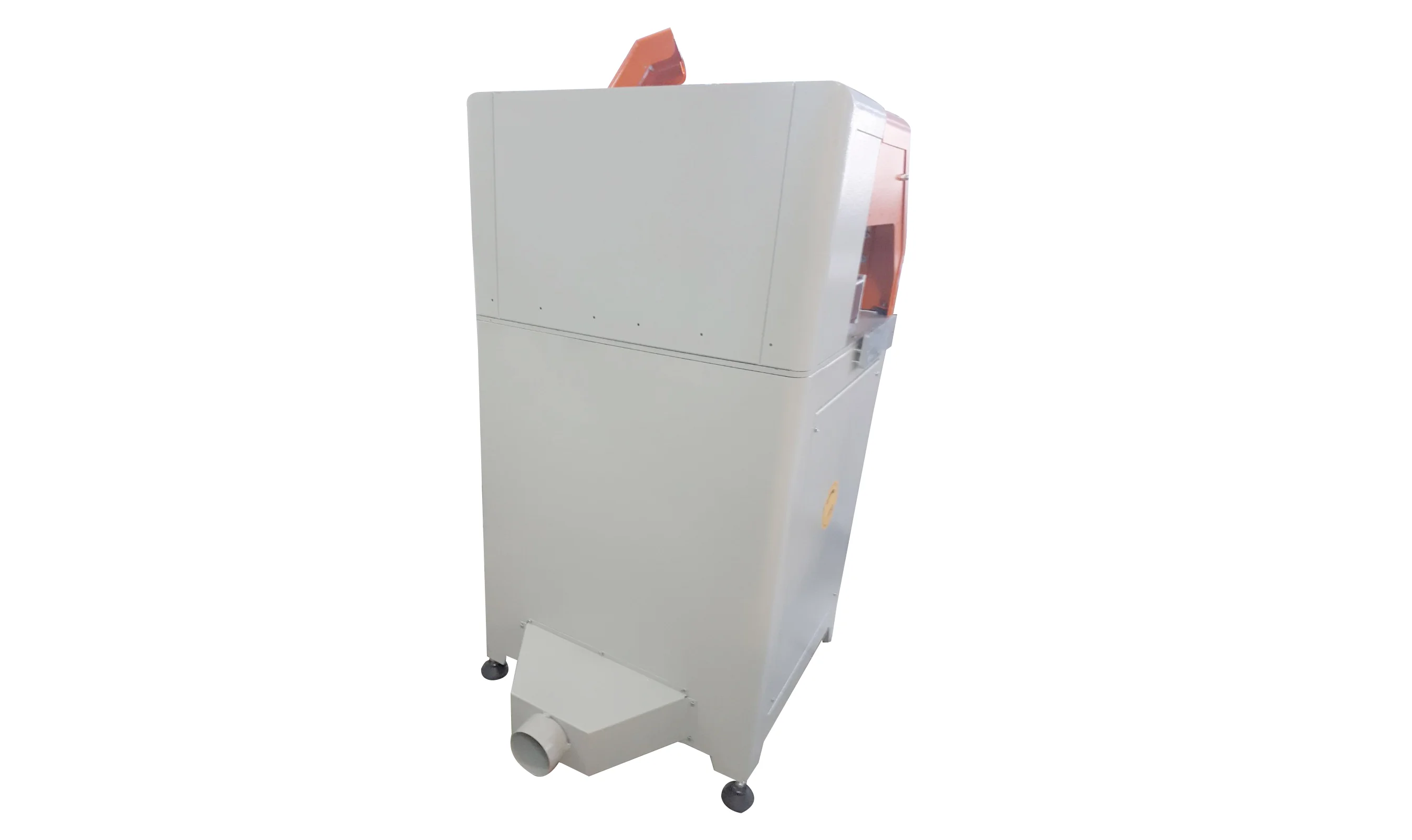

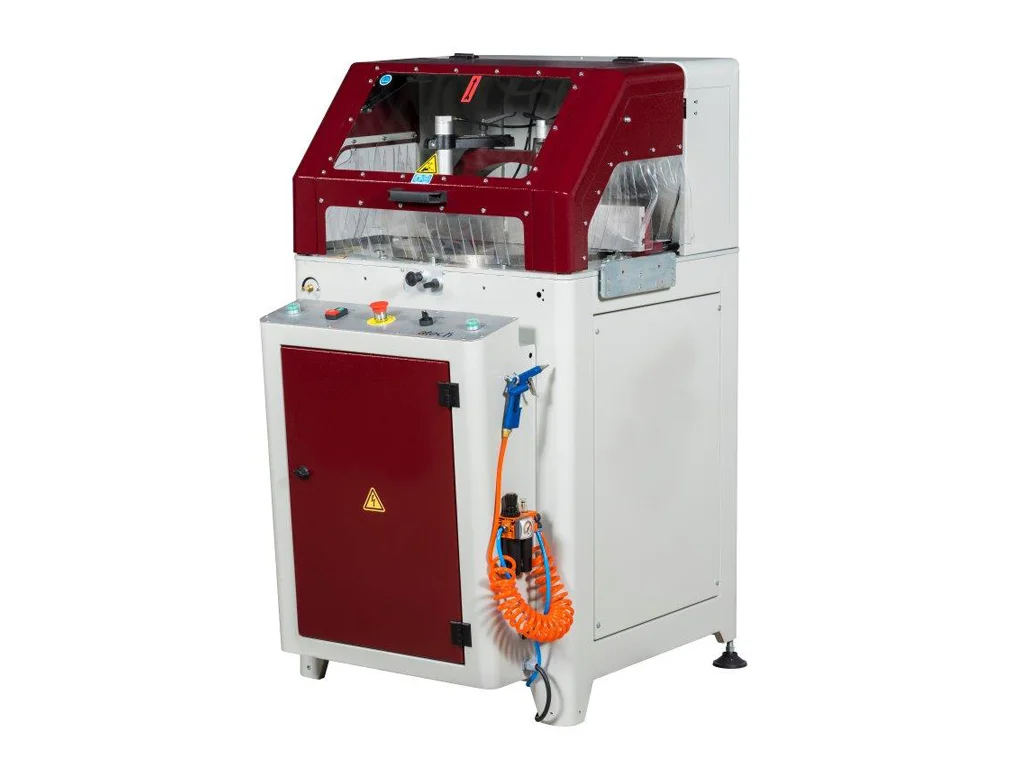

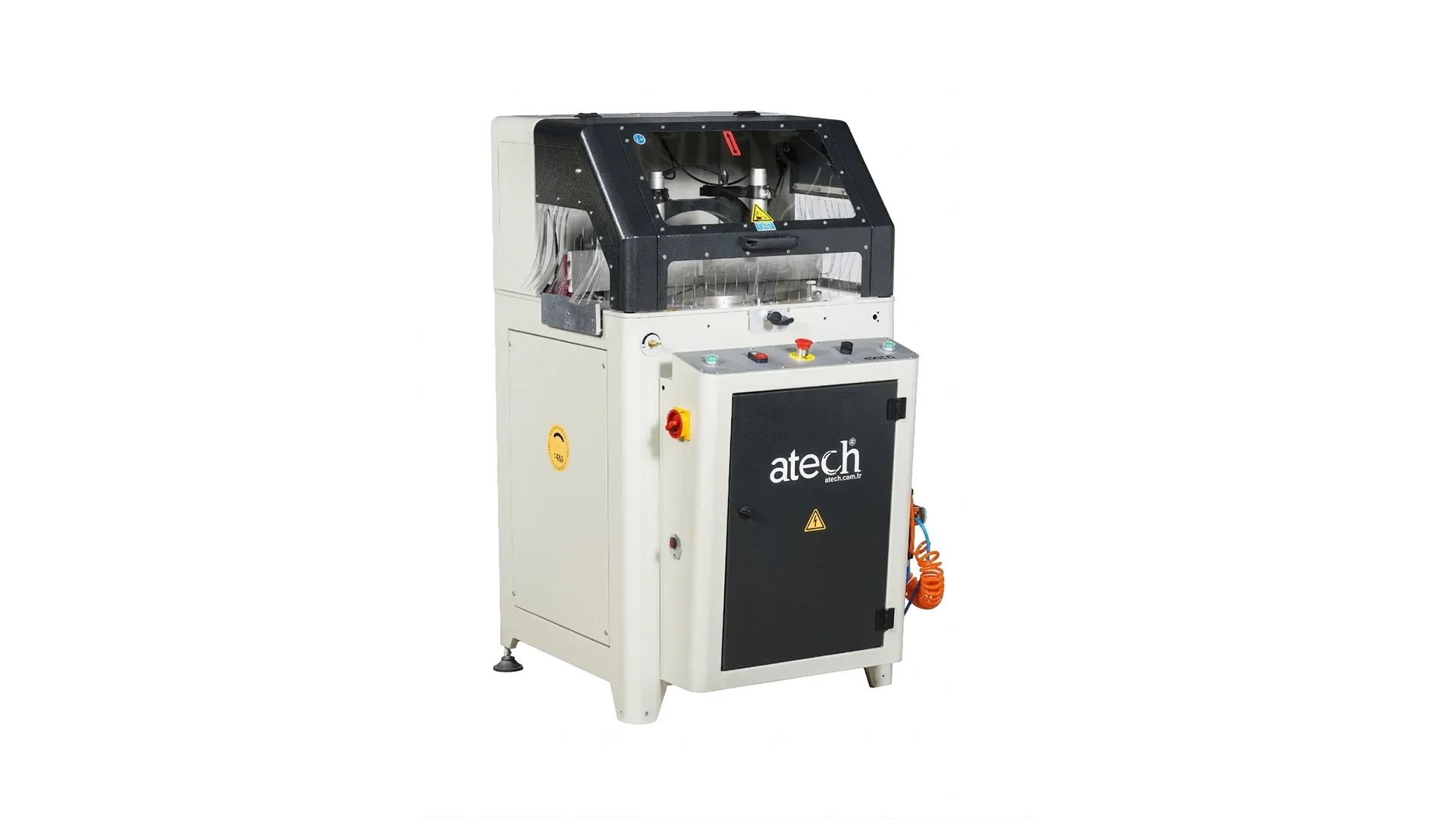

Crater-06 A is a heavy duty automatic upcut miter saw with a 18″ (450 mm) blade. It has 3 main parts; a 450 mm (18″) carbide tipped saw blade, pneumatic twin horizontal & vertical clamps and air guns.... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
3 HP 3 phase 220/440V 60 Hz
D=30-32 mm D=450 mm (18")
3000 rpm
6-8 Bar (90-120 psi) 35 l/min
90x95x145 cm (35"x37"x57")
225 kg (495 lbs)
Standard Equipment
- Heavy duty upcut miter saw designed for straight and miter cuts of PVC (vinyl), aluminum extrusions and wood.
- 0-15°- 22, 5°- 30°- 45°- 60°-75° angle pin locks
- Two hands safety operation
- Intermediate angles are set via lock handle
- Hydro-pneumatic saw blade feed for smooth and precise cutting (fully adjustable)
- Adjustable saw blade rising speed

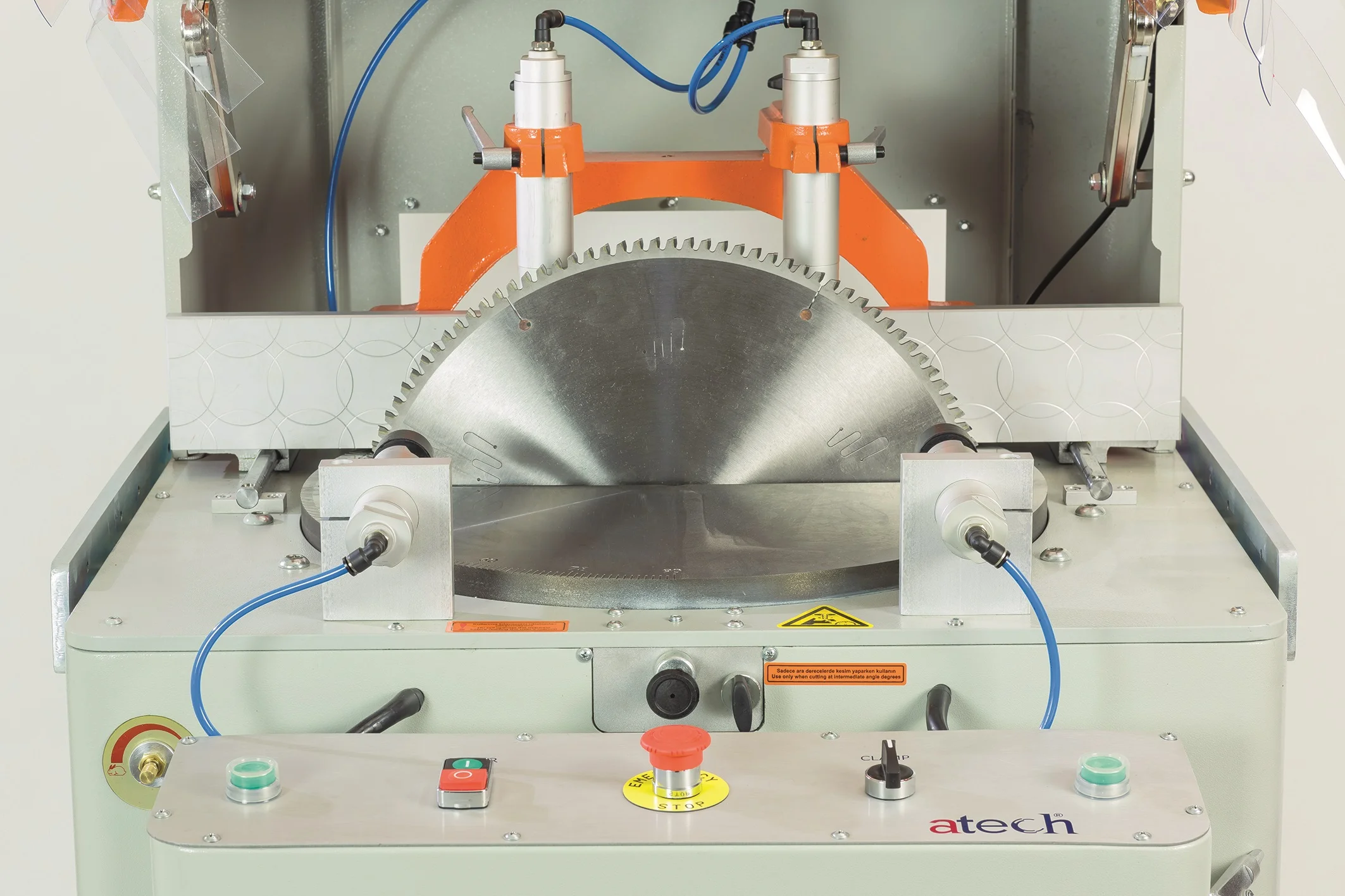

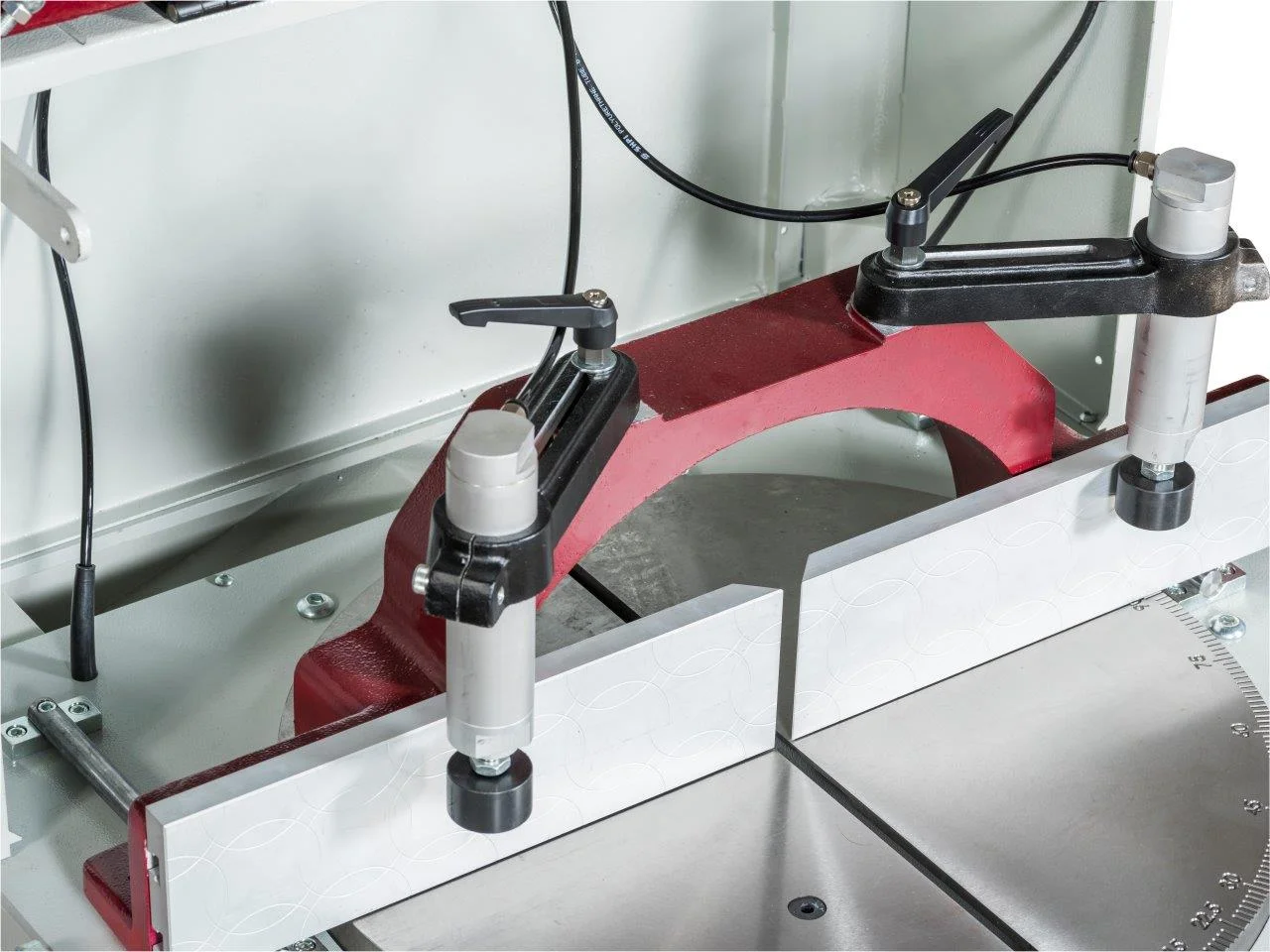

- Twin vertical pneumatic clamps (standard)
- Additional horizontal pneumatic clamp (standard)
- High quality carbide tipped 550 mm (22”) saw blade (standard)
- 3 m (10’) roller conveyor model MKN301 (optional)
- Pneumatic spray mist lubrication system
- Interior LED lighting

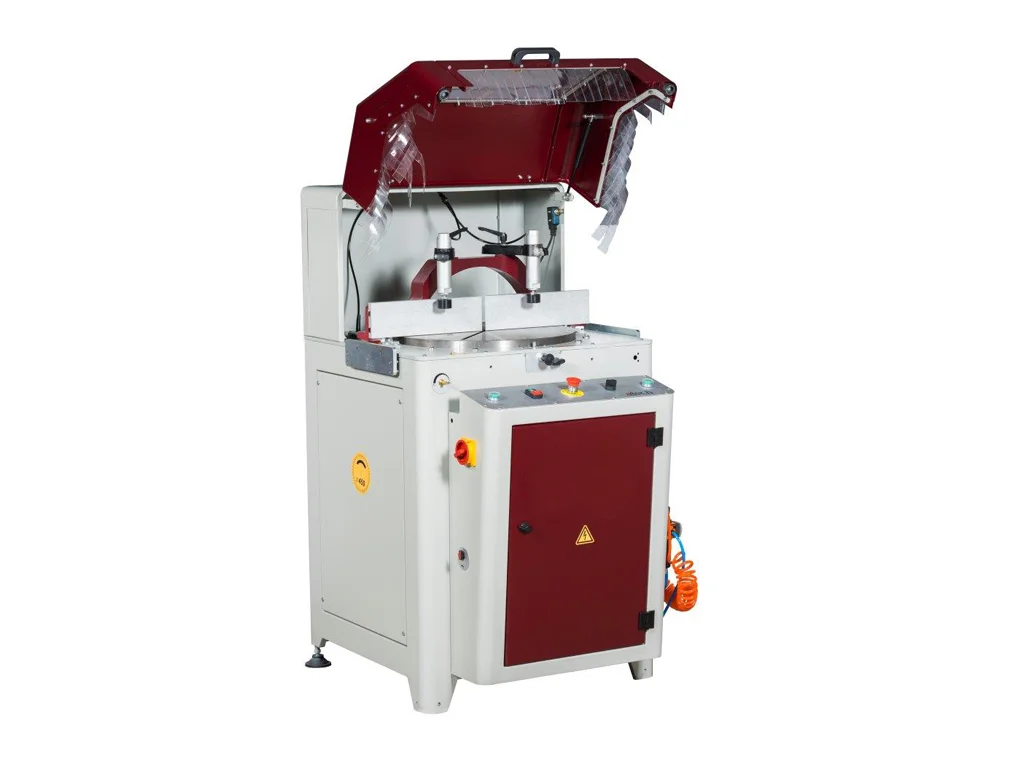

- Automatically operating top guard
Optional Equipment

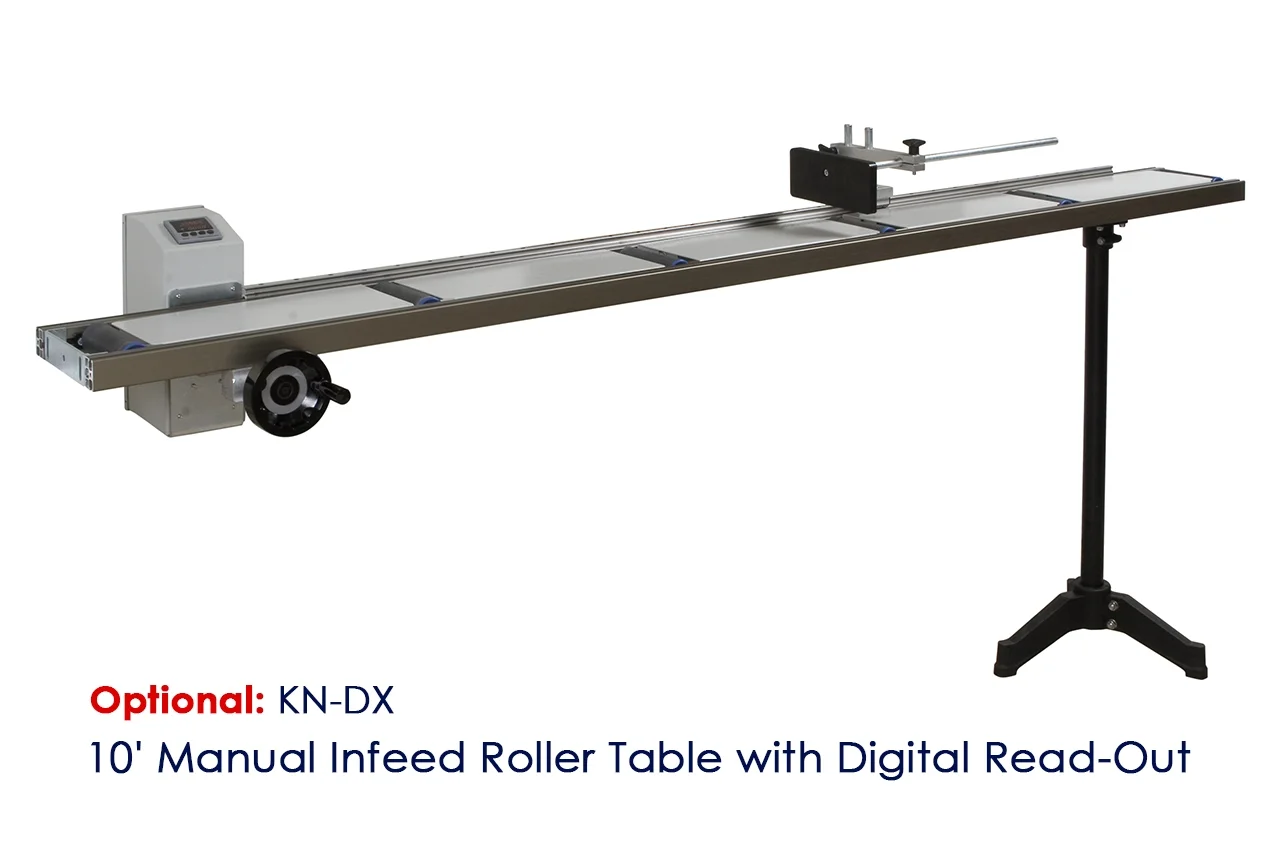

- KN-DX 10′ Manual Infeed Roller Table with Digital Read-Out
Technical specifications and features are subject to change without prior notice.
