Tucana-06 A AUTOMATIC END MILLING MACHINE

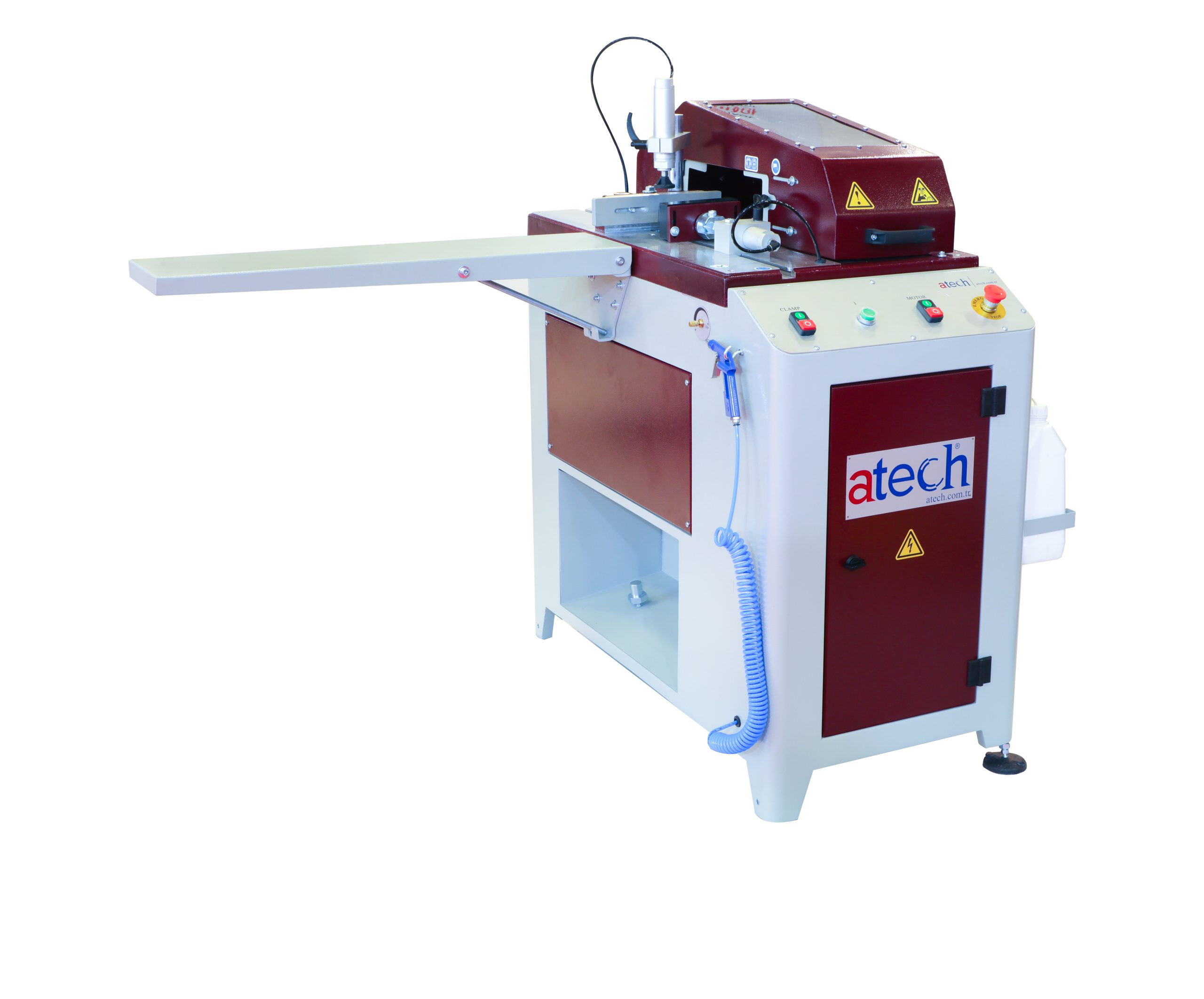

Automatic End Milling Machine (4)

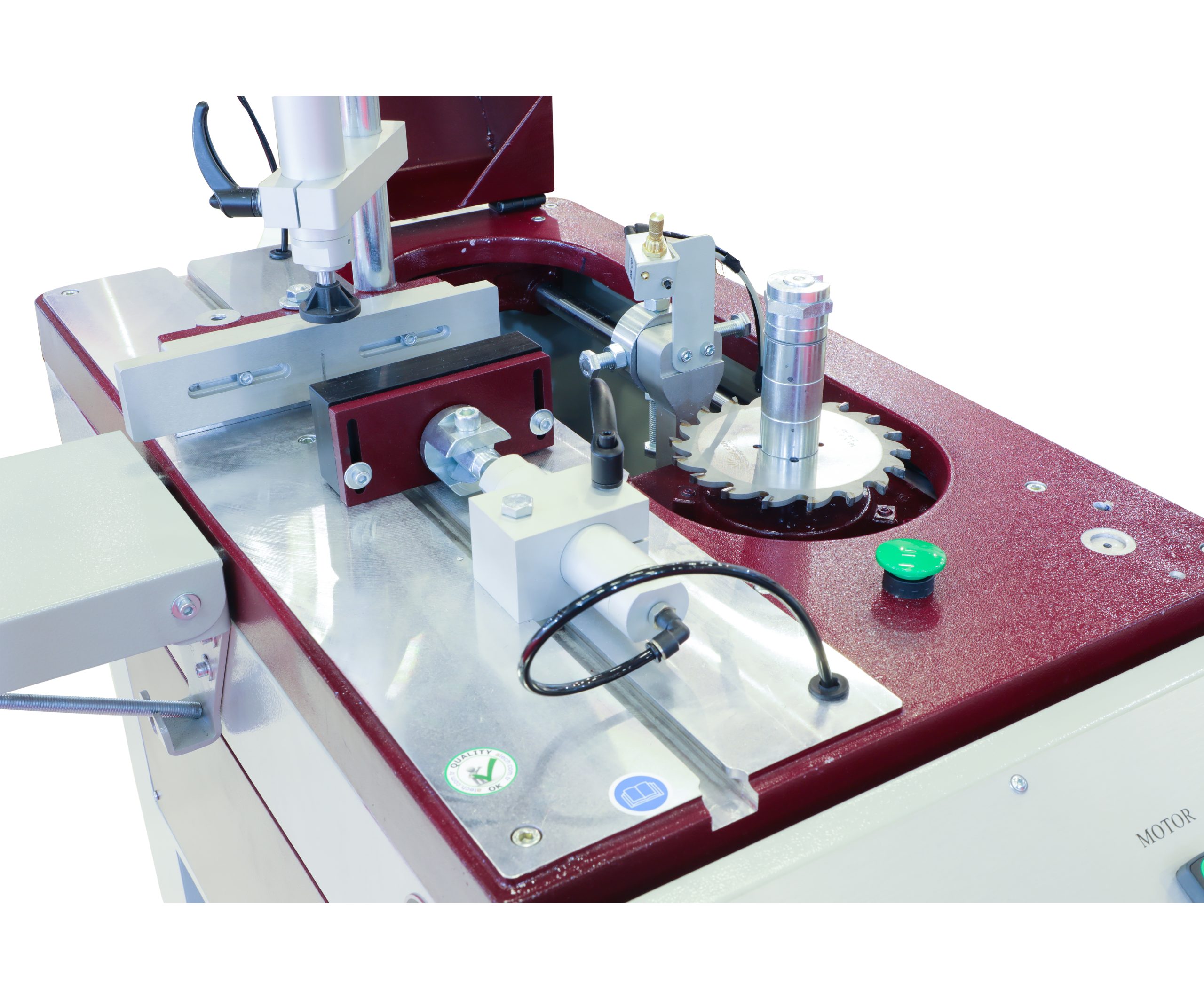

Automatic End Milling Machine (3)

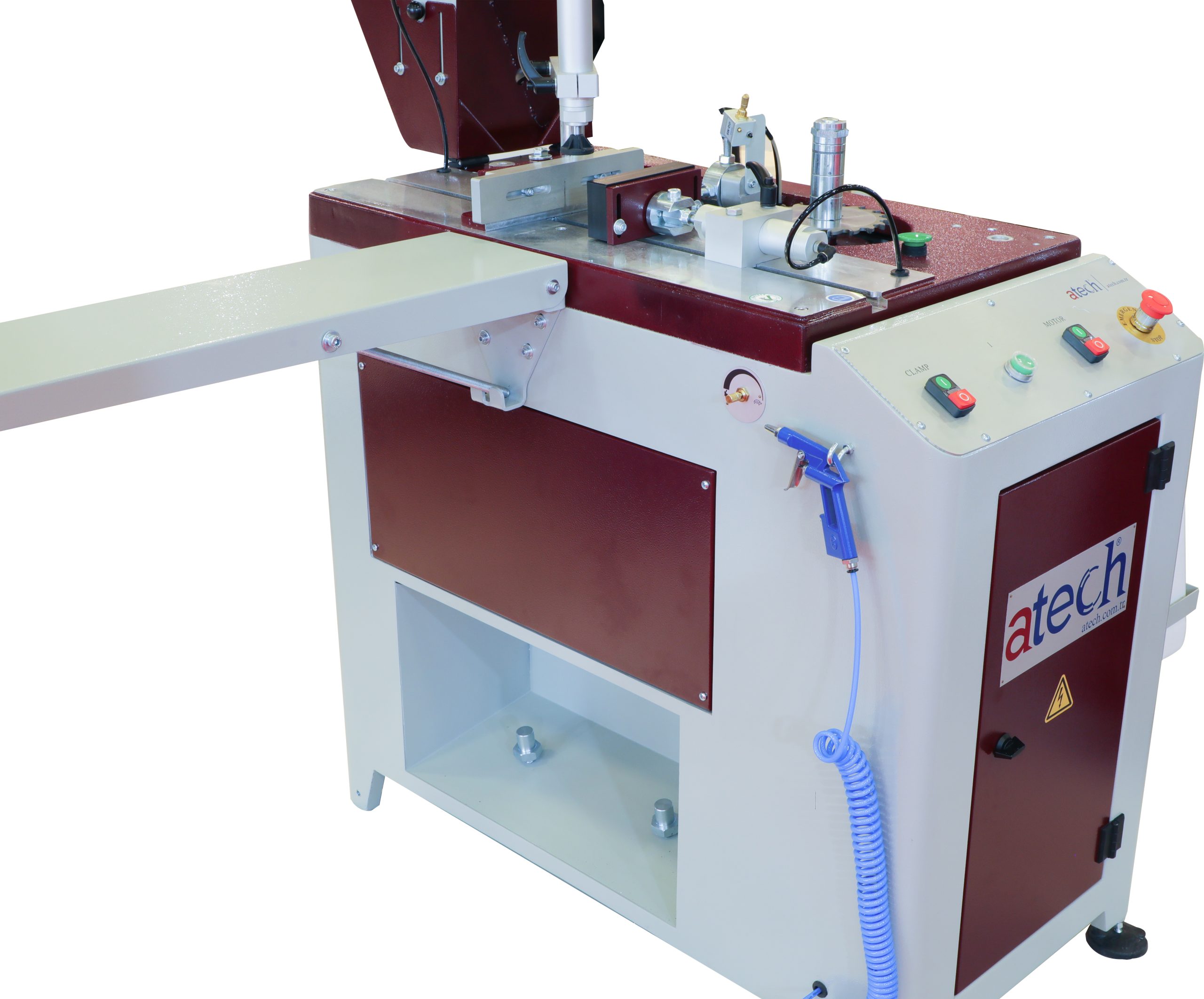

Automatic End Milling Machine (2)

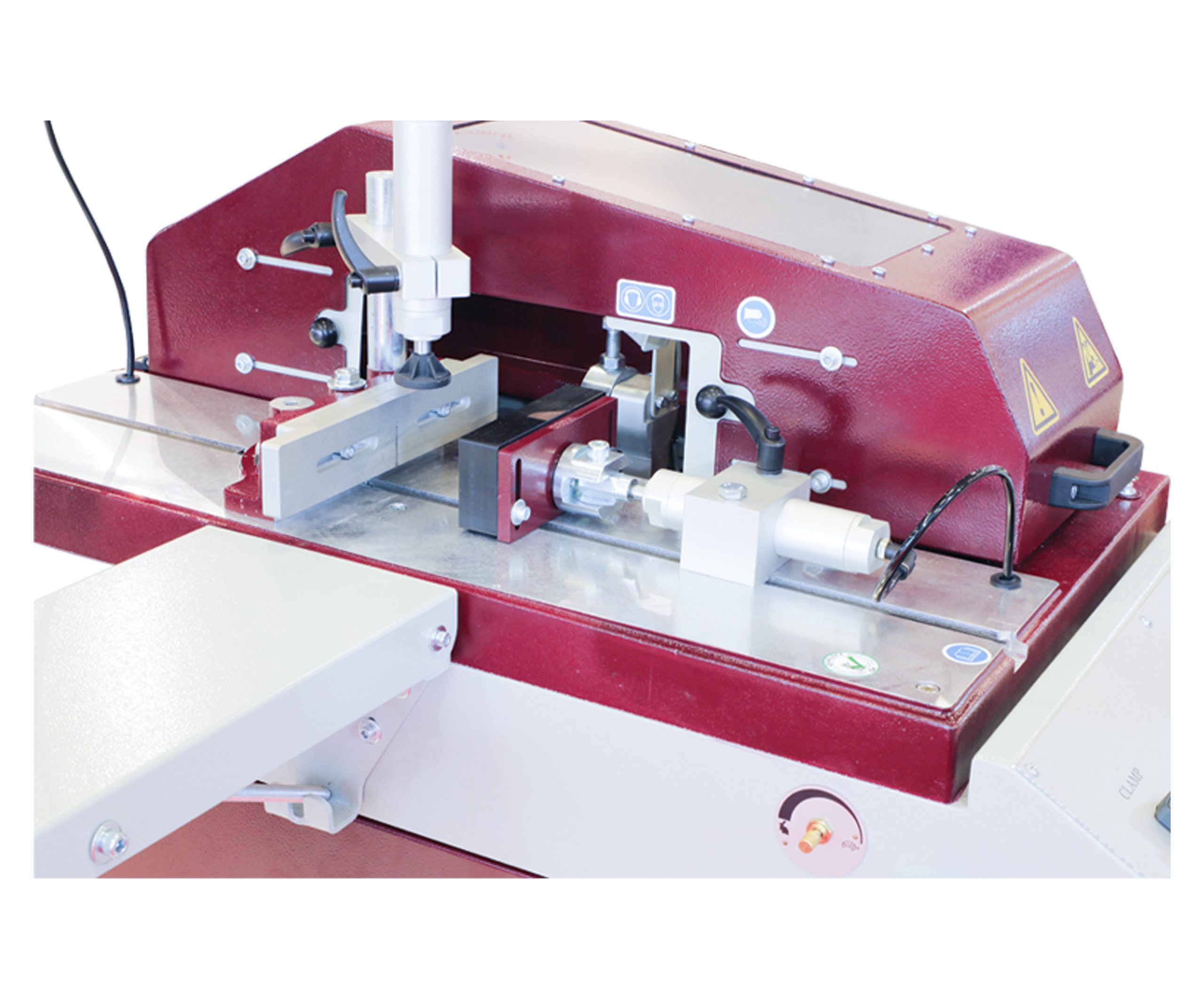

Automatic End Milling Machine (1)
Automatic End Milling Machine (4)
Automatic End Milling Machine (3)
Automatic End Milling Machine (2)
Automatic End Milling Machine (1)
CatalogCatalog

GENERAL FEATURES

  • 1.1 kW 3-phase motor • Quick cutter change spindle
  • Hydro-pneumatic feed enables to adjust the speed of the cutters depending on profile type
  • The cutter stack spindle returns to the starting point automatically
  • Profile stop system is adjustable for 4 different profiles
  • PVC (vinyl) and aluminum mullion profiles can be end milled within the range of +45° and -45° angle
  • Top guard provides a safer working environment
  • Storage for spare tools
  • Robust machine body
  • Max. diameter of end mill cutter is Ø 180 mm (7″)
  • Max. end milling dimensions H=100 mm (4″) x W=225 mm (9″)

STANDART EQUIPMENT

  • 1x pneumatic horizontal clamp
  • 1x pneumatic vertical clamp
  • Air gun
  • Profile table

OPTIONAL

  • Pneumatic spray mist lubrication system
  • Custom fixture for special profiles
  • Custom cutter stack

Technical specifications and features are subject to change without prior notice.
