PIM 6508
CNC VINYL EXTRUSION FABRICATION MACHINE
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
Downloads & resources

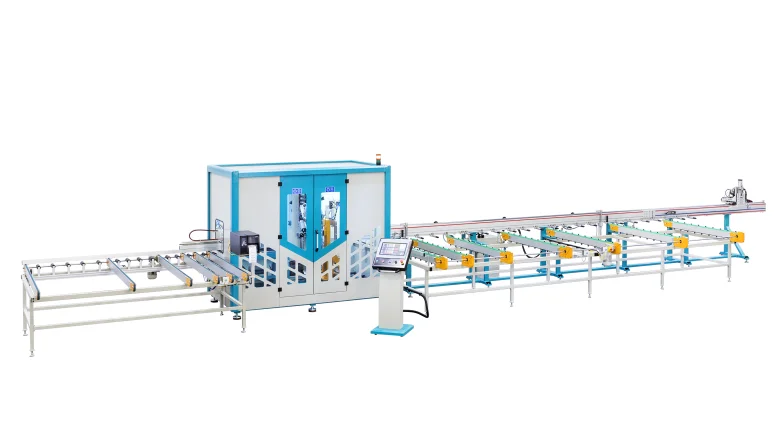

PIM 6508 is 8-axis CNC controlled machining center which is specifically designed to process any kind of PVC profiles in the market. The machine can do all operations on four sides of PVC profiles suc... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
GENERAL FEATURES
- Servo control system providing CNC motion at 8-axis
- Fully automated feeding, carrying, positioning, cutting and transferring units

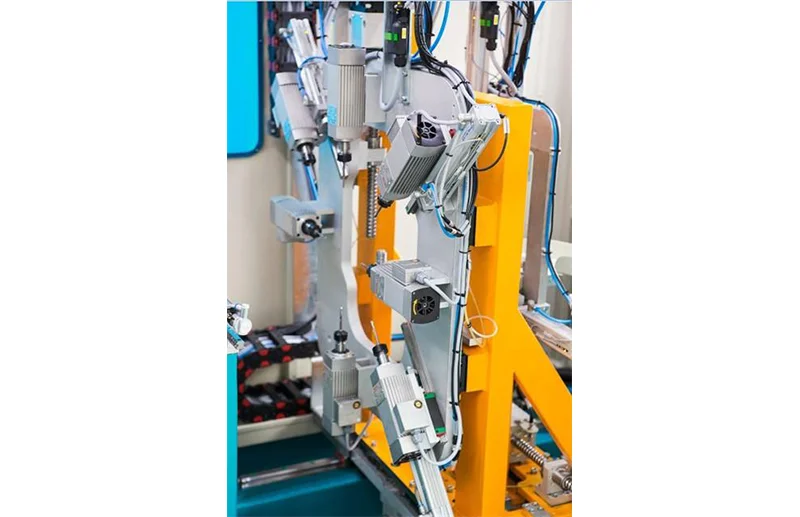

- Performing operations on four sides of PVC profiles such as milling, opening key holes, water slots, hinge holes, handle holes, marking, saw blade cutting etc.

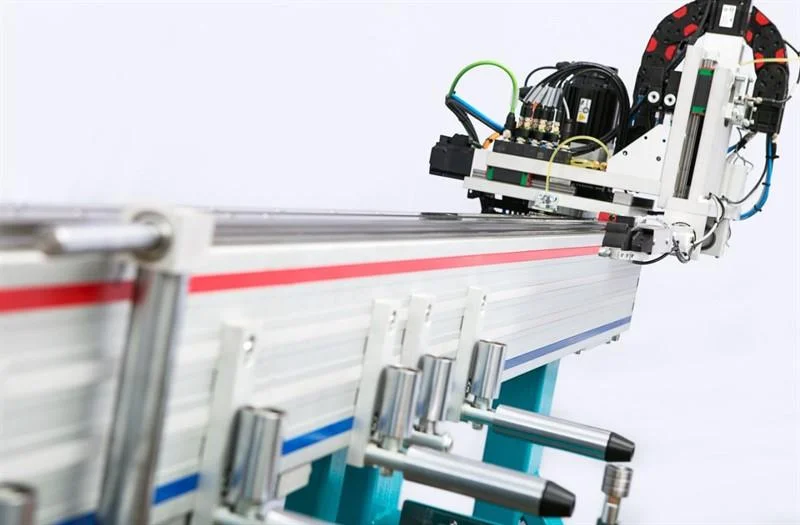

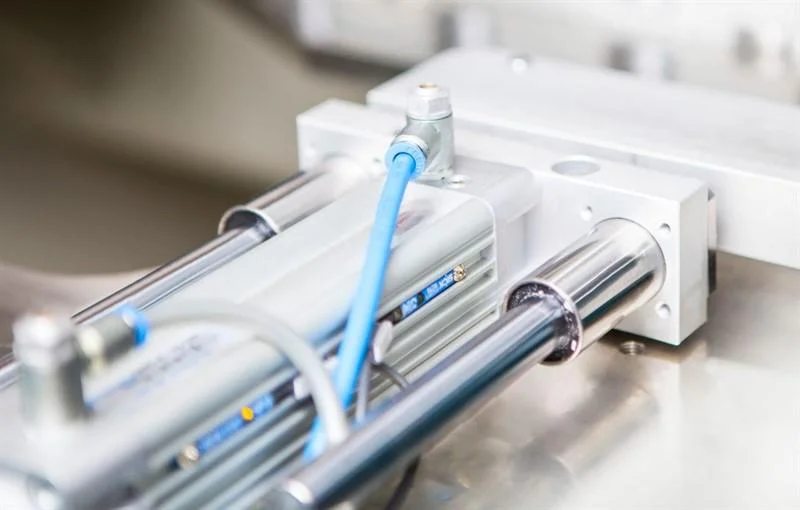

- Pneumatic gripper for accurate positioning of the profile

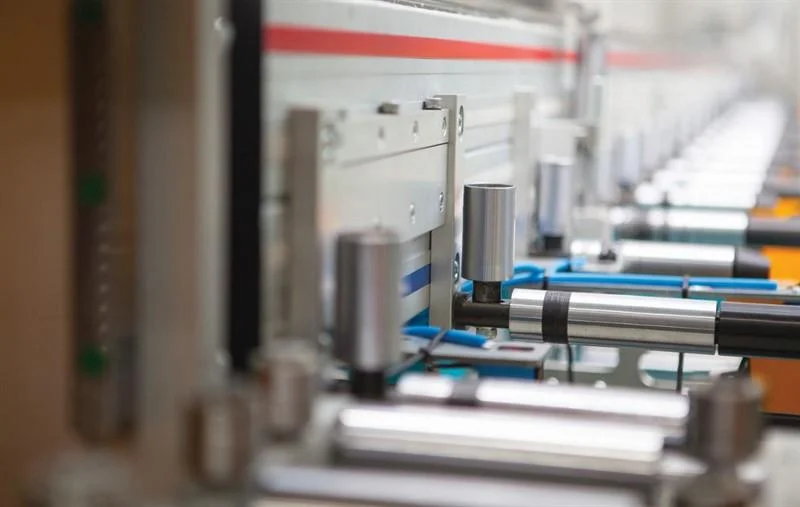

- Horizontal and vertical clamping of workpiece during the sawing operation
- Profile processing capacity with 1200-1600 running meter/ shift
- Automatic conveyor unit with the loading capacity of 10 pcs of profiles

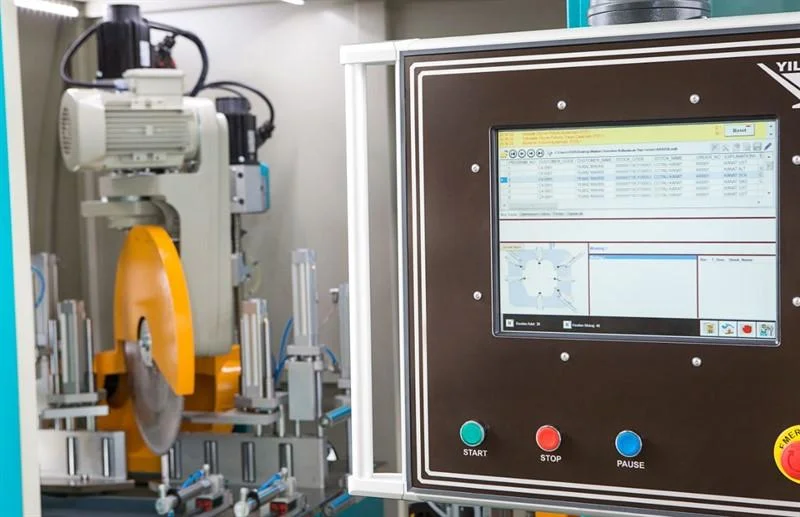

- Servo controlled down-cutting saw blade with Ø 500 mm dia. that rotates between the range of 30⁰ and 150⁰ with the accuracy of -/+ 0.1⁰

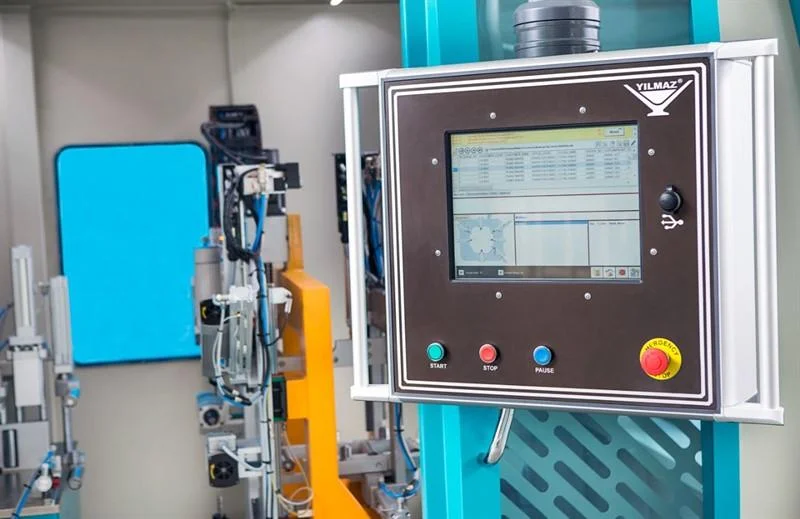

- Windows based PC and 15.6’’ LCD touch screen monitor
- Remote desktop connection and providing technical support
- User friendly interface software that is compatible with CAD programs
- Ability to perform milling and cutting operations at the same time
- Easy integration with the CNC welding and corner cleaning machines
- Automatic frame and sash profile recognition system
- Automatic profile width and height dimension control system
- Automatic lubrication system
- Low pressure control for saw blade safety operations
- LED interior lighting
- Barcode-Scanner
OPTIONAL ACCESSORIED
- Chip vacuum extractor
- Additional saw blade
- Additional milling bits
- Profile waste conveyor
Technical specifications and features are subject to change without prior notice.
