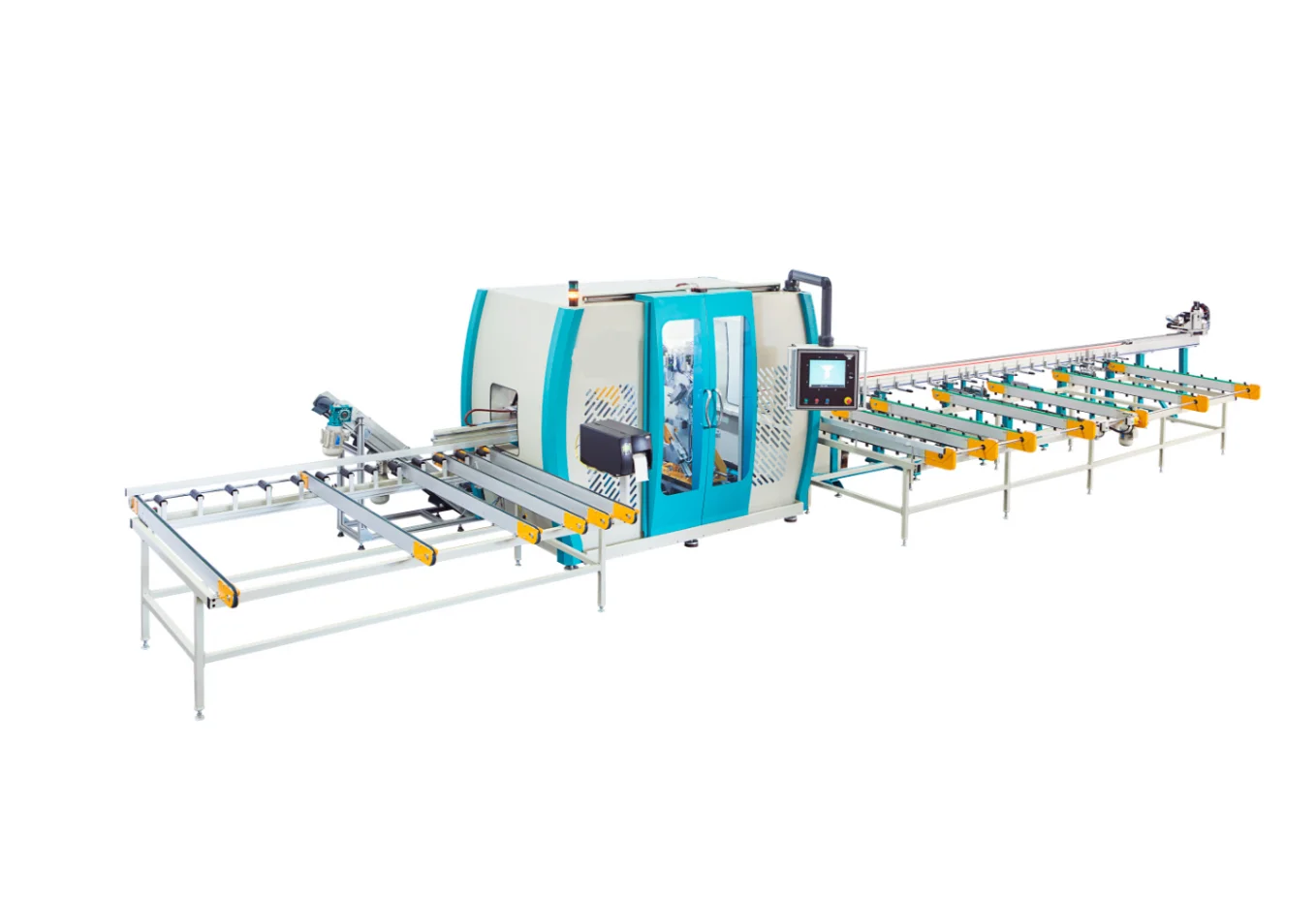

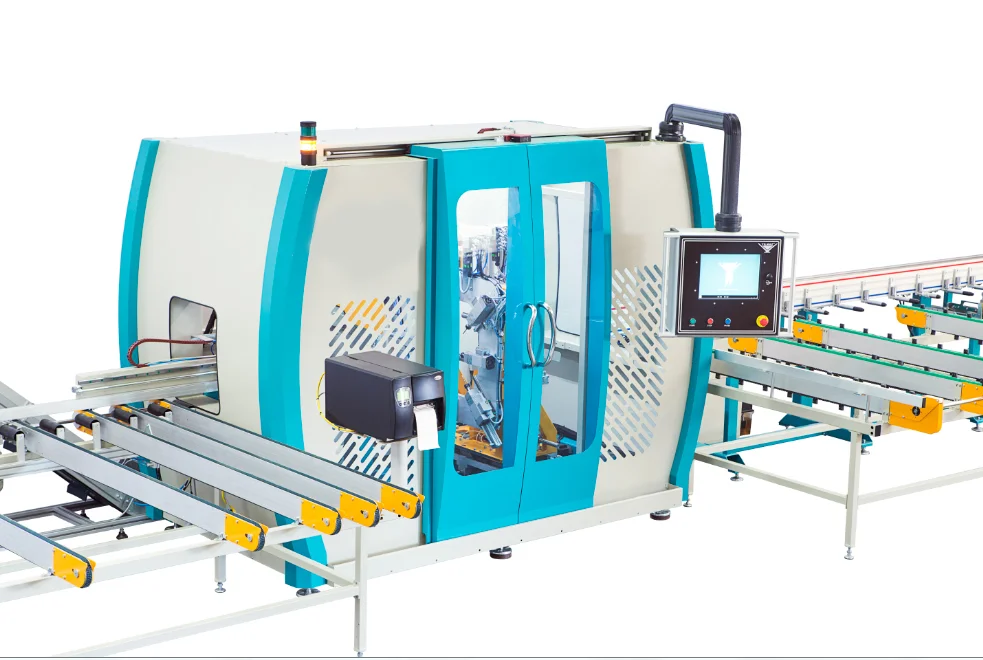

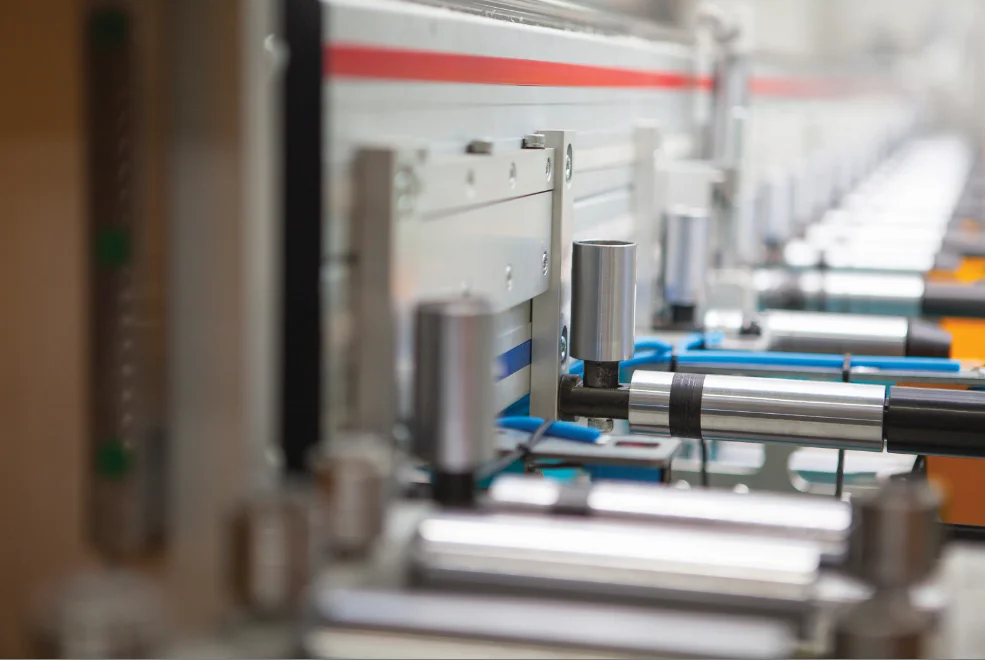

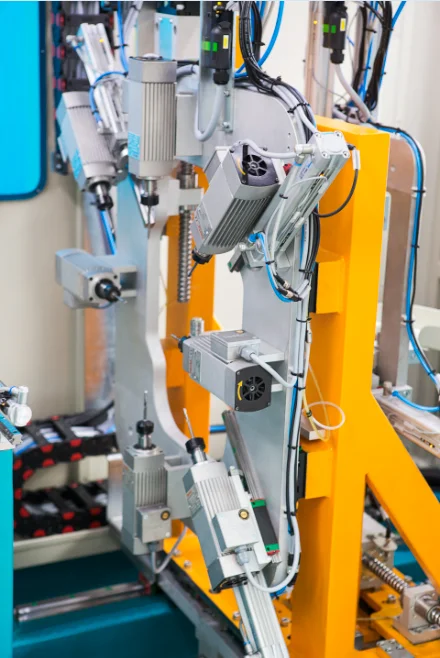

PIM 6505 PVC Profile Processing Machine

General Features

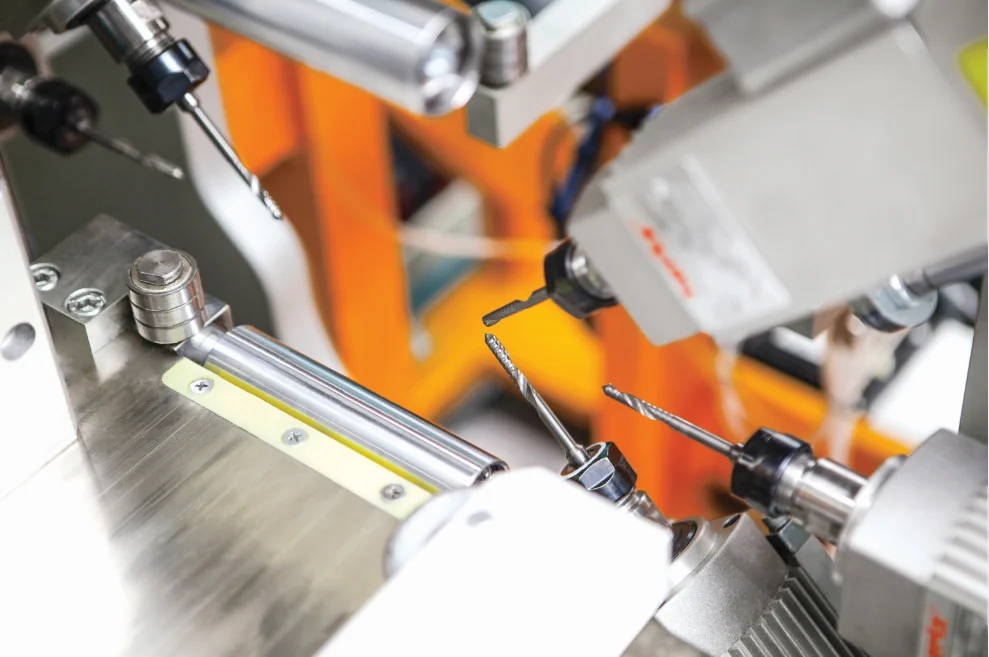

• Designed to perform any kind of cutting, drilling, marking, and grooving operations on PVC profiles by means of CNC controlled engines.
• Servo control system providing motion in 8 degree of freedom
• Windows based PC

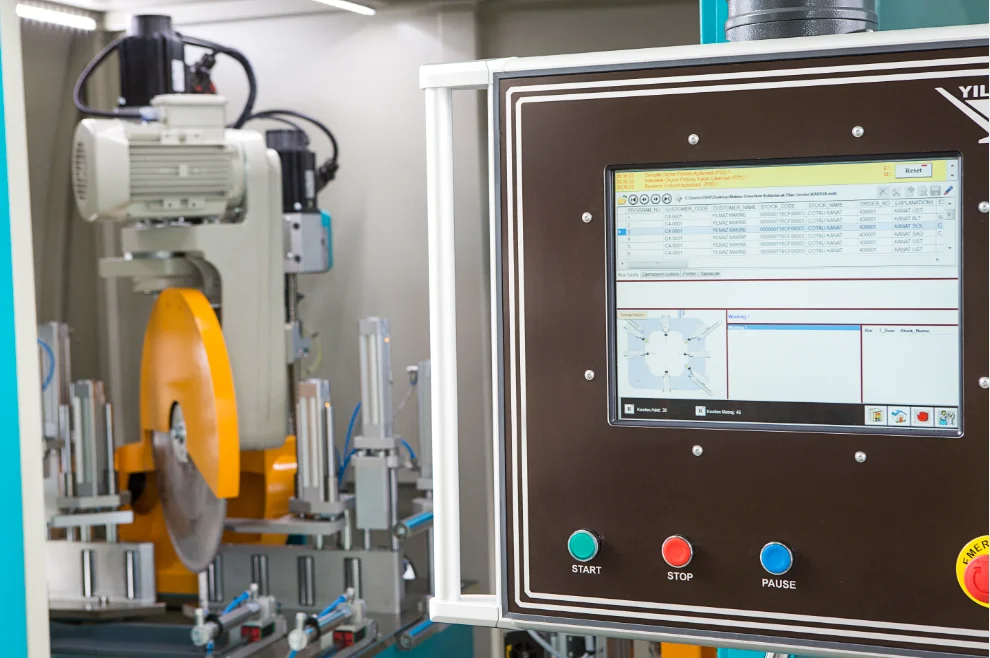

• Touchscreen panel
• Barcode printer
• Writing information barcode on last profile
• Following the processing situation of the PVC profile on the PC screen as simulation
• Technical support via remote access
• Storage capacity of 6500 rows
• Interface software integrated with all CAD programs
• Simultaneous milling and cutting operation
• Clear user interface
• Conveyor unit with profile feeding capacity of 10 pieces
• Integration with four corner PVC welding and cleaning line
• Saw diameter: 500 mm
• Drop down cutting unit with servo system having +/- 0.1⁰ accuracy between 30⁰ – 150⁰
• Performing required operation on every surface of profile
• Performing every necessary operations (except notching) for window profiles
• Frame and sash profile recognition system
• Profile width and height dimension control system
• Handling chip and scrap profiles by using conveyor and storage
• Processing capacity of 1200 -1800 running meters /8 hours
• Minimum profile dimension to be hold (W x H): 40 mm, 40 mm
• Maximum profile dimension to be hold (W x H) : 130 mm x 140 mm
• Automatic lubrication system

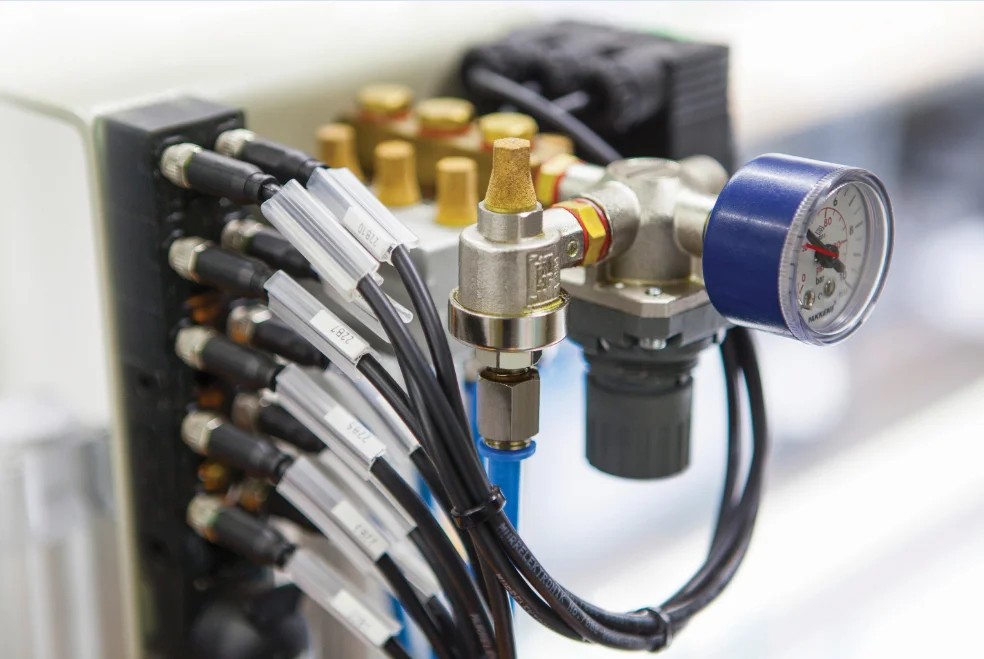

• Low pressure control
• Maximum profile length to be processed (L max): 6500 mm
• Minimum profile length to be processed (L min): 700 mm
• Machine Dimensions (W x L x H): 3200 mm x 15500 mm x 2100 mm
• LED interior lighting
