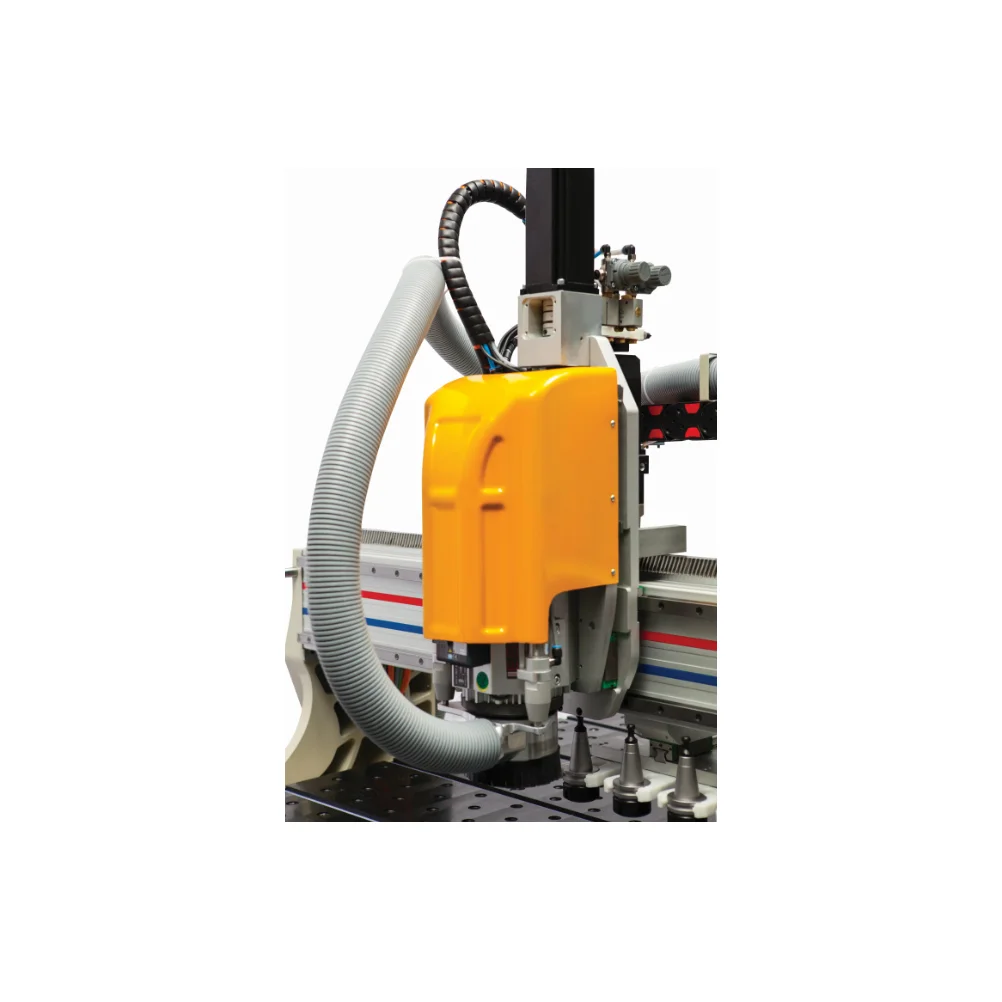

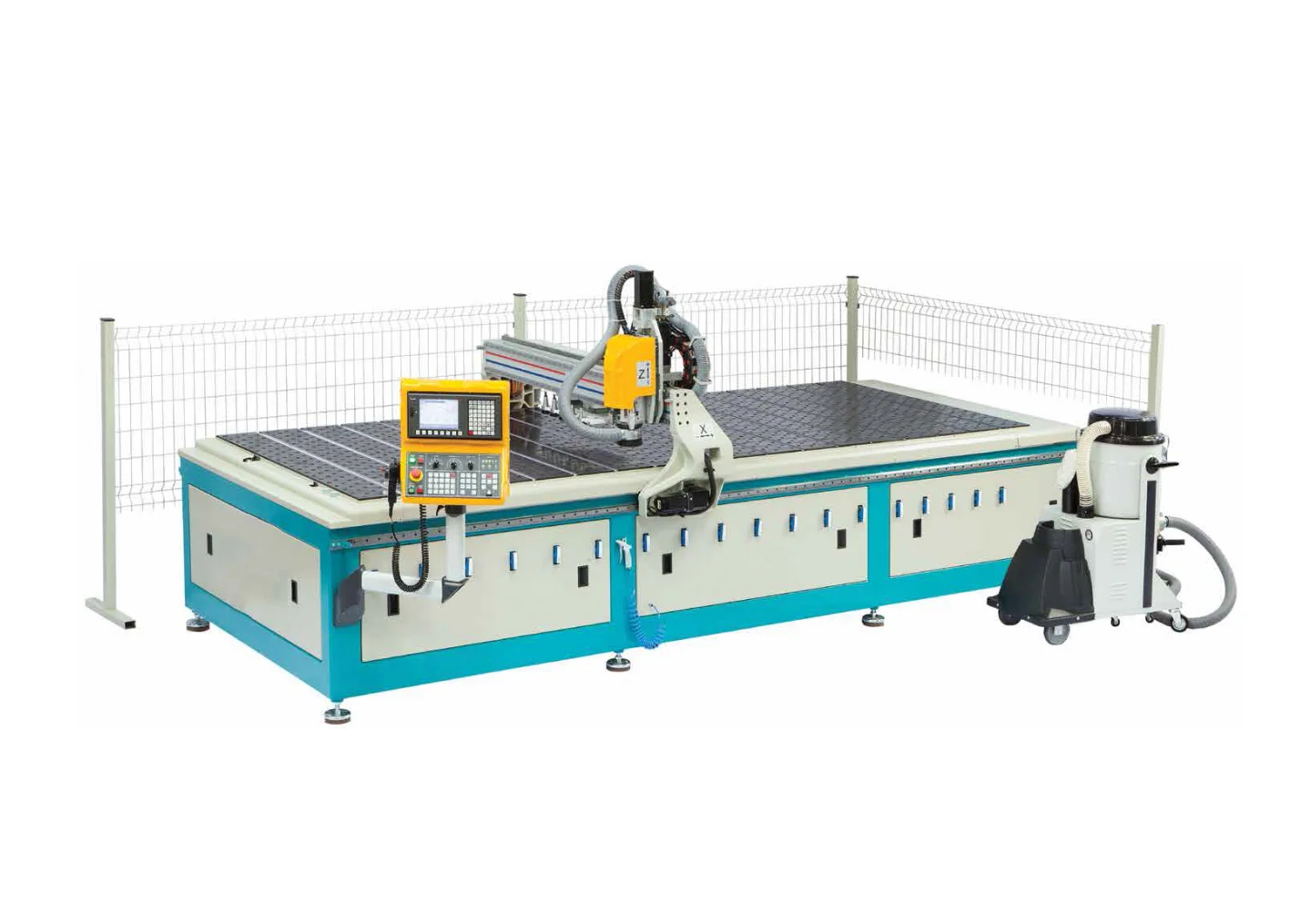

CPM 4150 COMPOSITE PANEL PROCESSING MACHINE

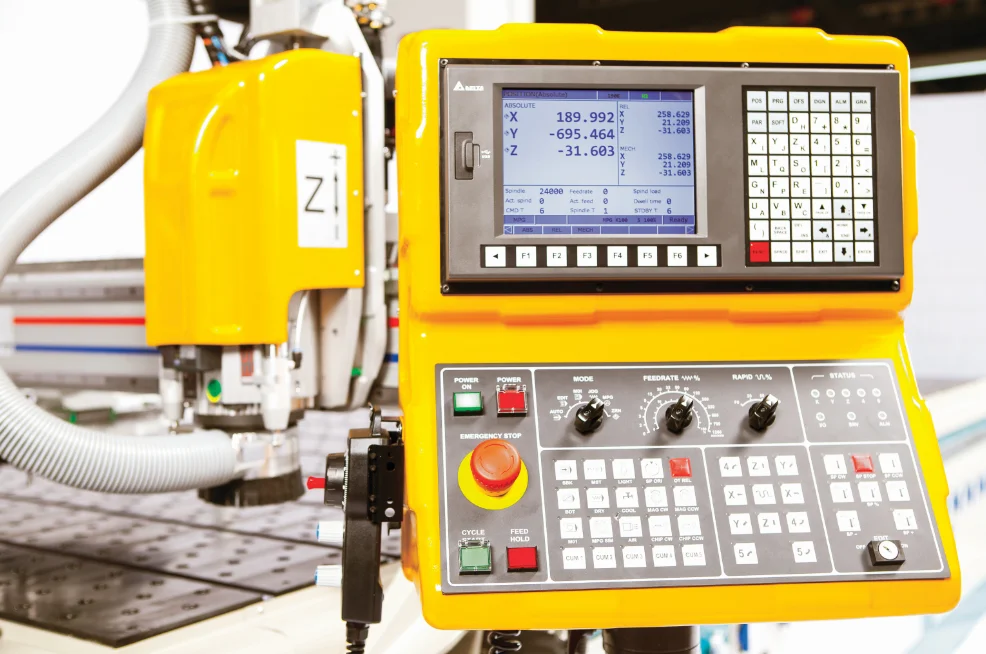

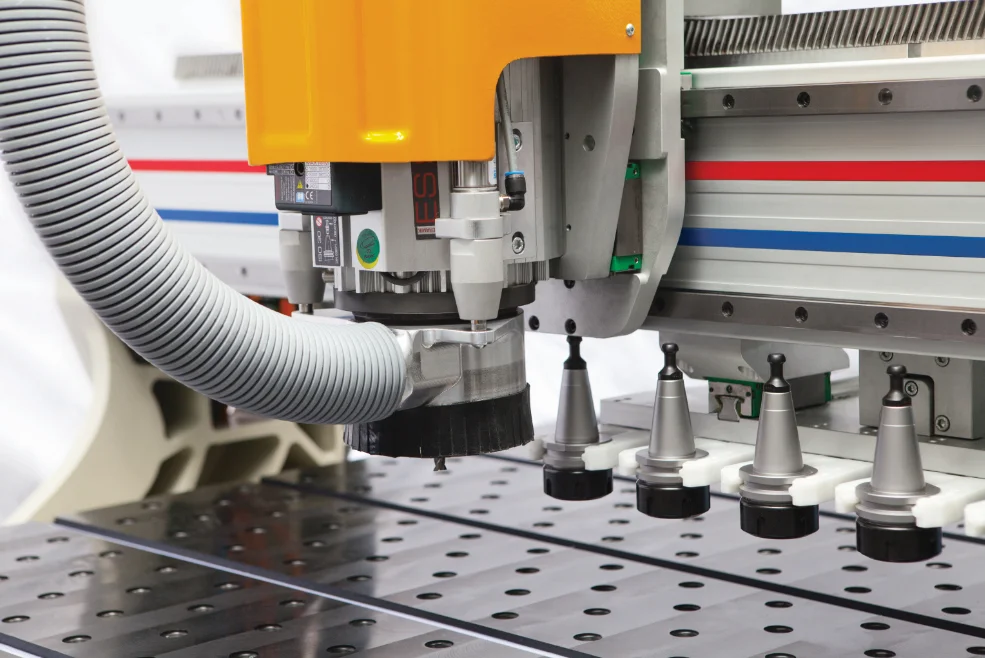

General FeaturesMaterials processed in machine: Aluminum composite panel, aluminum panel, plexy panel etc.CNC automation system with 3 axis of movementApplication of special cutting processes with ATECHCAMsoftware = Easy to operate2 pcs of Pneumatic reference support systems.( Second one is for the processing of the panels bigger than 4100 mm)Magazine unit with capacity of 6 sets of tool on the bridge= Minimum tool change timeVacuum manifold with a flow rate of 350 m3/ h to remove chipsSuperior ‘gantry’ design gives rigidity = Maximum accuracySpecially designed vacuum table for processing the small pieces = no skimmingAir flow system to move the big size of the plate on the table easily = means more efficiencyAUTOMATIC Tool Measurement System to reduce the tool setup time = Minimum set-up timeVortex chip removal system. Clean all the chips on the work plate= chip free environmentMulti language support for control unitPLC controlled tool cooling systemSuperior hold-down vacuum system comes from 7.5 KW vacuum pumpControl panel with color display for CNC controlHandle for setup and manual motion controlEasy program transfer with USB memory stickCreating programs by using displayTechnical support with remote accessAutomatic linear bearing and pinion rack lubrication system = simple maintenance1 set of tool mounting apparatus and wrenchOptional tools, tool holders and clips
