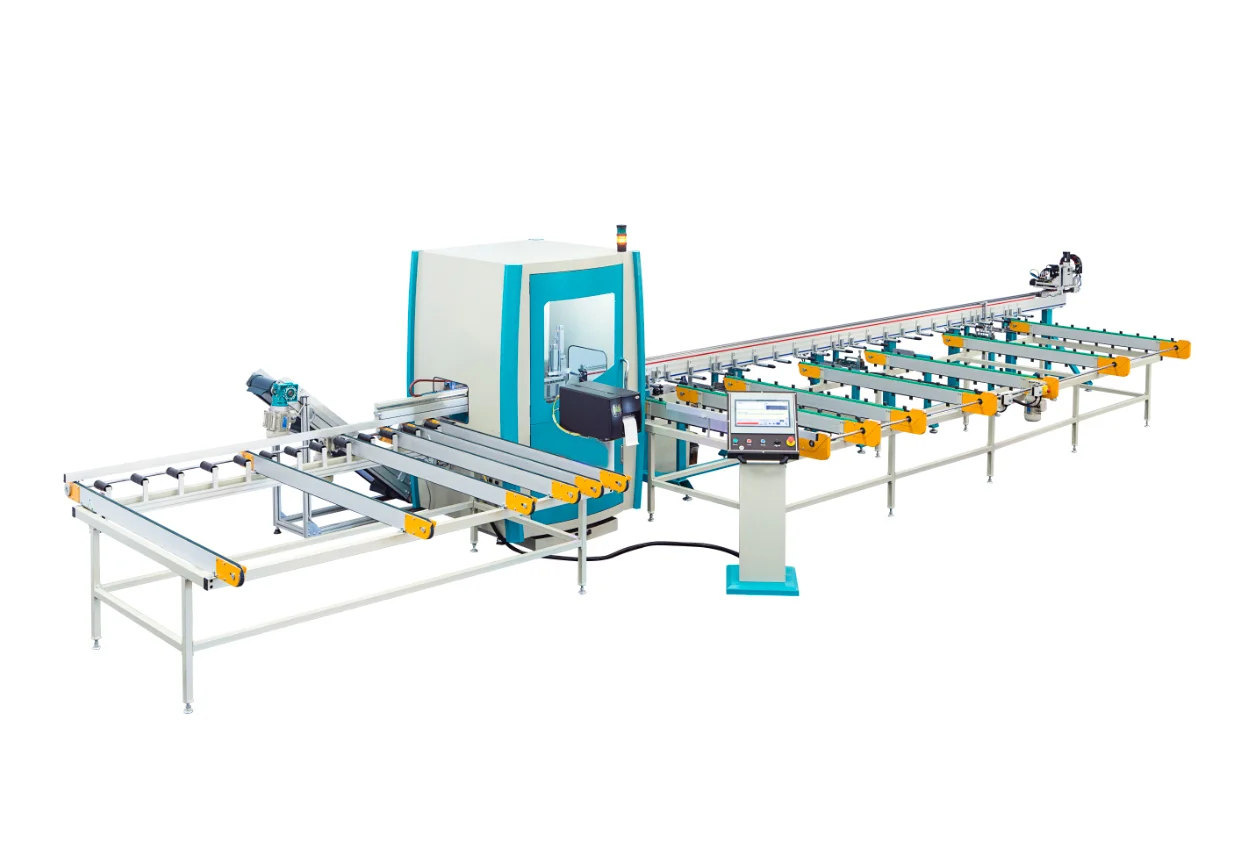

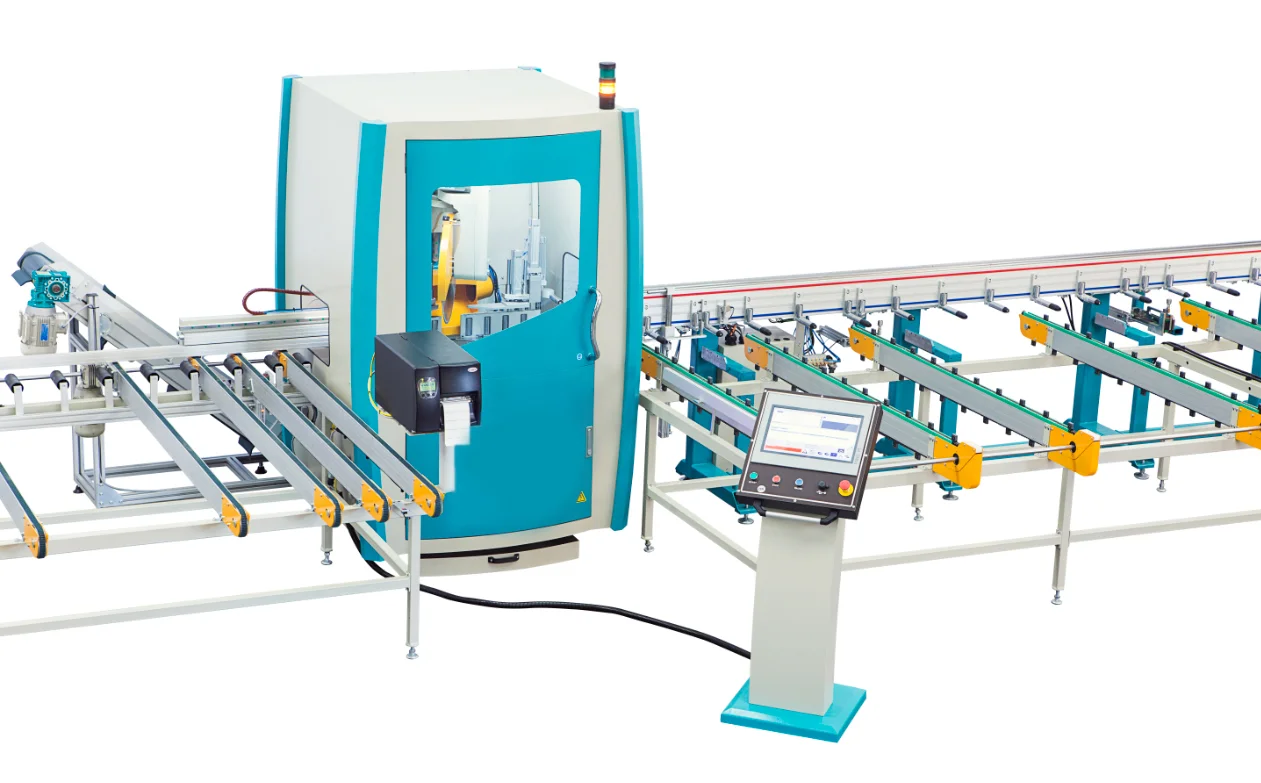

PCC 6505 Profile Cutting Center
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
PCC 6505 is a servo controlled machine which is specifically designed for the serial cutting of any kind of aluminum profiles in the market. The machine is able to cut PVC and aluminum profiles into r... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
2.2 kW 400V 50-60 Hz.
500 mm
2540 d/dak rpm
6-8 Bar 55 Lt./dak
1950kg - 2170 kg
GENERAL FEATURES

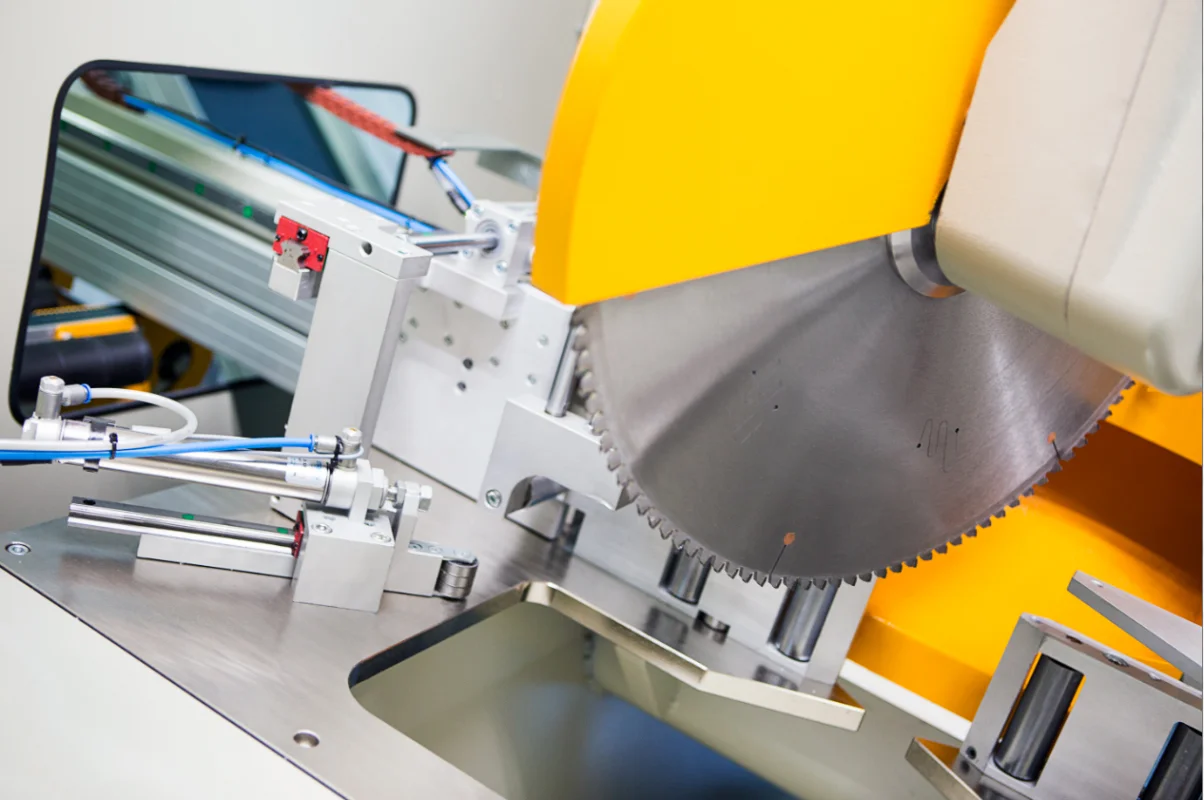

- 500 mm of down-cutting saw blade
- Servo control system ensuring motion control at 5 axis
- Pneumatic gripper for accurate positioning of the profile
- Horizontal and vertical clamping of workpiece during the sawing operation
- Fully automated feeding, carrying, positioning, cutting and transferring units
- Average time for single piece cut: 8-10 sec./pc. (2600-3000 running meter/ shift)
- Automatic conveyor unit with the loading capacity of 10 pcs of profiles
- Servo controlled saw blade unit that rotates between the range of 45⁰ and 135⁰ with the accuracy of -/+ 0.1⁰

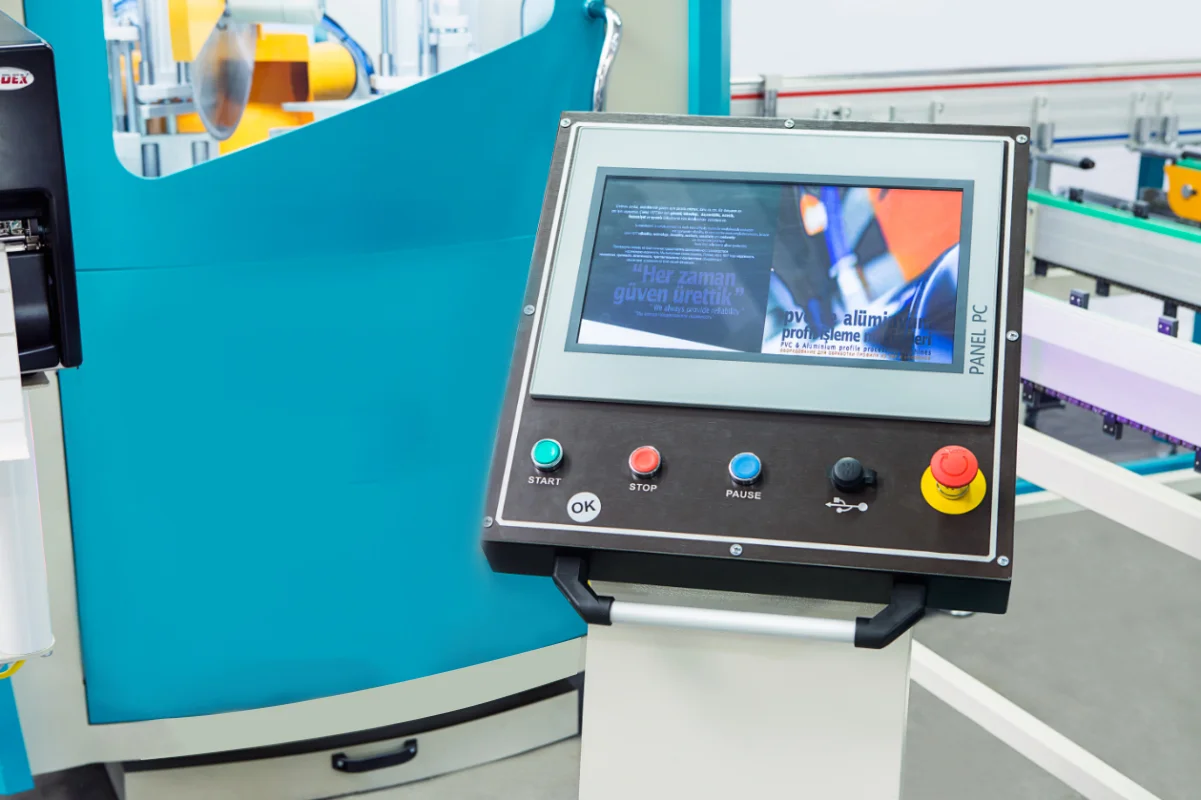

- Windows based PC and 15’’ LCD touch screen color monitor
- Remote connection and providing technical support
- Cutting options; manually or serial cutting from the list
- Interface program easily integrated to all the drawing programs
- Frame and sash recognition system
- Profile width and height dimension control system
- Conveyor belt for chips and scrap profiles
- Automatic lubrication system
- Spray saw blade lubrication system
- Door safety switch
- Low pressure control for saw blade safety operation
- LED interior lighting with very low energy consumption
OPTIONAL ACCESSORIED
- Chip Removal conveyor
- Barcode-Scanner
- Chip vacuum extractor
- Vertical Profile Trolley
- Horizontal profile Trolley
- Additional saw blade
Technical specifications and features are subject to change without prior notice.
