PEGASUS
REQUEST FOR QUOTE
Custom pricing based on specifications
Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.
PEGASUS-06 P is a heavy duty bench top miter saw with a 14″ (350 mm) blade. It has 2 main parts; 350 mm (14″) carbide tipped saw blade, and twin horizontal clamps. There are also infeed & outfeed tabl... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
PEGASUS-06 P is a heavy duty bench top miter saw with a 14″ (350 mm) blade. It has 2 main parts; 350 mm (14″) carbide tipped saw blade, and twin horizontal clamps. There are also infeed & outfeed tables among optional equipment. Moreover, Pegasus-06 P has heavy duty construction for long machine life.
Standard Equipment
- Twin horizontal clamps . User’s manual . Carbide tipped saw blade 350 mm (14″)
Optional Equipment
- Infeed & outfeed table
Specific Capacities
- Heavy duty construction for long machine life.

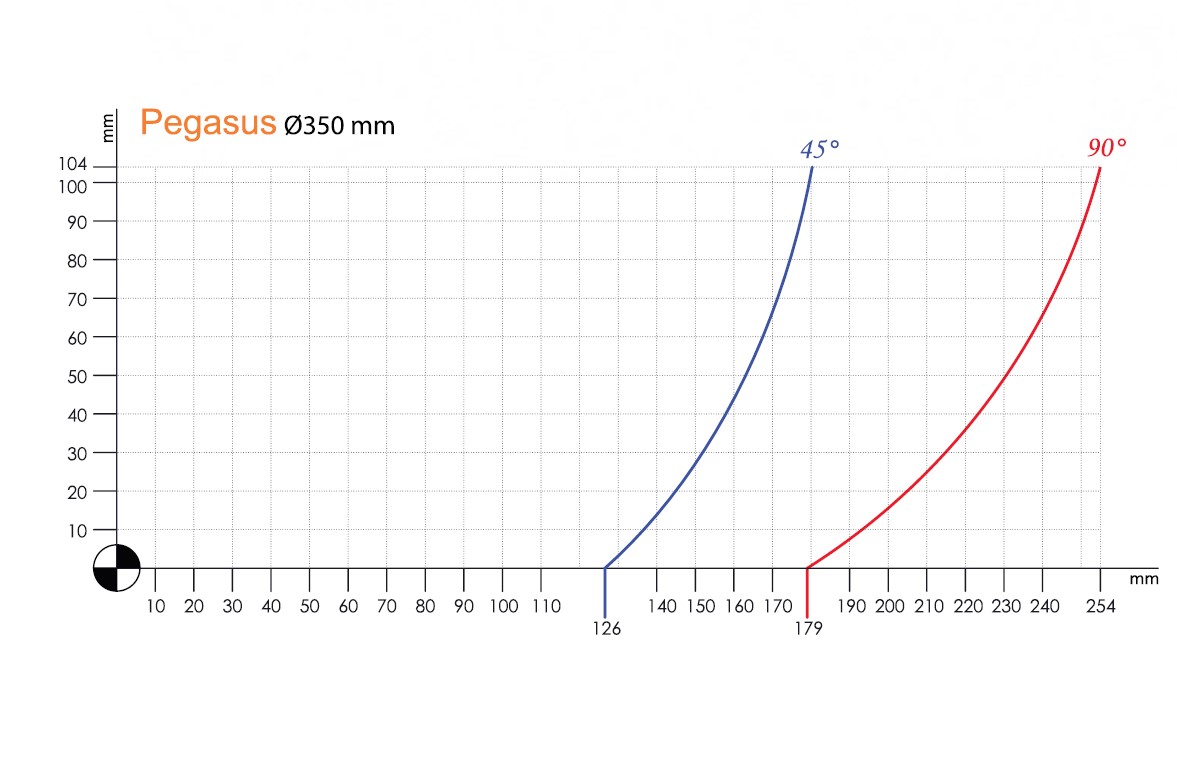

- Cutting of profiles at fixed angles of 15°-22,5°-30°-45°-90° via lock pin and at intermediate angles via fixing handle.
- Machine has been designed in accordance with CE, UL, CSA .Safety Directives
Technical Table
Technical Features Imperial
| 3 HP 1-Phase 220V 50/60Hz | d=1.18-1.26″ D=14″ | 3000 rpm | 26x24x40″ | 154 lbs |
Technical Features Metric
| 2.2 kW 1-Phase 220V 50/60Hz | D=350mm d=30-32mm | 3000 rpm | 66x60x76cm | 70 kg |
Top Miter Saw
PEGASUS-06 P is a heavy duty bench top miter saw with a 14″ (350 mm) blade. It has 2 main parts; 350 mm (14″) carbide tipped saw blade, and twin horizontal clamps. There are also infeed & outfeed tables among optional equipment. Moreover, Pegasus-06 P has heavy duty construction for long machine life.
PEGASUS-06 P cuts profiles at fixed angles of 15°-22,5°-30°-45°-90° via a lock pin and at intermediate angles via a fixing handle. Moreover, it has been designed in accordance with CE, UL, CSA Safety Directives. You can have further information about the PEGASUS-06 P at ATechMachinery.com, or read its detailed technical catalog.
Technical specifications and features are subject to change without prior notice.
