Voltage Reference
Standard 480V/60Hz (US) or 600V/60Hz (Canada) — Please specify during inquiry.

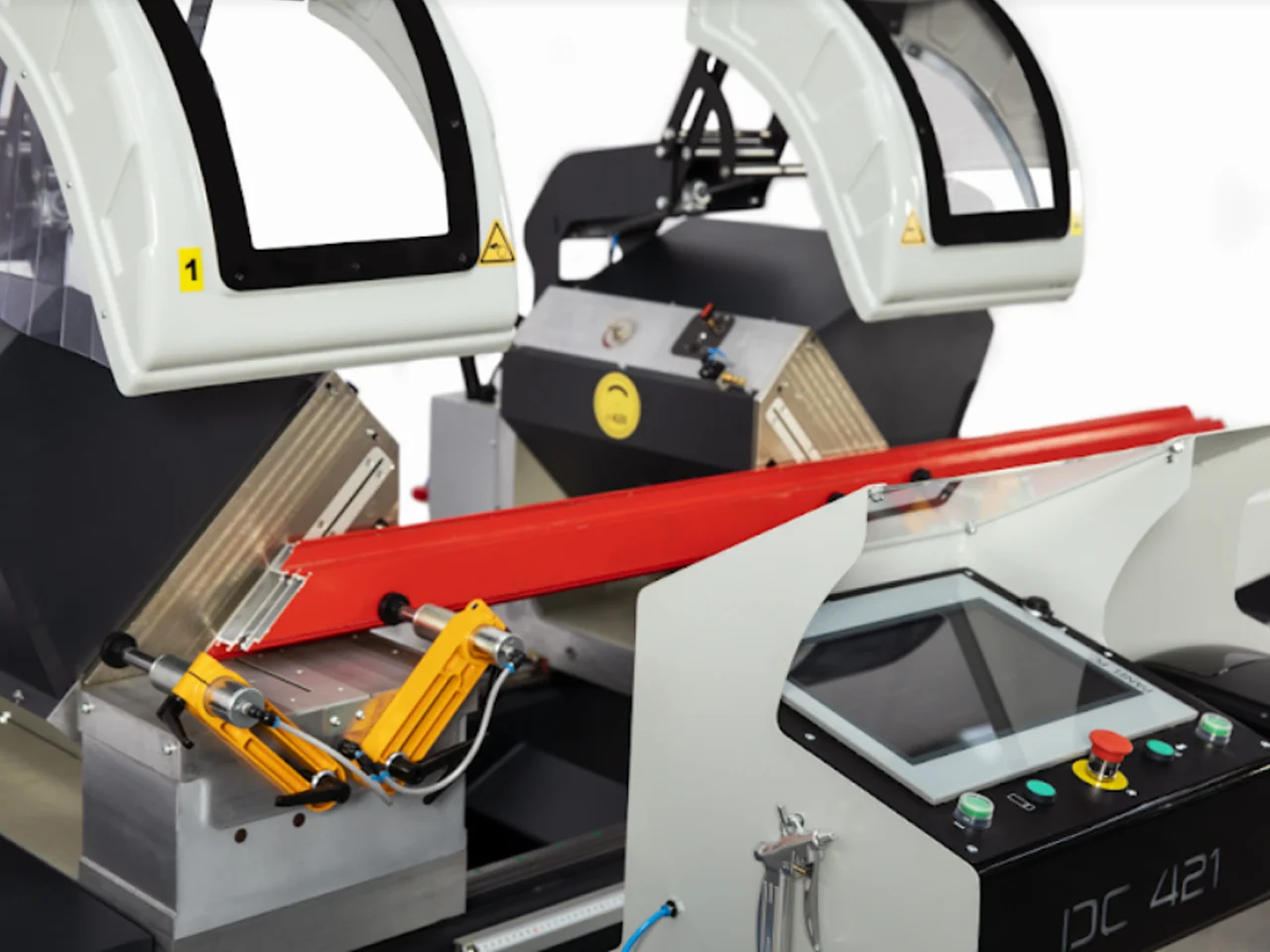

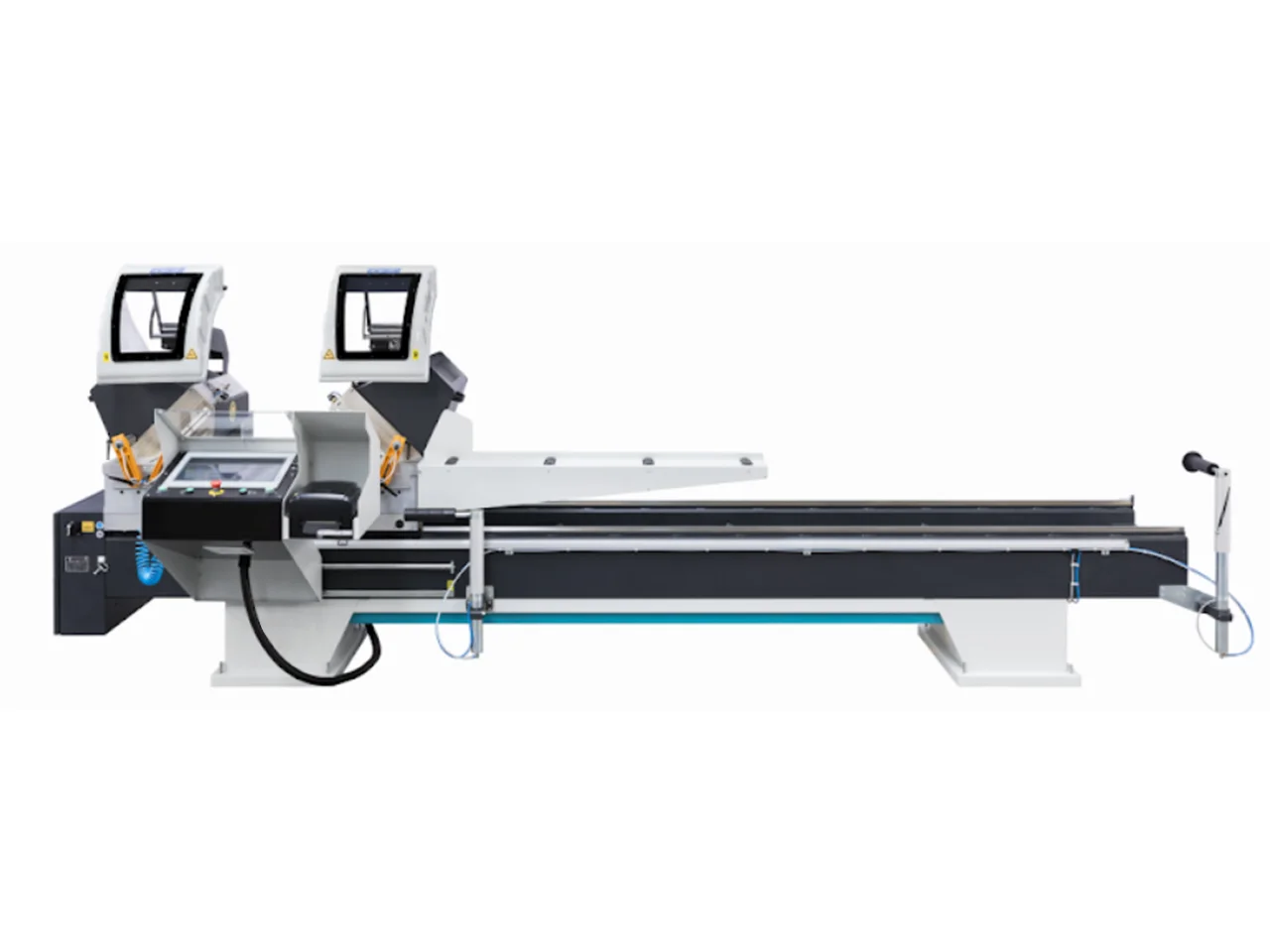

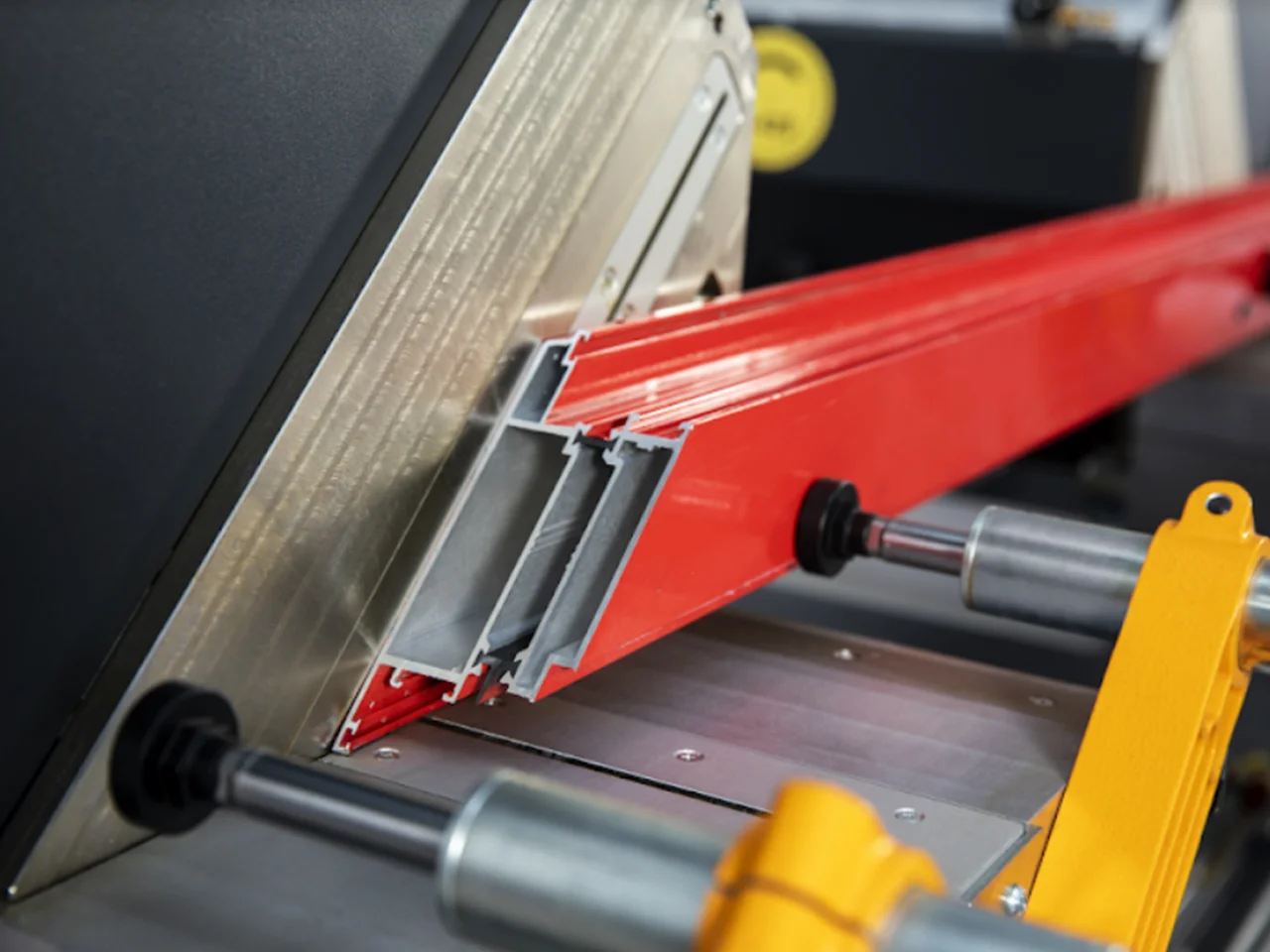

The Zigma-06 A heavy duty 18″ (450 mm) automatic double head miter saw has been designed for straight and miter cut of aluminum & vinyl extrusions and wood. The saw is operated automatically via PLC c... Read More
Fast Response
Quote within 24 hours
Ships from Michigan
All 50 States & Canada
2×3 HP 3-Phase 220/440V 60 Hz
D=16.5″ d=1.18″
3000 rpm
90-120 psi 1 CFM
44″x184″x72″
2,046 lbs
2x3 HP 3-Phase 220V/440V 60Hz
D= 420 mm d=30 mm
3000 rpm 6-8 Bar 30 l/min
6-8 Bar 30 l/min
112x5468x182cm
930 kg
General Features
- Designed for straight and miter cut of aluminum and vinyl profiles at any desired length.
- Both heads tilt to 45° and 90° angles automatically, intermediate angles are set manually
- Different versions are available
- Stroke: min.450 mm (18″), max.4300 mm (169″)
- The saw blade feed is hydro-pneumatic, and the cutting speed can be adjusted precisely according to the material to cut

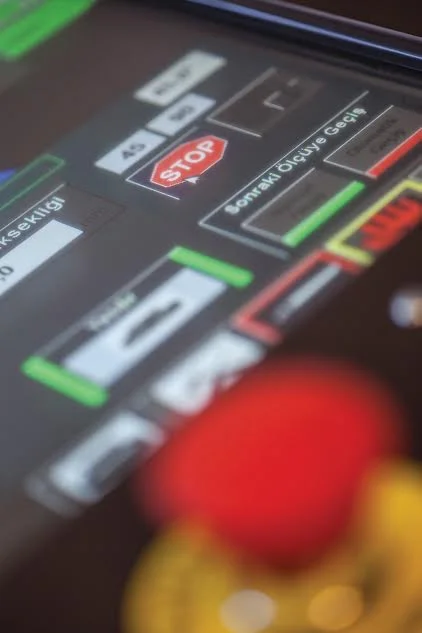

- The operator control panel is touch screen
- Equipped with features like slicing, entering part quantity and programming
- Able to cut longer than the stroke
For Ø 450 mm (18″) saw blade size:
- 45° cutting capacity: 176×200 mm (7″x8″)
- 90° cutting capacity: 176×285 mm (7″x11″)
- Stroke: min.450 mm (18″) , max.4000 mm (157″)
Standard Equipment
- 2 x 450 mm (18″) carbide tipped saw blades

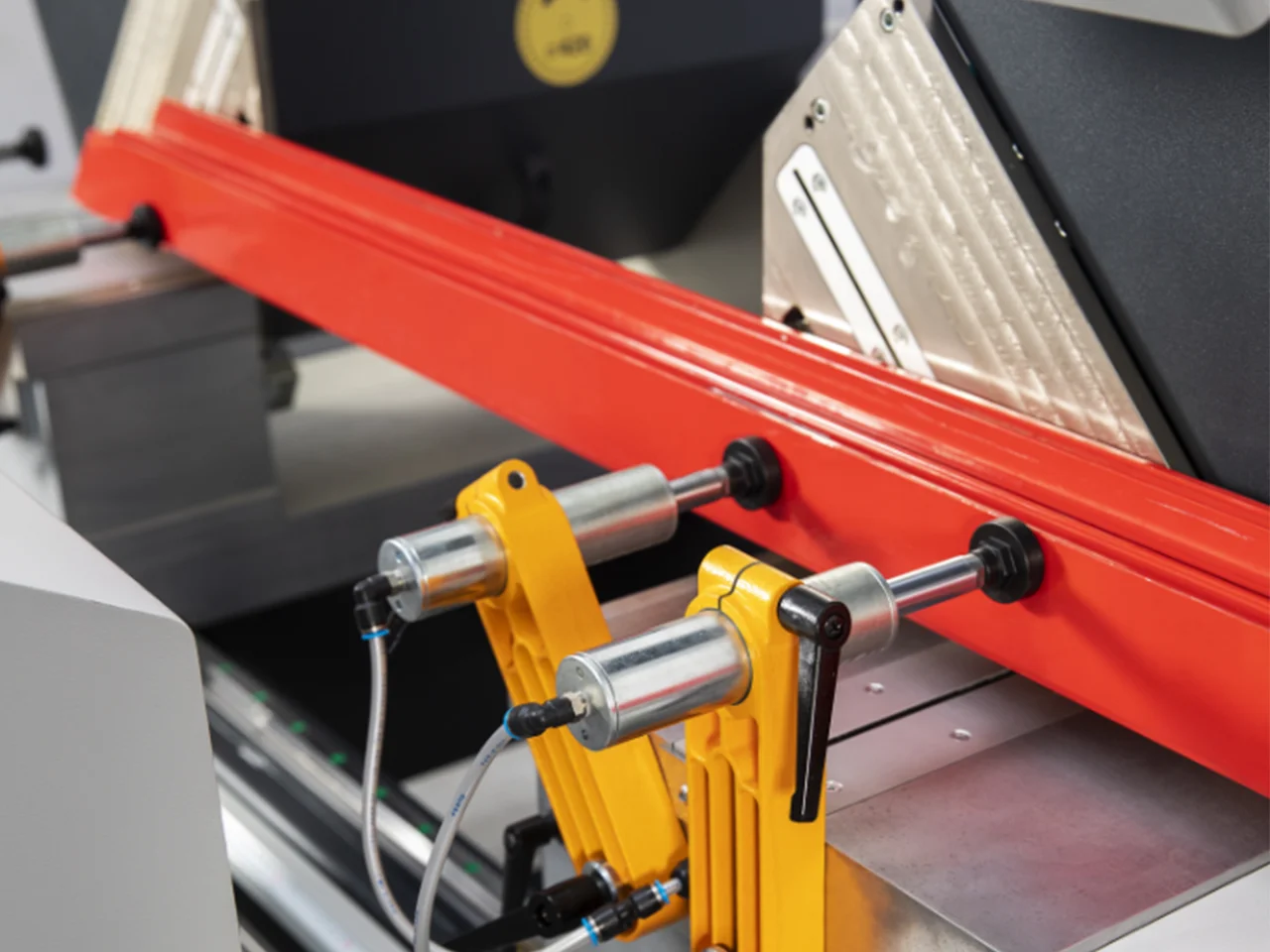

- Twin pneumatic horizontal clamps
- Air gun
- Additional conveyor on the movable unit
- Profile support device
- User’s manual
- Pneumatic spray mist lubrication system
Optional Equipment
- Chip collector
Technical specifications and features are subject to change without prior notice.
