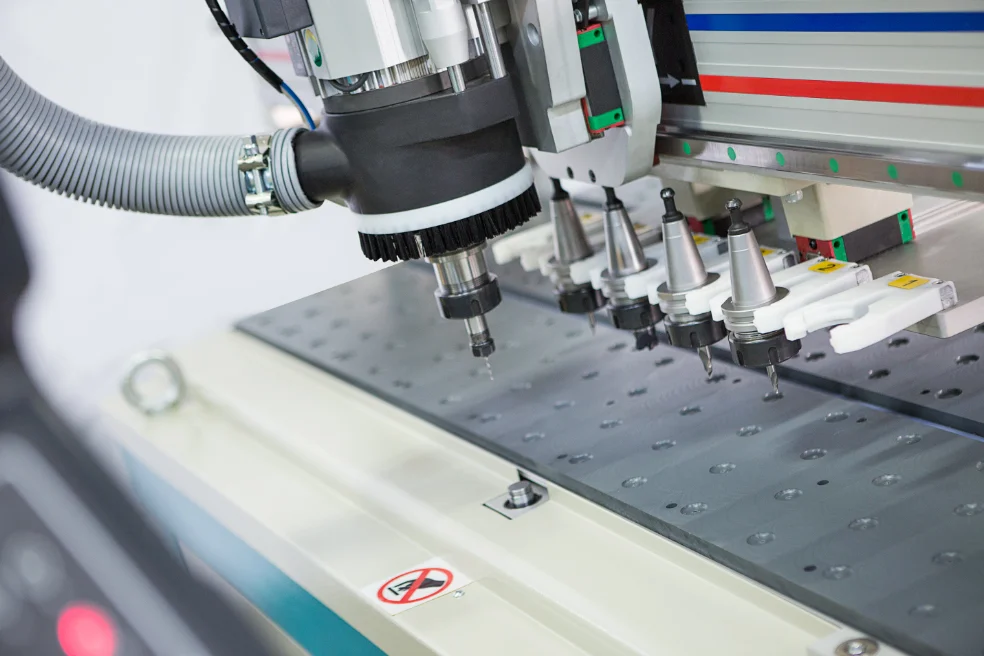

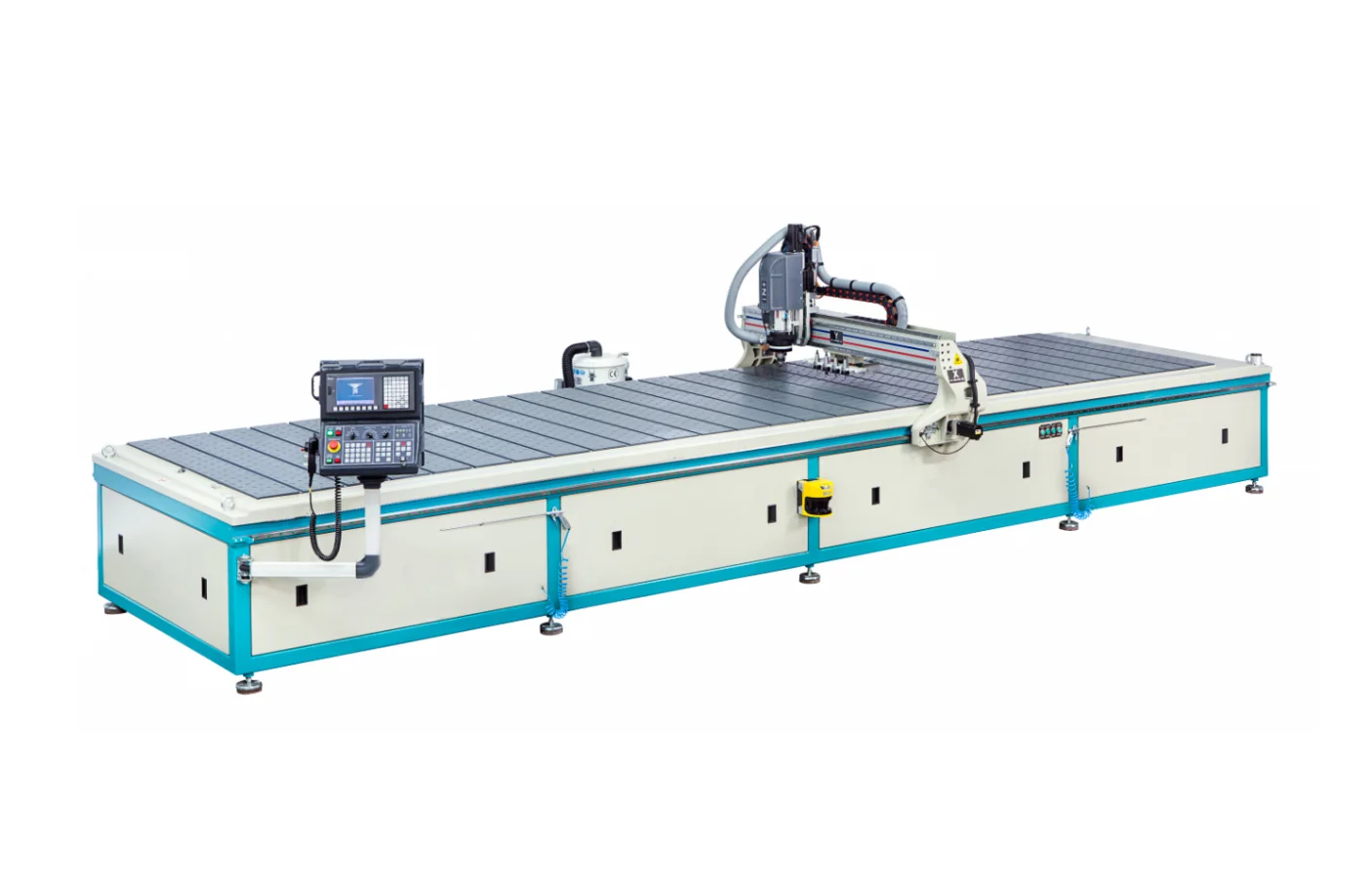

CPM 6161 Double Station Composite Panel Processing Machine

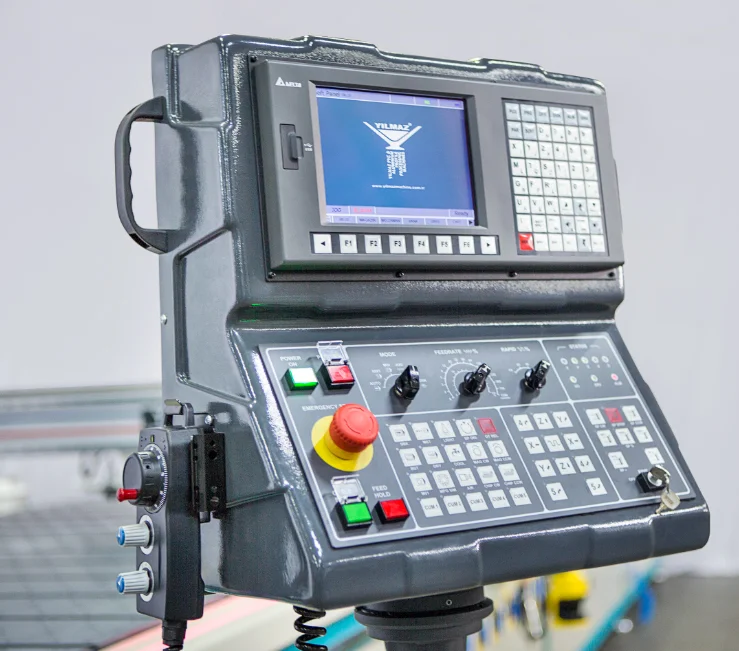

General Features Designed to perform any kind of cutting, drilling, marking, and grooving operations on PVC profiles by means of CNC controlled engines.Servo control system providing motion in 8 degree of freedomWindows based PCTouchscreen panelBarcode printerWriting information barcode on last profileFollowing the processing situation of the PVC profile on the PC screen as simulationTechnical support via remote accessStorage capacity of 6500 rowsInterface software integrated with all CAD programsSimultaneous milling and cutting operationClear user interfaceConveyor unit with profile feeding capacity of 10 piecesIntegration with four corner PVC welding and cleaning lineSaw diameter: 500 mmDrop down cutting unit with servo system having +/- 0.1⁰ accuracy between 30⁰ – 150⁰Performing required operation on every surface of profilePerforming every necessary operations (except notching) for window profilesFrame and sash profile recognition systemProfile width and height dimension control systemHandling chip and scrap profiles by using conveyor and storageProcessing capacity of 1200 -1800 running meters /8 hoursMinimum profile dimension to be hold (W x H): 40 mm, 40 mmMaximum profile dimension to be hold (W x H) : 130 mm x 140 mmAutomatic lubrication systemLow pressure controlMaximum profile length to be processed (L max): 6500 mmMinimum profile length to be processed (L min): 700 mmMachine Dimensions (W x L x H): 3200 mm x 15500 mm x 2100 mmLED interior lighting
