NORMA-02 SA Semi-

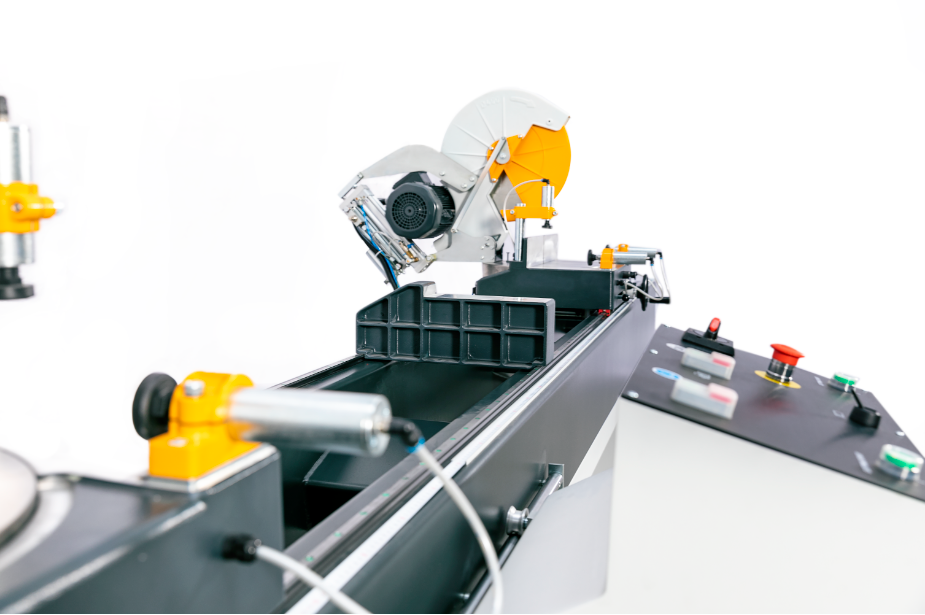

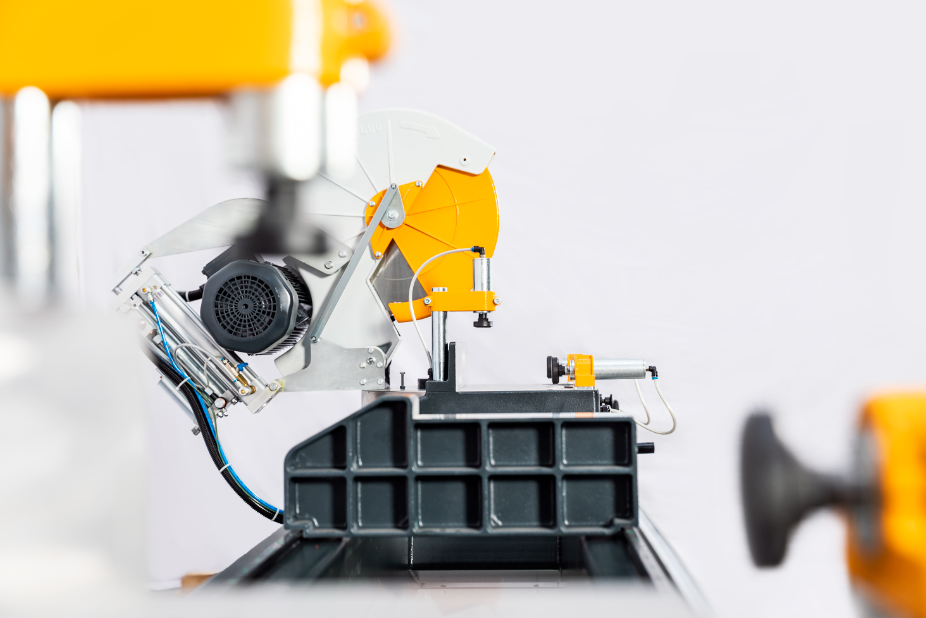

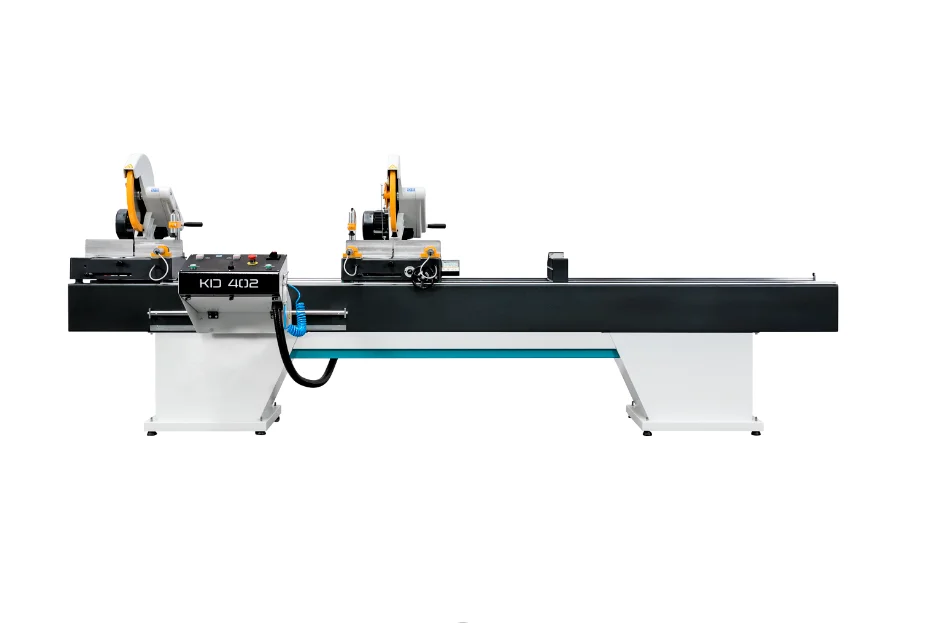

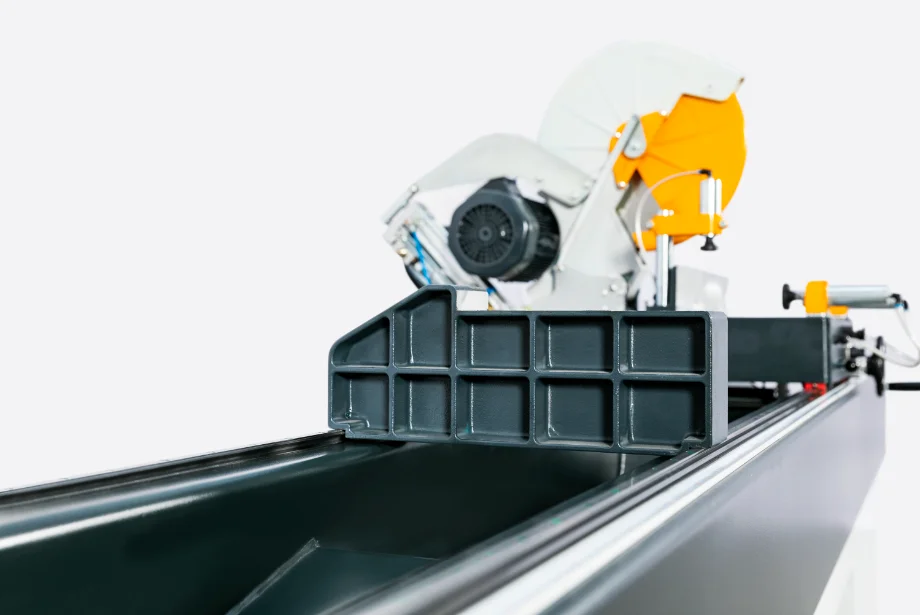

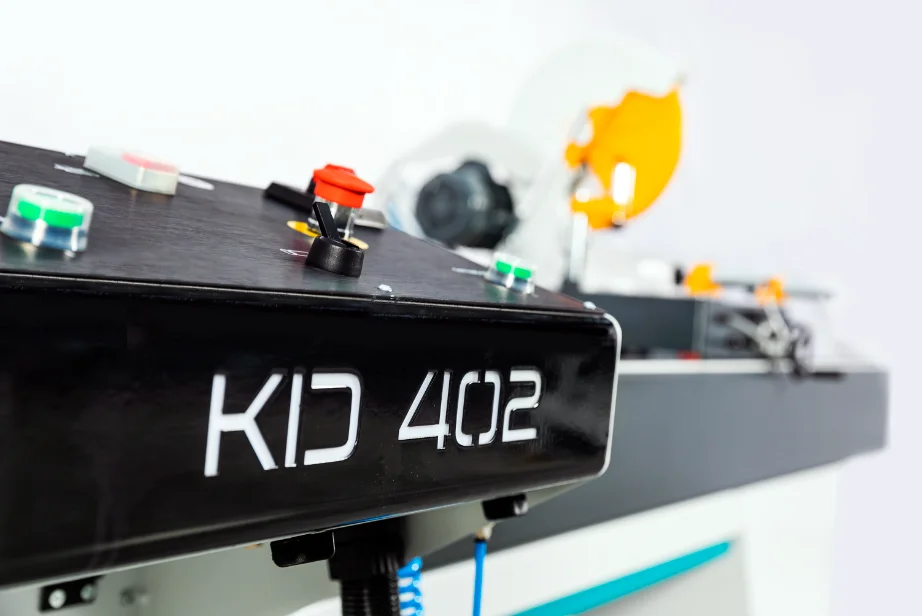

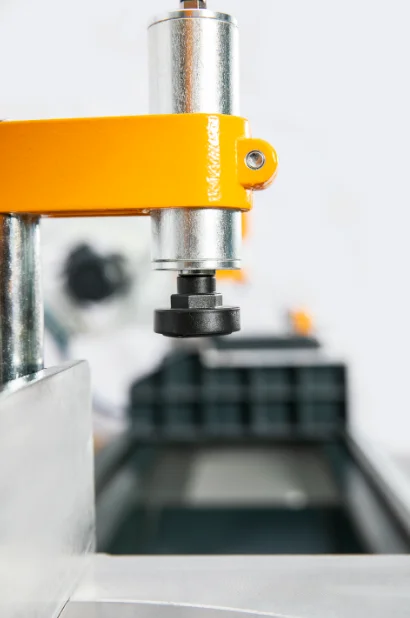

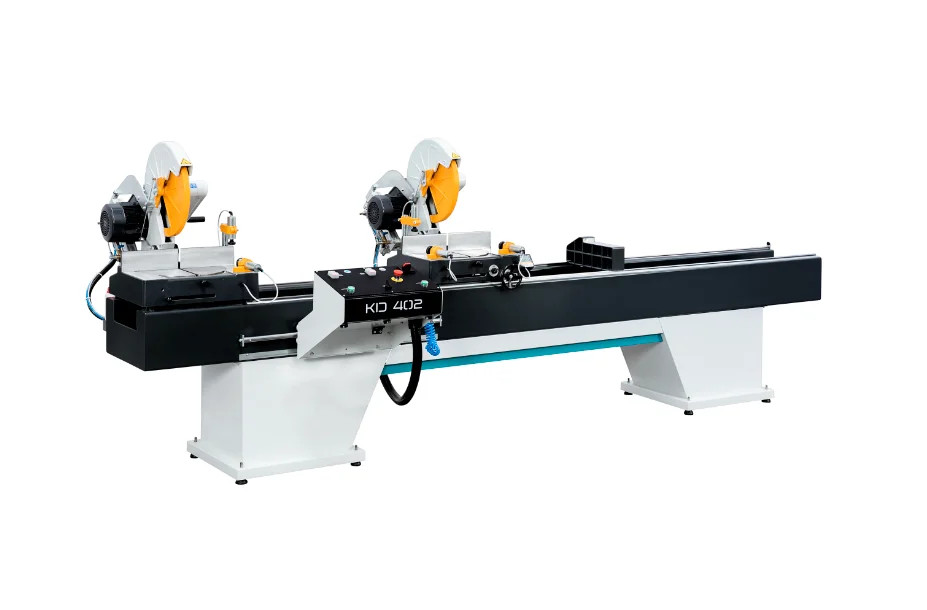

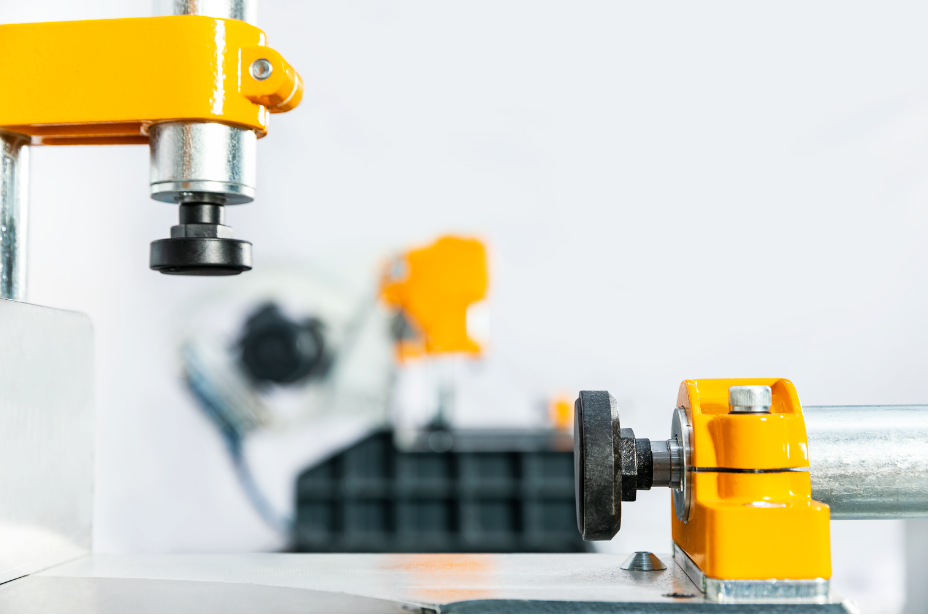

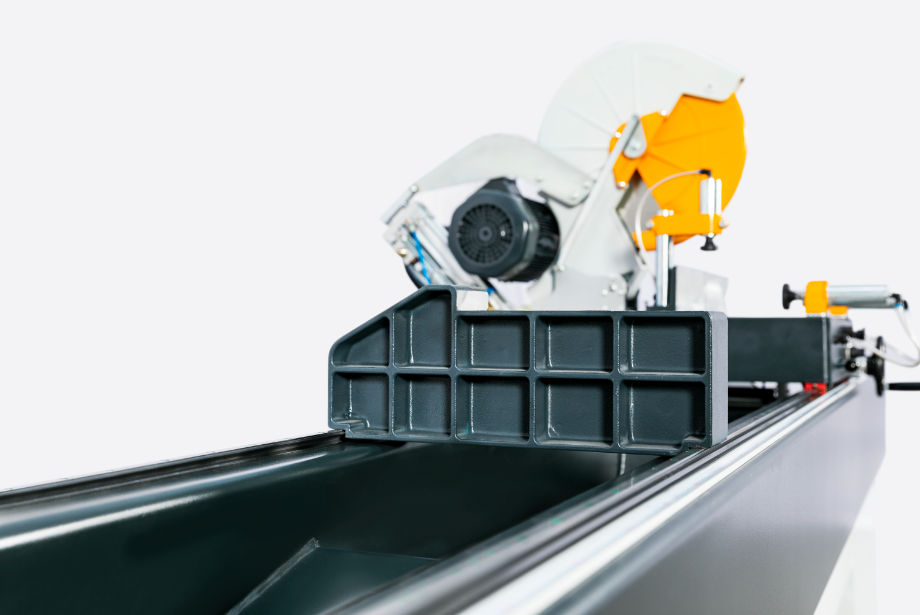

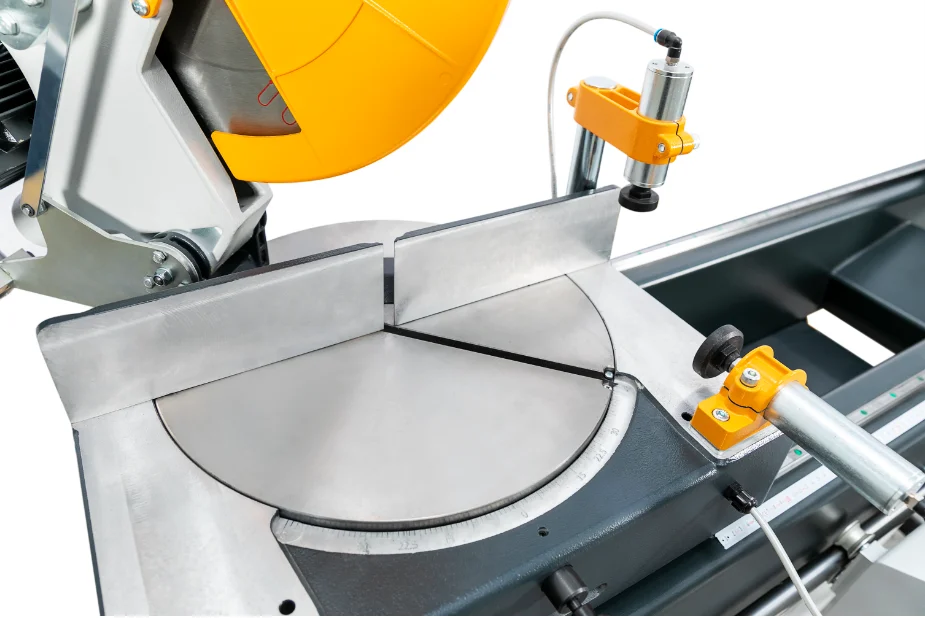

Norma-02 SA is a 16″ (400 mm) semi-automatic double head miter saw with a digital read-out. It has 4 main parts; 2 x 400 mm (16″) carbide tipped saw blades, pneumatic horizontal clamps, digital read-out, pneumatic spray mist lubrication system and an air gun. There are also custom fixtures among optional equipment. Technical FeaturesPatented two-step down speed control systemThe saws’ down speed can be adjusted to the height of the profile to be cut by means of a two-step speed control system. The first step is used to move the cutting heads at high speed towards the profile, and then the speed of the cutting heads is switched to the second step; therefore, the time required to perform and complete the cutting operation is shortened by 50%. Semi-automatic double head miter saw with carbide tipped circular saw blades designed for straight or miter cut of vinyl, aluminum, and woodThe forward movement of the saw is hydro-pneumatic, and its speed can be adjusted accurately according to the materialThe clamps are pneumatic with safety featuresThe left saw head is fixed in its position, and the right saw head is moved manually to its positionThe right saw head is equipped with pneumatic brake system, and when the braking key is switched to “OPEN”, the saw head will not work for safety purposesThe distance between the saw heads can be adjusted accurately by a digital read-out systemThe cutting at 0, 15, 22.5, 30 and 45-degree angles is achieved by positive locks, and intermediate angles re accurately set via handleMachine has been designed according to CE, UL and CSA Safety Directives Standard Equipment2×400 mm (16″) carbide tipped saw bladesPneumatic horizontal clampsDigital read-outAir gunUser’s ManualPatented two-step down speed control systemPneumatic spray mist lubrication Optional EquipmentCustom fixturesTechnical TableTechnical Features Imperial2 x 3 HP 3-Phase 220/440V 60 HzD=16″ d=1.18 – 1.26″3000 rpm90-120 psi 1 CFM158″x47″x59″1,078 lbsTechnical Features Metric2 x 2.2 kW 400V 50HzD= 400 mm d=30-32 mm3000 rpm6-8 Bar 35 l/min400x120x150 cm490 kgDouble Head Miter SawNorma-02 SA is a 16″ (400 mm) semi-automatic double head miter saw with a digital read-out. It has 4 main parts; 2 x 400 mm (16″) carbide tipped saw blades, pneumatic horizontal clamps, digital read-out, and an air gun. There are also custom fixtures and pneumatic spray mist lubrication systems among optional equipment. Norma-02 SA has a semi-automatic double head miter saw with carbide tipped circular saw blades. It is designed for straight or miter cut of vinyl, aluminum, and wood. The forward movement of the saw is hydro-pneumatic, and its speed can be adjusted accurately according to the material, and the clamps are pneumatic with safety features. The left saw head is in fixed position, while the right saw head is moved manually. Moreover, the right saw head is equipped with a pneumatic brake system, and when the braking key is switched to “Open”, the saw head will not work for safety purposes. The distance between the saw heads can be adjusted accurately by a digital read-out system. Norma-02 SA has angle adjustments for cutting at 0°, 15°, 22.5°, 30° and 45°degree angles, which is achieved by positive locks, while the intermediate angles can accurately be set using the handle. The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Norma-02 SA at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and parts list.
