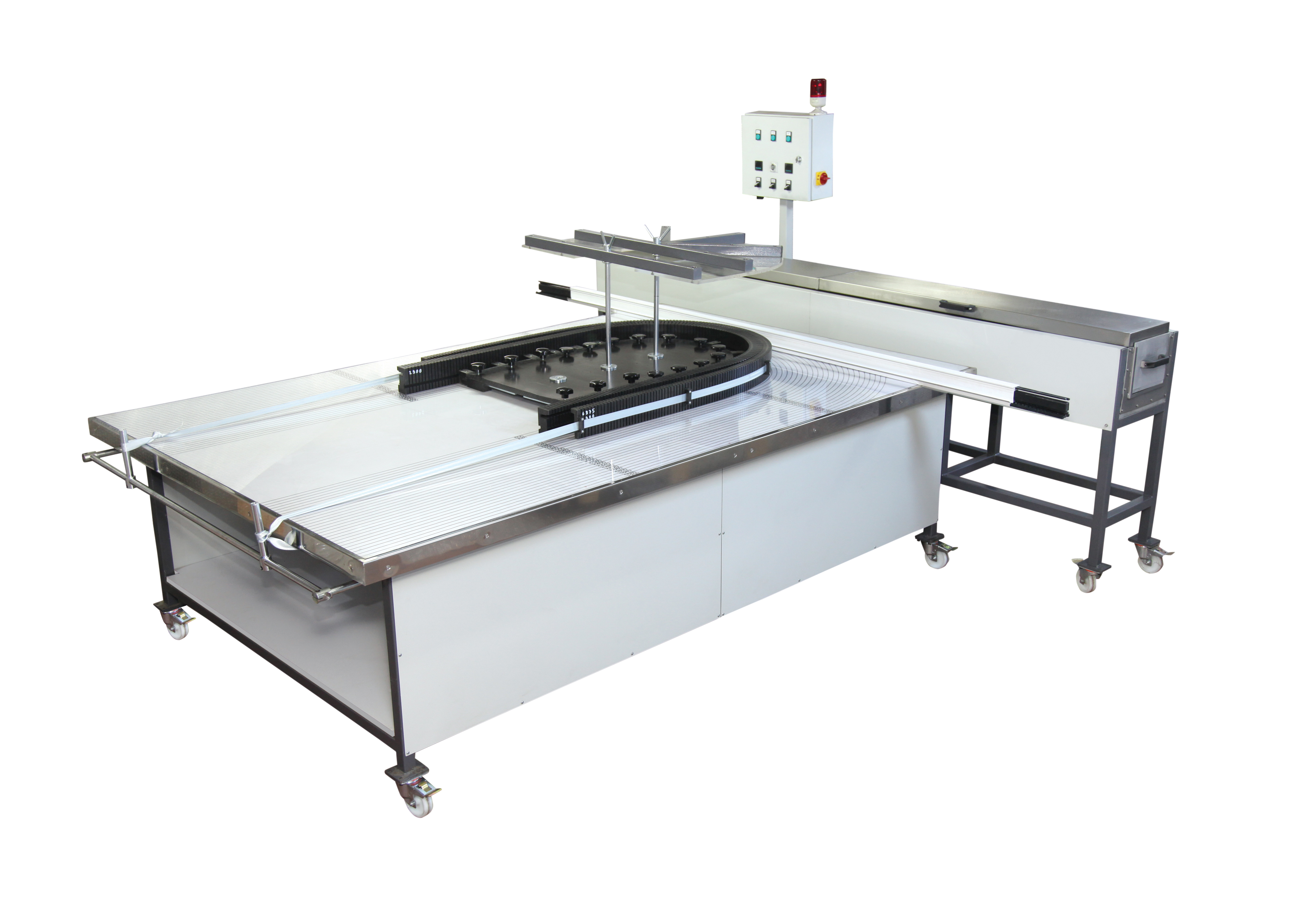

DRAGON Manual Vinyl (PVC) Hot Air Profile Bending Machine

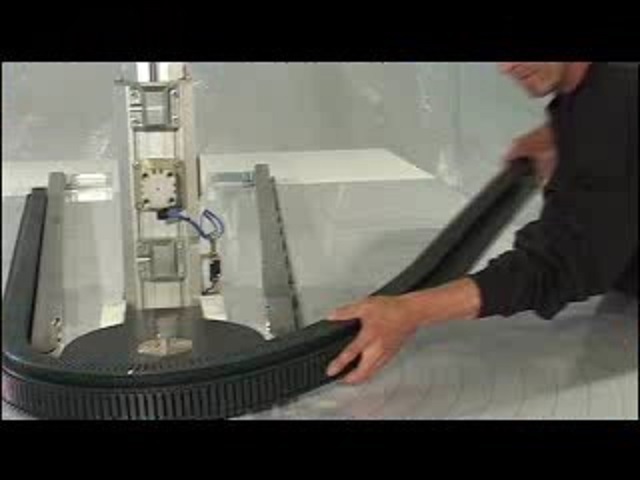

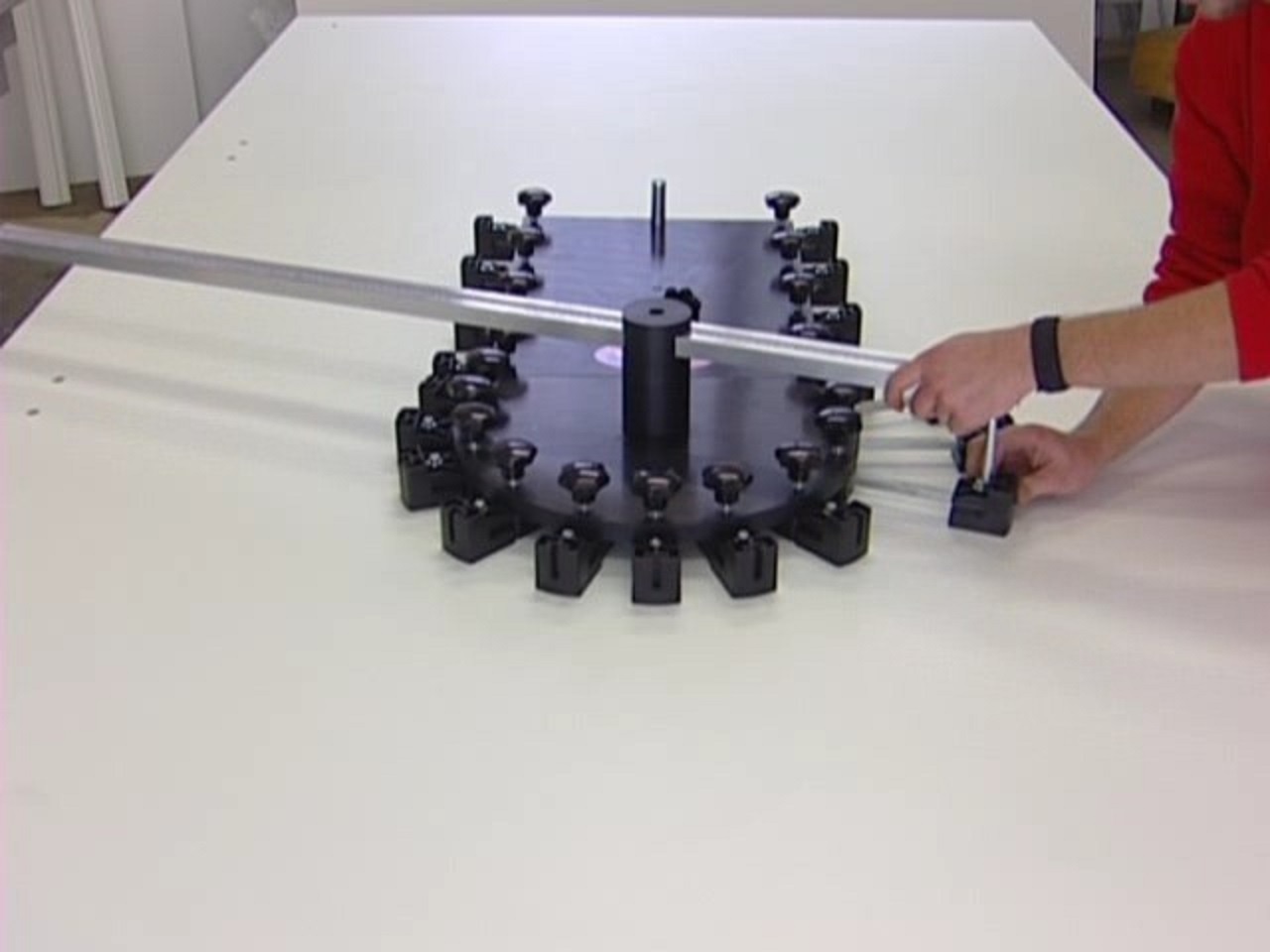

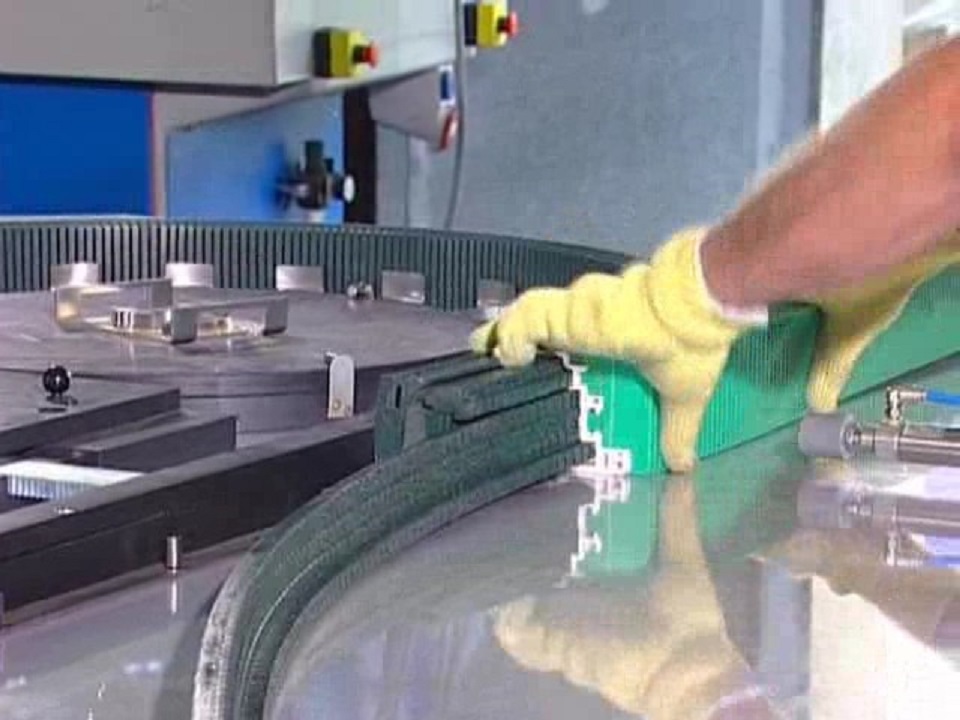

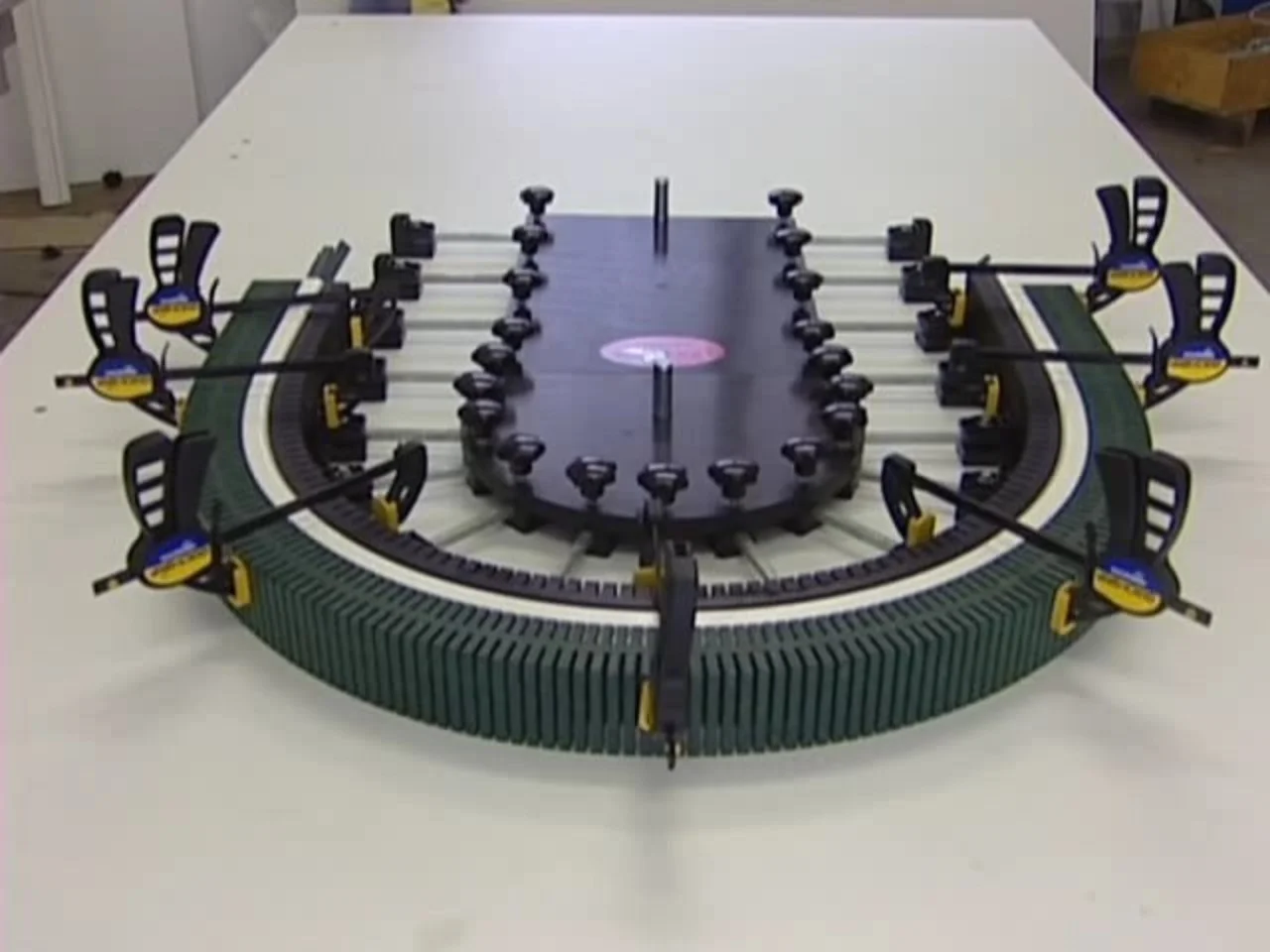

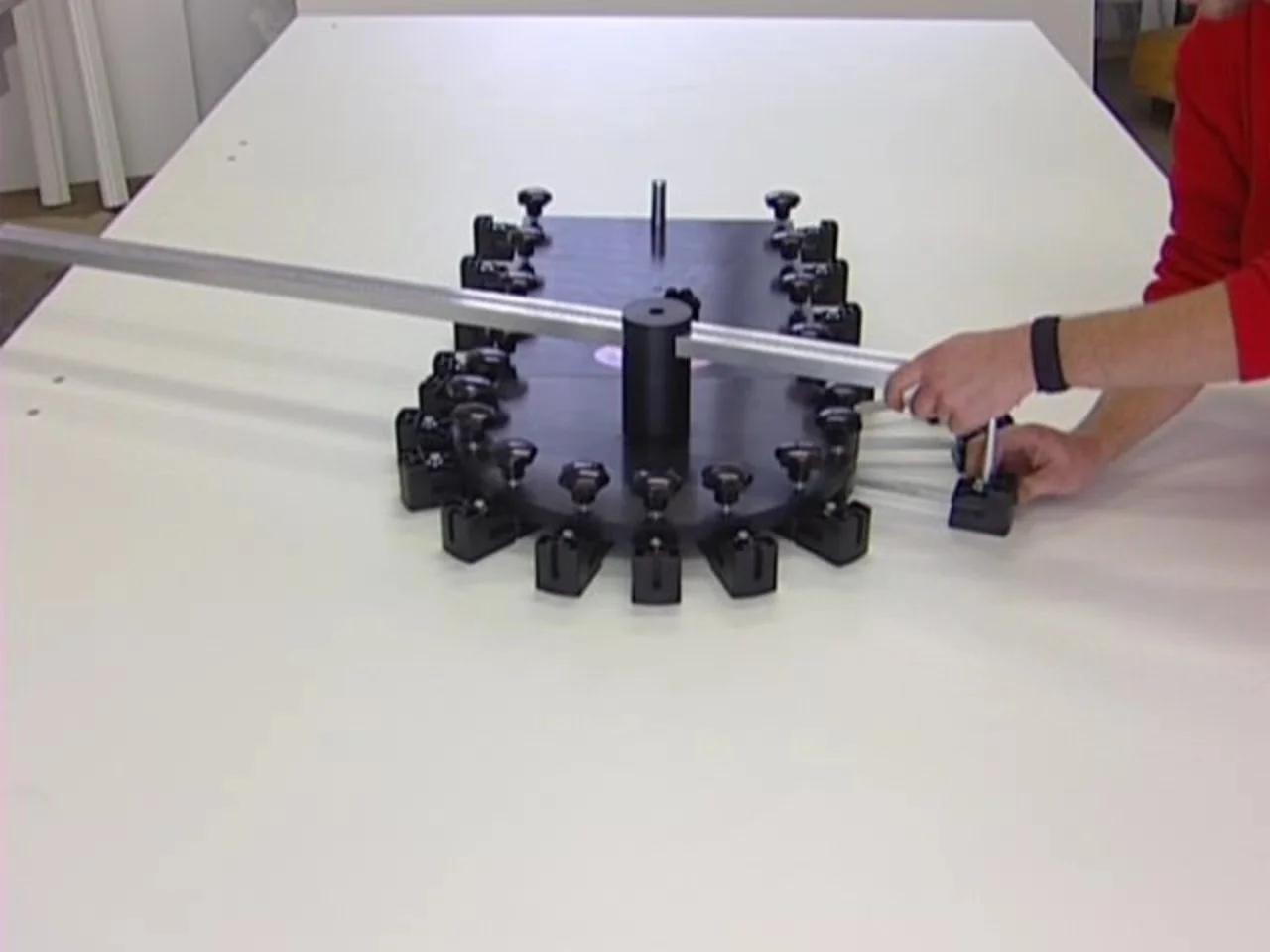

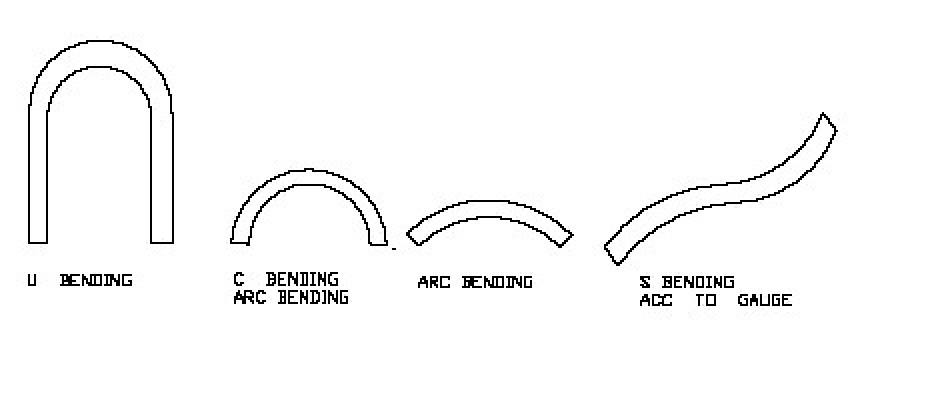

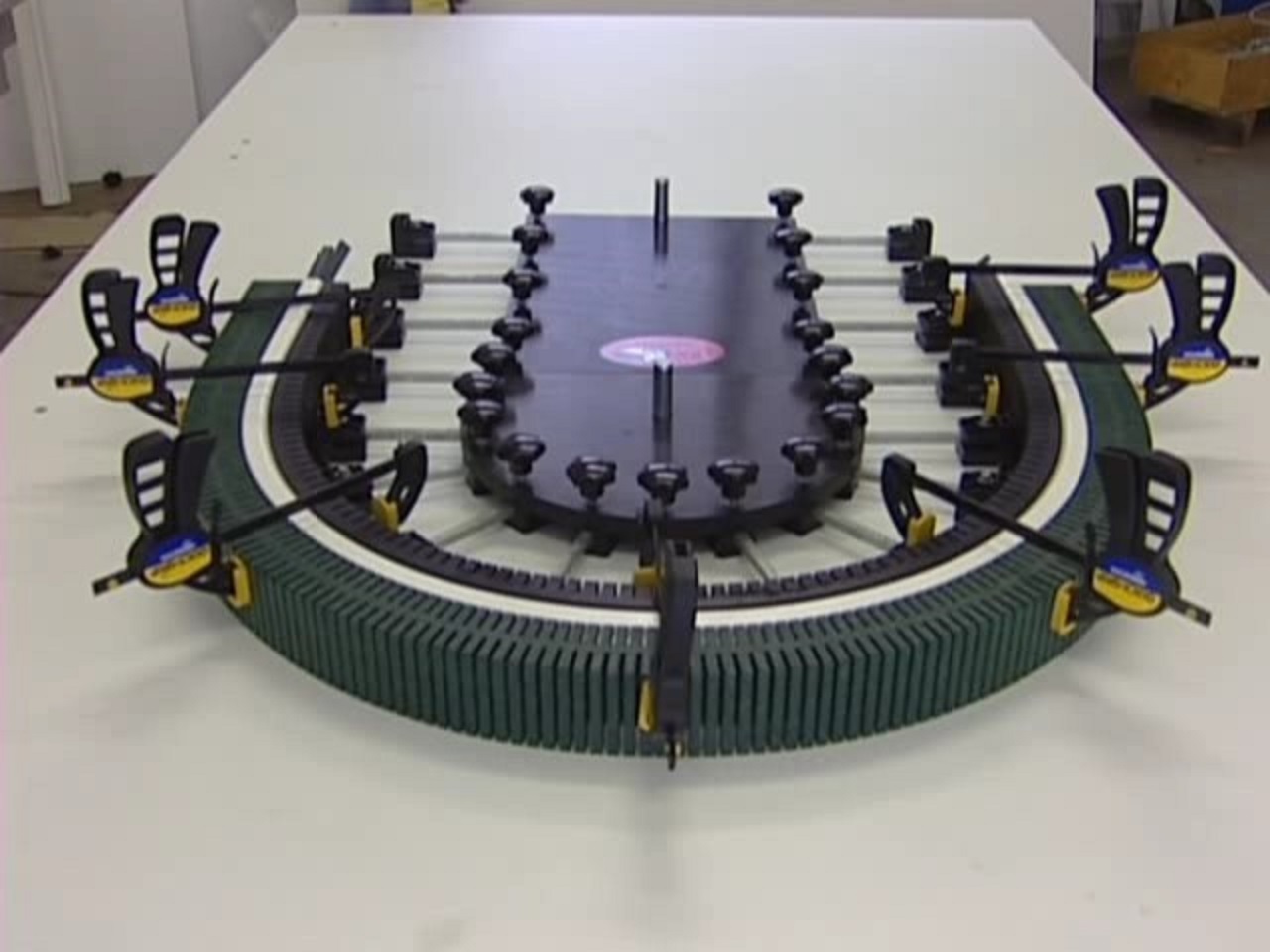

Manual hot air PVC (vinyl) profile bending machine with automatic heating oven, bending table and specially designed fast clamping tooling. We provide also custom bending forms for internal and external bending. The total working length and inserts is 10′ (3000 mm). We provide custom snakes for frame, sash profiles and double glazing beads. Machine comes with heightening parts for mullion and sash profiles. Distance plates for fast bending adjustment are also included.
Technical Features
Max. 1/2 profile bending width
: 1800-700 mm (71”– 28”)
Max. 1/2 profile bending height
: 1800-300 mm (71”– 12”)
Overall Dimensions (l x w x h)
: 5000x2800x900 mm (197”x110”x35”)
Weight
: 850 kg (1,870 lbs)
Voltage
: 3-Phase 220V/440V – 400V 50/60Hz
Manual hot air PVC (vinyl) profile bending machine with automatic heating oven, bending table and specially designed fast clamping tooling. We provide also custom bending forms for internal and external bending. The total working length and inserts is 10′ (3000 mm). We provide custom snakes for frame, sash profiles and double glazing beads. Machine comes with heightening parts for mullion and sash profiles. Distance plates for fast bending adjustment are also included.
Technical Features
Max. 1/2 profile bending width
: 1800-700 mm (71”– 28”)
Max. 1/2 profile bending height
: 1800-300 mm (71”– 12”)
Overall Dimensions (l x w x h)
: 5000x2800x900 mm (197”x110”x35”)
Weight
: 850 kg (1,870 lbs)
Voltage
: 3-Phase 220V/440V – 400V 50/60Hz
Technical specifications and features are subject to change without prior notice.
