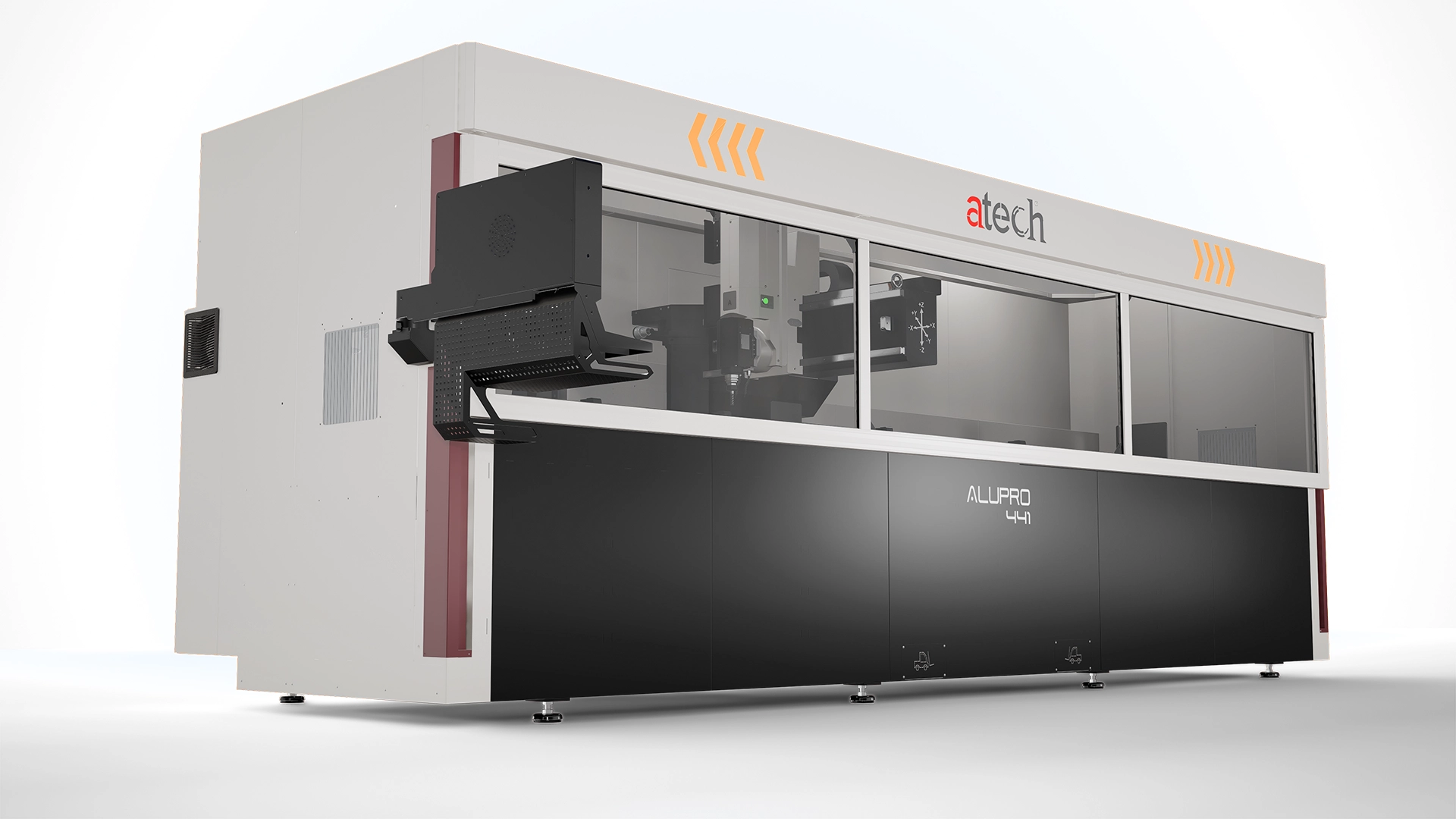

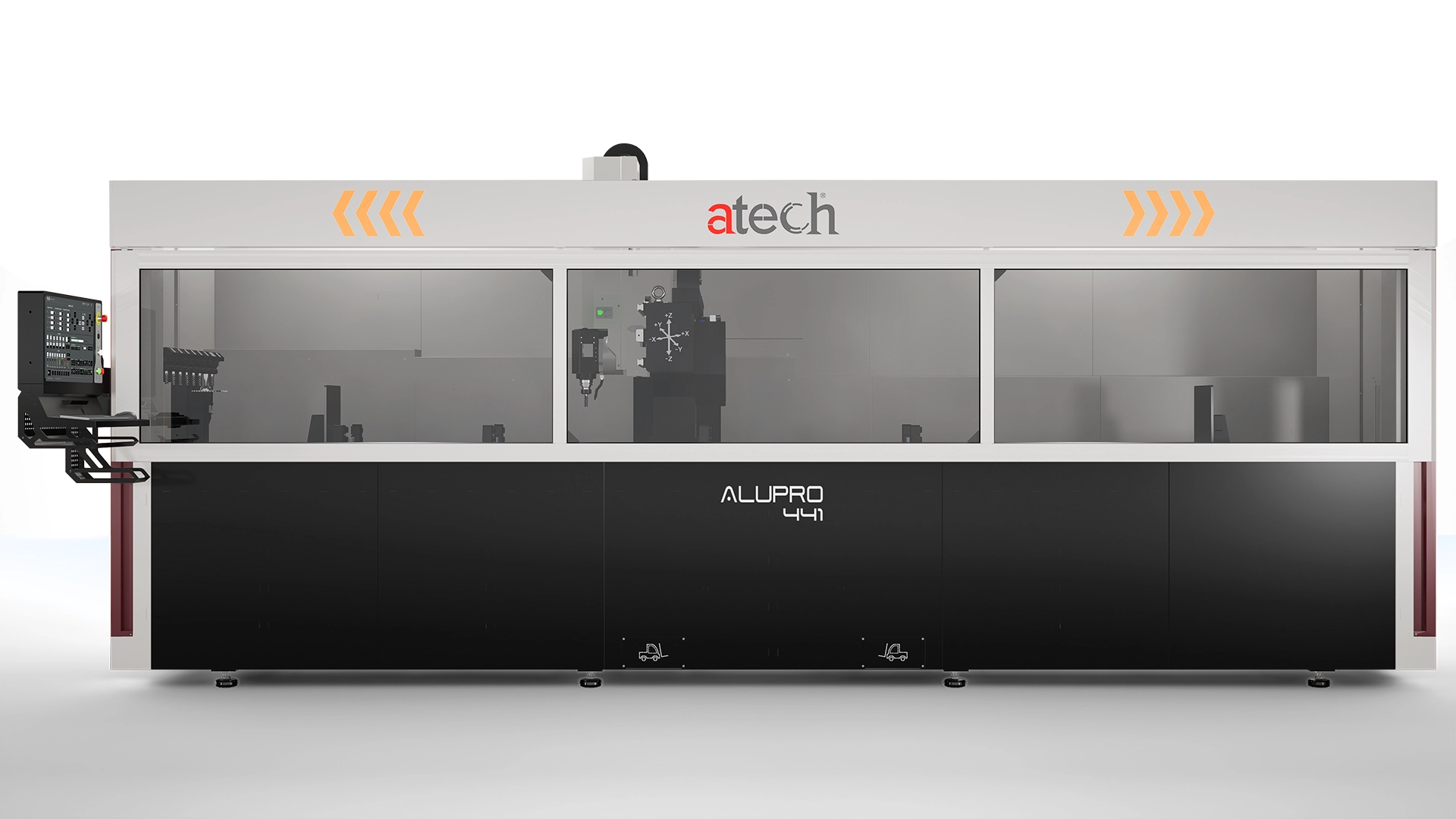

ALUPRO – 4-AXIS

GENERAL FEATURES

The 4-axis CNC aluminum profile processing center is a machine designed specifically for the precise processing of aluminum profile parts. The machine is equipped with a computer control system that is specially programmed to perform high-precision cutting and drilling operations.

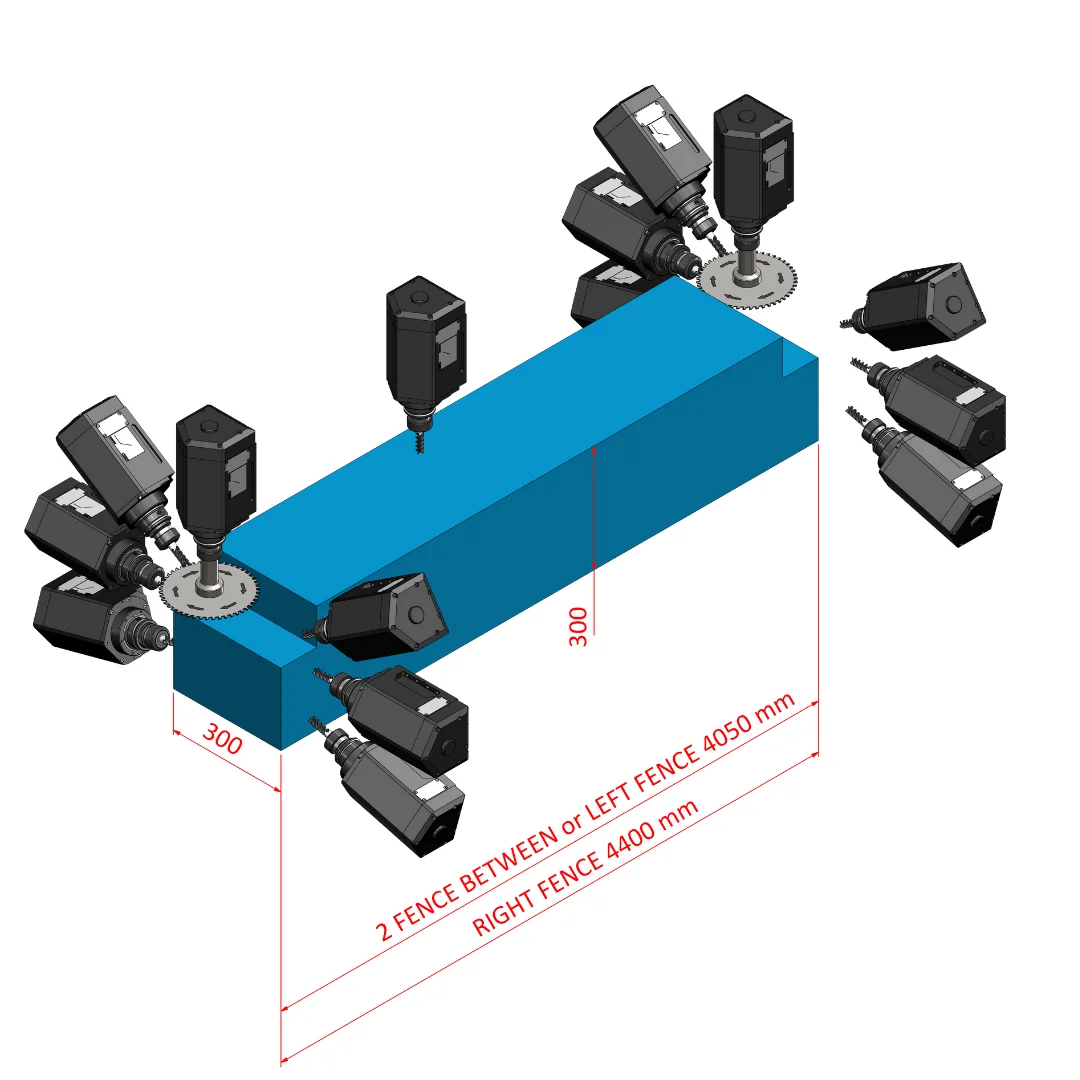

• Designed for operations such as drilling of any type of holes, grooving, milling out of corners, end milling via saw blade, tapping etc. on three surfaces of extrusions.
• The double station working feature enables machining of two workpieces with a single program.

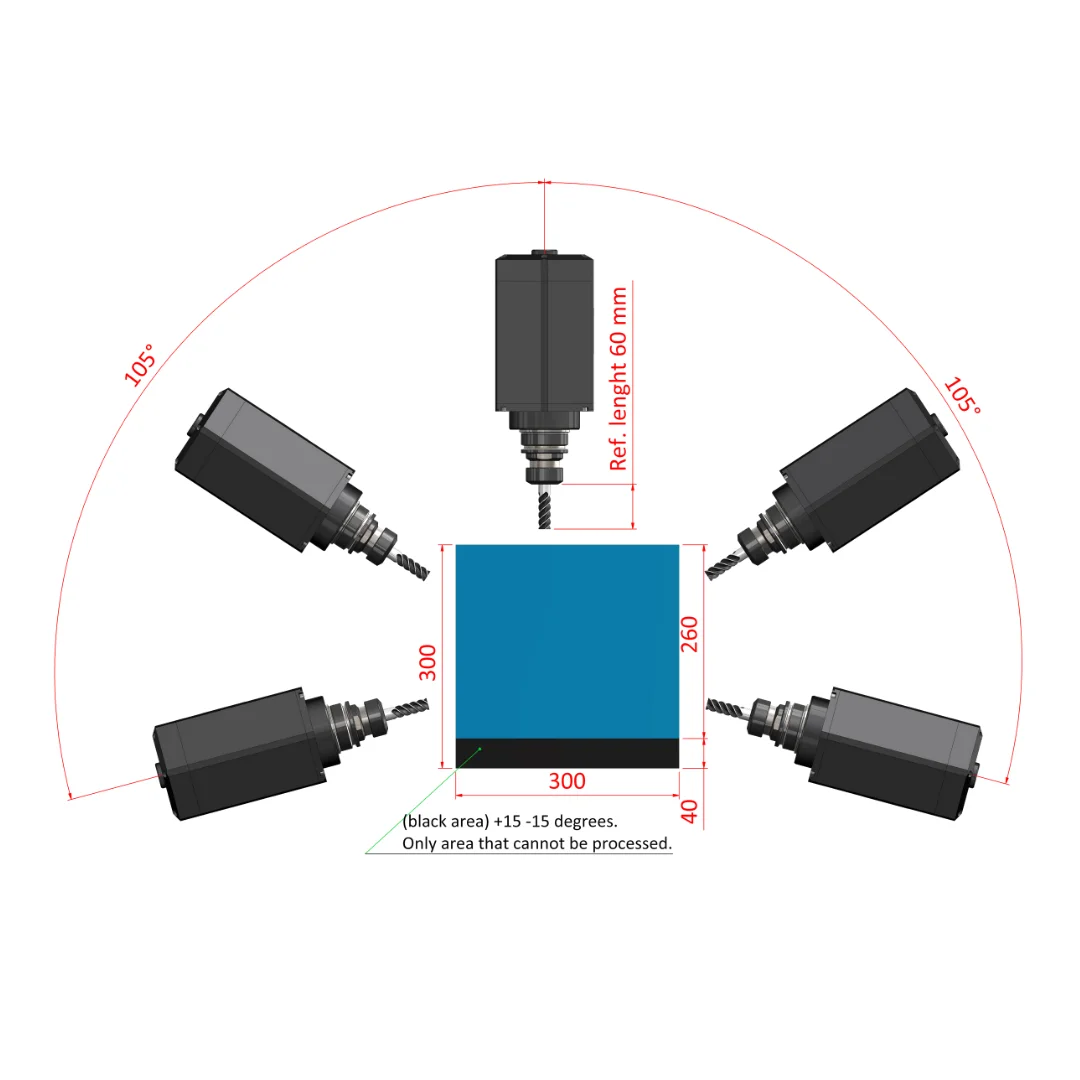

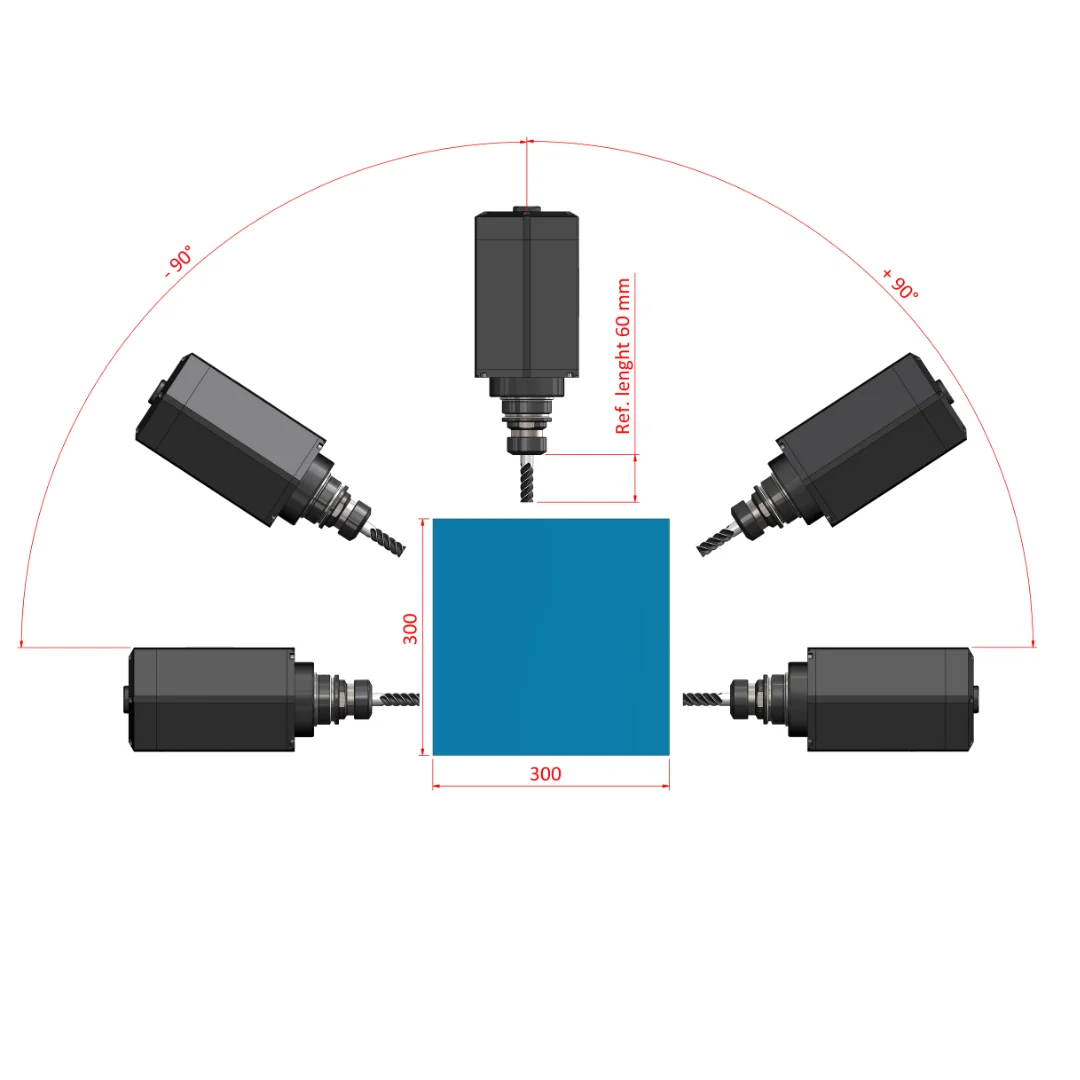

• Automation system providing CNC motion on 4 axes.

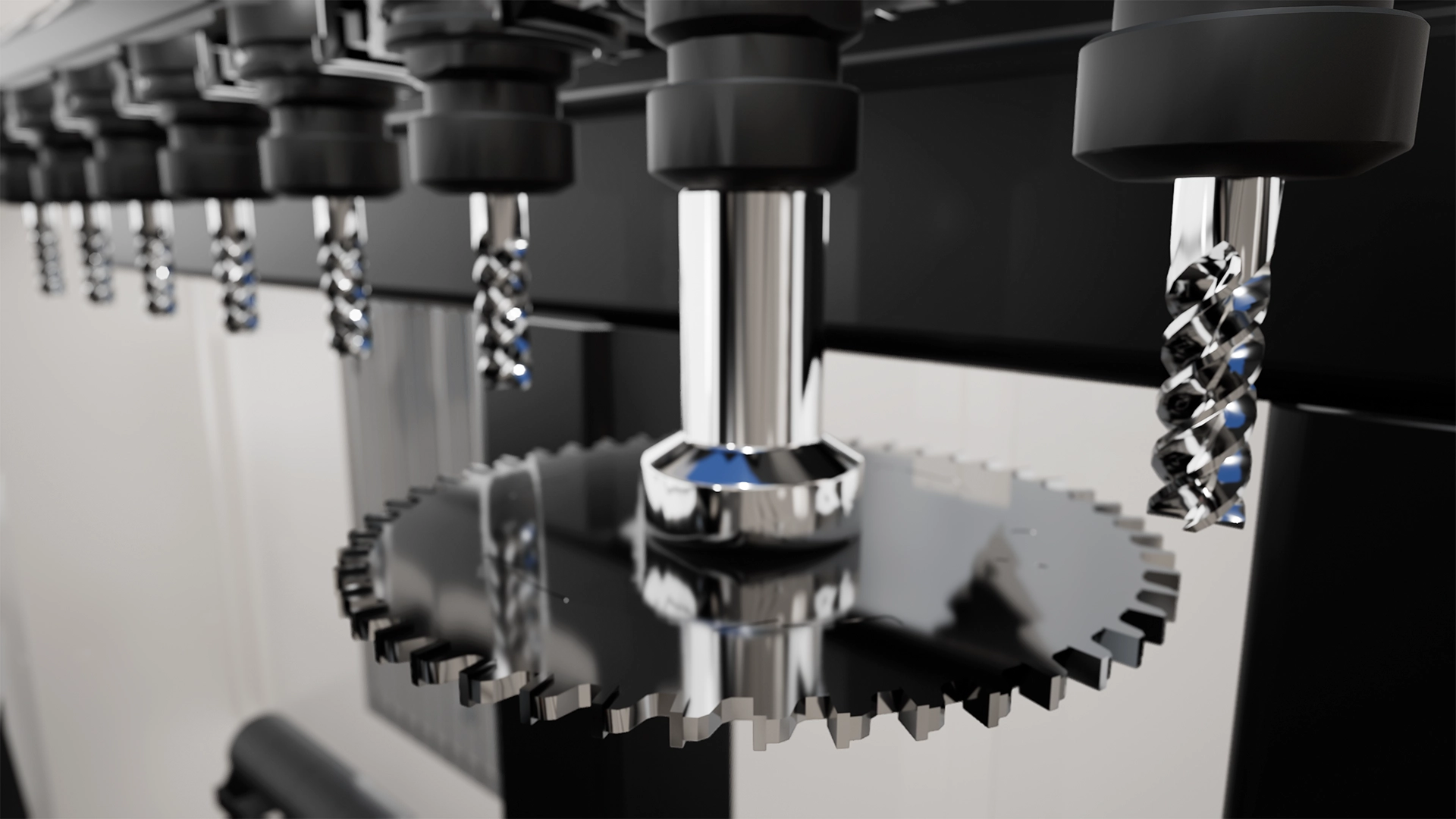

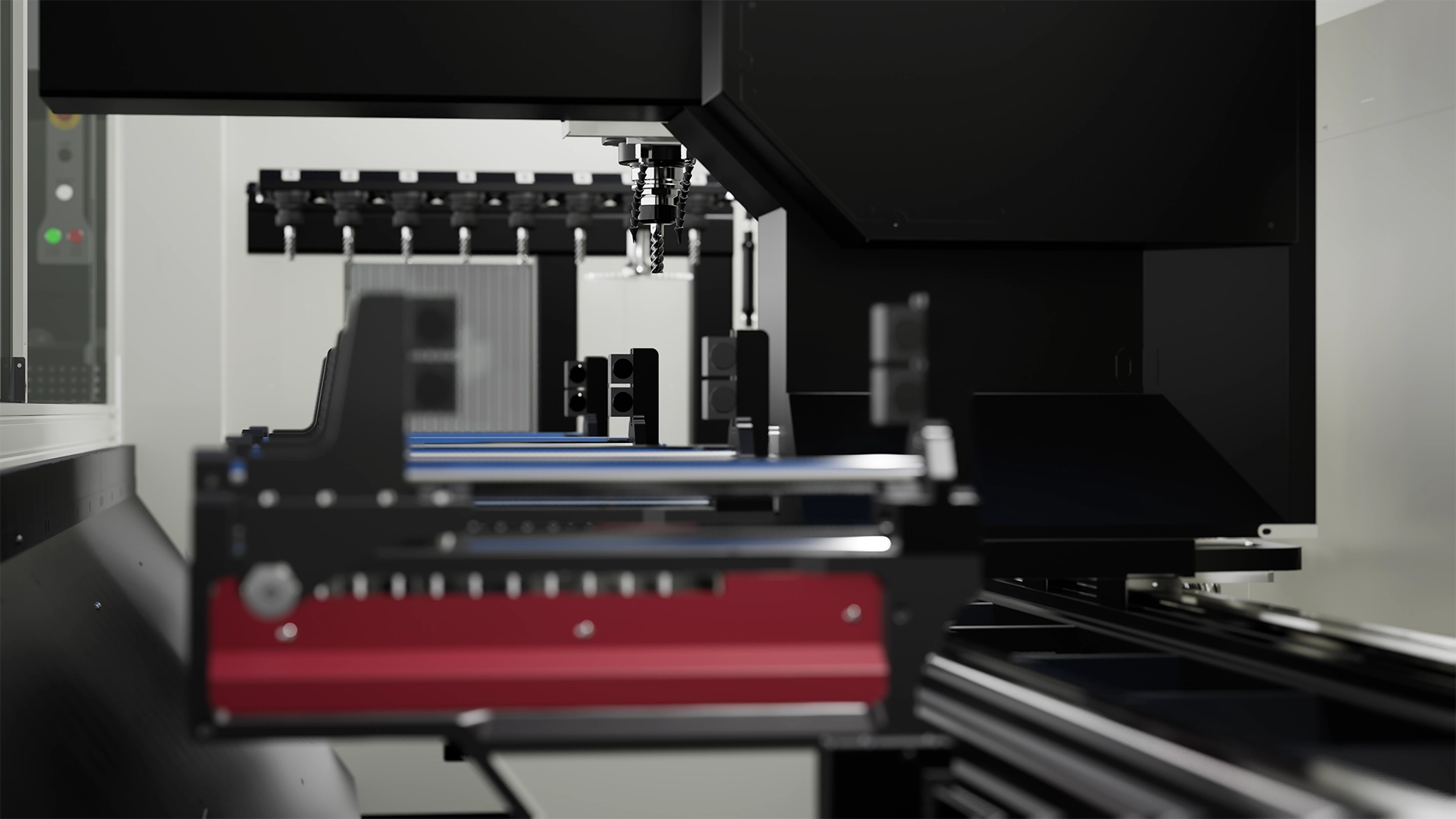

• Magazine unit with 8 tools, incl. cutting tools and a 200 mm diameter saw blade.
• Automatic clamp recognition and positioning feature

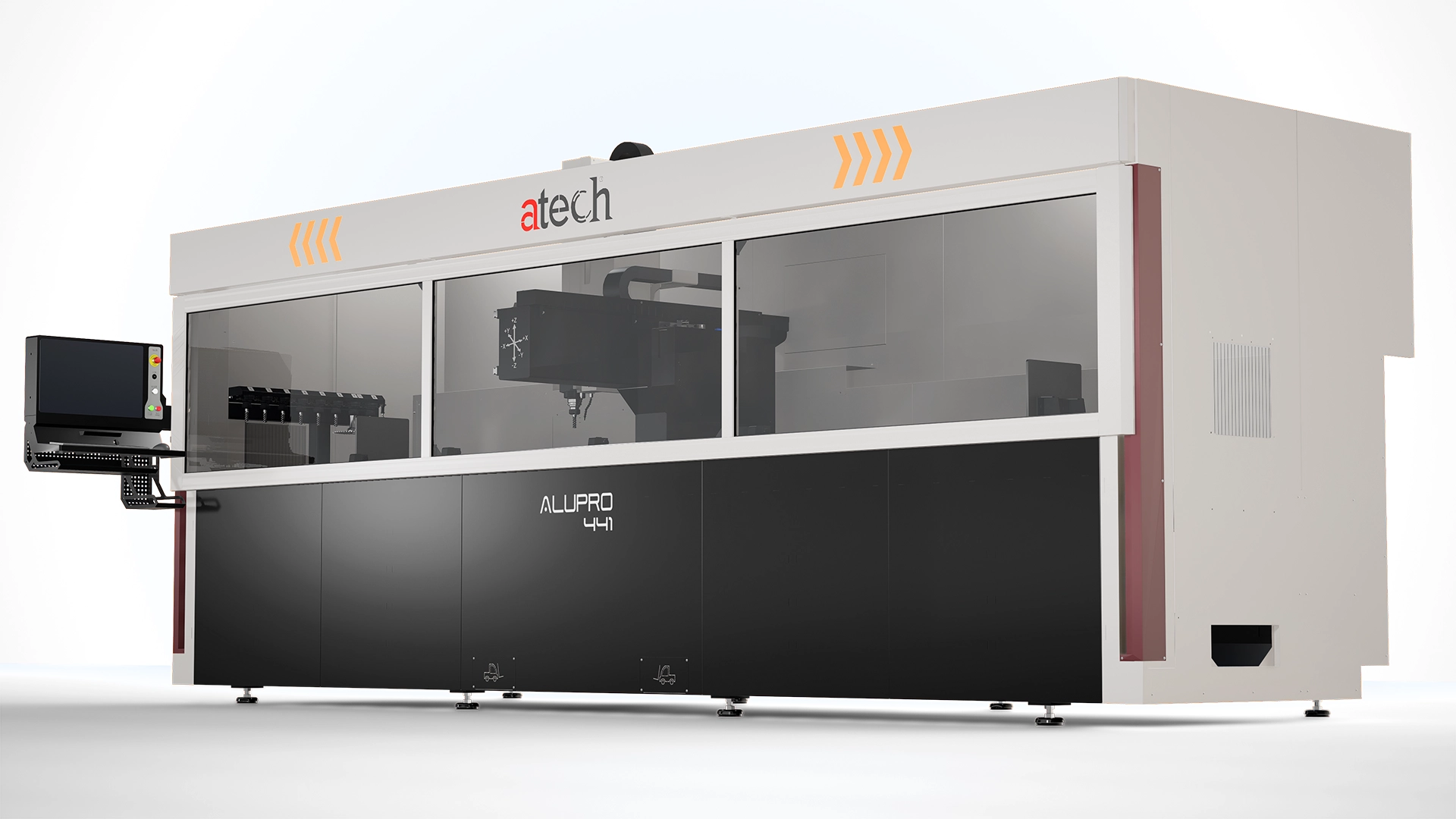

• Enclosed machine cabin
• PLC controlled dual set of pulverized cooling unit, which can work independently from each other.

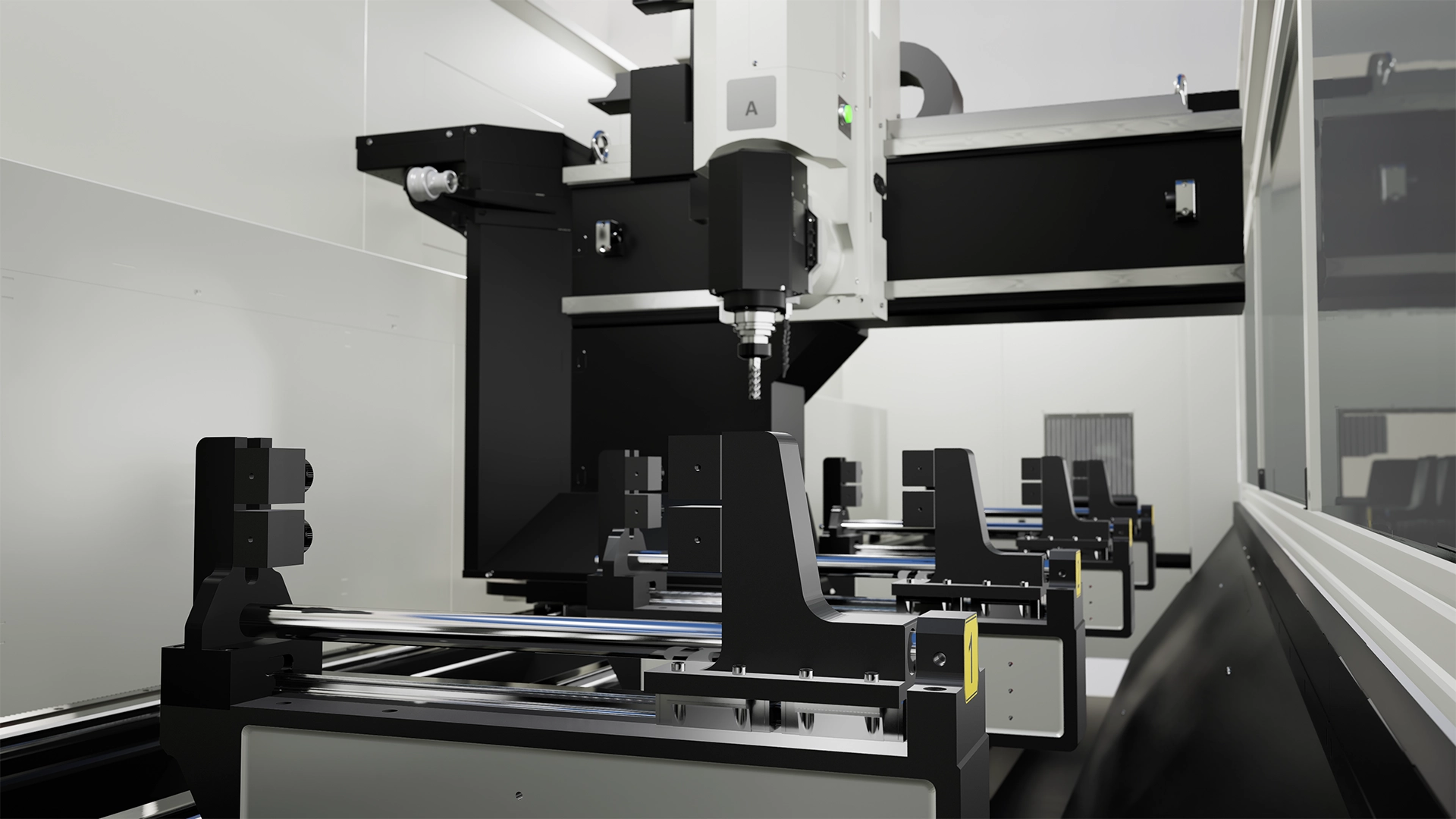

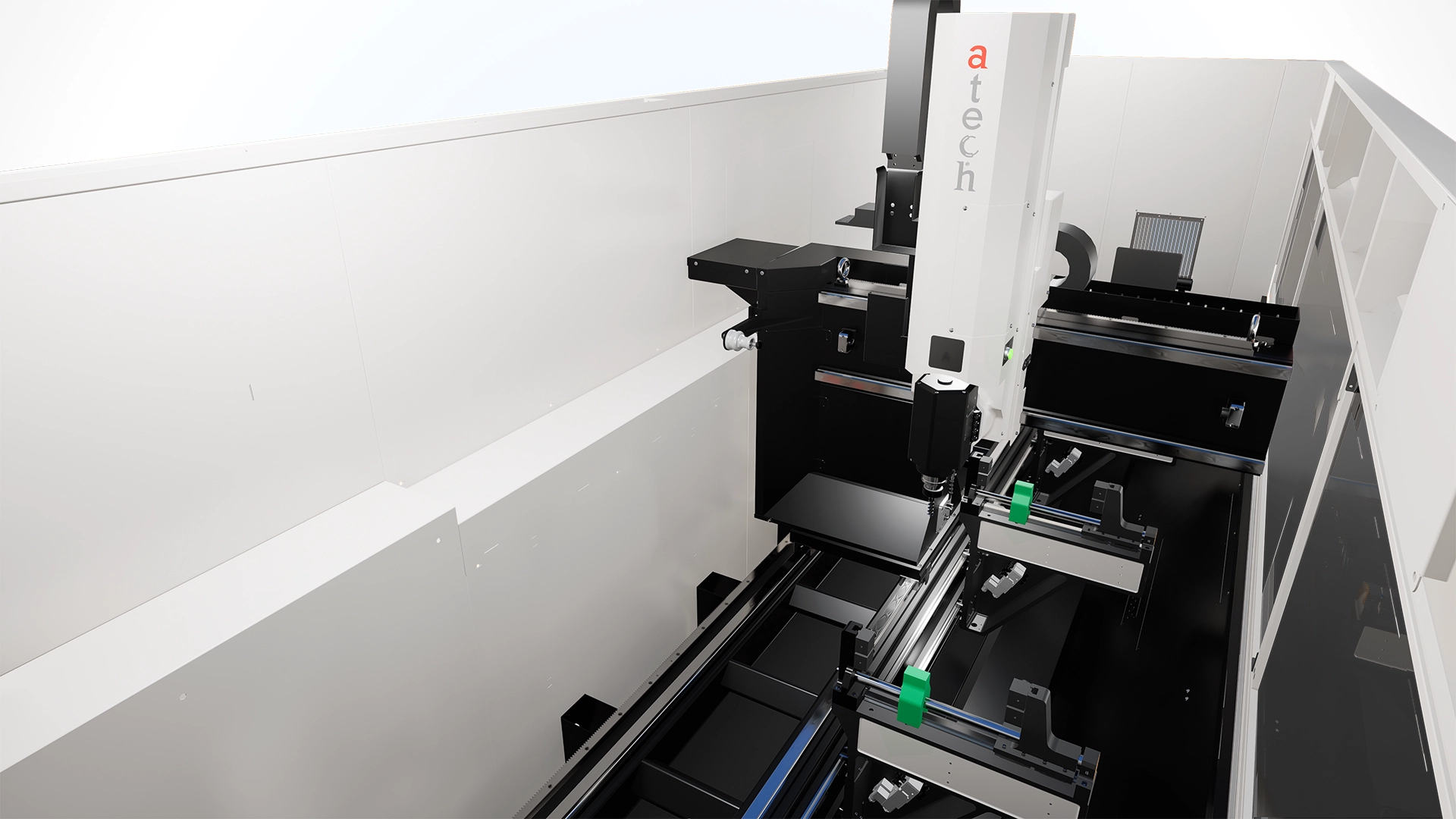

• 4 automatic clamps used to catch the workpiece (number of clamps can be increased as an option)
• 2 robust pneumatic stop units used as stops in X direction for the workpiece.

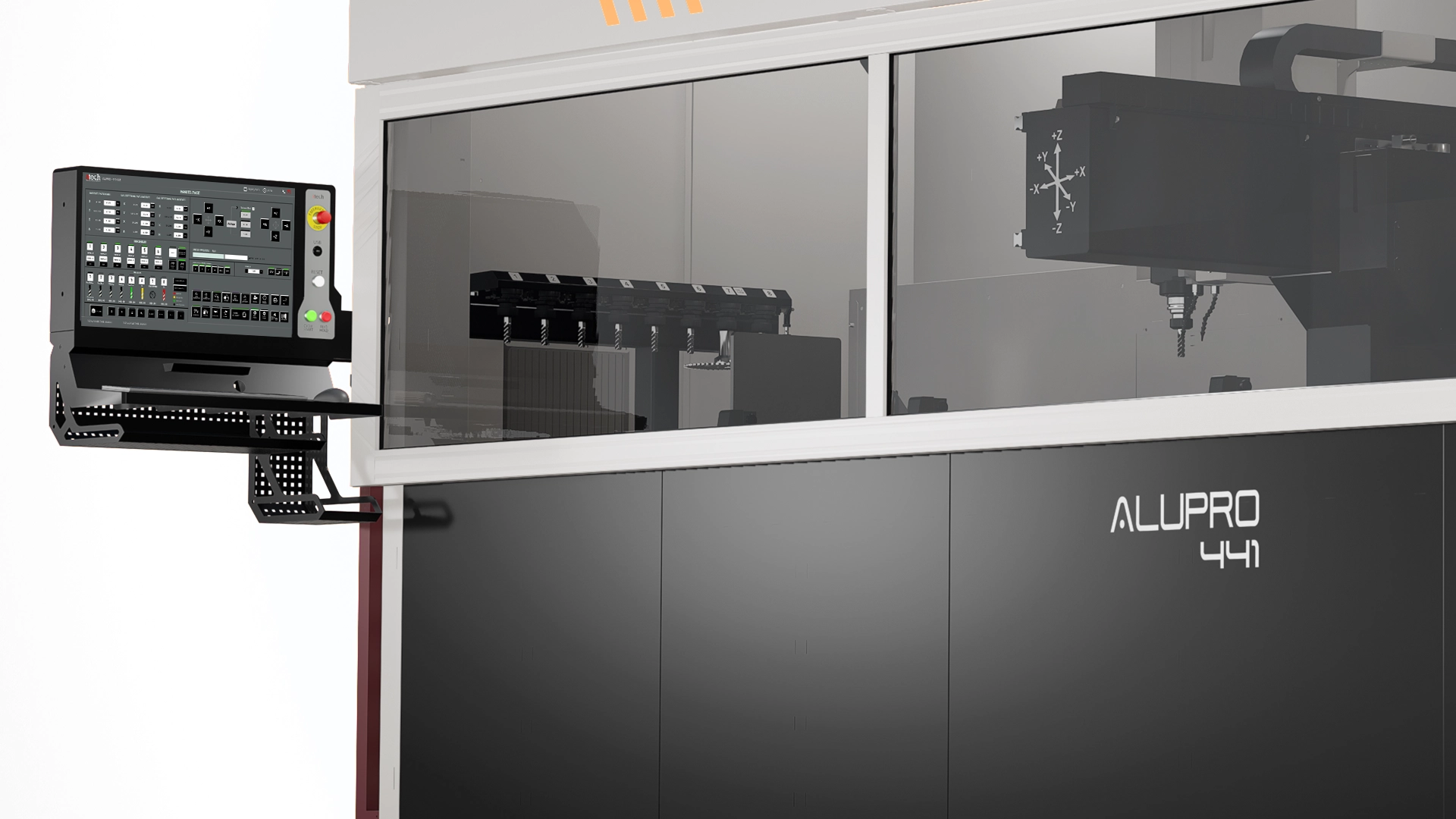

• 21’’ Windows based Touchscreen industrial PC.
• External program transfer via Wifi, Ethernet and USB memory.
• Technical support via remote access.
• Standard ISO ‘G’ code programming language.
• Central automatic lubrication system of the X, Y and Z axes.
• LED illumination of the inner cabin.

STANDARD FEATURES

• X Axis : 120 m/min
• Y Axis : 60 m/min
• Z Axis : 25 m/min
• A Axis : 5400°/min

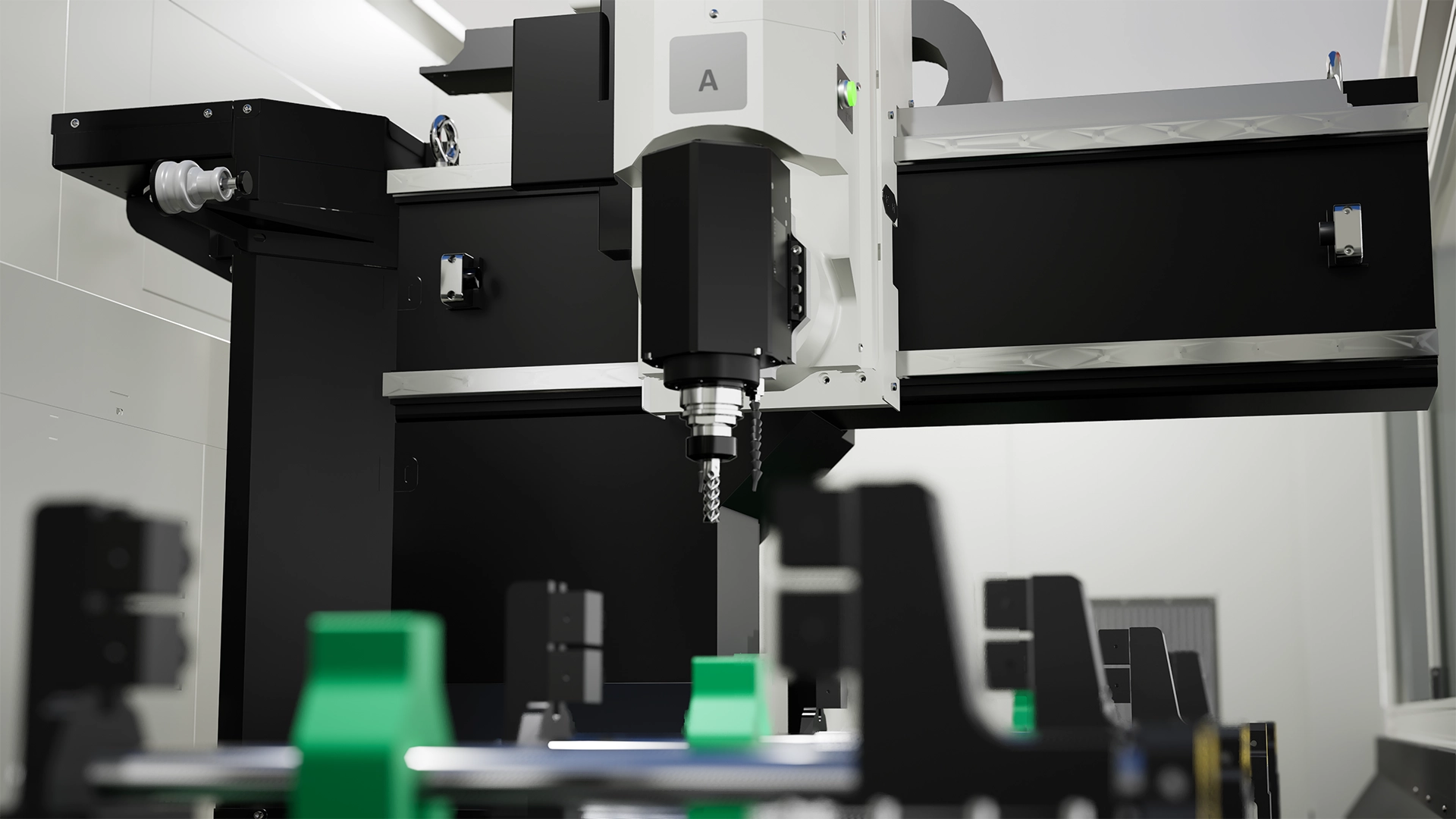

• S1 Maxımum Power : 7 kW
• Maximum Rpm : 20.000 rpm
• Tool Holder Taper : HSK-F63
• Motor Liquid Cooling : ✓

• Tool Change : Otomatik
• Number Of Tool Holders : 8
• Number Of Magazines : 8
• Maximum Tool Diameter : Ø20 mm
• Maximum Tool Clamping Length : 150 mm
• Maximum Saw Diameter : Ø180 mm
• Maximum Guide : M8
• PLC Controlled 2-Output Tool Cooling Unit : ✓

• Standard Clamp Quantity : 4
• Automatic Clamp Positioning : ✓
• Reference Stand Quantity : 2

• 21″ Windows Based Industrial PC : ✓
• Data Transfer over USB via Network : ✓
• Ability to Provide Technical Support with
• Remote Connection : ✓
• CAM Program : ✓

OPTIONAL

• Please call to inquire available options
